bjlysk JQ399 Handheld Steam Cleaner User Manual

Introduction

Thank you for choosing the bjlysk JQ399 Handheld Steam Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new steam cleaner. Please read it thoroughly before first use and keep it for future reference.

Image: The bjlysk JQ399 Handheld Steam Cleaner, a compact and portable device designed for various cleaning tasks.

Important Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury. This includes:

• Read all instructions before use.
• Do not direct steam at people, animals, or electrical appliances.
• Do not immerse the appliance in water or other liquids.
• Keep out of reach of children.
• Always unplug the appliance when not in use and before cleaning.
• Ensure the safety cap is securely tightened before operating.
• Use only distilled or demineralized water to prevent mineral buildup.

The handle is equipped with a built-in child lock to ensure safe operation and prevent accidental release of steam when not in use.

Product Components

Your bjlysk JQ399 Handheld Steam Cleaner comes with several accessories to enhance its versatility:

Image: The main unit of the steam cleaner shown with its various attachments, including flexible hose, cleaning cloth, window wiper, scrubbing brush, angle nozzle, round brush, straight nozzle, measuring cup, funnel, and user manual.

• Main Unit: The core steam generator.
• Flexible Extension Hose: For extended reach and flexibility.
• Long Spray Nozzle: For focused steam application.
• Window Tool: For streak-free window cleaning.
• Brush Nozzle (Round Brush): For scrubbing tough grime.
• Angled Nozzle: For reaching tight corners and crevices.
• Fabric Sleeve (Cleaning Cloth): For delicate surfaces and upholstery.
• Measuring Cup: For accurate water filling.
• Funnel: To prevent spills during water refilling.

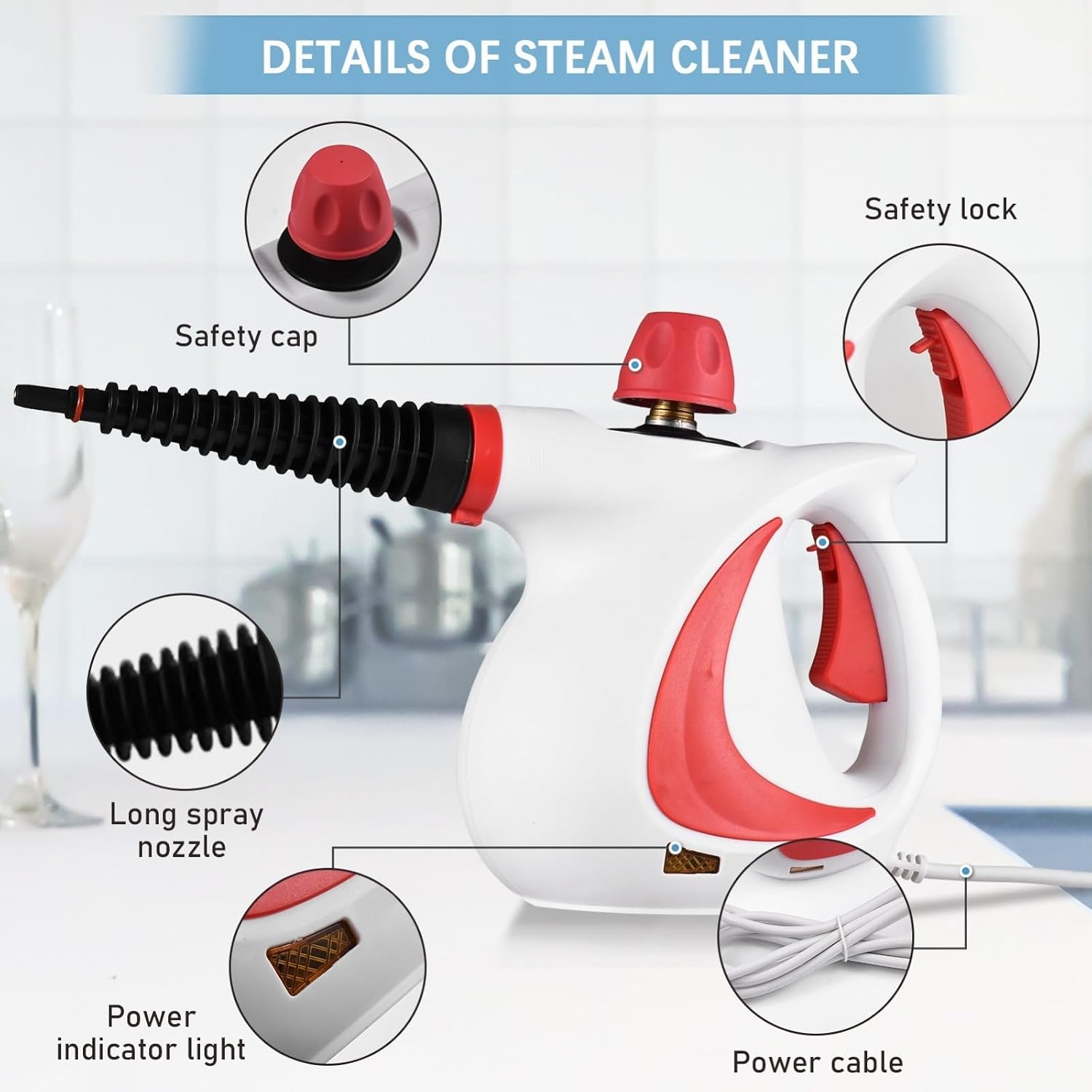

Image: A close-up view highlighting the safety cap, safety lock, long spray nozzle, power indicator light, and power cable of the steam cleaner.

Setup Instructions

1. Prepare the Unit: Ensure the steam cleaner is unplugged and cool before starting.
2. Fill Water Tank: Unscrew the safety cap. Use the provided measuring cup and funnel to fill the water tank with up to 0.4L (recommended 200ml) of distilled or demineralized water. Do not overfill.
3. Secure Cap: Screw the safety cap back on tightly.
4. Attach Accessories: Select the appropriate nozzle or brush for your cleaning task and securely attach it to the main unit or the flexible extension hose.
5. Power On: Plug the power cord into a grounded electrical outlet. The power indicator light will illuminate.
6. Heat Up: Allow 3-5 minutes for the unit to heat up. The power indicator light will turn off when the steam cleaner is ready for use.

Operating Instructions

1. Unlock Safety Switch: Push the safety switch (located on the handle) forward to unlock.
2. Activate Steam: Press and hold the steam button to release steam. For continuous steam, slide the steam button forward and then push down on the back part of the button with your thumb to lock it in place.
3. Clean Surface: Direct the steam nozzle towards the surface to be cleaned. Maintain a distance appropriate for the surface and the type of cleaning required.
4. Wipe Clean: For best results, wipe the steamed area with a clean cloth immediately after steaming to remove loosened dirt and moisture.
5. Refilling: If the steam output decreases significantly, unplug the unit and allow it to cool down for a few minutes before carefully unscrewing the safety cap and refilling the water tank.
6. Child Lock: When not actively steaming, engage the child lock by sliding the safety switch backward.

Recommended Applications

The bjlysk JQ399 Handheld Steam Cleaner is suitable for a wide range of cleaning tasks:

• Kitchen: Degrease stovetops, ovens, countertops, and clean grout lines.
• Bathroom: Remove soap scum, hard water stains, and sanitize surfaces.
• Car: Refresh seats, dashboards, and floor mats.
• Furniture: Revive upholstery, curtains, and carpets.
• Windows & Mirrors: Achieve streak-free shine with the window tool.
• Hard-to-Reach Areas: The angled nozzle and flexible hose are ideal for tight spaces.

Image: Collage showing the steam cleaner's versatility in cleaning different environments such as kitchens, living rooms, cars, and offices.

Image: A before-and-after comparison demonstrating the steam cleaner's effectiveness in quickly cleaning a greasy kitchen range hood.

Maintenance

• Cleaning the Exterior: Wipe the exterior of the unit with a damp cloth. Do not use abrasive cleaners.
• Descaling: If you notice reduced steam output or mineral buildup, descale the unit. Consult the full manual for detailed descaling instructions, typically involving a vinegar solution.
• Storage: Store the steam cleaner in a cool, dry place, out of reach of children. Ensure the water tank is empty before storage.

Troubleshooting

Technical Specifications

• Model: JQ399
• Power: 1050W
• Steam Temperature: 135°C (275°F)
• Pressure: 3.0 BAR
• Tank Capacity: 0.4L (recommended 200ml fill)
• Runtime: 8-10 minutes per fill
• Heat-Up Time: 3-5 minutes
• Weight: 1.8kg (with tank)
• UPC: 781137589568

Image: Diagram showing the dimensions of the steam cleaner: approximately 23cm (9.06in) height, 14cm (5.51in) width, and 25cm (9.84in) length.

Warranty and Support

For warranty information or technical support, please refer to the contact details provided in your product packaging or visit the official bjlysk website. Keep your purchase receipt as proof of purchase.

Protection plans are available for purchase separately:

• 2-Year Protection Plan
• 3-Year Protection Plan
