Tcwhniev 180-in-1 Precision Screwdriver Set User Manual

1. Introduction

Thank you for choosing the Tcwhniev 180-in-1 Precision Screwdriver Set. This comprehensive tool kit is designed for precision electronic repair, home maintenance, and various DIY projects. It features an ergonomic handle, a wide array of 162 precision bits, and a magnetic storage system for efficient organization and access. This manual provides essential information for the safe and effective use of your new tool set.

Image 1.1: Overview of the Tcwhniev 180-in-1 Precision Screwdriver Set.

2. Safety Information

• Age Restriction: This product is not suitable for children 13 years old and under. Keep out of reach of children.
• Eye Protection: Always wear appropriate eye protection when using tools to prevent injury from flying debris.
• Electrical Safety: Ensure electronic devices are powered off and unplugged before performing any repairs.
• Proper Tool Use: Use the correct bit size and type for each screw to prevent damage to the screw head or the bit.
• Storage: Store the tool set in a dry, secure place to prevent rust and damage.
• Sharp Edges: Exercise caution when handling sharp tools like tweezers and pry bars.

3. Package Contents

Your Tcwhniev 180-in-1 Precision Screwdriver Set includes the following components:

• 162 Precision Screwdriver Bits
• 1 Creative Handle (Ergonomic)
• 1 Built-in Magnetizer/Demagnetizer
• 5 Fish Scale Opening Picks
• 5 Ultra-Thin Opening Picks
• 2 Tweezers (1 Pointed, 1 Elbow)
• 2 Crowbars
• 1 Suction Cup
• 1 Extension Rod
• 1 Portable Tool Box with Magnetic Design

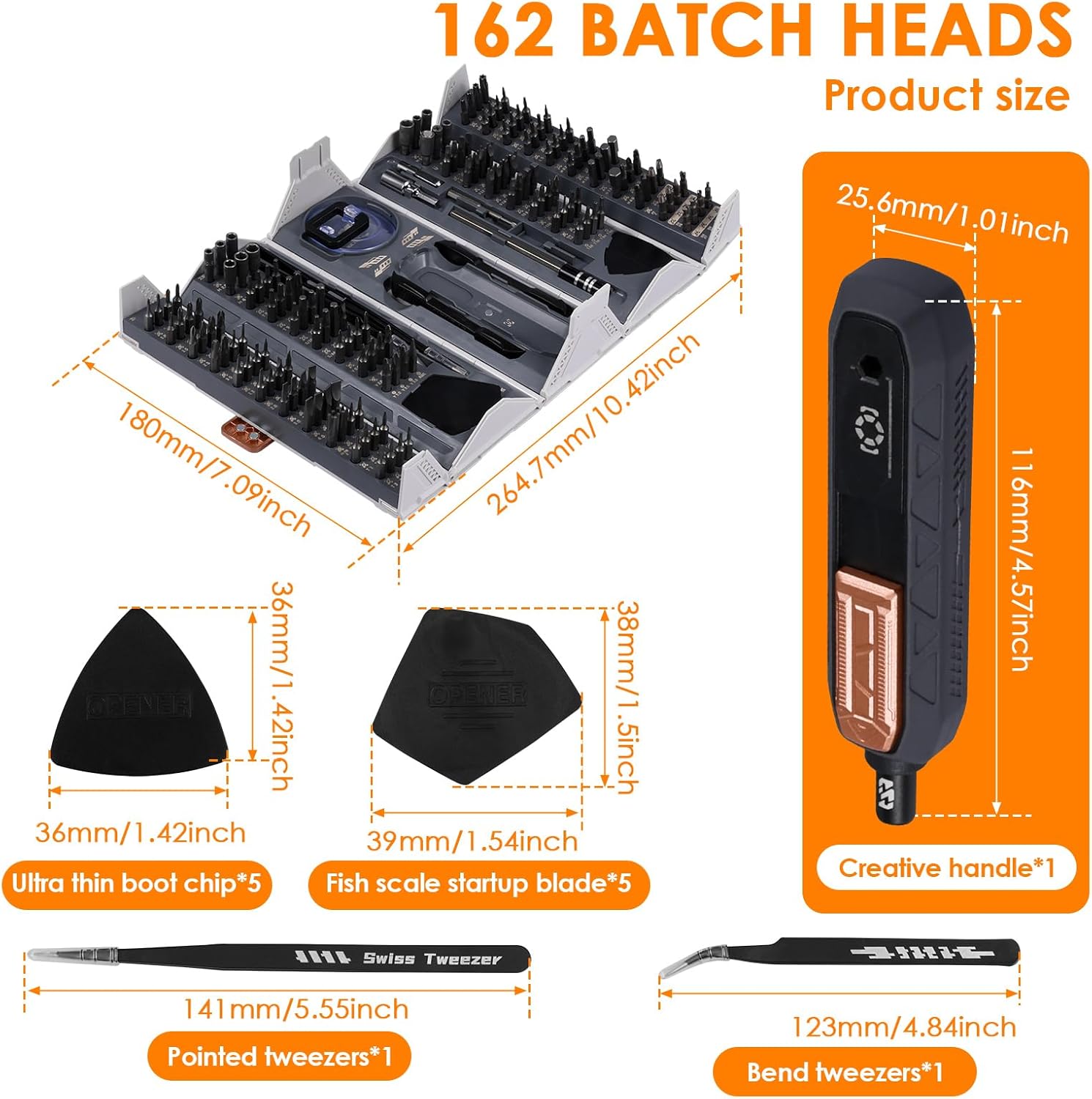

Image 3.1: Key components and their dimensions.

Image 3.2: Additional tools including suction cup, crowbar, and extension rod.

4. Setup

The Tcwhniev Precision Screwdriver Set is designed for immediate use with minimal setup. The innovative magnetic tool box ensures all components are neatly organized and easily accessible.

1. Open the Case: Gently unlatch and open the tool case. The magnetic design will hold the trays in place.
2. Identify Bits: Each bit is marked with its standard/imperial specifications for quick identification. Locate the required bit for your task.
3. Insert Bit into Handle: Select the appropriate bit and insert it firmly into the magnetic tip of the creative handle. The magnetic attraction will secure the bit.
4. Magnetizer/Demagnetizer: The built-in magnetizer allows you to magnetize screwdriver bits for better screw retention or demagnetize them to prevent interference with sensitive electronics. Simply slide the bit through the designated slots.

Image 4.1: User-friendly design highlights, including the magnetic toolbox and handle.

5. Operating Instructions

This set is suitable for a wide range of applications, from delicate electronics to general household repairs.

5.1 Using the Screwdriver

1. Select Bit: Choose the correct bit type and size for the screw you intend to work with.
2. Insert Bit: Securely insert the chosen bit into the magnetic handle.
3. Apply Pressure: Place the bit onto the screw head and apply gentle, consistent downward pressure.
4. Turn: Rotate the handle clockwise to tighten or counter-clockwise to loosen the screw. The ergonomic handle provides a comfortable grip and efficient torque transmission.

Image 5.1: Demonstrating the use of the precision screwdriver.

5.2 Using Opening Tools (Picks, Crowbars, Suction Cup)

• Opening Picks: Use the ultra-thin or fish scale opening picks to carefully pry open device casings, separating components without causing damage. Insert into seams and gently twist or slide.
• Crowbars: For slightly more leverage, use the crowbars to separate stubborn parts or lift components.
• Suction Cup: Attach the suction cup to smooth surfaces like phone screens or tablet displays to lift them, aiding in disassembly.

5.3 Using Tweezers

The pointed and elbow tweezers are ideal for handling small components, wires, or retrieving tiny screws in confined spaces.

Image 5.2: Examples of applications for the precision screwdriver set.

6. Maintenance

• Cleaning: After each use, wipe down the tools, especially the bits and handle, with a clean, dry cloth to remove dirt, oil, or debris.
• Storage: Always return all components to their designated slots in the magnetic tool box. This prevents loss and keeps the tools organized and protected.
• Rust Prevention: Store the kit in a dry environment. If tools come into contact with moisture, dry them immediately.
• Bit Inspection: Periodically inspect bits for wear or damage. Replace worn bits to ensure optimal performance and prevent damage to fasteners.

7. Troubleshooting

• Bit Not Holding in Handle: Ensure the bit is fully inserted into the magnetic tip. If the magnetism feels weak, use the built-in magnetizer to re-magnetize the bit.
• Difficulty Opening Case: The case has secure latches. Ensure they are fully disengaged before attempting to open.
• Screw Head Stripping: This usually indicates using the wrong size or type of bit, or applying insufficient downward pressure. Ensure the bit fits snugly into the screw head.
• Tools Not Staying in Place: The magnetic design should hold tools securely. Ensure tools are placed correctly in their molded slots.

8. Specifications

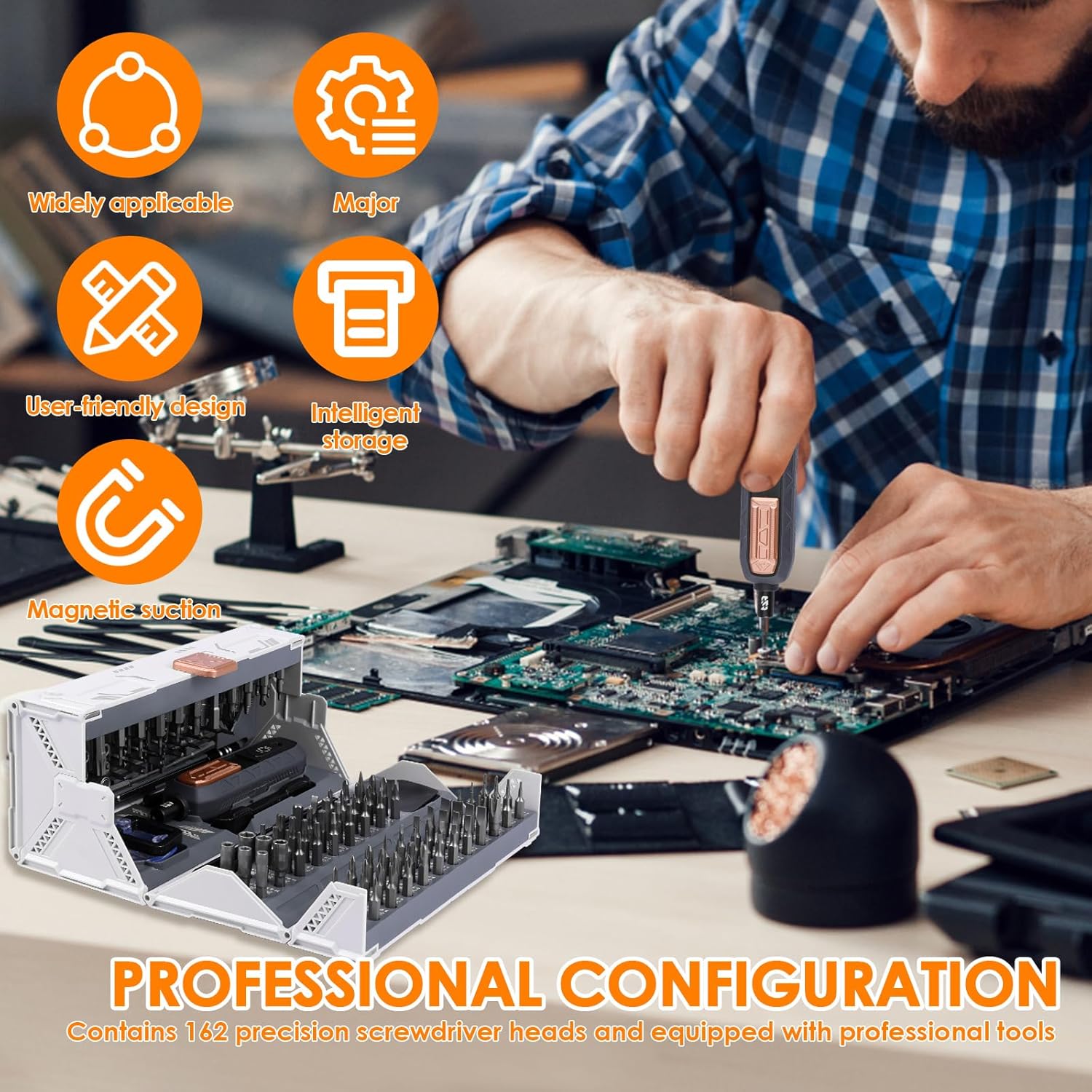

Image 8.1: Professional configuration of the tool set.

9. Warranty and Support

For warranty information or technical support regarding your Tcwhniev 180-in-1 Precision Screwdriver Set, please refer to the retailer's return policy or contact the seller directly through your purchase platform. Please have your purchase details and model number (A) ready when contacting support.
