Merax Twin Over Twin Bunk Bed

1. Product Overview

Thank you for choosing the Merax Twin Over Twin Bunk Bed. This manual provides essential information for the safe assembly, operation, and maintenance of your new bunk bed. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

This low-profile twin over twin bunk bed is constructed from durable rubber wood and plywood, designed to be a space-saving solution for your home. It features a sturdy frame, integrated ladder, and full-length guardrails for safety.

Figure 1.1: Fully assembled Merax Twin Over Twin Bunk Bed in White.

2. Safety Information

Adherence to these safety guidelines is crucial to prevent injury and ensure the longevity of your bunk bed.

• Maximum Weight Capacity: Each bed level (upper and lower) is designed to support a maximum weight of 200 lbs. Do not exceed this limit.
• Mattress Thickness: For the upper bunk, use a mattress with a maximum thickness of 6 inches. Ensure the top surface of the mattress is at least 5 inches below the top edge of the guardrails.
• Guardrails: The upper bunk is equipped with full-length guardrails. These must always be in place and securely fastened.
• Age Restriction: The upper bunk is not suitable for children under 6 years of age.
• Ladder Safety: Always use the integrated ladder for access to the upper bunk. Do not use chairs or other furniture. Ensure the ladder is stable before climbing.
• No Jumping: Do not allow jumping on the bed.
• Regular Checks: Periodically check all bolts and fasteners to ensure they are tight. Retighten as necessary.
• Ventilation: Ensure adequate ventilation around the bed.
• Assembly: Assembly should be performed by at least two adults.

3. Package Contents

Before beginning assembly, verify that all parts and hardware are present and undamaged. If any parts are missing or damaged, do not proceed with assembly. Contact Merax customer support immediately.

The package typically includes:

• Bed frame components (headboards, footboards, side rails)
• Ladder components
• Plywood slats for both upper and lower bunks
• All necessary assembly hardware (bolts, nuts, washers, screws)
• Assembly tools (e.g., Allen wrench)
• Instruction manual (this document)

Note: A detailed parts list with quantities is usually provided on a separate sheet within the packaging. Refer to that sheet for exact component identification.

4. Setup and Assembly Instructions

Assembly requires two adults. Follow the numbered steps precisely. Do not overtighten bolts until instructed.

1. Prepare the Area: Clear a spacious area for assembly. Lay out all components on a soft, clean surface to prevent scratches.
2. Identify Components: Match all parts to the component list provided in your package.
3. Assemble End Panels: Attach the crossbars to the headboards and footboards to form the end panels for both the upper and lower bunks. Secure with the provided hardware.
4. Attach Side Rails: Connect the side rails to the assembled end panels for the lower bunk. Ensure all connections are secure but do not fully tighten bolts yet.
5. Install Lower Slats: Place the plywood slats onto the support rails of the lower bunk. Secure them using the provided screws.
6. Assemble Upper Bunk: Repeat steps 3 and 4 for the upper bunk frame.
7. Attach Ladder: Securely attach the integrated ladder to the designated side of the bunk bed frame. Ensure it is firmly connected and stable.
8. Connect Upper to Lower Bunk: Carefully lift the assembled upper bunk and align it with the lower bunk's support posts. Securely fasten the upper bunk to the lower bunk using the provided long bolts and hardware.
9. Install Upper Slats: Place the plywood slats onto the support rails of the upper bunk. Secure them using the provided screws.
10. Final Tightening: Once all components are assembled and aligned, systematically tighten all bolts and fasteners. Do not overtighten.

Figure 4.1: Bunk bed frame showing slat system and ladder attachment points.

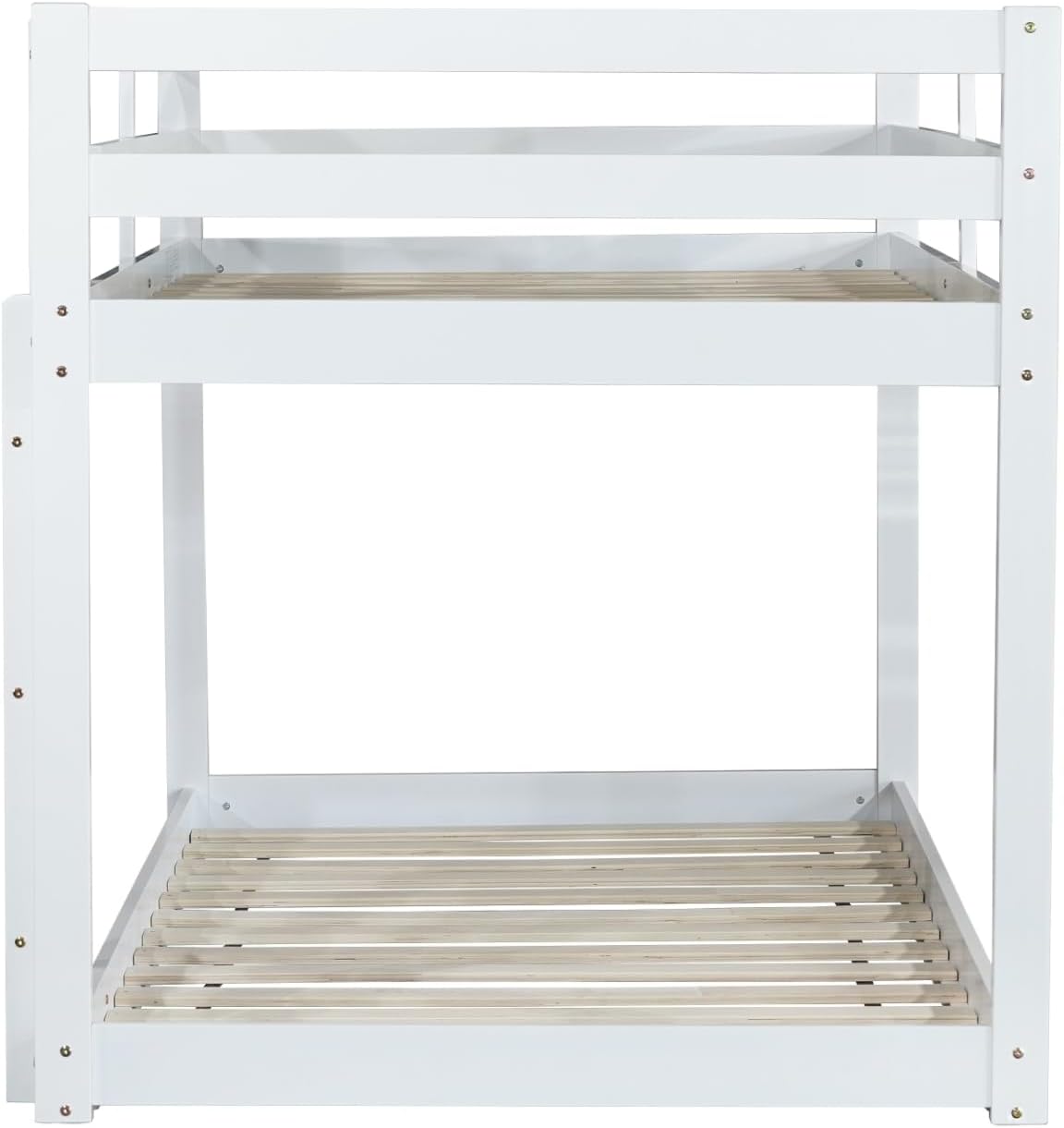

Figure 4.2: Front view of the bunk bed frame, illustrating the two bed levels and ladder.

5. Operating Instructions

Using your Merax bunk bed correctly ensures safety and extends its lifespan.

• Mattress Placement: Place the appropriate size mattresses (Twin size, max 6" thickness) on both the upper and lower bunk slat systems.
• Ladder Use: Always use the integrated ladder to access the upper bunk. Climb and descend facing the ladder, holding onto the side rails.
• Under-Bed Space: The space beneath the lower bunk can be utilized for storage or as a play area. Ensure any items stored do not obstruct movement or pose a tripping hazard.

Figure 5.1: Illustration of the maximized under-bed storage area.

6. Maintenance

Regular maintenance will keep your bunk bed in optimal condition.

• Cleaning: Wipe down the wooden surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the finish.
• Fastener Checks: Periodically (e.g., every 3-6 months) inspect all bolts, screws, and connections. Tighten any that have become loose. Do not overtighten.
• Wood Care: Protect the wood from extreme temperature changes and direct sunlight to prevent warping or cracking.

7. Troubleshooting

If you encounter issues with your bunk bed, refer to the following common problems and solutions:

If you experience issues not listed here or require further assistance, please contact Merax customer support.

8. Specifications

• Model: B0F7LP4BXH
• Brand: Merax
• Color: White
• Size: Twin Over Twin
• Overall Product Dimensions: 77.3"L x 43.8"W x 46.6"H
• Weight Capacity (Each Bed): 200 lbs
• Number of Slats (Each Bed): 13
• Recommended Mattress Thickness: Max 6 inches (Mattress not included)
• Materials: Solid Rubber Wood + Plywood
• Assembly: Required (hardware and manual included)

Figure 8.1: Product dimensions diagram.

9. Warranty and Support

For warranty information, please refer to the documentation included with your purchase or contact your retailer. Merax stands behind the quality of its products.

If you have any questions, require replacement parts, or need technical assistance, please contact Merax customer support through the retailer where you purchased the product or visit the official Merax website for contact details.

Merax Customer Support: Refer to your purchase receipt or the Merax official website for the most current contact information.
