1. Introduction
Thank you for choosing the VASAGLE LSD156KD01 Electric Height-Adjustable Desk. This desk is designed to provide a versatile and ergonomic workspace, allowing you to easily switch between sitting and standing positions. Please read this manual carefully before assembly and use to ensure proper function and safety. Keep this manual for future reference.
2. Safety Instructions
- Ensure all components are present and undamaged before assembly. Do not use if any parts are missing or faulty.
- Assemble the desk on a soft, clean surface to prevent scratches.
- Follow the assembly instructions precisely. Incorrect assembly can lead to instability or injury.
- Keep children and pets away from the desk during operation to prevent accidents.
- Do not overload the desk. The maximum static load capacity is 70 kg (154 lbs).
- Ensure there are no obstructions above or below the desk when adjusting its height.
- Do not sit or stand on the desk.
- Only use the provided power adapter and control unit.
- If the desk makes unusual noises or movements, stop operation immediately and consult the troubleshooting section or contact customer support.
- Avoid spilling liquids on the control panel or electrical components.
3. Package Contents
Please verify that all parts listed below are included in your package:
- Desktop sections
- Desk frame (legs, crossbar)
- Electric motor and control box
- Control panel with USB-C port
- Monitor stand
- Drawer
- Headphone hook
- Cable management tray
- Power adapter and cable
- Assembly hardware (screws, tools)
- Instruction manual
4. Setup and Assembly
Assembly of the VASAGLE LSD156KD01 desk is designed to be straightforward with numbered parts and clear instructions. Follow the illustrated guide provided in the package for detailed steps.
Figure 4.1: Easy Assembly Steps - The diagram illustrates the four main stages of assembling the desk: attaching the desktop sections, constructing the desk frame, installing the drawer, and adding other accessories like the monitor stand.
Flexible Drawer Installation
The integrated drawer offers flexible mounting options. You can install it either directly under the main desktop surface or beneath the monitor stand, depending on your preference for storage and desk space utilization.
Figure 4.2: Drawer Mounting Options - This image demonstrates the two ways to install the drawer: either directly under the main desk surface for additional storage or under the monitor stand to keep small items organized.
5. Operating Instructions
Height Adjustment
The desk's height can be adjusted electrically from 72 cm (minimum) to 120 cm (maximum), allowing you to comfortably switch between sitting and standing positions. Use the up and down arrow buttons on the control panel to adjust the height.

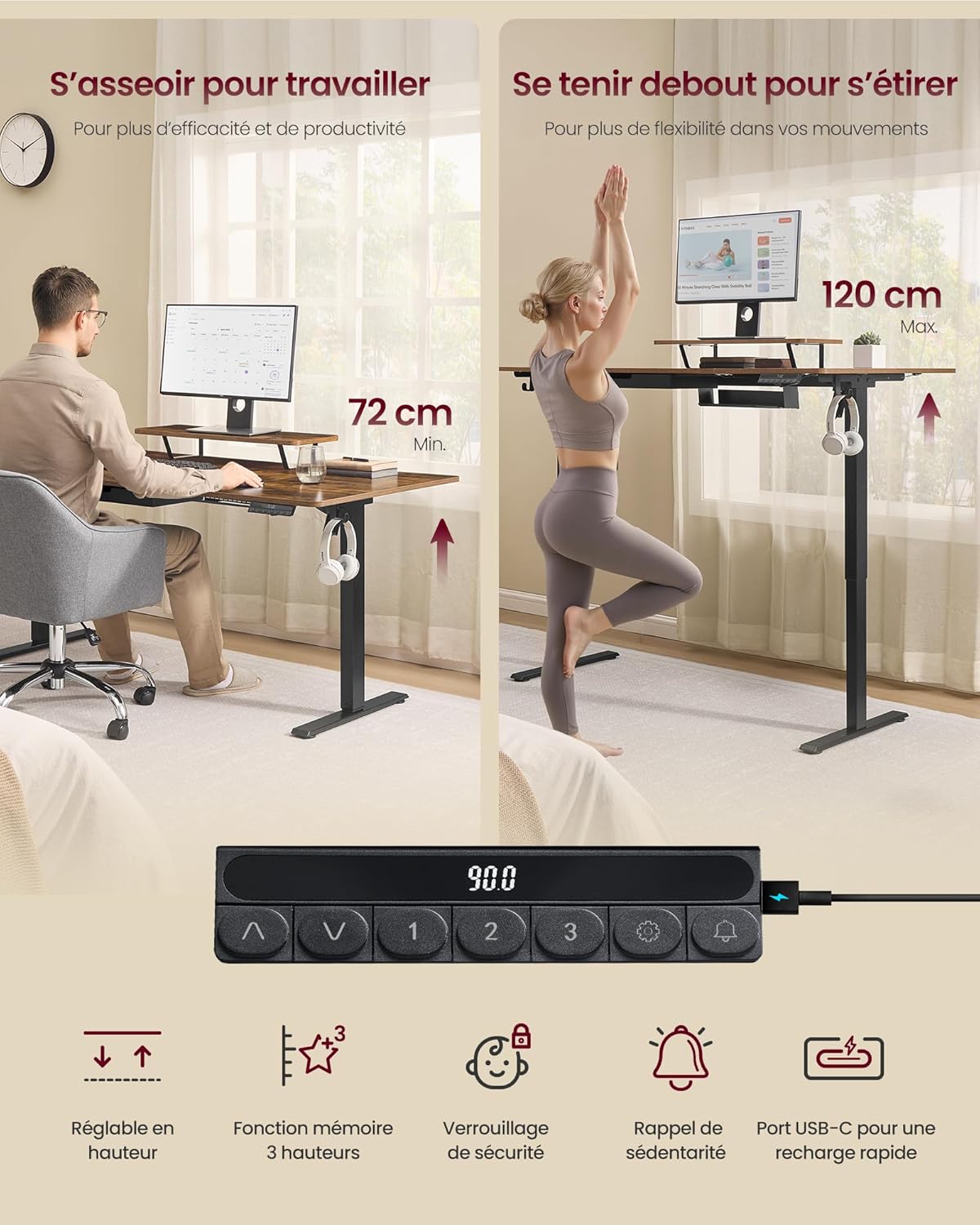

Figure 5.1: Height Adjustment and Control Panel - This image illustrates the desk's adjustable height range, showing a user sitting at 72 cm and standing at 120 cm. A detailed view of the control panel highlights the height adjustment buttons, memory presets, safety lock, sedentary reminder, and USB-C port.
Memory Presets
The control panel features three memory buttons (1, 2, 3) to save your preferred sitting and standing heights. To set a memory position:
- Adjust the desk to your desired height using the up/down arrows.
- Press and hold one of the memory buttons (1, 2, or 3) until the display shows 'S-' followed by the number, indicating the height has been saved.
- To recall a saved height, simply press the corresponding memory button.
Sedentary Reminder
The desk includes a sedentary reminder function to encourage healthy work habits. If you remain seated for an extended period, the desk will gently remind you to change your position or stand up.
Figure 5.2: Sedentary Reminder - This image highlights the sedentary reminder feature, showing a person stretching while working at the standing desk, promoting movement after prolonged sitting.
USB-C Charging Port
A convenient USB-C port is integrated into the control panel for quick charging of your compatible devices, such as smartphones or tablets.
Silent Operation
The electric motor operates quietly, with a noise level below 48 dB, ensuring a calm and focused working environment during height adjustments.
Figure 5.3: Silent Adjustment - This image emphasizes the quiet operation of the desk's motor, indicating a sound level of less than 48 dB during height adjustments, comparable to a quiet library.
6. Features Overview
The VASAGLE LSD156KD01 desk is designed with several features to enhance your productivity and comfort:
Figure 6.1: Desk in Use - This image provides an overall view of the VASAGLE electric height-adjustable desk in a home office setting, highlighting its spacious surface, monitor setup, and integrated accessories.

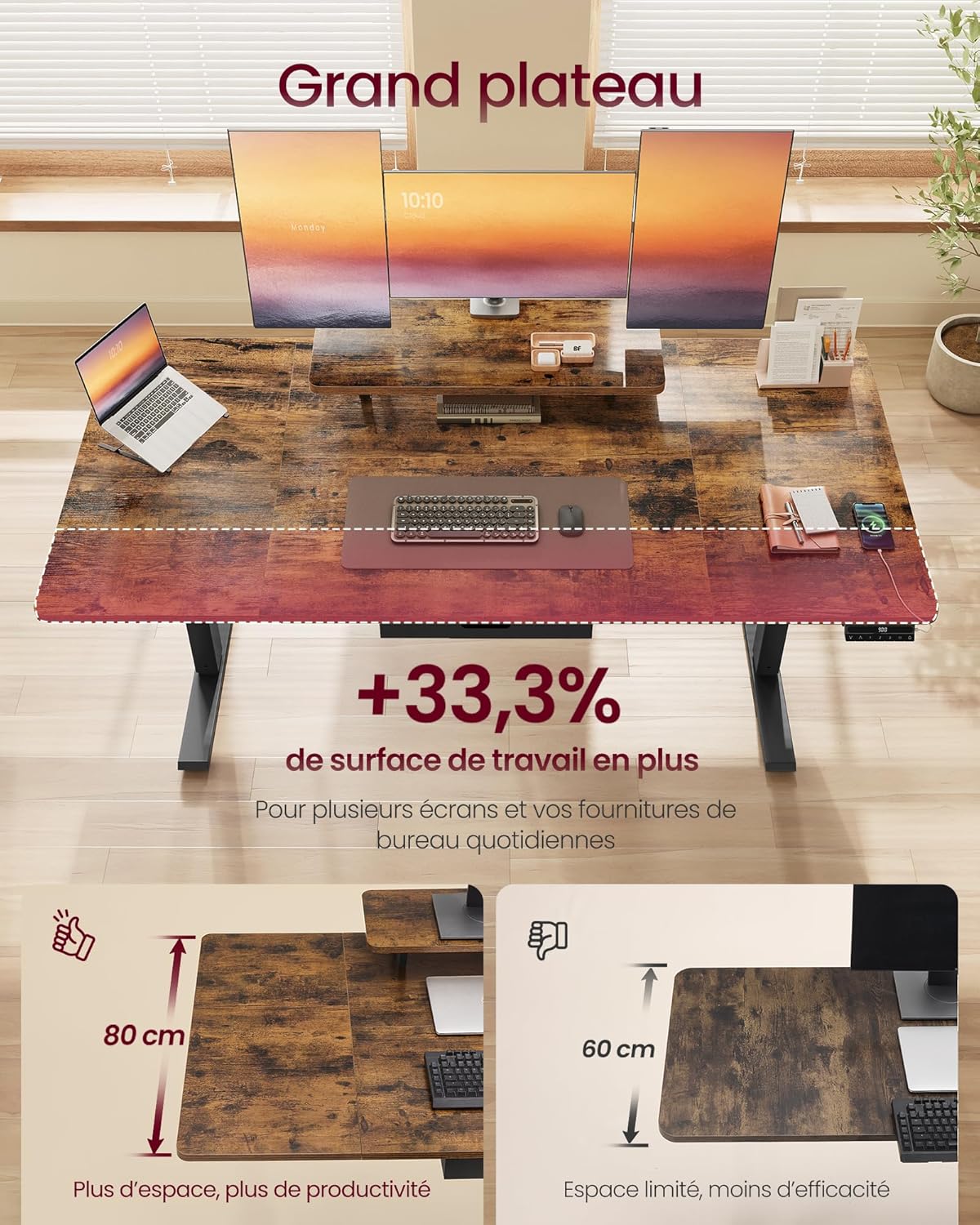

- Spacious Desktop: The 160 x 80 cm desktop provides ample space for multiple monitors, a laptop, and other office essentials, offering 33.3% more depth than standard desks.
- Flexible Monitor Stand: Mount the monitor stand anywhere on the desktop to optimize your viewing angle and free up valuable desk space.
- Integrated Drawer: A convenient drawer helps keep small items organized and reduces clutter. It can be mounted under the main desktop or under the monitor stand.
- Headphone Hook: A practical hook is included for hanging headphones or bags, keeping them easily accessible and off the desk surface.
- Cable Management: The desk includes a cable management tray to keep your wires tidy and out of sight, contributing to a clean and organized workspace.
Figure 6.2: Detailed Features - This image provides a closer look at the desk's key features, including the flexible monitor stand, the integrated drawer for small items, and the practical hook for headphones or bags, all contributing to an organized workspace.
Figure 6.3: Cable Management - This image demonstrates the integrated cable management solution, showing how a power strip and various cables can be neatly stored under the desk, reducing clutter.
7. Maintenance
- Cleaning: Wipe the desk surface with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the finish.
- Electrical Components: Keep the control panel and motor free from dust and moisture. Do not attempt to open or repair electrical components yourself.
- Regular Checks: Periodically check all screws and connections to ensure they are tight. Retighten if necessary.
- Load Capacity: Adhere to the maximum load capacity of 70 kg to prevent damage to the motor and frame.
8. Troubleshooting
If you encounter any issues with your desk, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Desk does not move or respond to controls. | Power cable disconnected, motor overload, control panel malfunction. | Check power connections. Unplug and replug the power cable. Reduce load on the desk. If problem persists, contact support. |
| Desk moves unevenly or makes unusual noises. | Uneven load, loose connections, obstruction. | Distribute weight evenly. Check all assembly screws. Ensure no objects are obstructing the legs. |
| Collision detection not working. | Sensor not activated or misconfigured. | Refer to the specific instructions for collision detection activation in the full manual or contact customer support for guidance on verification and activation. |
| Desk is wobbly at higher settings. | Loose connections, uneven floor, inherent design of T-shaped legs. | Ensure all screws are tightened. Use the adjustable feet to level the desk on uneven floors. Some minimal sway is normal for T-shaped leg designs at maximum height. |
9. Specifications
Key specifications for the VASAGLE LSD156KD01 Electric Height-Adjustable Desk:
Figure 9.1: Product Dimensions - This diagram provides a comprehensive overview of the desk's dimensions, including the 160 cm x 80 cm desktop, 72-120 cm height range, and the sizes of the flexible monitor stand and drawer.
- Model Number: LSD156KD01
- Desktop Dimensions (L x W): 160 x 80 cm (63 x 31.5 inches)
- Height Adjustment Range: 72 - 120 cm (28.3 - 47.2 inches)
- Maximum Static Load Capacity: 70 kg (154 lbs)
- Material: Wood (desktop), Steel (frame)
- Color: Rustic Brown
- Noise Level: < 48 dB
- Features: 3 Memory Presets, Sedentary Reminder, USB-C Port, Flexible Monitor Stand, Drawer, Headphone Hook, Cable Management
- Product Weight: 29.8 kg (65.7 lbs)
10. Warranty and Support
For warranty information or technical support, please refer to the documentation included with your purchase or contact VASAGLE customer service directly. Details can typically be found on the manufacturer's official website or through your retailer.
