1. Product Overview
This manual provides essential information for the installation, operation, and maintenance of the FKFGBB COM521 SD7C16 Auto AC Compressor. This compressor is designed for specific vehicle models, ensuring efficient air conditioning system performance.
Key Features:
- Efficient cooling performance for vehicle interiors.
- Optimized design for reduced energy consumption.
- Constructed from high-quality, wear-resistant, and high-temperature resistant materials for durability.
- Designed for quiet operation.
Figure 1: FKFGBB COM521 SD7C16 Auto AC Compressor. This image displays the main unit of the AC compressor, showing its metallic housing, pulley system, and electrical connectors.
2. Vehicle Compatibility
The FKFGBB COM521 SD7C16 Auto AC Compressor is compatible with various PEUGEOT and CITROEN models. Please verify your vehicle's specifications and existing part numbers against the list below to ensure proper fitment.
Compatible Vehicle Models:
- PEUGEOT 307
- PEUGEOT 308
- CITROEN C4
- CITROEN BERLINGO
- Other models as specified by part numbers.
Reference Part Numbers:
- 96519114
- 9651911480
- 9656483580
- 96598758
- 9659875880
- 9800839580
- 9671216780
- 9671333180
- 96844324
- 9684458880
- 9688354080
- 6453QN
- 6453QL
- 6453ZA
- 6453WN
- 6453WP
- 6453.QN
- 6453TP
- 6453ZC
- 648734
- 648735
- SANDEN: 1309, 1309S, 1309F, 1321, 1321F, 1331S, 1331, 1331F, 1341, 1390, 1390F

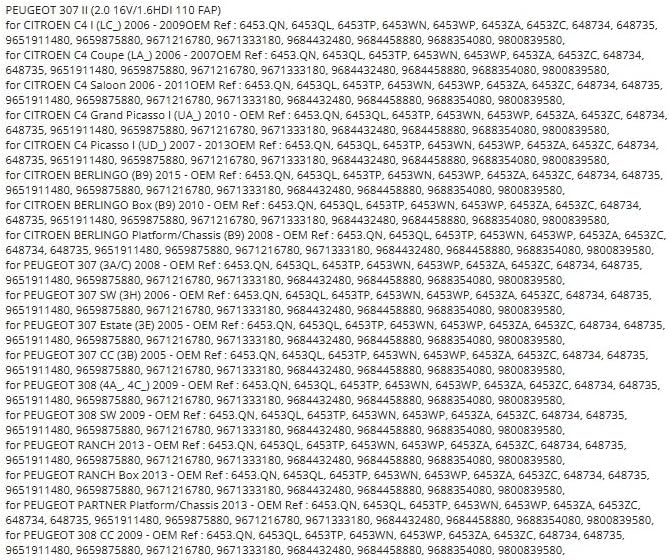

Figure 2: Detailed list of compatible part numbers and vehicle models. This image shows a comprehensive list of vehicle models and their corresponding OEM part numbers that are compatible with this AC compressor.
3. Installation (Setup)
Installation of an AC compressor requires specialized tools and knowledge of automotive air conditioning systems. It is highly recommended that installation be performed by a certified automotive technician.
Safety Precautions:
- Always disconnect the vehicle's battery before beginning any work.
- Ensure the AC system is properly discharged by a professional to avoid refrigerant release.
- Wear appropriate personal protective equipment, including safety glasses and gloves.
- Refer to your vehicle's service manual for specific instructions related to your model.
General Installation Steps (Consult a professional for detailed instructions):
- Safely discharge the existing AC system refrigerant.
- Remove the old compressor, carefully disconnecting all lines and electrical connections.
- Inspect and replace the accumulator/receiver drier and expansion valve/orifice tube as recommended by AC system best practices.
- Install the new FKFGBB COM521 SD7C16 compressor, ensuring all mounting bolts are tightened to manufacturer specifications.
- Reconnect all refrigerant lines and electrical connectors. Use new O-rings and lubricate them with appropriate PAG oil.
- Evacuate the AC system to remove air and moisture.
- Recharge the system with the correct type and amount of refrigerant and PAG oil as specified by your vehicle manufacturer.
- Perform leak detection and system performance tests.
4. Operation
Once installed and properly charged, the AC compressor operates automatically as part of your vehicle's air conditioning system. Its function is to compress refrigerant, circulating it through the system to cool the vehicle's interior.
Normal Operation:
- Turn on your vehicle's air conditioning system using the dashboard controls.
- Select the desired temperature and fan speed.
- The compressor clutch will engage, and you may hear a slight click as it activates.
- Cold air should begin to flow from the vents.
Important Considerations:
- Avoid running the AC system with low refrigerant levels, as this can damage the compressor.
- If you notice unusual noises, reduced cooling performance, or a burning smell, turn off the AC system and have it inspected by a professional.
5. Maintenance
Regular maintenance of your vehicle's AC system helps ensure the longevity and efficient operation of the compressor.
Recommended Maintenance Practices:
- Annual System Check: Have your AC system inspected annually by a qualified technician. This includes checking refrigerant levels, system pressure, and overall component condition.
- Refrigerant Level: Ensure refrigerant levels are correct. Low levels can cause the compressor to overwork and fail prematurely.
- Drive Belt Inspection: Periodically check the compressor's drive belt for cracks, fraying, or excessive wear. Replace if necessary.
- Cabin Air Filter: Replace your vehicle's cabin air filter regularly to maintain good airflow and reduce strain on the AC system.
- Run AC Periodically: Even in cold weather, run your AC system for 10-15 minutes once a month to keep seals lubricated and prevent component degradation.
6. Troubleshooting
This section outlines common issues and potential solutions. For complex problems, consult a certified automotive technician.
| Problem | Possible Cause | Solution |
|---|---|---|
| No cold air or insufficient cooling. | Low refrigerant level, faulty compressor clutch, electrical issue, clogged expansion valve/orifice tube. | Check refrigerant levels and system pressure. Inspect compressor clutch for engagement. Verify electrical connections. Consult a technician for diagnosis. |
| Unusual noises from the compressor area. | Worn compressor bearings, loose mounting bolts, faulty clutch, low oil level. | Turn off AC immediately. Inspect for loose components. Have a technician diagnose the source of the noise. |
| Compressor clutch not engaging. | Low refrigerant pressure (safety switch), electrical fault, worn clutch coil. | Check refrigerant pressure. Inspect electrical connections and fuses. A technician can test the clutch coil. |
| AC system cycles on and off frequently. | Low or overcharged refrigerant, faulty pressure switch, restricted airflow. | Verify correct refrigerant charge. Check pressure switches. Ensure condenser and radiator are free of debris. |
7. Specifications
Detailed technical specifications for the FKFBB COM521 SD7C16 Auto AC Compressor:
- Model Number: COM521
- Compressor Type: SD7C16
- Clutch Type: 6PK
- Clutch Diameter: 122MM
- Voltage: 12V
- Brand: FKFGBB
- Item Weight: Approximately 1.76 ounces (Note: This weight seems unusually low for an AC compressor and may refer to packaging or a component. Actual compressor weight will be significantly higher.)
- Manufacturer Part Numbers: 96519114, 1321F, 1331S (and others listed in compatibility section)
8. Warranty Information
Specific warranty details for the FKFGBB COM521 SD7C16 Auto AC Compressor are typically provided at the point of purchase or included with the product packaging. Please retain your purchase receipt for warranty claims.
Generally, warranty coverage includes defects in materials and workmanship under normal use. Damage resulting from improper installation, misuse, neglect, or unauthorized modifications is typically not covered.
For detailed warranty terms and conditions, please refer to the documentation supplied with your product or contact the seller directly.
9. Customer Support
If you have any questions regarding the FKFGBB COM521 SD7C16 Auto AC Compressor, require technical assistance, or need to report an issue, please contact your seller or the manufacturer's customer support.
When contacting support, please be prepared to provide the following information:
- Product Model: COM521
- Purchase Date
- Seller Name
- A detailed description of the issue or question.
