1. Introduction
This manual provides essential information for the installation, operation, and maintenance of the HBFEYSZY SXY3388 Universal Control Board PCB Set. This set is designed as a replacement or upgrade component for series excited drum washing machines. Please read this manual thoroughly before proceeding with installation or use to ensure proper function and safety.
2. Safety Information
WARNING: Electrical shock hazard. Always disconnect power to the washing machine before servicing or installing this control board.
- Ensure the washing machine is unplugged from the power outlet before beginning any installation or repair work.
- Only qualified technicians or individuals with experience in appliance repair and electrical systems should attempt installation.
- Wear appropriate personal protective equipment, including insulated gloves and safety glasses.
- Handle the PCB (Printed Circuit Board) by its edges to avoid damaging components or introducing static electricity.
- Verify all connections are secure and correct before restoring power to the appliance.
3. Package Contents
The HBFEYSZY SXY3388 Universal Control Board PCB Set typically includes the following components:
- SXY3388 Main Control Board
- User Interface / Display Panel
- Pressure Switch (or similar sensor)
- Connecting Cables (may vary)
4. Product Overview and Component Identification
The SXY3388 control board is the central processing unit for your washing machine, managing various functions such as water levels, wash cycles, and motor operation. The set includes a main PCB, a user interface for program selection, and a pressure switch for water level detection.
Figure 1: SXY3388 Universal Control Board (Main PCB). This image displays the primary circuit board with various electronic components, relays, and connectors. It is the core component responsible for controlling the washing machine's operations.
Figure 2: User Interface / Display Panel. This panel features a digital display and control buttons (Power On/Off, Warm, Process, Program, Start/Pause) for user interaction with the washing machine.

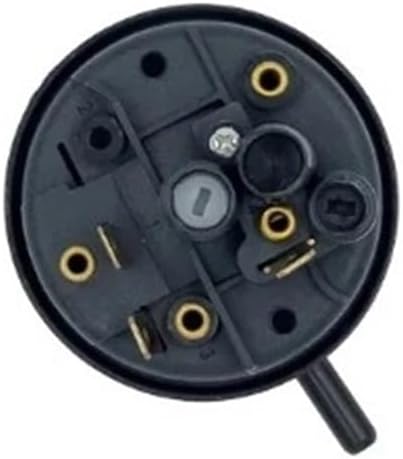

Figure 3: Pressure Switch. This circular component is typically used to detect water levels within the washing machine drum, sending signals to the control board.
5. Installation Guide
Follow these steps carefully to install the SXY3388 Universal Control Board PCB Set. Refer to your washing machine's specific service manual for detailed disassembly and reassembly instructions.
- Disconnect Power: Unplug the washing machine from the electrical outlet. Turn off the water supply to the machine.
- Access Control Panel: Carefully remove the top panel or control console of your washing machine to gain access to the existing control board. This usually involves removing screws from the rear or underside of the top panel.
- Document Connections: Before disconnecting any wires, take clear photographs or make detailed diagrams of all existing wire connections to the old control board, display panel, and pressure switch. Note the color and position of each wire.
- Disconnect Old Components: Carefully disconnect all wiring harnesses, ribbon cables, and mounting screws from the old control board, display panel, and pressure switch. Remove the old components.
- Install New Components: Mount the new SXY3388 main control board, display panel, and pressure switch in their respective positions. Secure them with the appropriate screws or clips.
- Connect Wiring: Using your documented connections, carefully re-connect all wiring harnesses and cables to the new SXY3388 control board, display panel, and pressure switch. Ensure all connections are firm and correctly seated.
- Reassemble: Once all components are installed and wired, carefully reassemble the washing machine's control panel and top cover. Ensure no wires are pinched.
- Test Functionality: Restore water supply and plug the washing machine back into the power outlet. Perform a test cycle to ensure all functions (water fill, agitation, drain, spin) operate correctly.
Figure 4: SXY3388 Control Board with visible connectors. This image provides a perspective that highlights the various connection points for wiring harnesses, crucial for correct installation.
6. Operating Instructions
The SXY3388 control board integrates with your washing machine's existing operational framework. Once installed, the washing machine's operation will largely follow its original design, with the new control board managing the internal processes. The user interface panel (Figure 2) allows for program selection and cycle initiation.
- Power On/Off: Press the 'POWER ON/OFF' button to activate or deactivate the washing machine.
- Program Selection: Use the 'PROGRAM' button to cycle through available wash programs (e.g., delicate, heavy duty, quick wash).
- Process Selection: The 'PROCESS' button may allow selection of specific stages within a program (e.g., wash, rinse, spin).
- Temperature Setting: The 'WARM' button likely adjusts water temperature settings.
- Start/Pause: Press 'START/PAUSE' to begin a selected cycle or to temporarily halt an ongoing cycle.
Refer to your washing machine's original user manual for specific details on cycle types and advanced features, as the SXY3388 board is designed to replicate or enhance the original functionality.
7. Maintenance
Proper maintenance ensures the longevity and reliable performance of your SXY3388 control board.
- Keep Dry: Ensure the control board area remains dry and free from moisture to prevent short circuits and corrosion.
- Cleanliness: Periodically inspect the control board and surrounding area for dust or debris accumulation. Use a soft, dry brush or compressed air to gently clean.
- Secure Connections: Over time, vibrations can loosen electrical connections. If experiencing intermittent issues, check that all wiring harnesses are securely seated.
- Avoid Impact: Protect the control board from physical impact or excessive vibration, which can damage internal components.
8. Troubleshooting
If your washing machine experiences issues after installing the SXY3388 control board, consider the following troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Washing machine does not power on. | Loose power connection; faulty power outlet; control board not receiving power. | Check power cord and outlet. Verify all power connections to the control board are secure. |
| Display panel is blank or unresponsive. | Loose ribbon cable to display; faulty display panel. | Ensure the ribbon cable connecting the display to the main board is properly seated. |
| Washing machine fills with too much or too little water. | Faulty or improperly connected pressure switch. | Check the connection of the pressure switch (Figure 3) to the control board. Ensure the air tube to the pressure switch is clear and not kinked. |
| Washing machine does not start a cycle. | Door latch issue; incorrect program selection; error code. | Ensure the door is securely closed. Re-select the program. Check for any error codes displayed and consult your washing machine's original manual. |
If these steps do not resolve the issue, it is recommended to consult a qualified appliance repair technician.
9. Specifications
| Feature | Detail |
|---|---|
| Model Number | SXY3388 |
| Compatibility | Series Excited Drum Washing Machines |
| Item Weight | 1.76 ounces (approx.) |
| Package Dimensions | 0.39 x 0.39 x 0.39 inches (approx.) |
| Manufacturer | DangYangShiAETanShangMaoDian |
10. Support
For further assistance or inquiries regarding the HBFEYSZY SXY3388 Universal Control Board PCB Set, please contact your retailer or the manufacturer directly. When contacting support, please have your product model number (SXY3388) and any relevant purchase information available.
