1. Product Overview

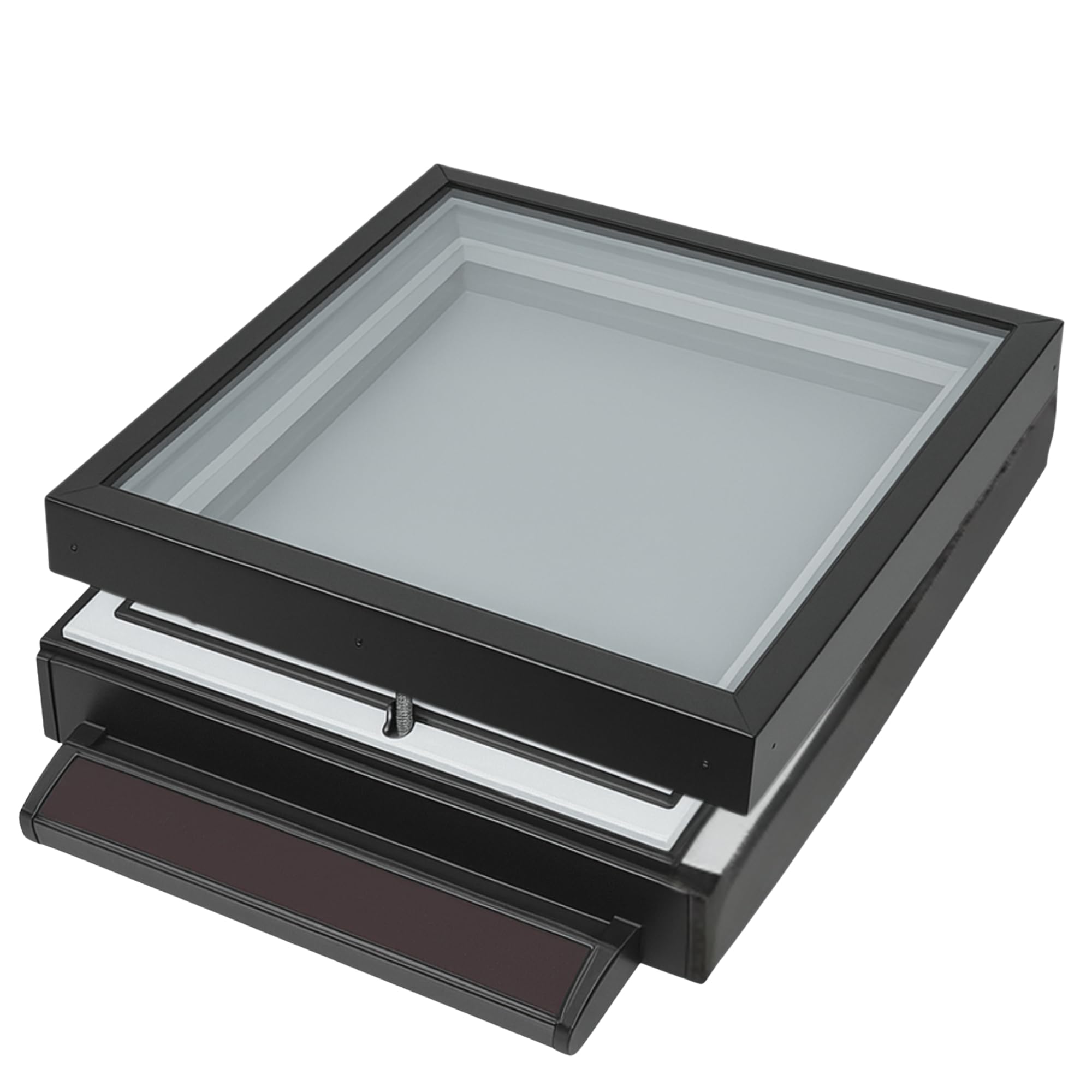

The Solatube 22" x 22" Premium Solar-Powered Operable Skylight provides natural light and fresh air ventilation for your indoor spaces. This unit features dual-pane thermal glass for energy efficiency, a remote-controlled opening mechanism, and an integrated rain sensor for automatic closure. Designed for durability and ease of use, it enhances comfort and natural illumination in your home.
Image 1.1: The Solatube operable skylight installed on a residential roof, showcasing its sleek design and open position for ventilation.
2. Key Features
- Heavy-Duty, Premium Build: Constructed with robust materials and enhanced, thicker glass for exceptional strength and lasting durability.
- Dual-Pane Thermal Glass: Maximizes thermal efficiency and helps regulate indoor temperatures.
- Solar-Powered Operation: The operable mechanism is powered by an integrated solar panel, eliminating the need for electrical wiring.
- Remote Controlled Ventilation: Easily open and close the skylight for fresh air with the included remote control.
- Auto-Close Rain Sensor: Automatically detects rain and closes the skylight to prevent water entry.
- Superior Performance: A sleek, low-profile design with high-performance insulated glass.
- Federal Tax Credit Eligibility: The solar-powered Fresh Breeze model may qualify for a 30% federal tax credit, offering significant savings.
Image 2.1: Remote control for convenient operation of the skylight's opening and closing functions.
3. Included Components
Verify that all components are present before beginning installation:
- Solar-Powered Skylight Unit
- Remote Control
- Rain Sensor (integrated)
- Solar Panel with Battery Pack (integrated)
- Flashing Kit for Roof Installation
- Interior Trim Kit
- Mounting Hardware
- Installation Instructions (this manual)
- Product Registration Card
- Warranty Documentation
4. Setup and Installation
Installation of the Solatube Operable Skylight is designed for roof-mount applications. It is recommended that installation be performed by a qualified professional to ensure proper sealing and functionality. The solar-powered motor requires no electrical wiring, simplifying the installation process.
4.1 Pre-Installation Checks
- Inspect all components for damage prior to installation.
- Ensure the roof opening dimensions match the skylight unit specifications (22" x 22").
- Review local building codes and regulations for skylight installation.
4.2 General Installation Steps (Consult detailed instructions for specifics)
- Prepare the roof opening according to the provided flashing kit instructions.
- Install the flashing kit to ensure a watertight seal.
- Position the skylight unit into the prepared opening.
- Secure the skylight unit using the provided mounting hardware.
- Install the interior trim kit from inside the building.
- Ensure the solar panel is exposed to direct sunlight for optimal charging.
Image 4.1: Illustration of the skylight's thermal properties, resisting heat transfer while allowing light.
5. Operating Instructions
5.1 Remote Control Operation
The skylight is operated using the provided wireless remote control. Ensure the remote has fresh batteries and is within range of the skylight unit.
- Press the OPEN button to fully open the skylight for ventilation.
- Press the CLOSE button to fully close the skylight.
- The remote may also have intermediate stop functions for partial opening. Refer to the remote's specific instructions.
5.2 Rain Sensor Functionality
The integrated rain sensor automatically detects moisture and initiates the closing sequence of the skylight. This feature ensures protection against unexpected rain. Once the sensor dries, the skylight can be reopened via the remote control.
Video 5.1: An official Solatube video demonstrating the features and operation of their skylights, including the remote control and rain sensor functionality.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your Solatube skylight.
- Cleaning the Glass: Periodically clean the exterior and interior glass surfaces with a mild glass cleaner and a soft cloth. Avoid abrasive cleaners or tools that could scratch the glass.
- Inspect Seals: Annually inspect the seals around the skylight for any signs of wear or damage. Address any issues promptly to prevent leaks.
- Clear Debris: Ensure the solar panel and rain sensor are free from leaves, dirt, or other debris that could obstruct their function.
- Remote Control Batteries: Replace batteries in the remote control as needed to maintain reliable operation.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Skylight does not open/close with remote. | Dead remote batteries, obstructed motor, low solar panel charge. | Replace remote batteries. Check for obstructions. Ensure solar panel is clean and receiving sunlight. |
| Skylight closes unexpectedly. | Rain sensor activated, sensor malfunction. | Check for rain or moisture on the sensor. Clean the sensor. If issue persists, contact support. |
| Water leakage around skylight. | Improper installation, damaged seals, flashing issue. | Immediately close the skylight. Inspect seals and flashing. Contact a qualified installer or Solatube support. |
8. Specifications
| Attribute | Detail |
|---|---|
| Manufacturer | Solatube |
| Product Dimensions | 27.5 x 27.5 x 12 inches |
| Item Model Number | Operable 22" x 22" |
| Color | Chrome |
| Finish | Chrome |
| Material | Glass |
| Power Source | Solar Powered |
| Installation Method | Roof Mount |
| Switch Style | Remote |
| ASIN | B0F6YZ715F |
9. Warranty and Support
Your Solatube Operable Skylight comes with comprehensive warranty documentation. Please refer to the included Product Registration Card and Warranty Documentation for specific terms and conditions. For technical support, replacement parts, or warranty claims, please contact Solatube customer service directly.
