Alinwirsy Refrigerator LED Light Replacement User Manual

1. Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Alinwirsy W11527432 Refrigerator LED Light Replacement. This product is designed to restore proper illumination to your refrigerator, addressing common issues such as dim, flickering, or non-functioning lights.

What's in the Box:

1 x W11527432 Refrigerator LED Light Assembly

2. Compatibility

The W11527432 LED light assembly is compatible with a wide range of Whirlpool and Maytag refrigerator models. Please verify your refrigerator's model number against the lists below to ensure proper fit.

Image showing compatible brands Whirlpool, Maytag, Amana, and replacement part numbers W11527432, W11101384, W11245960, W11333374, W11387579, 4962596, AP7014542, PS16555201, EAP16555201.

Figure 2.1: Compatible Brands and Replacement Part Numbers for the W11527432 Refrigerator Light Assembly.

Image showing extensive lists of compatible refrigerator models for Whirlpool, Maytag, Amana, and Ikea.

Figure 2.2: Detailed list of compatible refrigerator models for Whirlpool, Maytag, Amana, and Ikea.

Whirlpool Compatible Models: WRX735SDHZ02, WRF555SDFZ09, WRF555SDHW02, WRX735SDHZ03, WRF555SDFZ11, WRF555SDHW03, WRX735SDHZ04, WRF555SDFZ12, WRF555SDHW07, WRX735SDHZ06, WRF555SDFZ14, WRF555SDHW08, WRX735SDHZ07, WRF555SDFZ15, WRF555SDHW09, WRX735SDHZ08, WRF555SDFZ16, WRF555SDHW10, WRX735SDHZ10, WRF555SDFZ17, WRFF3436RB00, WRX735SDHZ11, WRF555SDFZ18, WRFF3436RV00, WRX735SDHW03, WRF555SDFZ19, WRFF3436RW00, WRX735SDHW06, WRF555SDHB01, WRFF3436RZ00, WRX735SDHW08, WRF555SDHB02, WRMF3636RB00, WRX735SDHW09, WRF555SDHB03, WRMF3636RV00, WRX735SDHW10, WRF555SDHB08, WRMF3636RW00, WRX735SDHV02, WRF555SDHB09, WRMF3636RZ00, WRX735SDHV03, WRF555SDHB10, WRX735SDHB01, WRX735SDHV05, WRF555SDHV03, WRX735SDHB02, WRX735SDHV06, WRF555SDHV04, WRX735SDHB03, WRX735SDHV07, WRF555SDHV08, WRX735SDHB07, WRX735SDHV08, WRF555SDHV10, WRX735SDHB08, WRX735SDHW01, WRF555SDHV11, WRX735SDHB10, WRX735SDHW02, WRF555SDHW01, WRX735SDHV01.

Maytag Compatible Models: MFI2570FEB02, MFI2570FEW02, MFI2570FEB03, MFI2570FEW03, MFI2570FEB04, MFI2570FEW04, MFI2570FEB08, MFI2570FEW08, MFI2570FEB09, MFI2570FEW09, MFI2570FEB11, MFI2570FEW10, MFI2570FEZ07, MFI2570FEW11, MFI2570FEZ08, MFI2570FEZ11, MFI2570FEZ12, MFI2570FEZ13, MFI2570FEZ14, MFI2570FEZ15, MFI2570FEZ16.

Amana Compatible Models: AFI2539ERB02, AFI2539ERB03, AFI2539ERB04.

Ikea Compatible Models: IX7DDEXGZ001, IX7DDEXGZ002.

Important: If you are unsure about compatibility, please contact customer support for assistance.

3. Installation Instructions

Before beginning installation, ensure the refrigerator is unplugged from the power outlet to prevent electrical shock. It is recommended to wear gloves during the installation process.

Tools Required:

Flathead Screwdriver
Gloves (recommended)

Step-by-Step Installation:

Diagram showing 5 steps for refrigerator LED light installation: 1. Pry open marked holes, 2. Disconnect LED lamp's terminal interface, 3. Remove sensor, 4. Install new LED light by reconnecting sensor and light ports, 5. Secure light back in place.

Figure 3.1: Visual guide for the LED light replacement process.

Pry Open Marked Holes: Carefully pry open the marked holes (indicated by arrows on the original light assembly) using a flathead screwdriver. This will release the existing light cover.
Disconnect Terminal Interface: Once the cover is loose, disconnect the LED lamp's terminal interface from the refrigerator's wiring.
Remove Sensor: If present, carefully remove the sensor from the indicated component on the old light assembly. This sensor will be transferred to the new light assembly.
Install New LED Light: Connect the new LED light assembly by reconnecting the sensor and light ports to their original positions. Ensure all connections are secure.
Secure Light: Secure the new light assembly back into its place in the refrigerator ceiling or wall. Gently push until it clicks into position.

After installation, plug the refrigerator back into the power outlet and test the new light.

Installation Video Guide:

Video 3.1: Official installation guide for the Refrigerator Light Assembly compatible with Whirlpool and Maytag models. This video demonstrates the step-by-step process of replacing the LED light in a refrigerator.

4. Operation

The Alinwirsy W11527432 LED light assembly operates automatically with your refrigerator door. When the refrigerator door is opened, the light will illuminate, providing clear visibility of the contents. When the door is closed, the light will turn off.

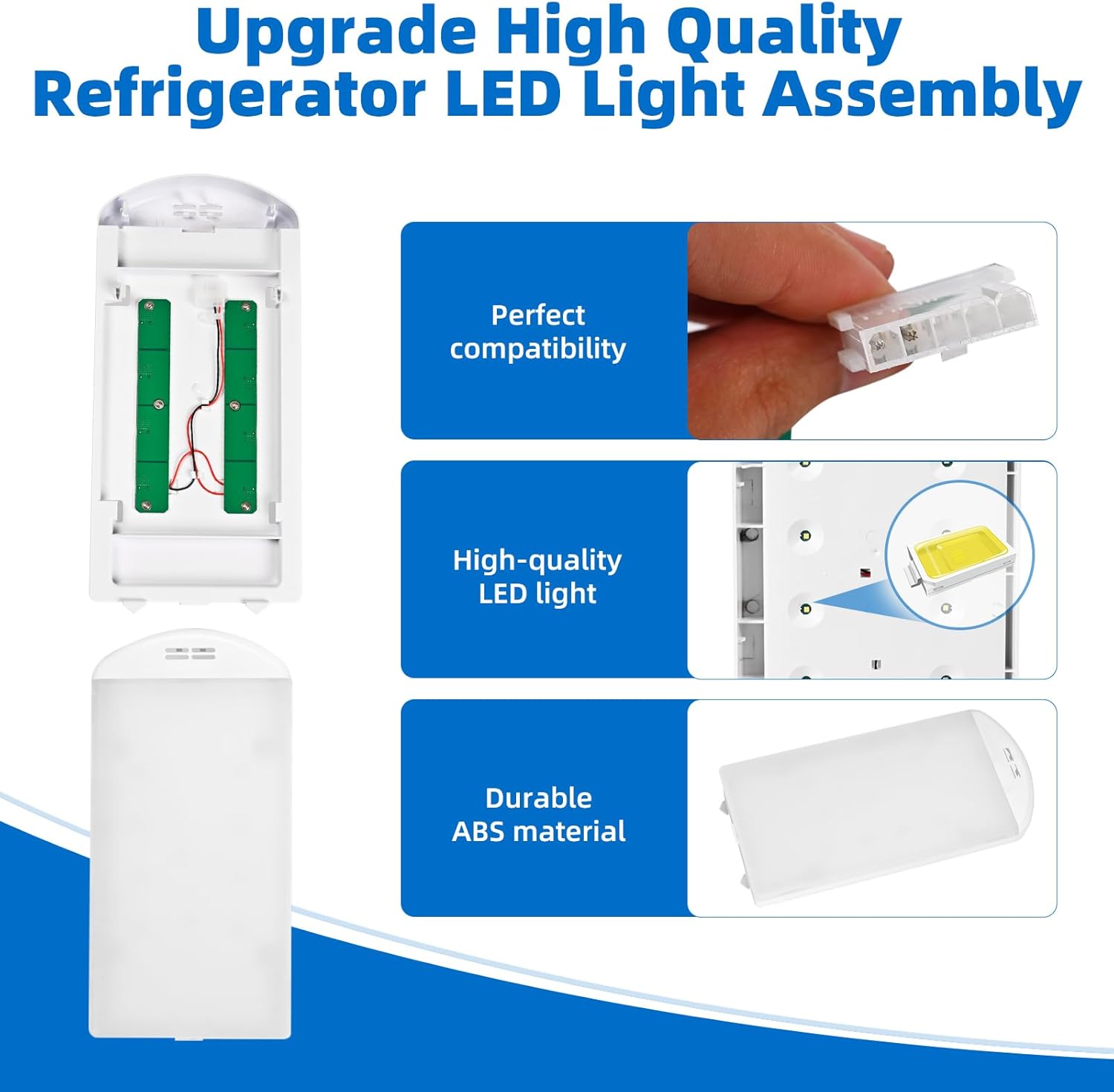

Image highlighting features of the upgraded high-quality refrigerator LED light assembly: perfect compatibility, high-quality LED light, and durable ABS material.

Figure 4.1: Features of the upgraded high-quality LED light assembly, including perfect compatibility, high-quality LED light, and durable ABS material.

This replacement light is designed to provide bright, consistent illumination, enhancing visibility and helping you easily locate items within your refrigerator. It features high-quality LED chips for longer lifespan and low power consumption.

5. Maintenance

The Alinwirsy W11527432 LED light assembly requires minimal maintenance. To ensure optimal performance and longevity:

Cleaning: If the light cover becomes dirty, gently wipe it with a soft, damp cloth. Avoid using abrasive cleaners or solvents, as these can damage the plastic.
Inspection: Periodically inspect the light assembly for any signs of damage or loose connections.

No user-serviceable parts are inside the sealed LED module. Do not attempt to disassemble the unit.

6. Troubleshooting

If you experience issues with your new LED light assembly, refer to the common problems and solutions below:

Before and After comparison of refrigerator lighting, showing a dim/no light refrigerator on the right and a brightly lit one on the left. Icons indicate problems solved: Lights Flickering, Dim Light, No light.

Figure 6.1: Common lighting problems solved by the replacement LED light.

Problem	Possible Cause	Solution
Light is not turning on (No light)	Loose connection, incorrect installation, or faulty unit.	1. Ensure the refrigerator is plugged in and receiving power. 2. Re-check all connections as per the installation instructions (Section 3). 3. Verify the sensor is correctly installed. 4. If the issue persists, contact customer support.
Light is dim or flickering	Loose connection or unit malfunction.	1. Check all electrical connections to ensure they are secure. 2. Ensure the light assembly is properly seated. 3. If flickering continues, contact customer support.

If you encounter a problem not listed here or if the suggested solutions do not resolve the issue, please contact Alinwirsy customer support for further assistance.

7. Specifications

Image showing product dimensions (13.8 inches length, 6.6 inches width) and connector dimensions (0.87 inches by 0.94 inches). Icons represent features: No radiating, High color, Low power, Durability, Efficiency, Safety.

Figure 7.1: Product dimensions and key features of the LED light assembly.

Feature	Detail
Model Number	W11527432 WRX735SDHZ02 light replacement
Product Dimensions	2.98 x 5 x 0.5 inches (approx. 7.57 cm x 12.7 cm x 1.27 cm)
Item Weight	1.39 pounds (approx. 0.63 kg)
Color	White
Material	Durable ABS material
Light Type	LED

8. Warranty and Customer Support

Alinwirsy stands behind the quality of its products. The W11527432 Refrigerator LED Light Assembly comes with a 2-year warranty from the date of purchase.

This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, accident, misuse, abuse, or unauthorized modifications.

For any questions regarding compatibility, installation, troubleshooting, or warranty claims, please contact our dedicated customer support team. We are ready to assist you.

Customer Support Contact: Please refer to your purchase platform or the Alinwirsy official website for the most current contact information.
