1. Important Safety Instructions
Please read these instructions carefully before using the appliance and keep them for future reference. Failure to follow these safety instructions may result in electric shock, fire, or serious injury.
- Always place the appliance on a stable, heat-resistant surface, away from walls and other heat sources.
- Ensure adequate ventilation around the appliance during operation.
- Do not immerse the appliance, cord, or plug in water or any other liquid.
- Keep children and pets away from the appliance during operation.
- The appliance surfaces become hot during use. Use oven mitts when handling hot components.
- Unplug the appliance from the power outlet when not in use and before cleaning.
- Do not operate the appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- This appliance is intended for household use only.
2. Product Overview
The ProfiCook PC FR 1296 H is a dual-chamber hot air fryer designed for oil-free frying. It features two independent cooking zones, allowing for simultaneous preparation of different dishes.
Key Components:
- Main Unit: Houses the heating elements and control electronics.
- Frying Baskets (2x 4.5 Liters): Removable, non-stick coated containers for food.
- Control Panels (2): Independent Sensor Touch LED displays for each cooking zone.
- Handles: Cool-touch handles for safe removal of frying baskets.
- Air Vents: Located at the rear of the appliance for heat dissipation.
Image: Front view of the ProfiCook PC FR 1296 H, showing the two independent control panels and the cool-touch handles of the frying baskets. The display shows temperature settings for each zone.
3. Setup and First Use
Unpacking:
- Remove all packaging materials and promotional stickers from the appliance.
- Check that all components are present and undamaged.
Initial Cleaning:
- Wash the frying baskets and any removable inserts with warm, soapy water. Rinse thoroughly and dry completely.
- Wipe the exterior of the appliance with a damp cloth. Do not use abrasive cleaners.
Placement:
- Place the air fryer on a flat, stable, and heat-resistant surface.
- Ensure there is at least 10-15 cm of clear space around the back and sides of the appliance for proper air circulation.
- Do not place the appliance near flammable materials or under wall cabinets.
First Operation (Burn-in):
It is recommended to run the air fryer empty for about 10-15 minutes at 180°C before first use to eliminate any manufacturing odors. Ensure the room is well-ventilated during this process.
4. Operating Instructions
Basic Operation:
- Plug the appliance into a grounded power outlet. The LED displays will illuminate.
- Pull out the desired frying basket(s) and place food inside. Do not overfill.
- Slide the basket(s) back into the appliance until they click into place.
- Press the power button (U) on the respective control panel to activate it.
- Select a preset program or manually adjust the temperature (80°C - 200°C) and time using the '+' and '-' buttons.
- Press the start/pause button (▶/II) to begin cooking.
Dual Zone Cooking (Simultaneous Preparation):
The PC FR 1296 H allows you to cook two different dishes simultaneously with independent settings for each basket. This is ideal for preparing a complete meal where components have different cooking requirements.
- Load food into both baskets.
- Activate both control panels.
- Set the desired temperature and time for the left basket using its control panel.
- Set the desired temperature and time for the right basket using its control panel.
- Utilize the "Just In Time" system: If dishes have different cooking times, you can program them to finish simultaneously. Consult the recipe or your experience to set the longer cooking time first, then calculate the start time for the shorter cooking time.
- Press start on both panels.
Image: The air fryer operating with both baskets, demonstrating the simultaneous cooking feature. The display shows different temperatures for each zone, indicating independent operation.
Automatic Programs:
The appliance includes 8 pre-set automatic programs for common dishes. Refer to the icon guide on the control panel for specific program functions. These programs offer optimized temperature and time settings, which can often be adjusted manually if needed.
Dehydrator Function:
The integrated dehydrator function allows for vitamin-preserving drying of fruits, vegetables, herbs, and meat. This function operates at lower temperatures over longer periods to gently remove moisture.
- Prepare food by slicing it thinly and evenly.
- Place food in a single layer in the frying basket.
- Select the dehydrator program or manually set a low temperature (e.g., 40-70°C) and a longer time (several hours).
- Monitor the food periodically and rotate baskets if necessary for even drying.
Image: The air fryer highlighting its dehydrator function, showing examples of dried apple rings, vegetable chips, and beef jerky, emphasizing vitamin preservation.
5. Maintenance and Cleaning
Regular cleaning ensures optimal performance and extends the lifespan of your air fryer.
- Before Cleaning: Always unplug the appliance and allow it to cool completely before cleaning.
- Frying Baskets and Inserts: The non-stick coated baskets and any removable inserts should be washed with warm, soapy water after each use. Avoid using abrasive sponges or metal utensils that could damage the non-stick coating. They may also be dishwasher safe (check product manual for specific confirmation).
- Exterior: Wipe the exterior of the appliance with a damp cloth. Do not use harsh chemicals or abrasive cleaners.
- Interior: Wipe the interior of the appliance with a damp cloth. For stubborn residue, a soft brush can be used. Ensure no water enters the electrical components.
- Storage: Store the clean and dry appliance in a cool, dry place.
6. Troubleshooting
If you encounter issues with your ProfiCook PC FR 1296 H, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not turn on. | Not plugged in; power outlet malfunction; appliance fault. | Ensure the plug is securely inserted. Test the outlet with another appliance. If problem persists, contact customer support. |
| Food is not cooked evenly. | Baskets overloaded; food not shaken/turned; incorrect temperature/time. | Do not overfill baskets. Shake or turn food halfway through cooking. Adjust temperature and time as needed. |
| White smoke coming from appliance. | Grease residue from previous use; high-fat food. | Clean baskets thoroughly after each use. For high-fat foods, drain excess fat. This is usually harmless. |
| Appliance smells during first use. | Manufacturing residues burning off. | This is normal for first use. Run empty for 10-15 minutes in a well-ventilated area. |
If the problem persists after attempting these solutions, please contact ProfiCook customer support.
7. Technical Specifications
- Model Number: PC FR 1296 H (501296)
- Capacity: 2 x 4.5 Liters (Total 9.0 Liters)
- Power: 2000 W
- Voltage: 220-240 V~, 50/60 Hz
- Temperature Range: 80°C - 200°C (Continuously adjustable)
- Dimensions (W x D x H): Approximately 37.5 cm x 31 cm x 24 cm
- Weight: Approximately 8.8 kg
- Material: Plastic, Stainless Steel front
- Special Features: Dual zone functions, 8 automatic programs, dehydrator function, Sensor Touch LED displays, automatic shut-off, overheat protection, cool-touch handles, non-stick coated baskets.
Image: Technical drawing showing the dimensions (width, depth, height) of the ProfiCook PC FR 1296 H air fryer, along with its 2000W power rating. The image also shows the removable basket and its internal dimensions.

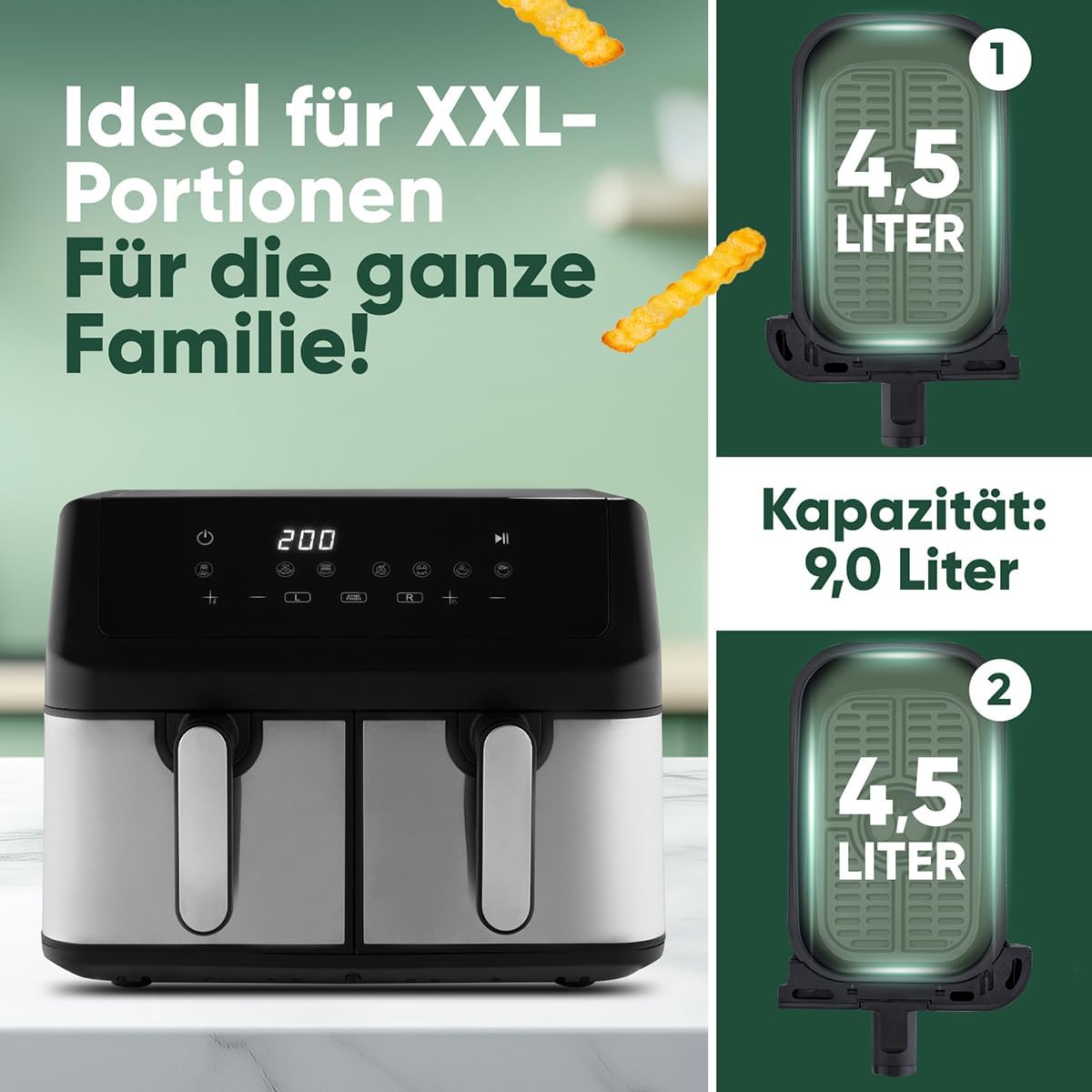

Image: Visual representation of the dual 4.5-liter basket capacity, totaling 9.0 liters, for the ProfiCook PC FR 1296 H air fryer.
