Introduction
This instruction manual provides essential information for the safe and efficient operation, installation, and maintenance of your BLBDBFY Vertical Wind Turbine Generator Kit. This 14000W magnetic levitation wind turbine is designed for various applications, including home, street lighting, boats, RVs, and cabins, offering a quiet and efficient solution for energy generation.
Key features include curved blades for reduced wind resistance, low start-up wind speed, and a humanized flange installation design for ease of use. The intelligent microprocessor control with maximum power tracking effectively adjusts current and voltage, enhancing wind energy utilization and annual power generation.
Image: The BLBDBFY Vertical Wind Turbine Generator Kit featuring red, white, and blue blades, along with its power controller, set against a sunny outdoor backdrop.
Safety Information
Please read all safety warnings and instructions carefully before installing or operating the wind turbine. Failure to follow these instructions may result in electric shock, fire, serious injury, or property damage.
- Ensure all electrical connections are made by a qualified professional.
- Do not touch moving parts of the turbine during operation.
- Always disconnect power before performing any maintenance or installation.
- Install the turbine in a location free from obstructions and away from power lines.
- The turbine will automatically brake when the maximum speed of 300 revolutions per minute is reached.
- Wear appropriate personal protective equipment (PPE) during installation.
Product Components
The BLBDBFY Vertical Wind Turbine Generator Kit includes the following components:
- Main Shaft x 1
- Fan Blade x 3 (available in white, blue, and red, mix and match possible)
- Support Bracket x 6
- Hex Wrench x 2
- Use Manual x 1 (this document)
- Controller x 1 (MPPT Controller)
- Flange x 1
- Screw Package 1 (Large) x 1
- Screw Package 2 (Medium) x 1
- Screw Package 3 (Small) x 1
Image: An overview of the product accessories, including the three white fan blades, main shaft, support brackets, various screw packages, and the controller, alongside a box labeled "PRODUCT ACCESSORIES".
Setup and Installation Guide
The vertical wind turbine is designed for easy assembly. Please follow the steps below carefully. Note that a mounting rod is not included; a 48-54mm (1.89-2.13 in) mounting bar is required.
Image: A visual installation guide showing six steps: inventorying parts, placing the wind turbine vertically, connecting brackets with blades, fixing blades to the mounting hole, tightening bolts, and aligning the flange with the tower pole.
- Inventory All Parts: Verify that all components listed in the "Product Components" section are present. This includes the main shaft, 3 fan blades, 6 support brackets, hex wrenches, controller, flange, and all screw packages.
- Prepare for Vertical Placement: Place the main wind turbine body vertically. Ensure the bottom flange is clear to allow for output wire routing. Note that the upper cover plate of the wind turbine does not need to be tightened yet. The blades can be adjusted upwards or downwards during installation.
- Connect Brackets to Blades: Connect each support bracket to a fan blade using the provided bolts. Then, attach the upper cover plate and lower cover plate to the assembly.
- Fix Blades to Mounting Hole: Secure the blades by fixing them into the mounting hole at the end of each blade bracket. This can be done from the outside of the wind blade. Preload them slightly.
- Tighten All Bolts: Systematically tighten all bolts on the blades and brackets. Ensure there is no abnormal noise or jamming. Adjust the nuts (under the upper cover plate of the wind turbine) to make the upper cover plate tightly fixed.
- Align Flange and Secure: Align the flange hole of the wind generator with the flange hole on the tower pole. Use flat washers and spring washers, then tighten the nut securely.
For electrical connections, refer to the diagram for the Wind & Solar Hybrid System. The MPPT controller is crucial for regulating current and voltage from the turbine to the battery and inverter.
Image: A schematic diagram illustrating a home wind and solar off-grid system, showing connections between a wind turbine, solar panels, MPPT controller, battery, inverter, and various loads like a refrigerator and laptop.
Operating Instructions
The BLBDBFY Vertical Wind Turbine is designed for efficient and quiet operation. Its low start-up wind speed (2 m/s) allows it to begin generating power even in light breezes. The integrated MPPT (Maximum Power Point Tracking) controller optimizes power output by effectively regulating current and voltage, maximizing energy harvest from the wind.
- Automatic Operation: Once properly installed and connected to a battery bank and inverter (if part of a hybrid system), the turbine will automatically begin generating power when wind speeds reach the cut-in speed of 3 m/s.
- Quiet Performance: The vertical design and double bearings contribute to a quieter operation compared to horizontal turbines, making it suitable for residential areas.
- Safety Features: The turbine is equipped with an electromagnetic brake and unloading device for overload protection, automatically braking at a safe wind speed of ≤40m/s or when the maximum rotational speed is reached.
Image: A collage showing the wide applications of the wind turbine (ships, RVs, residences) and its product advantages, including resilience to thunderstorm, sandy and windy conditions, thunder and lightning, rock debris, lightweight and tough design, anti-corrosion properties, and a detailed view of the internal magnetic levitation motor.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your wind turbine. Always disconnect power before performing any maintenance.
- Visual Inspection: Periodically inspect the blades, main shaft, and mounting structure for any signs of damage, cracks, or loose connections.
- Blade Cleaning: Clean the blades as needed to remove dirt, dust, or debris that may accumulate and affect aerodynamic efficiency. Use a soft cloth and mild detergent.
- Electrical Connections: Check all electrical wiring and connections for corrosion or looseness. Ensure they are secure and properly insulated.
- Bearing Check: Listen for any unusual noises during operation, which might indicate an issue with the bearings. The magnetic levitation motor is designed for long service life (15-20 years), but regular checks are advisable.
- Controller Inspection: Ensure the MPPT controller is free from dust and moisture. Check its indicators for normal operation.
Image: Detailed views highlighting the quality materials and construction of the wind turbine, including close-ups of the blade attachment points, the main shaft, and the base mechanism, emphasizing its 20-year lifespan.
Troubleshooting
If you encounter issues with your wind turbine, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Turbine not generating power | Insufficient wind speed; Loose electrical connections; Controller malfunction. | Check wind speed (must be >3 m/s); Inspect all wiring for secure connections; Consult the controller manual or contact support. |
| Unusual noise during operation | Loose blades or brackets; Bearing issue. | Tighten all bolts and connections; If noise persists, contact customer support. |
| Turbine not spinning freely | Obstruction; Bearing issue; Brake engaged. | Check for physical obstructions; Ensure no debris is caught; Verify the brake is not engaged unintentionally. |
Specifications
Detailed technical specifications for the BLBDBFY Vertical Wind Turbine Generator Kit:
| Parameter | Value |
|---|---|
| Name | Vertical Wind Turbine Generator |
| Color | Colorful (Red, White, Blue) |
| Number of Blades | 3 |
| Wind Wheel Diameter | 530mm / 20.9in |
| Blade Height | 750mm / 30in |
| Rated Voltage | 24V (also available in 12V/48V) |
| Peak Power | 14000W |
| Initial Wind Speed | 2 m/s |
| Cut-in Wind Speed | 3 m/s |
| Rated Wind Speed | 10 m/s |
| Safe Wind Speed | ≤40 m/s |
| Generator Type | Three-phase permanent magnet levitation motor |
| Fan Installation Height | 2-12m |
| Generator Protection Level | IP54 |
| Working Environment Temperature | -25°C to +45°C |
| Working Environment Humidity | ≤90% |
| Overload Protection | Electromagnetic brake and unloading device |
| Product Dimensions | 14.17 x 9.84 x 4.72 inches |
| Item Weight | 6.28 pounds (2850 Grams) |

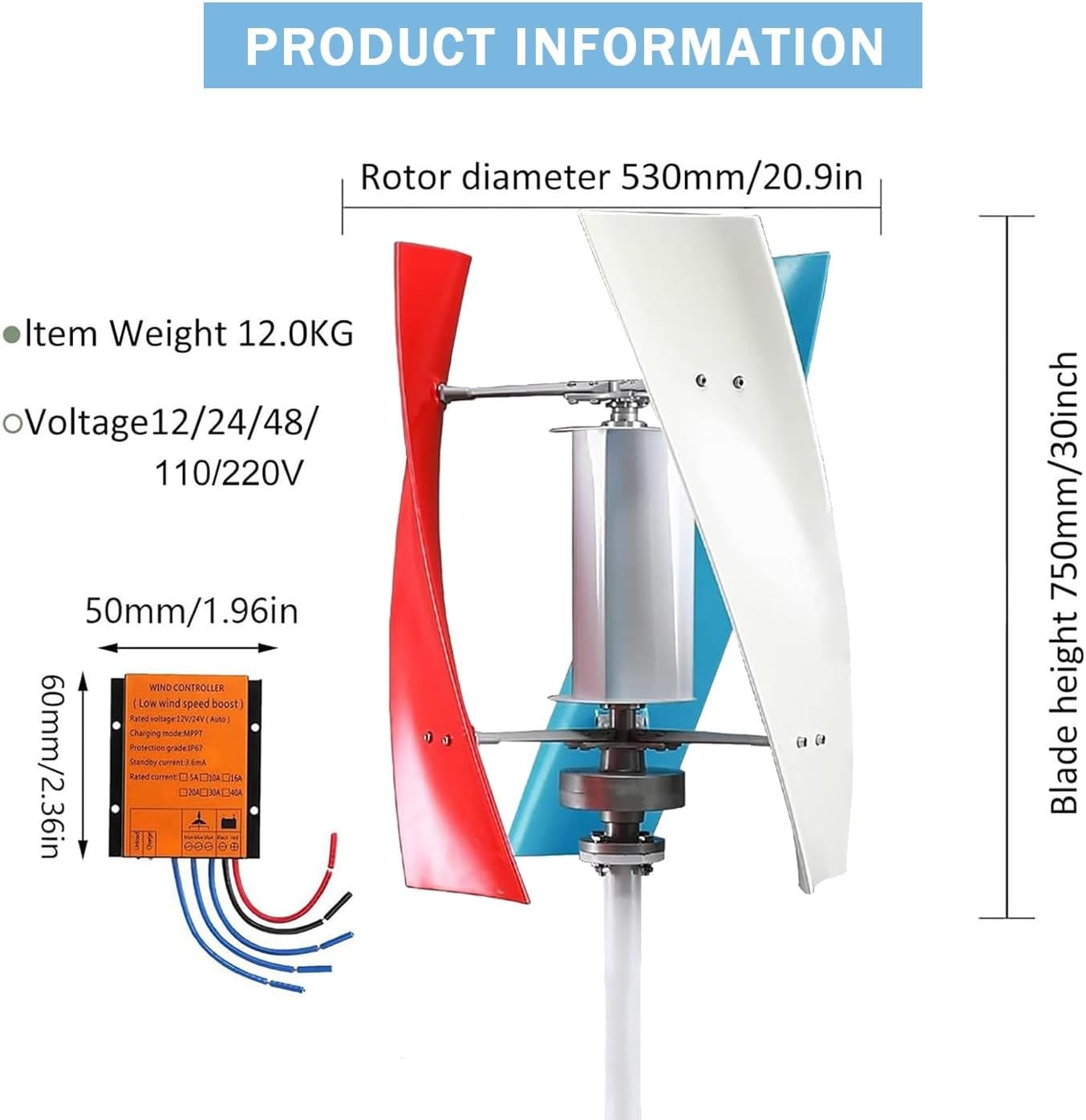

Image: A diagram illustrating key product information, including the rotor diameter (530mm/20.9in), blade height (750mm/30in), item weight (12.0KG), and voltage options (12V/24V/48V/110V/220V), along with detailed dimensions of the wind controller.
Warranty and Support
The BLBDBFY Vertical Wind Turbine Generator is designed for a long service life of 15-20 years, thanks to its coreless permanent magnet generator.
For any questions or concerns regarding the product, installation, or operation, please contact our after-sales service. We are committed to assisting you within 24 hours.
Contact Information: Please refer to the contact details provided with your purchase documentation or on the official BLBDBFY website.
