1. Introduction
This manual provides essential instructions for the assembly, operation, and maintenance of your ANTSKU 12x20 FT Metal Carport. Designed for durability and protection, this heavy-duty carport offers shelter for vehicles and outdoor equipment from various weather conditions. Please read this manual thoroughly before beginning assembly or use to ensure safe and correct installation and operation.

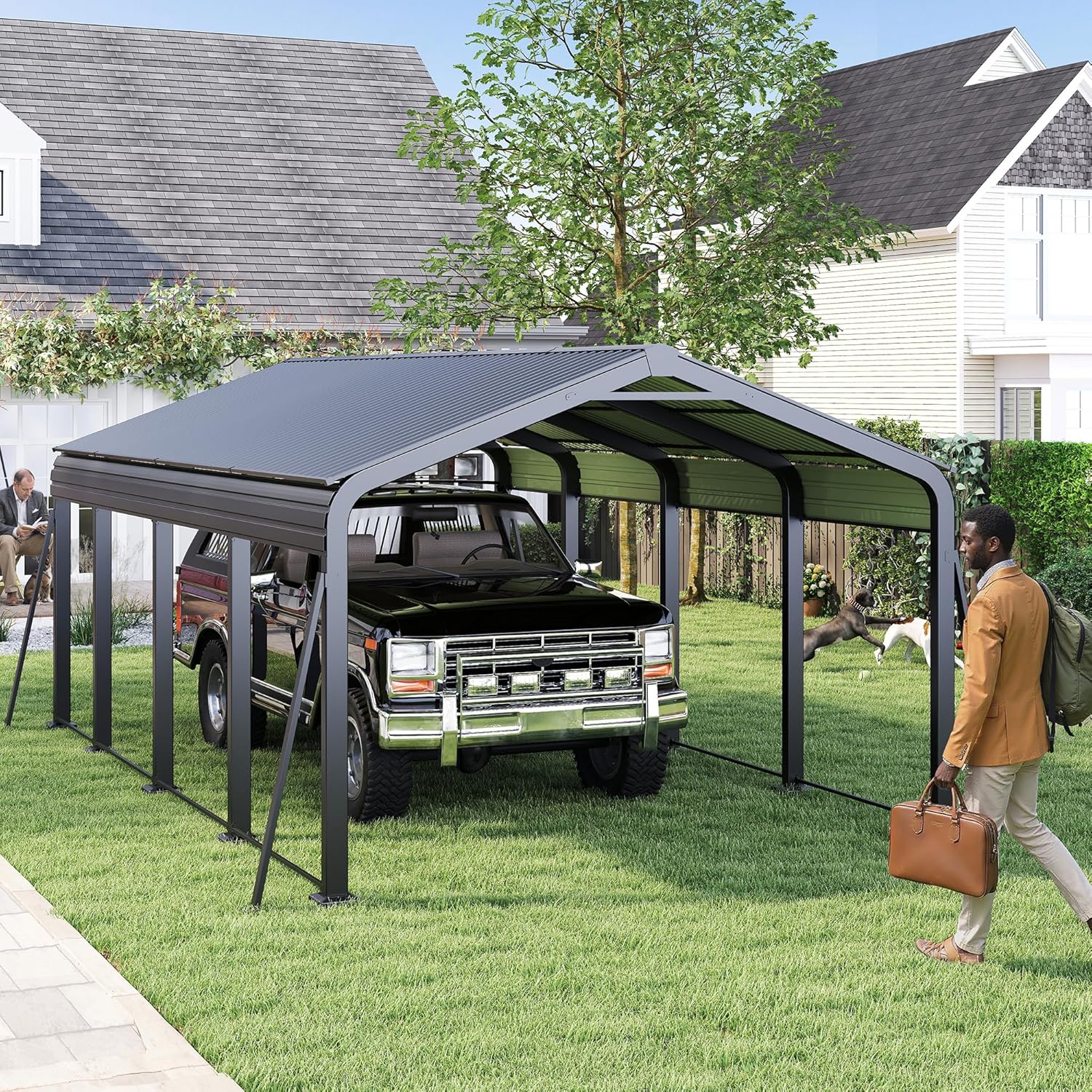

Image 1.1: The ANTSKU 12x20 FT Metal Carport installed in a residential setting, protecting a vehicle.
2. Safety Information
Always prioritize safety during assembly and use. Failure to follow these instructions may result in injury or damage to the product.
- Site Selection: Choose a level, stable surface for installation. Avoid areas prone to flooding or excessive wind exposure without proper additional anchoring.
- Assembly Personnel: Assembly typically requires at least two adults.
- Tools: Use appropriate tools and wear protective gear, including gloves and eye protection.
- Anchoring: Ensure the carport is securely anchored to the ground using the provided ground pegs and support braces to withstand wind and other environmental factors.
- Overhead Clearance: Be aware of overhead power lines or other obstructions during assembly and placement.
- Snow Load: While designed for snow, heavy accumulation should be cleared to prevent structural damage.
- Regular Inspection: Periodically check all connections and anchors for tightness and integrity.
3. Parts List
Before beginning assembly, verify that all components are present and undamaged. Refer to the detailed parts diagram included in your product packaging for specific part numbers and quantities. Key structural components include:
- Galvanized Steel Roof Panels
- Alloy Steel Frame Tubes (Thickened Steel Tubes)
- Ceiling Transoms (Beams)
- Support Braces
- Ground Pegs/Anchors
- Fasteners and Connectors
Image 3.1: Close-up of key structural components: thickened steel tubes, ceiling transoms, and galvanized sheet ceiling.
Image 3.2: The assembled frame of the carport, illustrating the robust structure before roof panel installation.
4. Setup and Assembly
Follow these steps for a smooth and efficient assembly process. All parts are labeled for easy identification.
- Prepare the Site: Clear the chosen area of any debris and ensure it is level.
- Unpack Components: Lay out all parts and verify against the parts list.
- Assemble the Frame: Connect the main frame tubes according to the diagram. Ensure all joints are securely swaged for a tight fit.
- Install Ceiling Transoms: Attach the ceiling beams to the frame, providing support for the roof panels.
- Attach Roof Panels: Secure the galvanized steel roof panels to the frame. The panels utilize a glue-free seam pressing technology for rainproof installation. Ensure protruding eaves are correctly positioned to direct water runoff.
- Install Support Braces: Attach the four removable support braces to anchor the unit to the ground.
- Secure with Ground Pegs: Drive the ground pegs firmly into the ground through the base plates of the frame and support braces.
- Final Check: Inspect all connections to ensure they are tight and secure.
Image 4.1: Key structural details for assembly, including eaves, brackets, and base structure.
Image 4.2: The carport assembled, demonstrating its capacity and ease of installation.
5. Operating and Usage
Your ANTSKU Metal Carport is designed to provide reliable protection for various items.
- Vehicle Protection: Park cars, trucks, boats, or other vehicles under the carport to shield them from sun, rain, snow, and hail.
- Outdoor Storage: Utilize the space for storing outdoor equipment, tools, or recreational items.
- Multi-Use Shelter: The carport can also serve as a shaded outdoor lounge or a convenient workspace.
The design ensures year-round protection, with a reinforced structure capable of withstanding significant wind and snow loads (up to 10 inches of snow).
Image 5.1: The carport's versatility, providing shelter for a vehicle and a comfortable outdoor space.
6. Maintenance
Regular maintenance will extend the lifespan and ensure the continued performance of your carport.
- Cleaning: Clean the roof panels and frame periodically with mild soap and water. Avoid abrasive cleaners or tools that could scratch the galvanized finish.
- Fastener Check: Annually, or after severe weather, inspect all bolts, screws, and connections to ensure they remain tight. Tighten any loose fasteners.
- Ground Anchoring: Verify that ground pegs are still firmly in place. Re-secure if necessary.
- Snow Removal: In areas with heavy snowfall, regularly remove accumulated snow from the roof to prevent excessive load and potential damage.
- Rust Prevention: While galvanized steel is rust-resistant, inspect for any signs of rust, especially at connection points. Touch up with rust-inhibiting paint if needed.
7. Troubleshooting
Here are solutions to common issues you might encounter:
| Problem | Possible Cause | Solution |
|---|---|---|
| Carport feels unstable or sways | Loose connections; insufficient anchoring; uneven ground | Tighten all bolts and screws. Ensure ground pegs are fully inserted and secure. Verify the installation surface is level. |
| Water leakage from roof | Improperly installed roof panels; damaged seals; clogged eaves | Check roof panel alignment and ensure seams are properly pressed. Inspect rainproof tape and eaves for blockages or damage. |
| Difficulty during assembly | Incorrect part orientation; missing parts; insufficient force | Refer to the instruction manual diagrams. Verify all parts are present. Ensure proper alignment before applying force. Contact support if parts are missing or damaged. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | ANTSKU |
| Model | Metal Carport |
| Style | 12x20 FT / Dark Gray |
| Product Dimensions (L x W x H) | 241.73" x 148.41" x 103.93" (approx. 20.14 ft x 12.37 ft x 8.66 ft) |
| Item Weight | 351.96 Pounds |
| Frame Material | Alloy Steel |
| Roof Material | Galvanized Steel |
| Water Resistance Level | Waterproof |
| UV Protection | Yes |
| Assembly Required | Yes |
| Color | Dark Gray |

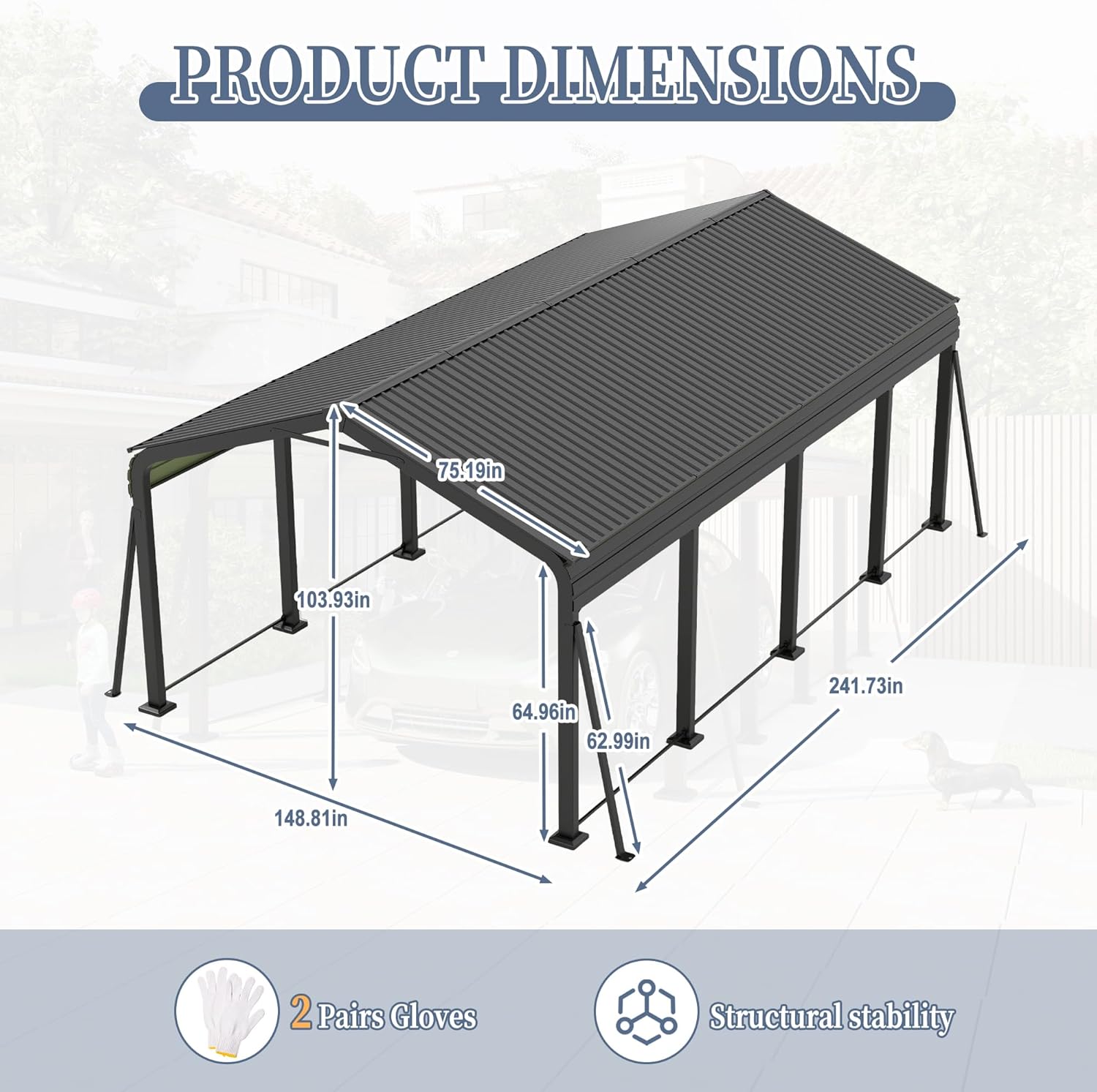

Image 8.1: Detailed product dimensions for the ANTSKU 12x20 FT Metal Carport.
9. Warranty and Support
ANTSKU is committed to customer satisfaction and product quality.
- Warranty: This product is covered by a 12-month warranty from the date of purchase.
- Return/Replacement Policy: A 30-day return or replacement policy is available for eligible products.
- Customer Support: For any questions, concerns, or assistance with your ANTSKU Metal Carport, please contact our customer support team. We aim to resolve inquiries within 24 hours. Refer to your purchase documentation for specific contact details.
