Introduction
This manual provides instructions for the installation and care of the Generic Replacement Range Knob, compatible with GE WB03X24991. This part is designed to replace a worn or broken knob on your oven or range burner.
Important: Before proceeding with installation, carefully review all photos and model numbers provided in the product listing to ensure this replacement part is compatible with your specific appliance model. The package includes one (1) replacement knob only.
Product Overview

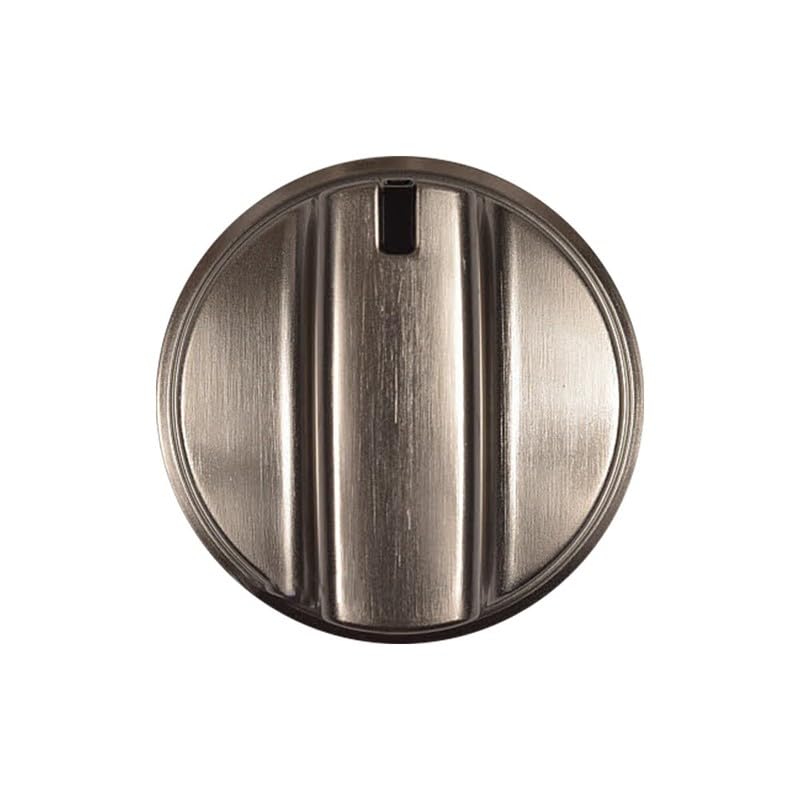

Image: Front view of the replacement range knob. It features a brushed metallic finish and a distinct black indicator mark at the 12 o'clock position, designed for precise control of range functions.
Setup and Installation
Follow these steps to install your new replacement range knob:
- Safety First: Ensure your range or oven is completely turned off and disconnected from the power supply before attempting any installation or repair.
- Remove Old Knob: Gently pull the existing knob straight off the control shaft. It should slide off with moderate force. Avoid twisting or prying forcefully, which could damage the shaft.
- Inspect Shaft: Check the control shaft for any damage, debris, or residue. Clean the shaft if necessary.
- Install New Knob: Align the D-shaped opening on the back of the new replacement knob with the D-shaped control shaft on your appliance. Push the knob firmly onto the shaft until it is seated securely.
- Test Functionality: Reconnect power to your appliance. Carefully turn the new knob through its full range of motion to ensure it rotates smoothly and engages properly with the control mechanism. Verify that the indicator mark aligns correctly with the settings on your appliance's control panel.
If the knob does not fit or function correctly, double-check the model compatibility and the orientation of the D-shaped shaft.
Operating Instructions
The replacement range knob functions identically to the original part. To operate, simply turn the knob to select the desired setting for your burner or oven. The black indicator mark on the knob should align with the corresponding temperature or heat level markings on your appliance's control panel.
- Ensure the knob is fully seated on the control shaft before turning.
- Turn the knob clockwise or counter-clockwise as required by your appliance's design to adjust settings.
- Always refer to your appliance's primary user manual for specific operating procedures and safety guidelines related to your range or oven.
Maintenance and Care
To ensure the longevity and appearance of your replacement range knob:
- Cleaning: Wipe the knob with a soft, damp cloth and mild soap. Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the finish.
- Drying: Dry the knob thoroughly with a clean, soft cloth after cleaning to prevent water spots.
- Avoid Excessive Force: Do not apply excessive force when turning or removing the knob, as this can stress the internal components or the control shaft.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Knob does not fit on shaft. | Incorrect model compatibility; D-shape not aligned. | Verify the knob's model number (WB03X24991) against your appliance's requirements. Ensure the D-shaped opening on the knob is correctly aligned with the shaft. Do not force. |
| Knob is loose or wobbly. | Not fully seated; damaged shaft. | Push the knob firmly onto the shaft until it clicks or feels secure. Inspect the control shaft for any damage or wear that might prevent a snug fit. |
| Knob does not turn or control function. | Improper installation; internal appliance issue. | Ensure the knob is fully pushed onto the shaft. If the issue persists, the problem may lie with the appliance's internal control mechanism, requiring professional service. |
Specifications
- Part Number: WB03X24991
- Model: WB03X24991 / knobpart#4566828
- Compatible Model: WB03X24991
- Manufacturer: Generic
- Item Package Quantity: 1 PC ONLY
- ASIN: B0F6MZY8SM
Warranty and Support
This product is a replacement part. For specific warranty information, please refer to the terms provided by the seller at the time of purchase. Generally, replacement parts may come with a limited warranty against manufacturing defects.
If you encounter issues not covered in the troubleshooting section or require further assistance, please contact the seller or manufacturer through the platform where the purchase was made. Provide your order details and a clear description of the problem for efficient support.
