Teenpull Cream Polyester Roller Blind (Model 1)

1. Product Overview

The Teenpull Cream Polyester Roller Blind is designed to provide shade and privacy for outdoor areas such as balconies, patios, and porches. Constructed with durable polyester fabric and an aluminum-steel frame, this blind offers adjustable height and UV protection for comfortable outdoor living.

Key features include:

• Adjustable Height: Manual adjustment allows height customization from 7.4 ft to 9.0 ft.
• UV Resistant Fabric: Advanced polyester material with UPF 30+ rating protects against sun exposure.
• Semi-Opaque Design: Filters natural light while maintaining privacy.
• Durable Construction: High-quality polyester, steel, and aluminum resist fading, heat, and wear.

2. Safety Information

• Ensure all components are securely fastened during assembly and installation to prevent accidental detachment.
• Keep adjustment cords out of reach of small children and pets to avoid entanglement hazards.
• Do not attempt to operate the blind in strong winds or severe weather conditions to prevent damage or injury.
• Regularly inspect the blind for any signs of wear, damage, or loose parts. Discontinue use if significant damage is observed.
• Assembly requires at least one person. Follow all instructions carefully.

3. Package Contents

Verify that all the following components are present before beginning assembly:

• Roller blind fabric assembly
• Support poles (vertical)
• Base feet/stands
• Adjustment mechanism (cord/crank)
• Mounting hardware (screws, bolts, etc.)
• Instruction manual

4. Setup and Installation

Follow these steps to assemble and install your roller blind. It is recommended to have a clear, flat workspace.

1. Unpack Components: Carefully remove all parts from the packaging and lay them out. Identify each component using the parts list (if provided separately).
2. Assemble Support Poles: Connect the sections of the vertical support poles according to the diagram. Ensure all connections are tight and secure.
3. Attach Base Feet: Secure the base feet to the bottom of the vertical support poles. These provide stability for the blind.
4. Mount Roller Blind Assembly: Attach the roller blind fabric assembly to the top section of the support poles. Ensure the roller mechanism is correctly oriented for operation. Refer to the image below for a visual guide on the assembled product.

Figure 1: Fully assembled roller blind, ready for placement.

5. Position the Blind: Place the assembled roller blind in your desired outdoor location (balcony, patio, porch). Ensure the surface is level and stable.
6. Secure the Blind (Optional): If additional stability is required, use the provided mounting hardware to secure the base feet or upper frame to a fixed structure.
7. Attach Adjustment Mechanism: Connect the cord or crank mechanism to the designated point on the roller blind for height adjustment. Refer to the close-up image of the roller mechanism for detail.

Figure 2: Detail of the roller mechanism and attachment point for the adjustment cord.

5. Operating Instructions

The roller blind features a manual adjustment system to control its height and coverage.

1. To Lower the Blind: Gently pull the adjustment cord downwards. The blind fabric will unroll, extending downwards. Release the cord when the desired height is reached.
2. To Raise the Blind: Gently pull the adjustment cord upwards. The blind fabric will roll up, retracting upwards. Release the cord when the desired height is reached.

The blind can be adjusted to various heights between 7.4 ft and 9.0 ft to suit your needs for shade and privacy.

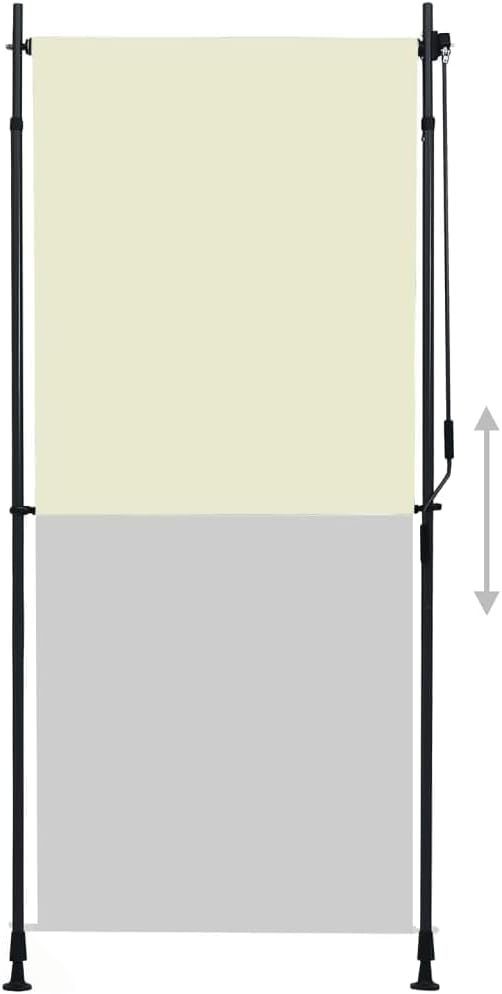

Figure 3: Visual representation of the adjustable height range of the roller blind.

6. Maintenance

Proper maintenance will extend the life and appearance of your roller blind.

• Cleaning the Fabric: Wipe the polyester fabric with a damp cloth and mild soap solution. Rinse thoroughly with clean water and allow to air dry completely before rolling up. Do not use harsh chemicals or abrasive cleaners.
• Cleaning the Frame: Clean the aluminum and steel frame components with a damp cloth. Dry thoroughly to prevent rust or corrosion.
• Regular Inspection: Periodically check all screws, bolts, and connections to ensure they remain tight. Inspect the cord and roller mechanism for any signs of wear or damage.
• Storage: If storing the blind for an extended period, ensure it is clean and dry. Roll it up completely and store it in a protected area away from extreme temperatures and moisture.

7. Troubleshooting

If you encounter issues with your roller blind, refer to the following common solutions:

• Blind not rolling smoothly: Check for any obstructions in the roller mechanism or along the fabric path. Ensure the fabric is not creased or caught. Verify that the support poles are aligned correctly.
• Difficulty adjusting height: Inspect the adjustment cord for knots, fraying, or damage. Ensure the cord is properly threaded through the mechanism. Lubricate moving parts if necessary with a silicone-based spray.
• Blind is unstable: Confirm that the base feet are securely attached and placed on a level surface. If applicable, ensure the blind is properly anchored to a fixed structure using the provided hardware.
• Fabric appears dirty or stained: Refer to the cleaning instructions in Section 6. For stubborn stains, a specialized fabric cleaner for outdoor polyester may be used, following the product's instructions.

8. Specifications

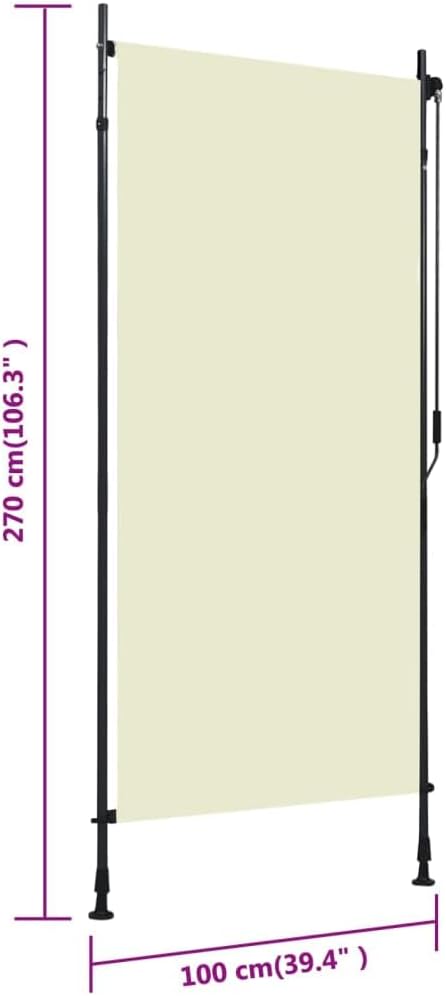

Figure 4: Key dimensions of the roller blind.

9. Warranty and Support

For warranty information, product support, or to inquire about replacement parts, please contact the seller or manufacturer directly. Refer to your purchase documentation for specific contact details.
