1. Introduction
This manual provides essential instructions for the safe and efficient operation of your ECO-WORTHY 12V/24V 20A LiFePO4 Battery Charger. This intelligent charger is designed for various battery types, including LiFePO4, AGM, Gel, and traditional lead-acid batteries, offering flexible current options and advanced features for optimal battery health and longevity. Please read this manual thoroughly before use and retain it for future reference.
2. Safety Information
WARNING: Improper use can result in electric shock, fire, or serious injury. Always follow safety guidelines.
- Always connect the charger to the battery before plugging it into the AC power outlet.
- Ensure the charger is compatible with your battery type and voltage.
- Do not charge frozen or damaged batteries.
- Use in a well-ventilated area. Batteries can produce explosive gases.
- Avoid sparks or flames near the battery during charging.
- Wear eye protection and gloves when handling batteries.
- Keep out of reach of children.
- Disconnect AC power before making or breaking connections to the battery.
Figure 2.1: The charger features multiple protection functions for safe operation, including protection against reverse connection, short circuits, and high temperatures.
3. Product Overview
The ECO-WORTHY 12V/24V 20A Battery Charger is a versatile and intelligent device designed to efficiently charge and maintain various battery types. Its key features include:
- Dual Voltage & Multi-Current Options: Automatically detects 12V/24V and offers selectable charging currents (5A/10A/15A/20A for 12V; 5A/10A for 24V).
- 0V Activation for LiFePO4: Restores normal voltage levels for deeply discharged 12V/24V LiFePO4 batteries.
- Low-Temperature Charging: Capable of charging 12V/24V lead-acid batteries in cold conditions.
- Lead-Acid Battery Reconditioning: Uses 15V pulse charging to recondition old, sulfated, or stratified lead-acid batteries, extending their lifespan.
- Smart LCD Display: Provides real-time information on voltage, current, battery power, and error indicators.
- Multiple Safety Protections: Includes reverse polarity, short-circuit, and high-temperature protection.
- Efficient Cooling Fan: Integrated fan ensures stable and efficient charging performance by dissipating internal heat.

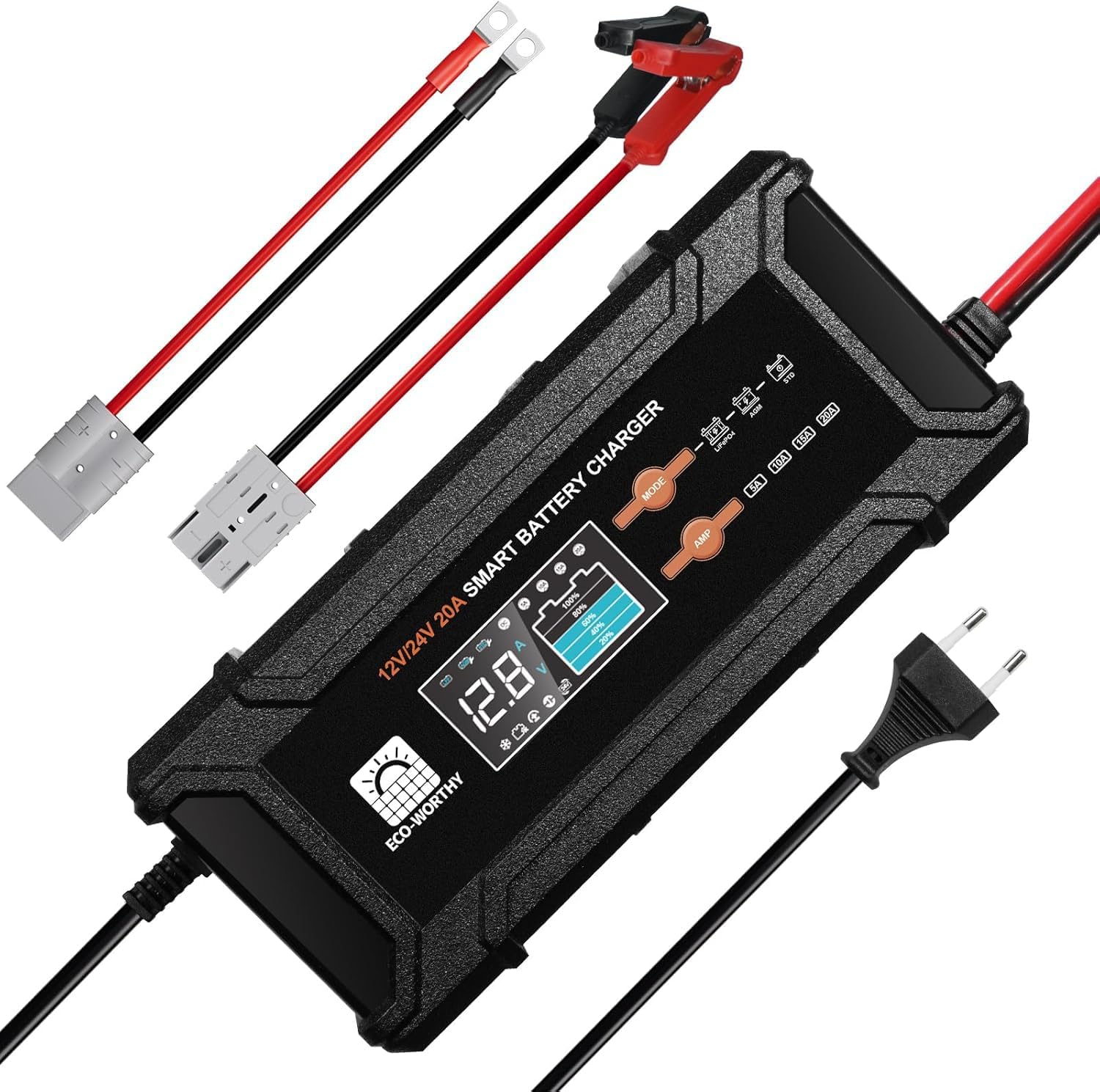

Figure 3.1: The ECO-WORTHY 12V/24V 20A LiFePO4 Battery Charger.
Figure 3.2: Key features of the ECO-WORTHY Smart Battery Charger.
Figure 3.3: Smart LCD Display showing charging status and indicators.
4. Setup
Follow these steps to set up your ECO-WORTHY battery charger:
- Connect to AC Power: Plug the charger's AC power cord into a standard wall outlet. The LCD display will illuminate.
- Select Battery Mode: Press the 'MODE' button to select the appropriate battery type (LiFePO4, AGM, Gel, STD). Important: The battery type cannot be changed once connected to the battery.
- Connect to Battery: Connect the charger's positive (+) clamp (red) to the positive (+) terminal of the battery and the negative (-) clamp (black) to the negative (-) terminal of the battery. Ensure a secure connection.
- Start Charging: The charger will automatically detect the battery voltage and begin charging according to the selected mode and current.
Figure 4.1: Step-by-step guide for connecting the charger.
5. Operating Instructions
5.1 Current Selection
The charger offers multiple current options to suit different battery capacities. Press the 'AMP' button to cycle through the available current settings:
- 12V Mode: 5A, 10A, 15A, 20A
- 24V Mode: 5A, 10A
Select a current appropriate for your battery's capacity to ensure safe and efficient charging. For example, a 100Ah battery might be charged at 10A or 20A depending on desired charging speed and battery specifications.
Figure 5.1: Selectable current levels for 12V and 24V batteries.
5.2 0V Activation for LiFePO4 Batteries
The charger can activate deeply discharged 12V/24V LiFePO4 batteries that have dropped to 0V. This function attempts to restore the battery to a normal voltage level, allowing for a regular charging cycle. Chargers without this feature may fail to recognize and charge such batteries.
Figure 5.2: 0V Activation capability for LiFePO4 batteries.
5.3 Low-Temperature Charging
For lead-acid batteries, the charger can operate in low-temperature mode, ensuring efficient charging even in cold environments. This is particularly useful for winter maintenance of vehicle batteries.
5.4 Lead-Acid Battery Reconditioning
The 12V lead-acid reconditioning mode uses a 15V pulse charge to revitalize old, unused, damaged, stratified, or sulfated lead-acid batteries. This process can significantly extend battery life and improve performance.
5.5 Charging Efficiency
The charger is designed for efficient power transfer, minimizing charging times. For example, a 12V 100Ah LiFePO4 battery can be fully charged in approximately 5 hours using the 12V 20A setting.
Figure 5.3: Charging efficiency and estimated times for various battery configurations.
6. Maintenance
To ensure the longevity and optimal performance of your ECO-WORTHY battery charger, follow these maintenance guidelines:
- Cleaning: Regularly wipe the charger's exterior with a dry, soft cloth. Do not use abrasive cleaners or solvents.
- Storage: Store the charger in a cool, dry place away from direct sunlight, moisture, and extreme temperatures.
- Cable Inspection: Periodically inspect the AC power cord and battery connection cables for any signs of damage, fraying, or corrosion. Replace if necessary.
- Ventilation: Ensure the cooling fan and ventilation openings are free from dust and debris to prevent overheating.
7. Troubleshooting
If you encounter issues with your charger, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Charger not turning on | No AC power; Faulty power cord | Check wall outlet and power cord connection. Try a different outlet. |
| Charger not charging battery | Incorrect battery connection; Battery deeply discharged (0V); Incorrect battery mode selected; Battery fault | Ensure correct polarity (+ to +, - to -). For LiFePO4, allow 0V activation. Verify selected battery mode. Test battery with another device. |
| LCD shows error code | Reverse polarity; Short circuit; Overheating | Disconnect immediately. Check connections for correct polarity. Inspect cables for shorts. Allow charger to cool down. |
| Slow charging | Low current setting; Large battery capacity; Battery degradation | Increase current setting if battery allows. Charging large batteries takes longer. Consider battery replacement if degradation is severe. |
If the problem persists after attempting these solutions, please contact ECO-WORTHY customer support.
8. Specifications
| Specification | Value |
|---|---|
| Brand | ECO-WORTHY |
| Model Number | EPA2420L |
| Product Dimensions (DxWxH) | 9P x 19.4l x 7.4H cm (3.54 x 7.64 x 2.91 inches) |
| Input Voltage | AC 100-240V, 50-60Hz |
| Output Voltage | 12V / 24V (DC) |
| Rated Current | 20 Ampere |
| Selectable Current (12V) | 5A / 10A / 15A / 20A |
| Selectable Current (24V) | 5A / 10A |
| Battery Connector Type | 12V/24V Car Battery Connector (Clamps/Anderson) |
| Number of Ports | 1 |
| Supported Battery Types | LiFePO4, AGM, Gel, Lead-Acid (STD) |
| Standard Met | CE |
| Country of Origin | China |
| UPC | 810127139381 |
| GTIN | 810127139381 |
Figure 8.1: Detailed technical specifications of the charger.
9. Warranty and Support
ECO-WORTHY products are manufactured to high-quality standards and come with a manufacturer's warranty. For specific warranty details, please refer to the warranty card included with your product or visit the official ECO-WORTHY website.
If you require technical assistance, have questions about product operation, or need to report a defect, please contact ECO-WORTHY customer support through their official channels. When contacting support, please have your model number (EPA2420L) and purchase information ready.
Online Support: Visit the ECO-WORTHY official website for FAQs, troubleshooting guides, and contact information.
Email Support: Refer to your product packaging or the official website for the customer service email address.
