Wxvuqpkg Washing Machine Door Seal Ring Instruction Manual

Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your Wxvuqpkg Washing Machine Door Seal Ring, compatible with Samsung DC64-03197A. Please read these instructions carefully before use to ensure optimal performance and longevity of the product.

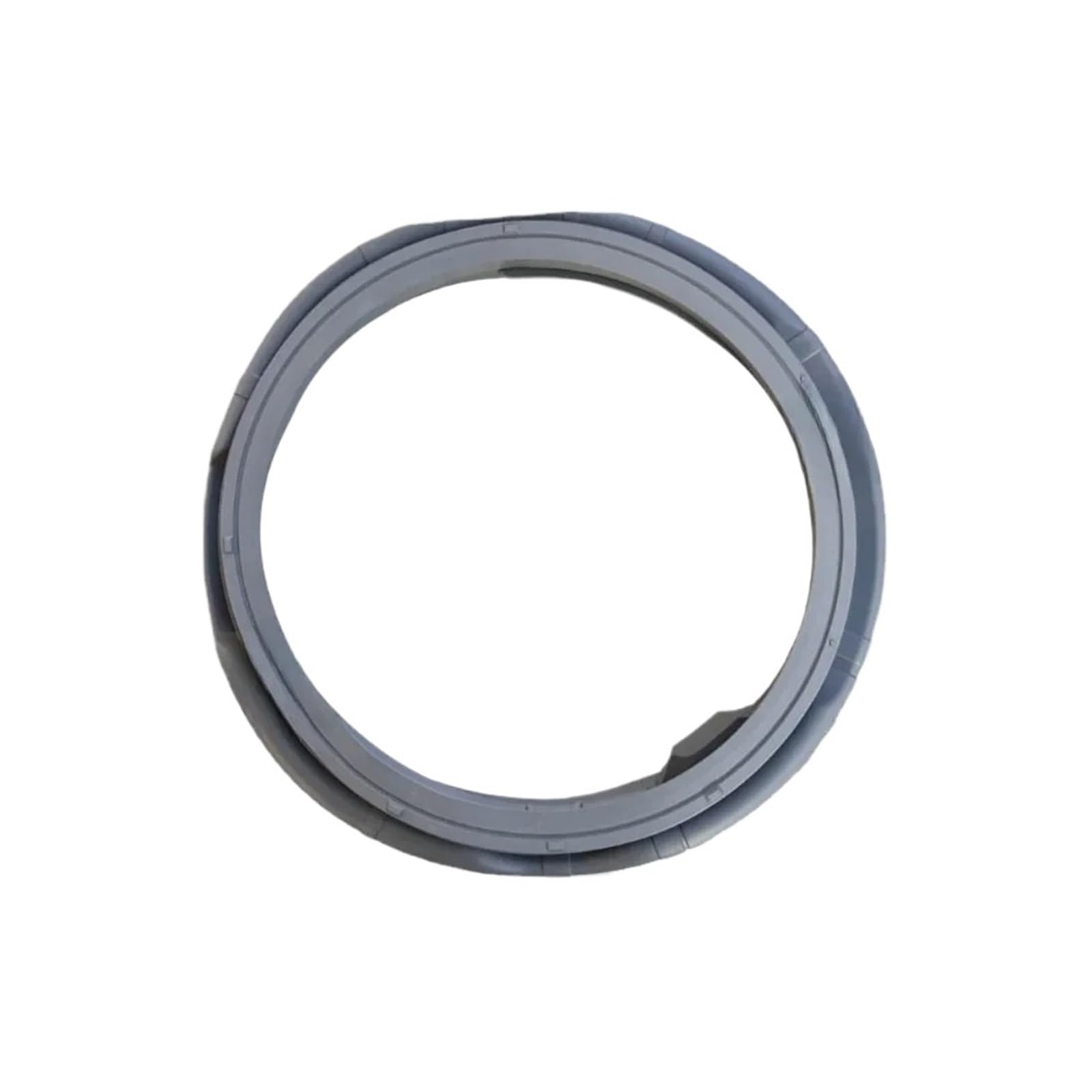

Image: Wxvuqpkg Washing Machine Door Seal Ring, compatible with Samsung DC64-03197A. This image displays the circular rubber gasket designed for washing machine doors.

Setup and Installation

Before beginning installation, ensure the washing machine is unplugged from the power outlet and the water supply is turned off. Gather necessary tools such as a screwdriver, pliers, and a clean cloth.

1. Preparation: Open the washing machine door and locate the existing door seal. Inspect it for wear, tears, or mold.
2. Remove Outer Clamp: Carefully locate and remove the outer spring clamp or wire that secures the old door seal to the front panel of the washing machine. This may require a screwdriver or pliers.
3. Remove Inner Clamp: Reach inside the drum and locate the inner clamp that secures the seal to the drum. Remove this clamp.
4. Remove Old Seal: Once both clamps are removed, carefully pull the old door seal away from the washing machine.
5. Clean Area: Thoroughly clean the area where the new seal will be installed, removing any debris, soap residue, or mold. Ensure the surface is dry.
6. Install New Seal: Position the new Wxvuqpkg door seal ring, ensuring the drain holes (if present) are at the bottom. Carefully stretch and fit the inner lip of the seal around the drum opening.
7. Secure Inner Clamp: Reinstall the inner clamp to secure the seal to the drum. Ensure it is seated correctly and firmly.
8. Secure Outer Clamp: Stretch the outer lip of the seal over the front panel of the washing machine. Reinstall the outer spring clamp or wire, ensuring the seal is evenly seated and secure.
9. Final Check: Close the washing machine door and visually inspect the seal to ensure it is properly seated and there are no gaps or twists.

Note: Refer to your specific washing machine's service manual for detailed instructions on removing and installing the door seal, as procedures may vary slightly by model.

Operating Considerations

Once the new door seal is installed, the washing machine can be operated as usual. The seal's primary function is to prevent water leakage during wash cycles and reduce noise.

• Ensure the washing machine door closes completely and latches securely after loading laundry.
• Avoid overloading the washing machine, as this can put undue stress on the door seal and potentially cause leaks.
• After each wash cycle, it is recommended to wipe down the door seal to remove any excess water or detergent residue.

Maintenance

Regular maintenance of the door seal will extend its lifespan and ensure optimal performance of your washing machine.

• Daily Cleaning: After each use, wipe the door seal with a clean, dry cloth to remove moisture and prevent mold or mildew growth.
• Weekly Inspection: Periodically inspect the seal for any signs of wear, cracks, tears, or debris trapped within its folds.
• Deep Cleaning: If mold or mildew appears, clean the seal with a solution of equal parts white vinegar and water, or a washing machine cleaner specifically designed for door seals. Use a soft brush or cloth.
• Ventilation: Leave the washing machine door slightly ajar between washes to allow air circulation and prevent moisture buildup.

Troubleshooting

If troubleshooting steps do not resolve the issue, contact a qualified appliance technician for assistance.

Specifications

• Product Type: Washing Machine Door Seal Ring / Gasket
• Brand: Wxvuqpkg
• Compatibility: Samsung DC64-03197A
• Material: Rubber
• Item Weight: 1.76 ounces
• Package Dimensions: 0.39 x 0.39 x 0.39 inches
• Model Number (Manufacturer's Listing): liaofengxia
• ASIN: B0F6LP6XHL

Warranty and Support

Information regarding specific warranty terms for the Wxvuqpkg Washing Machine Door Seal Ring is not provided in the product details. Please refer to the seller's return policy or contact the seller directly for warranty inquiries.

For product support or further assistance, please contact the seller "liaofengxia" through the Amazon platform or refer to the contact information provided with your purchase.

Return Policy: The product is subject to a 30-day return policy for refund or replacement, as per Amazon's standard policy.

Instructional Videos

No official instructional videos from the seller are available for this product at this time.
