KUNZENT Swivel Bar Stools Instruction Manual

1. Introduction

This manual provides instructions for the assembly, operation, and maintenance of your KUNZENT Swivel Bar Stools. These stools feature walnut craftsmanship, a bentwood curved back, upholstered faux leather, a soft cushion seat, and a 360-degree swivel function. They are designed for use in various settings such as kitchens, dining areas, bars, and commercial spaces.

2. Safety Information

• Always assemble according to the provided instructions.
• Do not exceed the maximum weight limit of 330 pounds.
• Be cautious of the swivel feature to prevent accidents.
• Use on stable, non-slippery surfaces to minimize the risk of tipping.

3. Package Contents

Please ensure all components are present before beginning assembly:

• Seat components (upholstered seat with curved back)
• Leg frame components
• Swivel mechanism
• Metal footrest ring
• Assembly hardware (screws, washers, Allen wrench)
• Instruction manual

Figure 3.1: All components included in the package.

4. Assembly Instructions

Follow these steps for proper assembly. An installation video is provided for visual guidance.

1. Attach the leg frame components using the provided screws and Allen wrench. Ensure all connections are secure.
2. Install the metal footrest ring into the designated slots on the leg frame, securing it with the appropriate hardware.
3. Mount the swivel mechanism to the top of the assembled leg frame using the shorter screws.
4. Align the upholstered seat with the swivel mechanism and secure it using the remaining screws.
5. Verify all screws are tightened and the stool is stable before use.

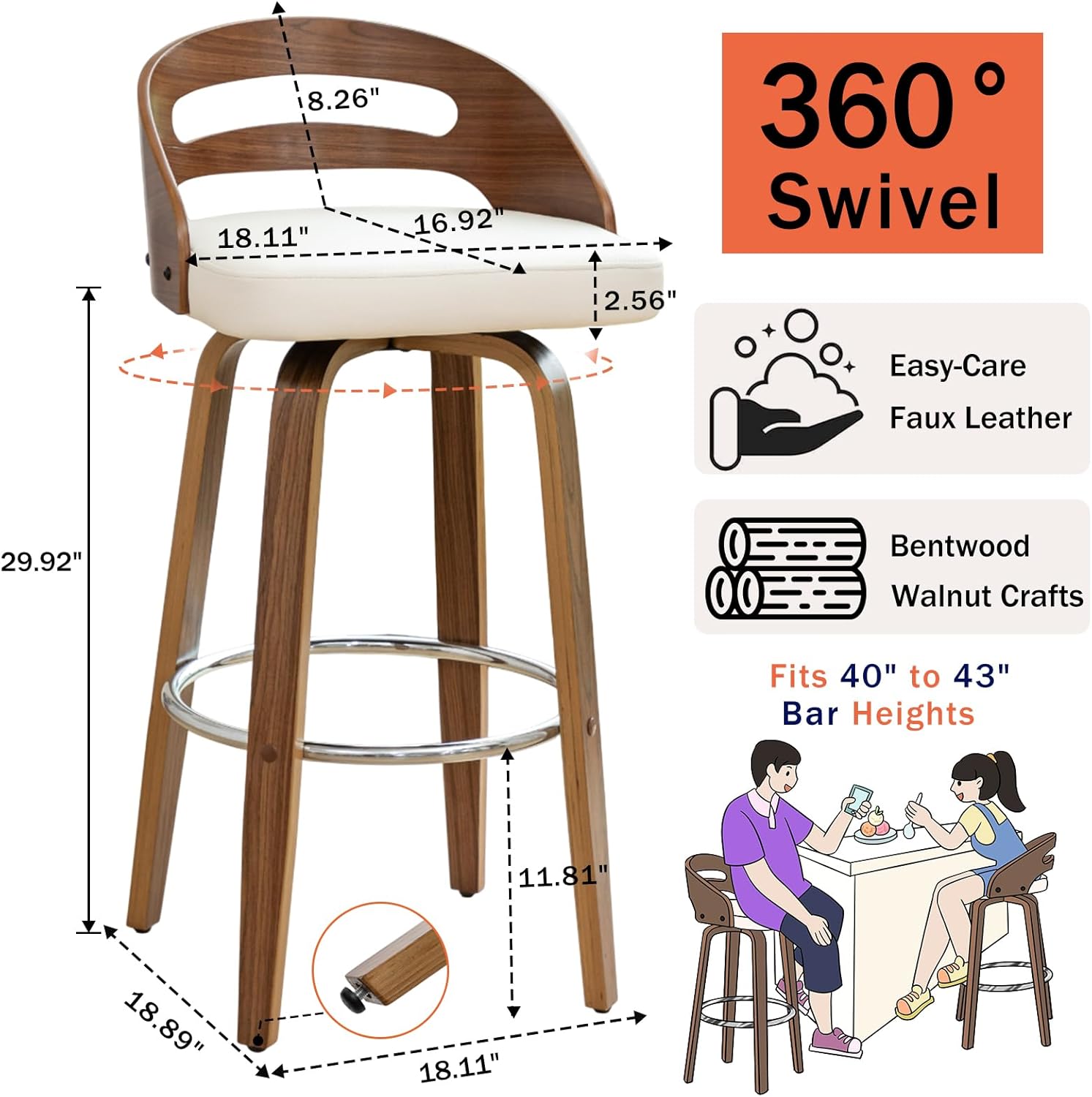

Figure 4.2: Product dimensions for assembly reference.

5. Operating Instructions

The KUNZENT Swivel Bar Stools are designed for comfort and ease of use.

• 360-Degree Swivel: The stools feature a smooth 360-degree rotation, allowing for easy movement and interaction in social settings.
• Ergonomic Curved Back: The bentwood curved back is engineered to support proper posture and reduce muscle strain during extended sitting.
• Comfortable Cushion Seat: The upholstered faux leather seat provides a soft and supportive seating experience.
• Metal Footrest: A sturdy metal footrest offers additional comfort and stability, providing support for your feet.

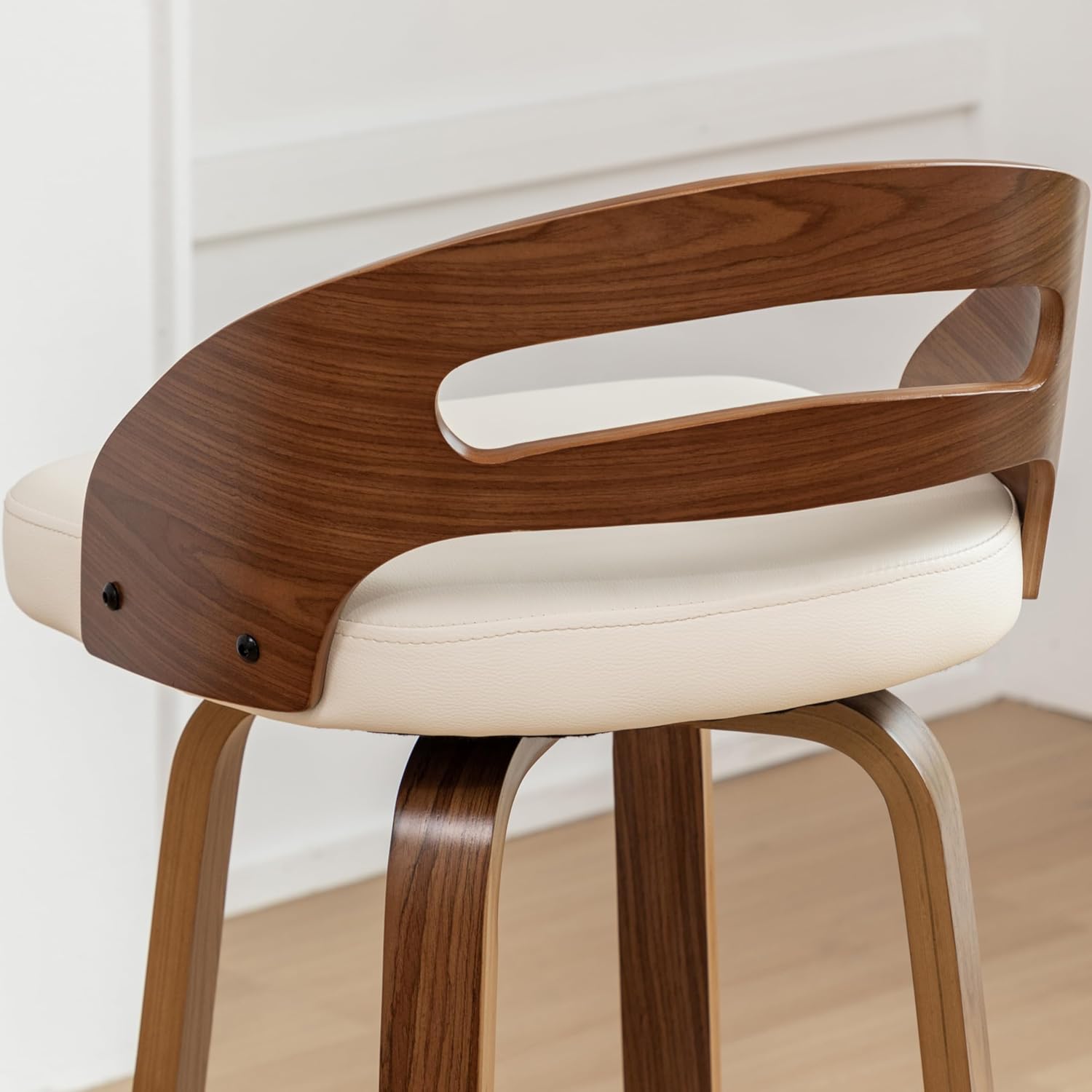

Figure 5.2: The 360-degree swivel mechanism.

Figure 5.3: Ergonomic curved backrest.

Figure 5.4: Metal footrest for added comfort.

6. Care and Maintenance

To maintain the appearance and longevity of your bar stools, follow these care instructions:

• Faux Leather Upholstery: The faux leather is waterproof and easy to clean. Wipe spills immediately with a soft, damp cloth. For general cleaning, use a mild soap solution and wipe dry. Avoid harsh chemicals or abrasive cleaners.
• Wood Frame: Clean the walnut bentwood frame with a soft, dry cloth. Avoid direct sunlight and extreme temperature changes to prevent warping or fading.
• Metal Components: Wipe the metal footrest with a damp cloth to remove dust and grime. Dry thoroughly to prevent tarnishing.
• General: Periodically check and tighten all screws to ensure stability.

Figure 6.1: Faux leather upholstered seat.

7. Troubleshooting

If you encounter any issues with your bar stools, refer to the following common solutions:

• Wobbling Stool: Ensure all screws are securely tightened. Check that the adjustable foot pads are properly leveled on uneven surfaces.
• Stiff Swivel: Apply a small amount of silicone-based lubricant to the swivel mechanism if it becomes stiff. Avoid oil-based lubricants.
• Loose Components: Regularly inspect all connections and tighten any loose screws to maintain structural integrity.

8. Specifications

Figure 8.1: Guide for seat height compatibility with counters.

9. Customer Support

For any questions, concerns, or assistance with your KUNZENT Swivel Bar Stools, please refer to the contact information provided with your purchase or visit the official KUNZENT website.
