FFGHUI Carburetor Kit Replacement Part

1. Introduction

This instruction manual provides essential information for the installation, operation, and maintenance of your FFGHUI Carburetor Kit. This kit is designed as a direct replacement part for the TTL488GDO 2-IN-1 String Trimmer and Lawn Mower, ensuring proper fuel delivery to the engine for optimal performance.

The carburetor is a critical component responsible for mixing air and fuel in the correct ratio for combustion. Replacing a faulty carburetor can restore engine functionality and efficiency.

2. Safety Information

Always prioritize safety when working with engine components and fuel systems. Failure to follow safety instructions can result in serious injury or property damage.

• Disconnect Spark Plug: Before beginning any work, always disconnect the spark plug wire to prevent accidental engine starting.
• Fuel Handling: Work in a well-ventilated area. Avoid open flames, sparks, or smoking near fuel. Use an approved fuel container.
• Eye Protection: Wear safety glasses or goggles to protect your eyes from debris or fuel splashes.
• Gloves: Wear appropriate gloves to protect your hands from fuel, oil, and sharp edges.
• Hot Surfaces: Allow the engine to cool completely before working on it to avoid burns.
• Professional Assistance: If you are unsure about any step, consult a qualified technician.

3. Package Contents

Carefully unpack the box and ensure all items are present and undamaged. If any parts are missing or damaged, contact your supplier immediately.

• 1x FFGHUI Carburetor Replacement Part

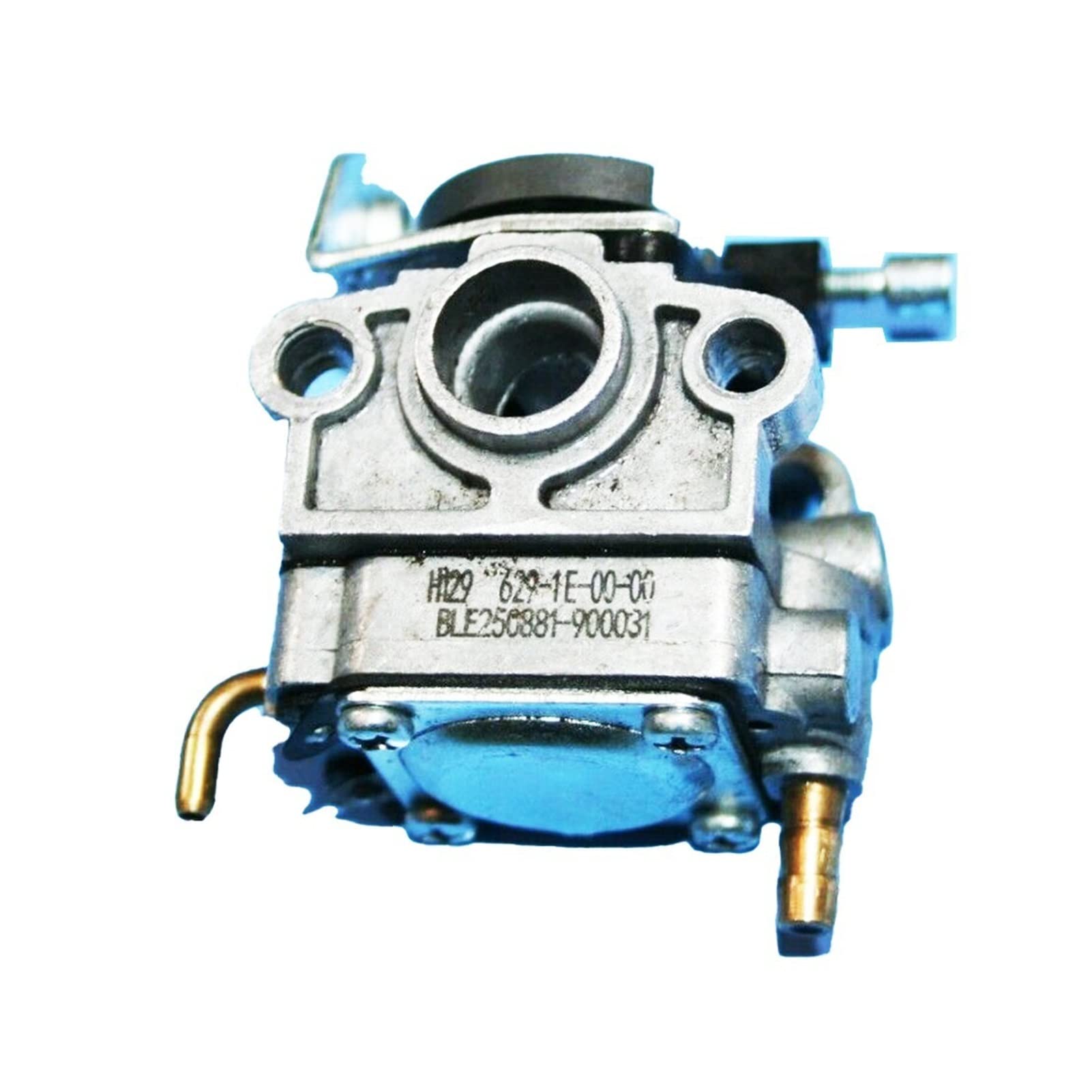

Image 1: Top-down view of the FFGHUI Carburetor Kit, showing the fuel inlet and adjustment screws.

4. Setup and Installation

This carburetor is designed to conform to original specifications, offering an easy and convenient installation process. However, proper installation is crucial for optimal performance.

Required Tools (Not Included):

• Screwdrivers (Phillips and Flathead)
• Wrenches or Sockets
• Pliers
• Fuel line clamps (optional)

Installation Steps:

1. Preparation: Ensure the engine is cool and the spark plug wire is disconnected. Drain any fuel from the fuel tank.
2. Access the Carburetor: Remove any air filter covers, air filters, or other components that obstruct access to the existing carburetor.
3. Disconnect Fuel Lines: Carefully disconnect the fuel lines from the old carburetor. Be prepared for residual fuel to leak.
4. Remove Old Carburetor: Unbolt the old carburetor from the engine manifold. Note the orientation of any gaskets or spacers.
5. Install New Carburetor: Place new gaskets (if supplied, or reuse old ones if in good condition) and mount the new FFGHUI carburetor in the same orientation as the old one. Secure it with bolts, tightening them evenly.
6. Reconnect Fuel Lines: Reattach the fuel lines to the appropriate ports on the new carburetor. Ensure connections are secure to prevent leaks.
7. Reassemble: Reinstall the air filter, air filter cover, and any other components removed during disassembly.
8. Reconnect Spark Plug: Reconnect the spark plug wire.

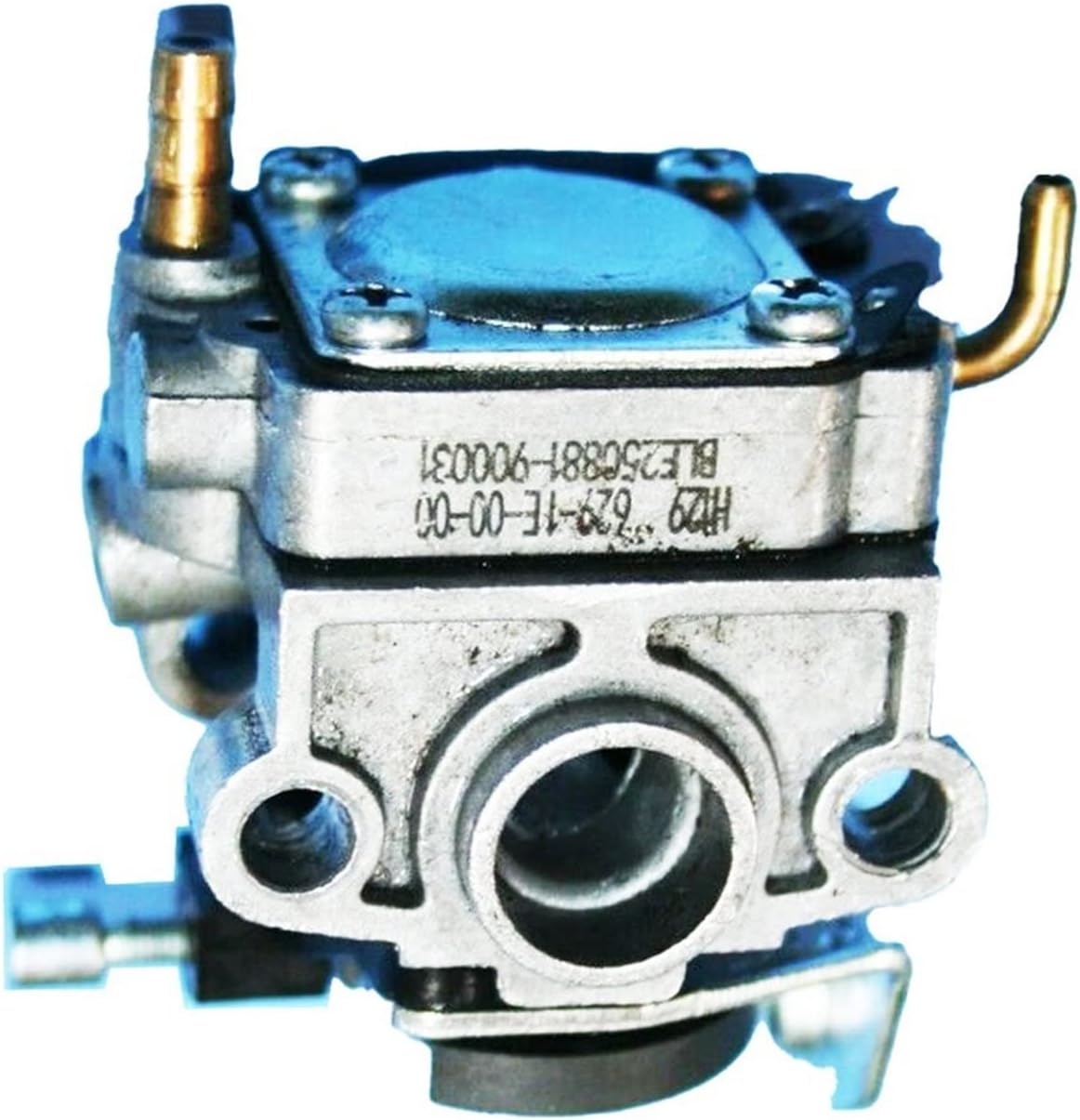

Image 2: Side view of the FFGHUI Carburetor Kit, highlighting the fuel line connections.

Image 3: Angled view of the FFGHUI Carburetor Kit, illustrating the mounting points for installation.

5. Operating Instructions

After successful installation, perform the following checks before operating your equipment:

• Fuel Check: Refill the fuel tank with the appropriate fuel mixture for your equipment.
• Leak Check: Inspect all fuel line connections for any signs of leakage. Tighten connections if necessary.
• Initial Start-up: Follow your equipment's manufacturer instructions for starting the engine. It may take a few pulls for the fuel to prime the new carburetor.
• Idle Adjustment: If the engine idles too high or too low, consult your equipment's manual for carburetor idle speed adjustment procedures.

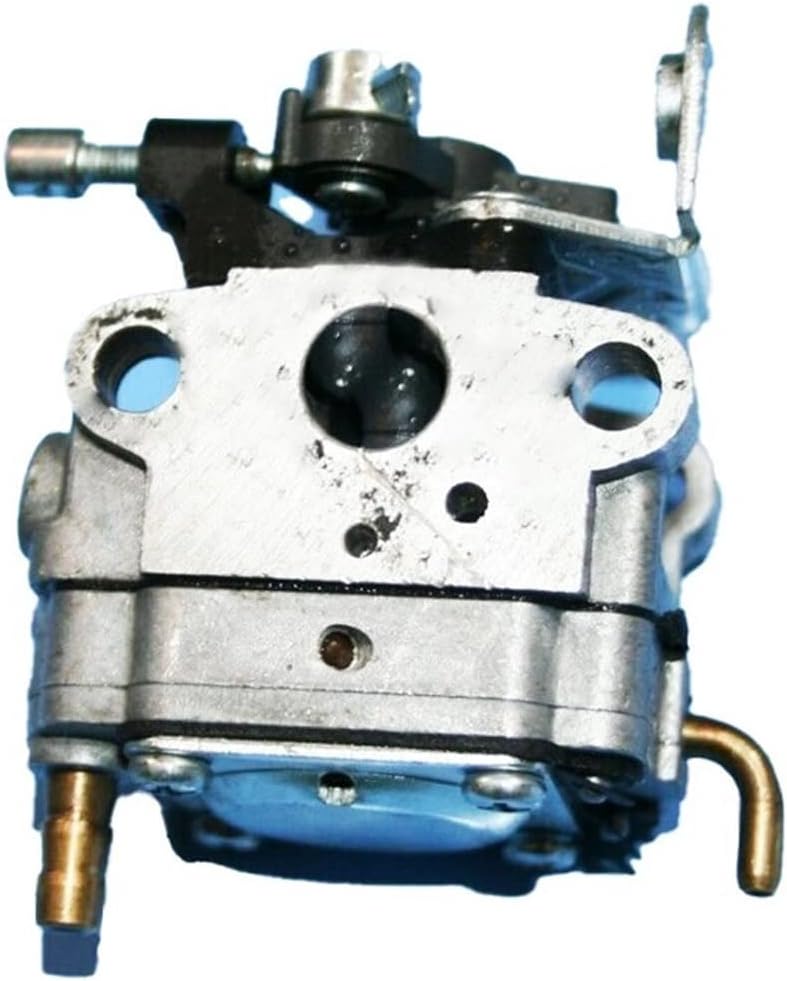

Image 4: Front view of the FFGHUI Carburetor Kit, showing the throttle linkage mechanism.

6. Maintenance

Regular maintenance helps ensure the longevity and reliable performance of your carburetor.

• Fuel Quality: Always use fresh, clean fuel. Stale or contaminated fuel can clog carburetor passages.
• Fuel Filter: Regularly check and replace the fuel filter according to your equipment's maintenance schedule.
• Air Filter: A clean air filter is essential for proper air-fuel mixture. Clean or replace the air filter as recommended by your equipment manufacturer.
• Storage: If storing the equipment for an extended period, drain the fuel system or use a fuel stabilizer to prevent gum and varnish buildup in the carburetor.

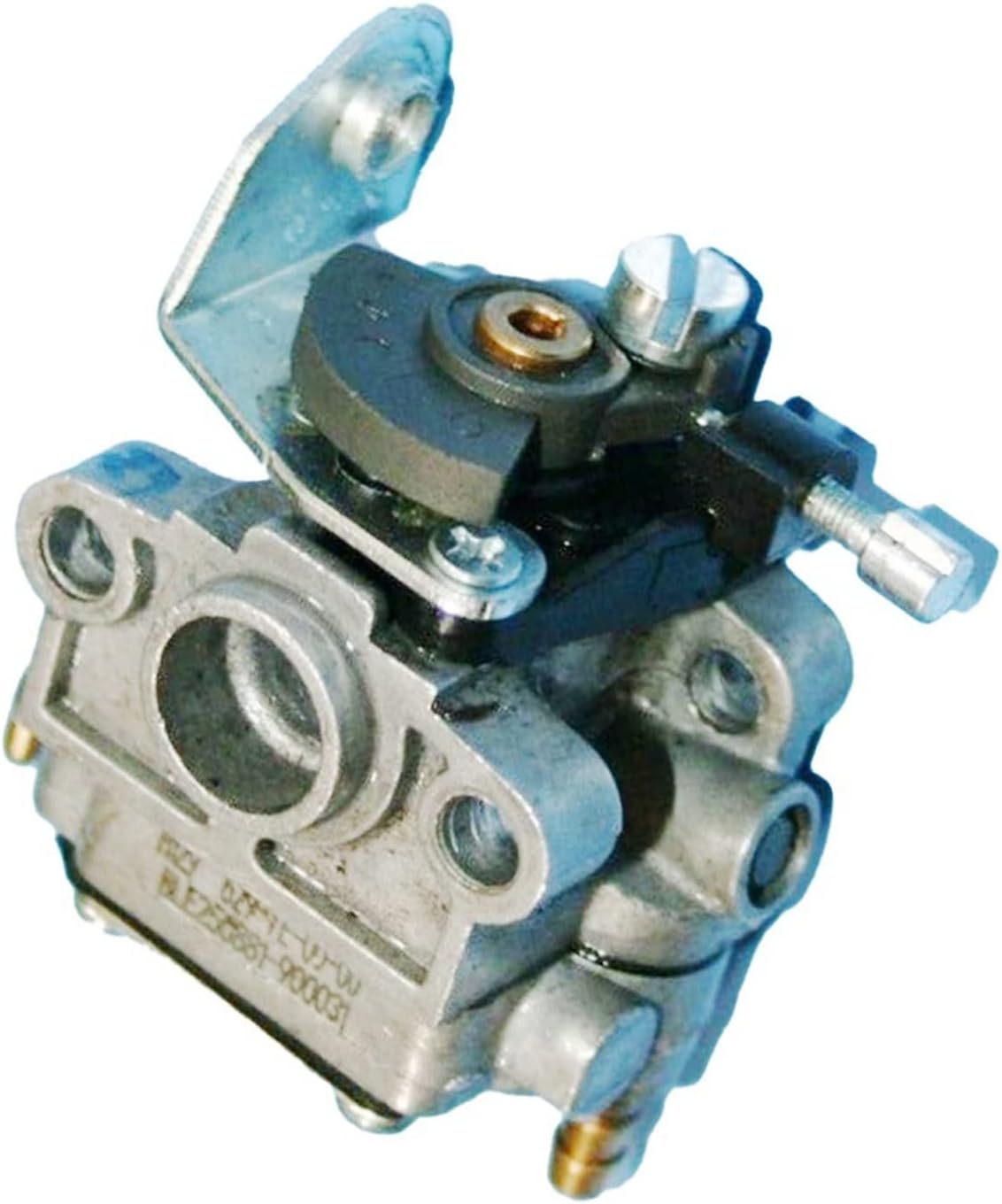

Image 5: Rear view of the FFGHUI Carburetor Kit, displaying the intake port.

7. Troubleshooting

If you encounter issues after installing the new carburetor, consider the following common problems and solutions:

• Engine Not Starting:
  • Check fuel level and ensure fresh fuel is used.
  • Verify spark plug connection and condition.
  • Ensure fuel lines are correctly connected and not kinked.
  • Check for air leaks around the carburetor mounting gaskets.
• Poor Engine Performance (Rough Idle, Stalling):
  • Inspect the air filter for cleanliness.
  • Ensure all carburetor adjustments (if applicable to your equipment) are set correctly.
  • Check for proper fuel flow and ensure the fuel filter is not clogged.
• Fuel Leaks:
  • Tighten all fuel line clamps and connections.
  • Inspect gaskets for proper seating and damage.

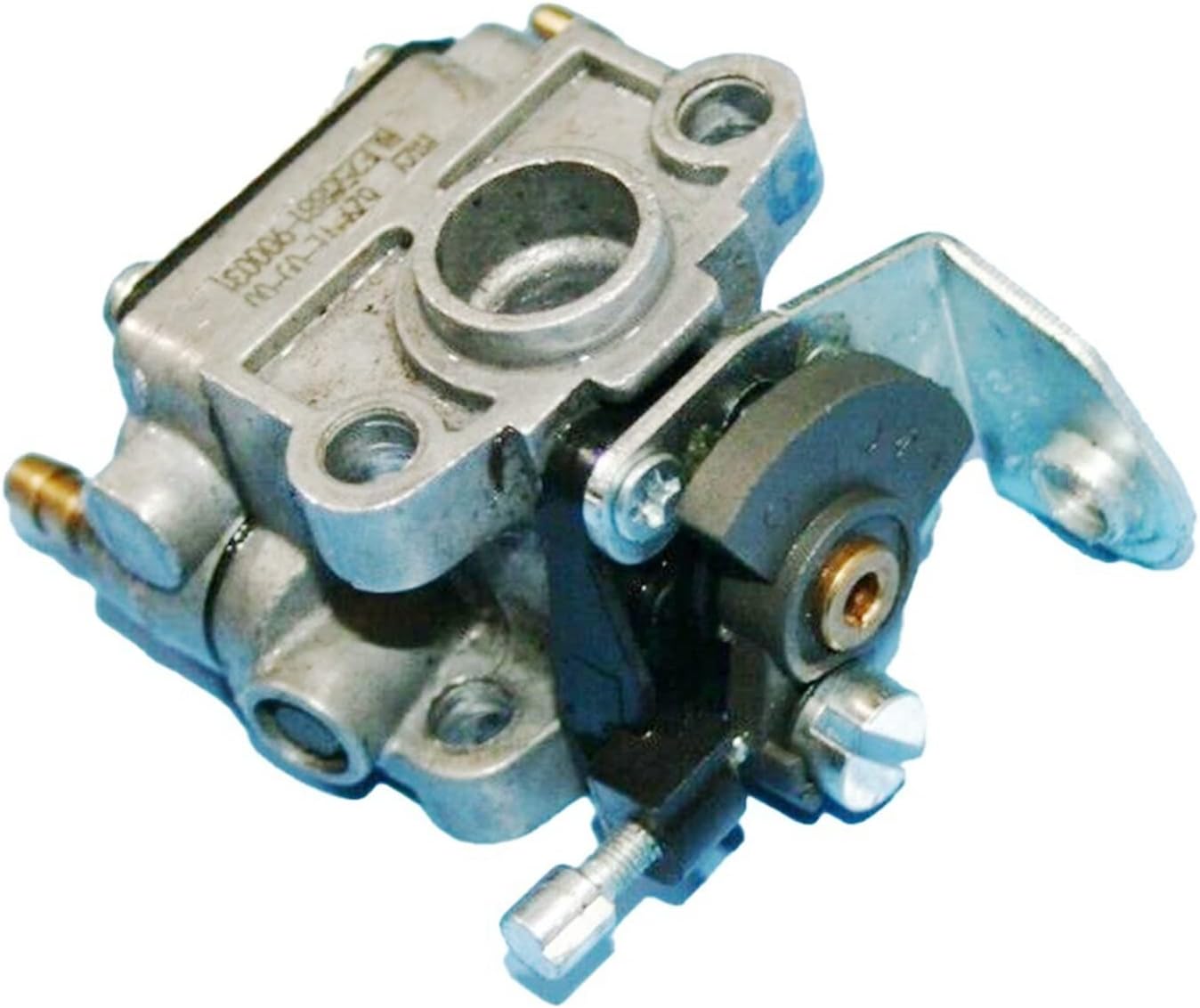

Image 6: Another angled view of the FFGHUI Carburetor Kit, highlighting potential adjustment screws.

8. Specifications

9. Warranty and Support

This FFGHUI Carburetor Kit is manufactured to strict engineering quality standards and undergoes rigorous testing before shipment to ensure maximum strength and durability. For specific warranty information or technical support, please refer to the documentation provided with your purchase or contact the manufacturer directly.

For assistance, please reach out to your retailer or the FFGHUI customer service department.
