1. Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of the ENEVABAGB Black Rear Suspension system, designed specifically for Kuickwheel S1-C and S1-C Pro electric scooters. This suspension system is engineered to enhance ride comfort and stability by absorbing shocks and vibrations from uneven terrain.
2. Package Contents
Before beginning installation, please verify that all components listed below are present in your package. If any parts are missing or damaged, please contact ENEVABAGB customer support.
Image 2.1: All components included in the ENEVABAGB Black Rear Suspension kit. This includes the main suspension unit, fender, mounting brackets, and various bolts, nuts, and wrenches.
- Main Suspension Unit (with black spring)
- Rear Fender with Reflector
- Mounting Brackets (various shapes and sizes)
- Assorted Bolts, Nuts, and Washers
- Hex Wrenches (Allen keys) for installation
3. Safety Information
Always prioritize safety when working with electric scooters and their components. Read and understand all instructions before proceeding with installation.
- Ensure the scooter is powered off and disconnected from any charging source before beginning installation.
- Wear appropriate personal protective equipment, such as gloves and eye protection.
- If you are unsure about any step, seek assistance from a qualified technician.
- Do not modify the suspension system or any scooter components.
- After installation, perform a thorough check to ensure all bolts are tightened and the suspension operates correctly before riding.
4. Installation Guide
The following steps outline the process for installing the ENEVABAGB Rear Suspension system on your Kuickwheel S1-C or S1-C Pro electric scooter. It is recommended to have basic mechanical aptitude for this procedure.
4.1 Preparation
- Park your scooter on a stable, flat surface.
- Turn off the scooter and remove the key (if applicable).
- Gather all tools provided and any additional tools you may need (e.g., socket wrench set, screwdriver).
4.2 Removing Existing Components (if applicable)
If your scooter has existing rear components that need to be removed to accommodate the new suspension, carefully follow the manufacturer's instructions for their removal. This may include the original rear fender or any fixed rear support structures.
4.3 Mounting the Suspension Unit
- Identify the mounting points on your scooter's frame where the suspension unit will attach. These are typically near the rear wheel and under the deck.
- Align the main suspension unit with these mounting points.
- Secure the suspension unit using the appropriate bolts, nuts, and washers from the kit. Ensure all connections are snug but do not overtighten initially.
- Attach the rear fender to the designated points on the suspension unit using the provided hardware. Ensure the fender is properly aligned over the wheel.

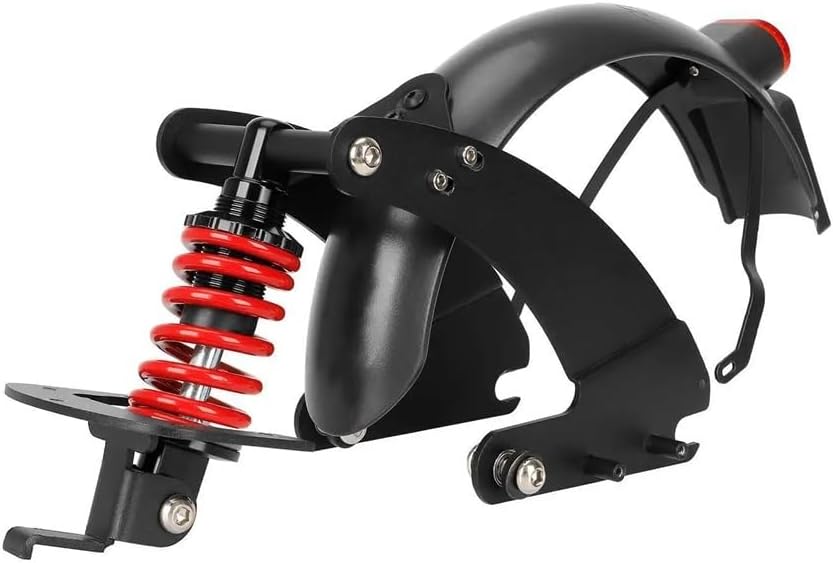

Image 4.1: An assembled view of the ENEVABAGB rear suspension unit, showing the main spring and fender attachment points. Note that the product comes with a black spring as indicated in the title.
Image 4.2: Another perspective of the assembled suspension and fender, highlighting the structural integrity and design.
4.4 Final Tightening and Inspection
- Once all components are in place, systematically tighten all bolts and nuts using the provided hex wrenches. Ensure they are secure but avoid overtightening, which can strip threads or damage components.
- Verify that the suspension moves freely without obstruction and that the fender does not rub against the wheel.
- Test the scooter's functionality at a low speed in a safe area to confirm proper operation of the suspension and braking system.
Image 4.3: The ENEVABAGB rear suspension system fully installed on a compatible electric scooter, viewed from the side. This image shows the black spring variant.
Image 4.4: The ENEVABAGB rear suspension system installed on an electric scooter, viewed from the rear, showcasing the fender and overall integration.
5. Operating Principles
The ENEVABAGB Rear Suspension system is a passive mechanical component designed to absorb kinetic energy from impacts and vibrations encountered during riding. It works by compressing its spring and damping mechanism, converting impact energy into heat, thereby reducing the transmission of shocks to the rider and the scooter frame. This results in a smoother, more comfortable ride and improved handling over varied surfaces.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your ENEVABAGB Rear Suspension system.
- Cleaning: Periodically clean the suspension unit and fender to remove dirt, dust, and debris. Use a damp cloth and mild soap if necessary. Avoid high-pressure washing directly on the suspension components.
- Inspection: Regularly inspect all bolts and nuts for tightness. Vibrations from riding can cause fasteners to loosen over time.
- Lubrication: The spring and pivot points may benefit from a light application of silicone-based lubricant to prevent squeaking and ensure smooth operation. Avoid oil-based lubricants that can attract dirt.
- Damage Check: Inspect the spring for any signs of corrosion or damage. Check the suspension arms for bends, cracks, or excessive wear.
7. Troubleshooting
This section addresses common issues you might encounter with your rear suspension.
| Issue | Possible Cause | Solution |
|---|---|---|
| Excessive Noise (Squeaking/Creaking) | Loose bolts, lack of lubrication, dirt/debris. | Tighten all mounting bolts. Apply silicone lubricant to pivot points and spring. Clean the suspension unit thoroughly. |
| Reduced Suspension Performance | Damaged spring, worn pivot points, incorrect installation. | Inspect the spring for damage. Check for excessive play in pivot points. Re-verify installation steps. If damaged, replacement may be necessary. |
| Fender Rubbing Against Wheel | Incorrect fender alignment, loose fender bolts. | Adjust fender position and tighten its mounting bolts. Ensure it is centered over the wheel. |
8. Specifications
| Model Number | S1-C/S1-C Pro Rear Suspension |
| Type | Scooter Rear Suspension |
| Compatibility | Kuickwheel S1-C, Kuickwheel S1-C Pro Electric Scooters |
| Color | Black (Spring) |
| Approximate Item Weight | 50 Grams (Note: This may refer to the spring or a specific component, the full kit weight may vary) |
| Assembly Required | No (Product comes pre-assembled, installation onto scooter required) |
| Manufacturer | ENEVABAGB |
9. Warranty and Support
For information regarding warranty coverage, technical support, or replacement parts, please refer to the official ENEVABAGB website or contact their customer service directly. Keep your purchase receipt as proof of purchase.
Contact Information: Please visit ENEVABAGB's official Amazon store page or their dedicated support channels for the most up-to-date contact details.
