imuto AA694 Cherry Blossom Rechargeable AA Lithium Batteries Kit User Manual

1. Product Overview

The imuto Cherry Blossom Style Rechargeable AA Batteries Kit provides a sustainable power solution for various electronic devices. This kit includes eight 2500mWh AA lithium batteries and an 8-slot smart Li-ion AA battery charger, designed for efficiency and longevity.

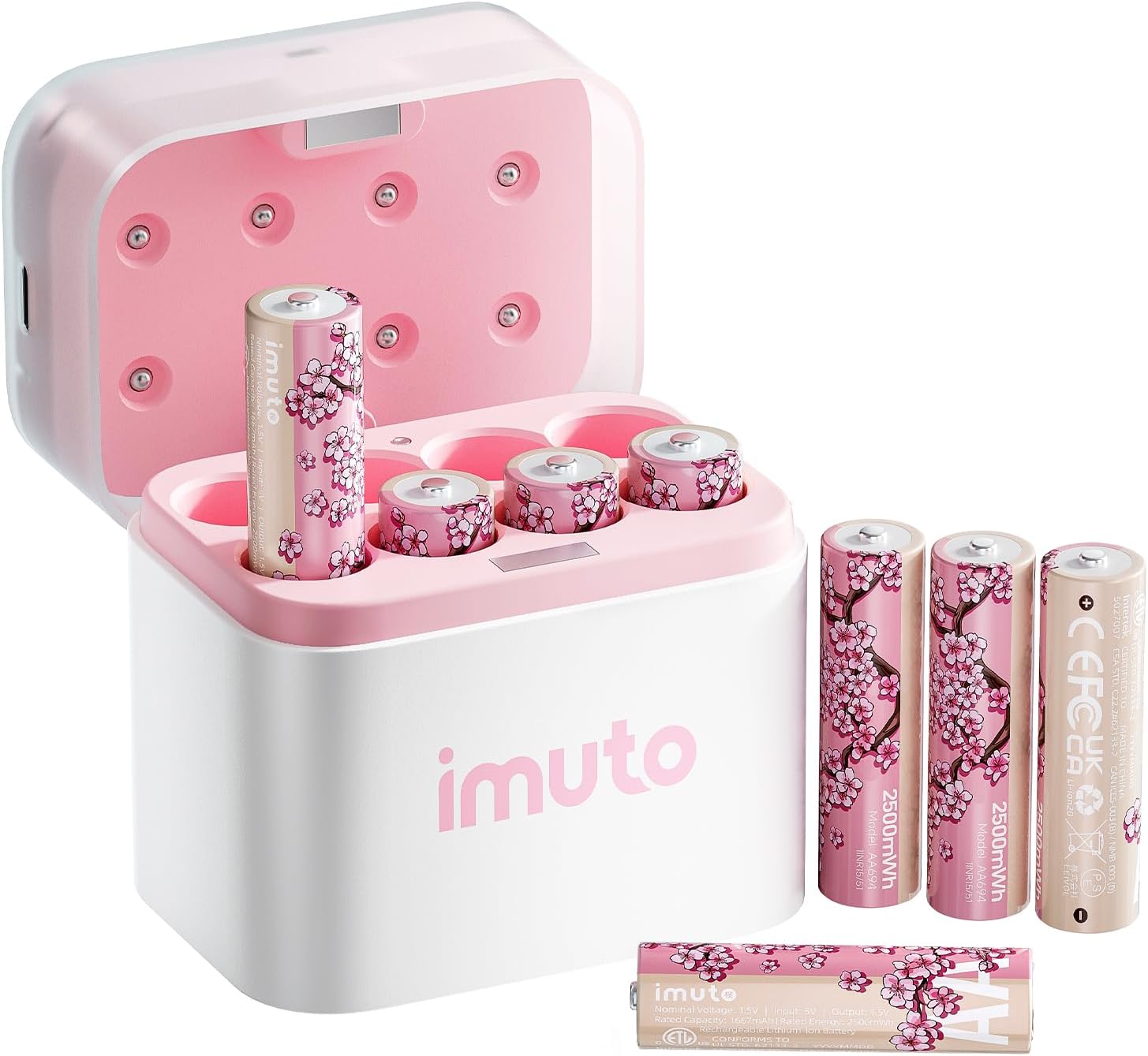

Figure 1: imuto Cherry Blossom Rechargeable AA Batteries Kit

Package Contents:

• 8 x 2500mWh Rechargeable AA Lithium Batteries (Cherry Blossom Style)
• 1 x 8-Slot AA Lithium Battery Fast Charger
• 1 x Type-C Charging Cable
• 1 x User Manual

2. Setup and Initial Use

2.1 Unboxing

Carefully remove all components from the packaging. Inspect for any signs of damage. Retain packaging for future storage or transport.

Figure 2: Kit Contents

2.2 Initial Charging

Before first use, fully charge all batteries. The charger can accommodate 1 to 8 batteries simultaneously.

1. Connect the provided Type-C charging cable to the charger and a 5V/3A adapter (not included).
2. Insert the AA lithium batteries into the charger slots, ensuring correct polarity (+/-).
3. The LED indicators on the charger will show the charging status:
   • Blinking Green: Charging
   • Solid Green: Fully Charged
   • Blinking Red: Battery Failure
   • No Light: Charger Failure
4. Charging typically takes approximately 2.2 hours for a full charge.

Figure 3: Fast Charger with LED Indicators

3. Operating Instructions

3.1 Battery Insertion

Insert the fully charged imuto AA lithium batteries into your compatible devices, observing the correct polarity markings (+/-).

3.2 Constant Voltage Output

These 1.5V rechargeable AA lithium batteries deliver a consistent and stable 1.5V voltage output throughout their discharge cycle. This provides stronger energy output compared to 1.2V NiMH batteries, making them suitable for a wider range of devices, especially high-drain electronics.

Figure 4: 1.5V Constant Voltage Output

3.3 Versatile Applications

The 2500mWh capacity and constant 1.5V output make these batteries ideal for various continuous high-drain devices, including:

• Video doorbells
• Security cameras
• Trail cameras
• Smoke detectors
• Smart locks
• Solar lights
• Toy cars
• Gaming controllers
• Remote controls
• Clocks
• Photographic lighting
• Other home and personal care devices

Figure 5: Widely Used in Various Household Devices

4. Maintenance and Storage

4.1 Battery Longevity and Cycle Life

imuto AA rechargeable lithium batteries offer a cycle life of up to 1600 charging cycles with no memory effect, reducing the need for frequent replacements.

Figure 6: Extended Cycle Life

4.2 Low Self-Discharge

These batteries feature a low self-discharge rate, retaining approximately 85% of their charge after 12 months. This makes them suitable for devices used intermittently, as they maintain power over longer periods between charges.

Figure 7: Low Self-Discharge and No Memory Effect

4.3 Charging Case for Storage and Protection

The charging case features a magnetic closure and independent battery slots, serving as both a fast charger and a storage box. It protects batteries from moisture, dust, pressure, and splashes, ensuring safety and easy portability.

4.4 Over-Discharged Battery Re-activation

The smart charging case includes a microcurrent function that can identify and reactivate excessively discharged batteries, restoring them to usable condition.

5. Safety Information

The imuto AA lithium batteries and charger are designed with multiple protection features and adhere to safety standards.

5.1 Built-in Protections

The system incorporates safeguards against:

• Over-charging
• Over-discharging
• Over-heating
• Over-current
• Over-voltage
• Short-circuiting

Figure 8: Safe and Reliable with Multiple Protections

5.2 Environmental Considerations

The batteries utilize CBPI sealing technology for excellent leak-proof performance and improved space utilization. They are manufactured without harmful substances such as lead, mercury, and cadmium, prioritizing environmental and user safety.

5.3 Operating Temperature Range

The batteries are designed to operate reliably across a wide temperature range:

• Charging: 32°F to 113°F (0°C to 45°C)
• Discharge: -40°F to 140°F (-40°C to 60°C)

Figure 9: Wide Operating Temperature Range

6. Troubleshooting

6.1 Charging Issues

• Batteries not charging (LED blinking red): This indicates a battery failure. Remove the faulty battery and try charging others. If multiple batteries show this, contact support.
• Charger not working (No LED light): Ensure the Type-C cable is securely connected to both the charger and a functional 5V/3A power adapter. Try a different cable or adapter if available.
• Slow charging: Verify that your power adapter provides 5V/3A output for optimal fast charging. Lower output adapters will result in slower charging times.

6.2 Device Compatibility

• Device not powering on: Ensure batteries are fully charged and inserted with correct polarity. Some very low-power devices might not be compatible with 1.5V lithium-ion batteries if they specifically require 1.2V NiMH or alkaline.

7. Specifications
