1. Introduction
Thank you for choosing the YANSNWO 80" Electric Fireplace Entertainment Center. This product combines a stylish media console with an integrated electric fireplace, offering both aesthetic appeal and functional heating. Designed for living rooms and bedrooms, it provides ample storage and a customizable ambiance with adjustable flame effects and LED lighting. This manual provides essential information for safe assembly, operation, and maintenance of your new entertainment center.
Image 1: The YANSNWO 80" Electric Fireplace Entertainment Center in a modern living room.
2. Safety Information
Please read all safety warnings and instructions carefully before assembly and operation to prevent injury or property damage. Retain this manual for future reference.
- Electrical Safety: Ensure the unit is connected to a properly grounded outlet. Do not overload electrical circuits. Keep power cords away from heated surfaces and foot traffic.
- Placement: Place the entertainment center on a firm, level surface. Maintain adequate clearance from combustible materials (curtains, bedding, etc.). Do not block air vents on the fireplace insert.
- Heat Warning: The fireplace heater generates heat. Do not touch the hot surfaces directly. Keep children and pets away from the heater.
- Ventilation: Ensure proper ventilation around the unit. Do not cover the fireplace insert or its air inlets/outlets.
- Maintenance: Disconnect power before performing any maintenance or cleaning.
- Damage: Do not operate the unit if the cord or plug is damaged, or if the unit malfunctions or has been dropped. Contact customer support for assistance.
3. Package Contents
Your YANSNWO Electric Fireplace Entertainment Center will be delivered in two separate packages. Please ensure you have received both boxes (Box A and Box B) before beginning assembly. Carefully unpack all components and verify against the parts list provided in the separate assembly guide (not included in this manual). If any parts are missing or damaged, contact customer support immediately.
Image 2: The product is shipped in two separate boxes, which may arrive on different days.
4. Assembly Instructions
Assembly of the YANSNWO Electric Fireplace Entertainment Center requires careful attention to detail. It is recommended that two adults perform the assembly to ensure safety and ease of construction. Please refer to the dedicated assembly manual included with your product for detailed, step-by-step instructions and diagrams.
- Preparation: Clear a spacious area for assembly. Lay out all parts on a soft, clean surface to prevent scratches.
- Tools: Ensure you have the necessary tools as specified in the assembly manual (typically a screwdriver and hammer).
- Follow Steps: Adhere strictly to the numbered steps and diagrams in the assembly guide. Do not overtighten screws.
- Fireplace Insert: The electric fireplace insert will be installed into the main console structure during assembly. Follow the specific instructions for its integration.
5. Setup
Once assembled, follow these steps to set up your entertainment center:
- Placement: Position the entertainment center on a stable, level surface in your desired location. Ensure there is sufficient space around the unit for air circulation and to prevent obstruction of the fireplace vents.
- Electrical Connection: Plug the electric fireplace power cord into a standard 120V AC grounded electrical outlet. Ensure the outlet is easily accessible.
- Remote Control Battery: Insert the provided CR2025 battery into the remote control. Ensure correct polarity.
6. Operating Instructions
Your electric fireplace entertainment center can be operated using the control panel on the fireplace insert or the included remote control.
6.1 Fireplace Insert Controls
Image 3: Fireplace insert control panel and remote control.
The control panel on the fireplace insert typically includes buttons for Power, Flame, Heater, and Timer. Refer to the specific fireplace insert manual for detailed button functions.
6.2 Remote Control Functions
The remote control allows convenient operation from a distance (up to 26 ft).
Image 4: Remote control functions for the 30" electric fireplace.
- Power Button: Turns the fireplace ON or OFF.
- Flame Control (L1-L3): Adjusts the realistic flame visual effect. Select from L1 (low), L2 (medium), or L3 (high) intensity.
- Heater Control: Activates the 1400W heater. Adjust the heating level to maintain a comfortable room temperature (between 62°F and 82°F).
- Timer Control: Sets an auto-shutoff timer for the heater, typically adjustable from 1 to 8 hours.
6.3 LED Lighting
The entertainment center features built-in LED lights in the open shelves, enhancing the ambiance. These lights can be controlled via the remote or a dedicated app (if supported by your model).
Image 5: LED lighting in the shelves can be controlled for various colors and effects.
7. Maintenance
Regular maintenance ensures optimal performance and longevity of your electric fireplace entertainment center.
- Cleaning: Disconnect power before cleaning. Use a soft, damp cloth to wipe down the exterior surfaces. Do not use abrasive cleaners or solvents.
- Air Vents: Periodically check and clean the air intake and outlet vents of the fireplace insert to ensure they are free from dust and debris. Use a vacuum cleaner with a brush attachment if necessary.
- Remote Control: Replace the CR2025 battery in the remote control when its range decreases or it stops responding.
- Storage: If storing the unit for an extended period, ensure it is clean and dry. Store in a cool, dry place away from direct sunlight.
8. Troubleshooting
If you encounter issues with your electric fireplace entertainment center, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not power on. | No power to outlet; power cord not fully plugged in; circuit breaker tripped. | Check power outlet; ensure cord is securely plugged in; reset circuit breaker. |
| No heat output. | Heater function not activated; temperature setting too low; overheat protection activated. | Activate heater via control panel or remote; increase temperature setting; turn off unit, wait 15 minutes, then restart. |
| Remote control not working. | Dead battery; remote out of range; obstruction between remote and unit. | Replace CR2025 battery; operate remote within 26 ft; remove obstructions. |
| Flame effect not visible or flickering. | Flame setting too low; internal component issue. | Adjust flame intensity (L1-L3); if issue persists, contact customer support. |
If these solutions do not resolve the issue, please contact YANSNWO customer support for further assistance.
9. Specifications
Key specifications for the YANSNWO 80" Electric Fireplace Entertainment Center (Model BS02):
Image 6: Overall dimensions and TV compatibility.
- Model: BS02
- Brand: YANSNWO
- Overall Dimensions: 15.6"D x 80"W x 37.58"H
- Fireplace Insert Dimensions: 30"W x 5.12"D x 17.3"H
- Material: Engineered Wood
- Color: White
- Item Weight: Approximately 116 Pounds
- Heater Power: 1400W
- Heat Output: 5,000 BTU
- Heating Area: Up to 400 sq. ft.
- Flame Control: L1-L3 Adjustable Realistic Logs & Flames
- Temperature Range: 62°F - 82°F
- Timer: 1-8 Hours
- Remote Control Battery: CR2025 (3.0V, 150mAh)
- Storage: 6 open shelves with approximately 110L capacity.

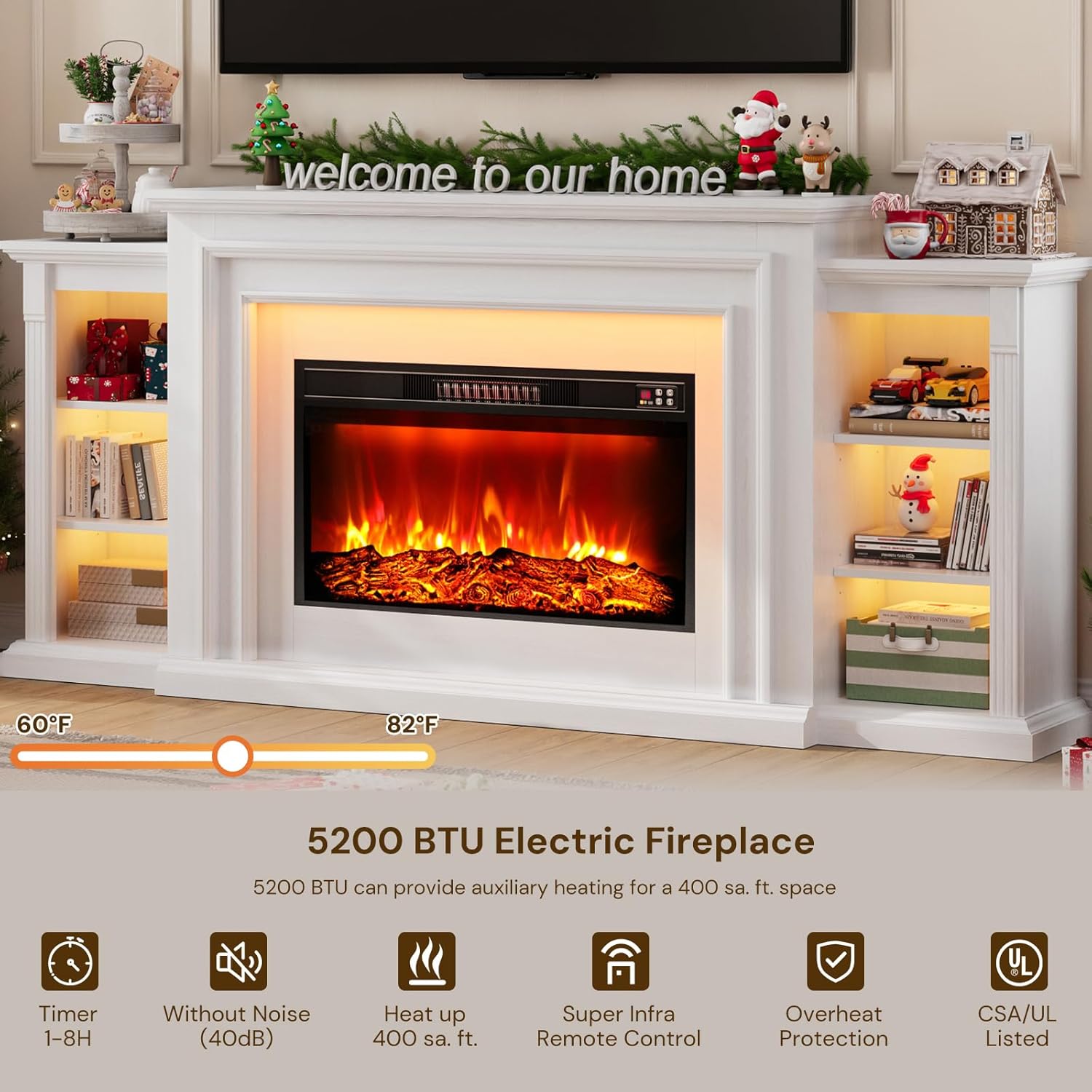

Image 7: Key features of the electric fireplace insert.
Image 8: Storage capacity details for the entertainment center.
10. Warranty and Support
Specific warranty details for the YANSNWO 80" Electric Fireplace Entertainment Center (Model BS02) are not provided within this manual. For information regarding warranty coverage, claims, or technical support, please contact YANSNWO customer service directly. Keep your purchase receipt as proof of purchase.
