1. Introduction
Thank you for choosing the YITAHOME 3-Seater Outdoor Porch Swing. This manual provides essential information for the safe assembly, operation, and maintenance of your new porch swing. Please read these instructions thoroughly before use and retain them for future reference.
Image 1.1: The YITAHOME 3-Seater Outdoor Porch Swing, featuring a beige wicker design and white cushions, set in an outdoor patio environment.
2. Safety Information
To ensure safe operation and prevent injury, please adhere to the following safety guidelines:
- Weight Capacity: Do not exceed the maximum weight capacity of 770 lbs (approximately 3 adults). Overloading can cause structural damage and injury.
- Secure Installation: Ensure the swing is securely mounted to a sturdy overhead structure capable of supporting its weight and dynamic load during use. Consult a professional if unsure about the mounting structure's integrity.
- Regular Inspection: Periodically check all chains, hooks, and connection points for wear, corrosion, or damage. Replace any worn or damaged parts immediately.
- Clearance: Maintain adequate clearance around the swing to prevent collisions with walls, furniture, or other objects.
- Children Supervision: Children should always be supervised when using the swing.
- Proper Use: Use the swing for its intended purpose only. Avoid standing on the swing, excessive swinging, or other unsafe activities.
- Weather Conditions: In severe weather conditions (strong winds, heavy rain, snow), consider removing cushions and securing the swing to prevent damage or injury.
3. Package Contents
Before assembly, verify that all components are present and undamaged. If any parts are missing or damaged, contact YITAHOME customer support.
- Swing Seat Frame (Wicker and Iron)
- Seat Cushions (3 pieces)
- Back Cushions (3 pieces)
- Suspension Chains (2 x 118 inches)
- Mounting Hardware (Carabiners/Buckles, Screws, etc.)
- Assembly Tools (if included, otherwise standard household tools are required)
- Instruction Manual
4. Setup & Assembly
Assembly typically takes approximately 30 minutes. It is recommended to have two people for easier and safer assembly.
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratches.
- Assemble the Swing Frame: Follow the detailed step-by-step instructions provided in the included assembly guide to construct the main swing seat frame. Ensure all connections are secure and tightened. The frame features a reinforced structure for stability.
- Attach Suspension Chains: Connect the two 118-inch suspension chains to the designated attachment points on both sides of the swing frame using the provided strong and stable climbing buckles. Ensure the buckles are fully closed and secured.
- Mount the Swing: Identify a suitable, sturdy overhead structure (e.g., a porch beam, a dedicated swing stand) capable of safely supporting the swing and its occupants. Attach the upper ends of the suspension chains to this structure. Ensure the chains are balanced in length to prevent rollover issues.
- Place Cushions: Position the seat and back cushions onto the swing. The cushions are 1.57" thick for the seat and 700g fiber-padded for the back, designed for comfort. Utilize any ties or fasteners on the cushions to secure them to the swing frame, preventing sliding.

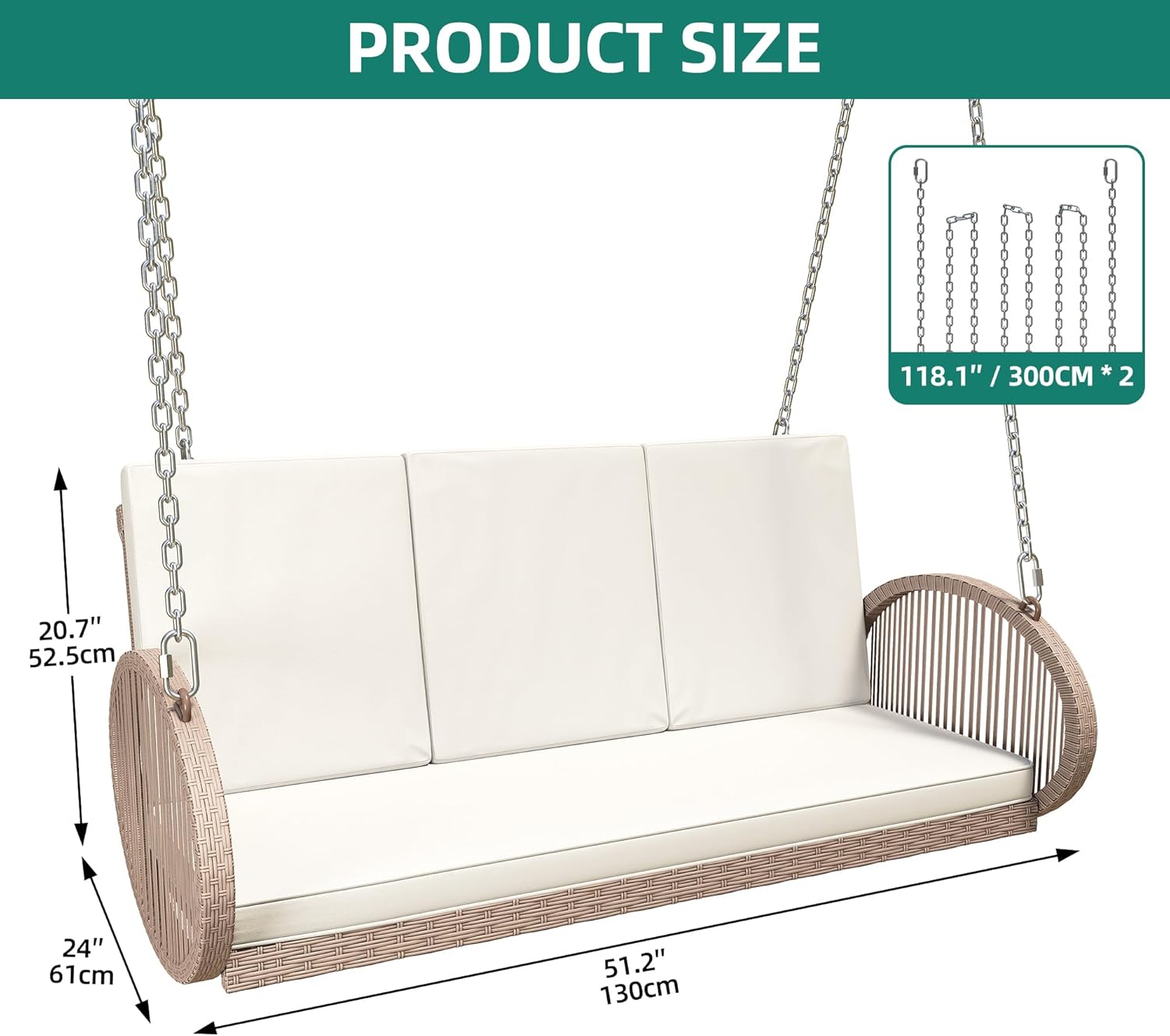

Image 4.1: Product dimensions and chain length. The swing measures 51.2 inches wide, 24 inches deep, and 20.7 inches high. Each suspension chain is 118.1 inches long.
Image 4.2: Details of the swing's construction, including the reinforced structure of the seat, the soft cushions, and the strong climbing buckle used for suspension.
5. Operation
The YITAHOME Porch Swing is designed for comfortable outdoor relaxation.
- Seating: The swing is designed to comfortably seat up to three individuals, with a maximum weight capacity of 770 lbs.
- Comfort: The 1.97" thick armrests with an ergonomic oval design and the 1.57"-thick seat cushions provide firm support. The 700g fiber-padded back cushions enhance overall comfort.
- Adjusting Height: The two 118-inch chains allow for flexible suspension options, enabling you to adjust the swing's height to your preference. Ensure both chains are adjusted equally to maintain balance.
Image 5.1: The YITAHOME Porch Swing is designed to accommodate up to 3 people with a maximum weight capacity of 770 lbs.
Image 5.2: The YITAHOME Porch Swing providing a comfortable seating option on an outdoor porch, demonstrating its intended use.
6. Maintenance
Proper maintenance will extend the lifespan and preserve the appearance of your porch swing.
- Cleaning the Frame: The swing is crafted from top-tier polyethylene rattan, which is weather-resistant. Clean the rattan and iron frame with a mild soap solution and a soft cloth. Rinse thoroughly with water and allow to air dry. Avoid harsh chemicals or abrasive cleaners.
- Cushion Care: The cushions feature drizzle-proof, removable covers for easy cleaning. Zip off the covers and hand wash or machine wash on a gentle cycle with cold water. Air dry only; do not tumble dry. Ensure cushions are completely dry before re-attaching to prevent mildew.
- Weather Protection: While the rattan is designed to withstand 1,000 hours of direct sunlight, prolonged exposure to extreme weather conditions can affect its longevity. During off-season or severe weather, consider storing cushions indoors and covering the swing with a protective cover.
- Hardware Check: Regularly inspect all bolts, nuts, chains, and buckles to ensure they remain tight and secure. Tighten any loose hardware. Check for signs of rust or corrosion on metal parts and treat as necessary.
Image 6.1: The swing features all-weather hand-woven rattan, providing waterproof, windproof, and 1800-hour UV resistance for enhanced durability.
7. Troubleshooting
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Swing feels unstable or lopsided. | Uneven chain length; loose mounting hardware; uneven mounting surface. | Ensure both suspension chains are adjusted to the same length. Check and tighten all mounting hardware. Verify the overhead mounting structure is level and secure. |
| Squeaking noises during swinging. | Dry or loose connection points; friction between metal parts. | Apply a silicone-based lubricant to chain links, hooks, and any pivot points. Tighten any loose bolts or nuts. |
| Cushions slide off the seat. | Cushions not secured; excessive movement. | Utilize the cushion ties or fasteners to secure them to the swing frame. Avoid abrupt movements. |
| Rattan appears faded or damaged. | Prolonged exposure to harsh UV rays or extreme weather. | While weather-resistant, consider using a protective cover during intense sun or harsh weather. Clean regularly to remove debris that can accelerate wear. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | YITAHOME |
| Model Number | MAYIHxluX2 |
| Color | Beige |
| Product Dimensions (D x W x H) | 24" x 51.2" x 20.7" (61cm x 130cm x 52.5cm) |
| Frame Material | Metal (Iron) |
| Seating Material | Polyethylene Rattan |
| Seat Depth | 20 inches |
| Cushion Thickness (Seat) | 1.57 inches |
| Armrest Thickness | 1.97 inches |
| Weight Capacity | 770 lbs (3-seater) |
| Chain Length | 2 x 118 inches |
| Item Weight | 36.8 pounds |
| Assembly Required | Yes |
| UPC | 197839580817 |
9. Warranty & Support
YITAHOME is committed to providing quality products. While specific warranty details are not provided in this manual, please retain your proof of purchase for any warranty claims.
- Returns: For information regarding returns or exchanges, please refer to the retailer's return policy where the product was purchased. (e.g., Amazon offers a 30-day return policy).
- Customer Support: For technical assistance, missing parts, or other inquiries, please contact YITAHOME customer service. Visit the official YITAHOME website or refer to your purchase documentation for contact information.
- Online Resources: Additional support and product information may be available on the YITAHOME Brand Store on Amazon.
