Shintenchi Standing Desk Model SZJ User Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your Shintenchi Electric Height Adjustable Standing Desk, Model SZJ. Designed for an ergonomic workspace, this desk allows for seamless transitions between sitting and standing positions, promoting a healthier and more productive work environment.

Please read this manual thoroughly before assembly and use to ensure proper function and longevity of your desk.

2. Product Overview

The Shintenchi Standing Desk Model SZJ features a robust design with an electric lifting system, memory presets, and a spacious 40x24 inch desktop. It is engineered for stability and quiet operation, making it suitable for various home and office setups.

Image 2.1: Shintenchi Standing Desk, Model SZJ, in a typical setup with a monitor, keyboard, mouse, and headphones. The desk is black with a sleek, modern design.

Image 2.2: A diagram illustrating the dimensions of the Shintenchi Standing Desk. The desktop measures 39.4 inches in width and 23.6 inches in depth. The height is adjustable from 28.7 inches to 46.5 inches.

3. Assembly Instructions

The Shintenchi Standing Desk is designed for straightforward assembly. All necessary tools, pre-drilled holes, and clearly labeled accessories are included to simplify the process.

3.1 Before You Begin

• Unpack all components and verify against the parts list provided in the packaging.
• Ensure you have adequate space for assembly.
• Keep small parts out of reach of children.

3.2 Assembly Steps

1. Attach the lifting columns to the desktop using the provided screws.
2. Secure the foot supports to the bottom of the lifting columns.
3. Install the control box and connect all motor and control panel cables as indicated in the detailed manual.
4. Mount the control panel to the underside of the desktop in an accessible location.
5. Perform an initial power-on and test the height adjustment function.

For a visual guide, refer to the detailed installation manual included in your product packaging.

4. Operating Instructions

Your Shintenchi Standing Desk features an intuitive control panel for electric height adjustment and memory presets.

4.1 Height Adjustment

• Up/Down Buttons: Use the ▲ (Up) and ▼ (Down) buttons on the control panel to smoothly adjust the desk height. The desk can be adjusted from 27.6 inches to 45.3 inches.
• Release the button to stop the desk at your desired height.

4.2 Memory Presets

The desk includes two programmable memory buttons (M1, M2) to save and recall your preferred sitting and standing heights.

1. Adjust the desk to your desired height using the Up/Down buttons.
2. Press and hold one of the memory buttons (M1 or M2) until you hear a beep or see the display flash. This indicates the height has been saved.
3. To recall a saved height, simply press the corresponding memory button (M1 or M2). The desk will automatically move to the stored position.

Image 4.1: An illustration demonstrating the intelligent lifting system and height adjustment range of the Shintenchi Standing Desk, from 28.7 inches to 46.5 inches.

Image 4.2: A close-up view of the desk's features, including the precision control system with its digital display and memory buttons, and the integrated portable headphone stand.

5. Maintenance

Regular maintenance ensures the optimal performance and longevity of your standing desk.

• Cleaning: Wipe the desktop and frame with a soft, damp cloth. For stubborn marks, use a mild, non-abrasive cleaner. Avoid harsh chemicals that may damage the finish.
• Inspections: Periodically check all screws and bolts to ensure they are tight. Retighten if necessary.
• Weight Capacity: Do not exceed the maximum weight capacity of 150 lbs (68 kg) to prevent damage to the motor and frame.
• Cable Management: Ensure all cables are neatly managed and do not interfere with the desk's movement.

6. Troubleshooting

If you encounter any issues with your Shintenchi Standing Desk, refer to the following common troubleshooting steps:

• Desk Not Moving:
  • Check if the power cord is securely plugged into both the desk and a working power outlet.
  • Ensure no objects are obstructing the desk's movement path.
  • Perform a power cycle: Unplug the desk for 10 seconds, then plug it back in.
• Uneven Height:
  • Ensure the desk is on a level surface.
  • Check for any loose connections in the frame or lifting columns.
  • Perform a reset procedure (if applicable, refer to the full manual for specific steps, or power cycle as above).
• Error Codes on Display:
  • If an error code appears, try power cycling the desk. If the error persists, contact customer support.

For more complex issues or if troubleshooting steps do not resolve the problem, please contact Shintenchi customer support.

7. Specifications

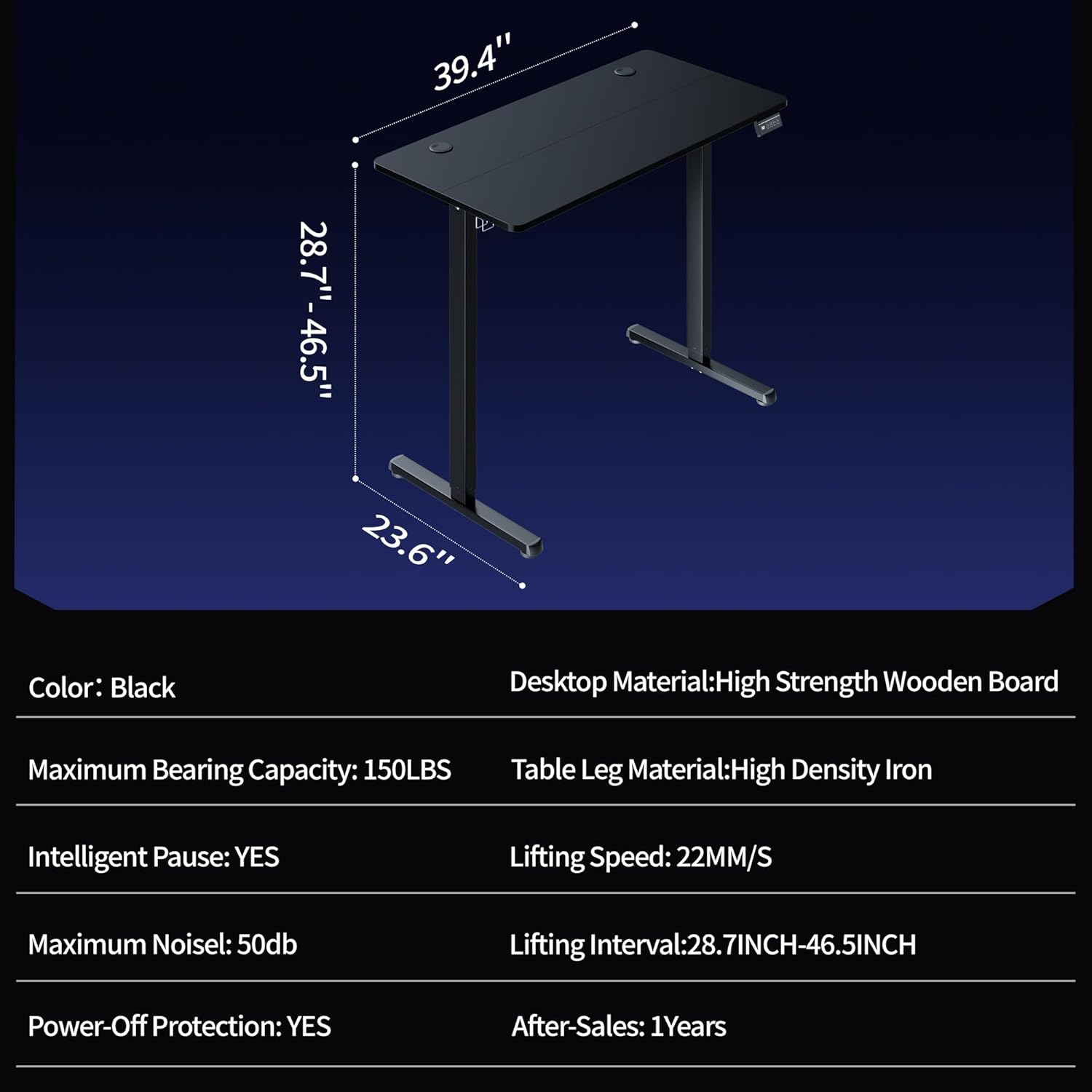

Image 7.1: A detailed graphic outlining the key specifications and dimensions of the Shintenchi Standing Desk, Model SZJ.

8. Warranty and Support

Your Shintenchi Standing Desk Model SZJ comes with a 1-year warranty from the date of purchase, covering manufacturing defects and malfunctions under normal use.

For warranty claims, technical assistance, or any questions not addressed in this manual, please contact Shintenchi customer support through the retailer where the product was purchased or visit the official Shintenchi website for contact information.

Please retain your proof of purchase for warranty purposes.
