1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your QXCIVR SHD-20 Series Harmonic Reducer. Please read this manual thoroughly before using the product and retain it for future reference. This precision robot gear harmonic reducer is designed for horizontal installation and is suitable for various industrial automation applications.
2. Product Overview
The QXCIVR SHD-20 Series Harmonic Reducer is a high-precision gearing component engineered for demanding robotic and automation tasks. Its design emphasizes reliability and performance in compact applications.
- Easy Assembly: Designed for straightforward integration into your application, simplifying the setup process.
- Wide Application: Strain wave harmonic gearing is extensively utilized in industrial robots and the automation industry due to its superior performance characteristics.
- Advanced Technology: Features low backlash, high torque capacity, high reduction ratios, compact size, and excellent positional and repeatability accuracy.
- Compact and Lightweight: Its small size and light weight offer greater flexibility in design and application, particularly in space-constrained environments.
Figure 2.1: Angled view of the SHD-20 Harmonic Reducer. This image displays the reducer's overall structure, including its outer casing and the arrangement of its internal components from an elevated perspective.
3. Setup and Installation
Proper installation is crucial for the optimal performance and longevity of the harmonic reducer. Ensure all mounting surfaces are clean, flat, and free from debris.
- Unpacking: Carefully remove the reducer from its packaging. Inspect for any signs of shipping damage.
- Mounting Surface Preparation: Prepare the mounting surface on your equipment. Ensure it is rigid and capable of supporting the reducer and associated loads.
- Horizontal Installation: As this model is designed for horizontal installation, ensure the orientation is correct during mounting.
- Secure Fastening: Use appropriate fasteners (bolts, screws) and torque them to the manufacturer's recommended specifications to secure the reducer firmly. Avoid over-tightening.
- Alignment: Verify proper alignment with the input and output shafts of your system to prevent undue stress on the reducer bearings.

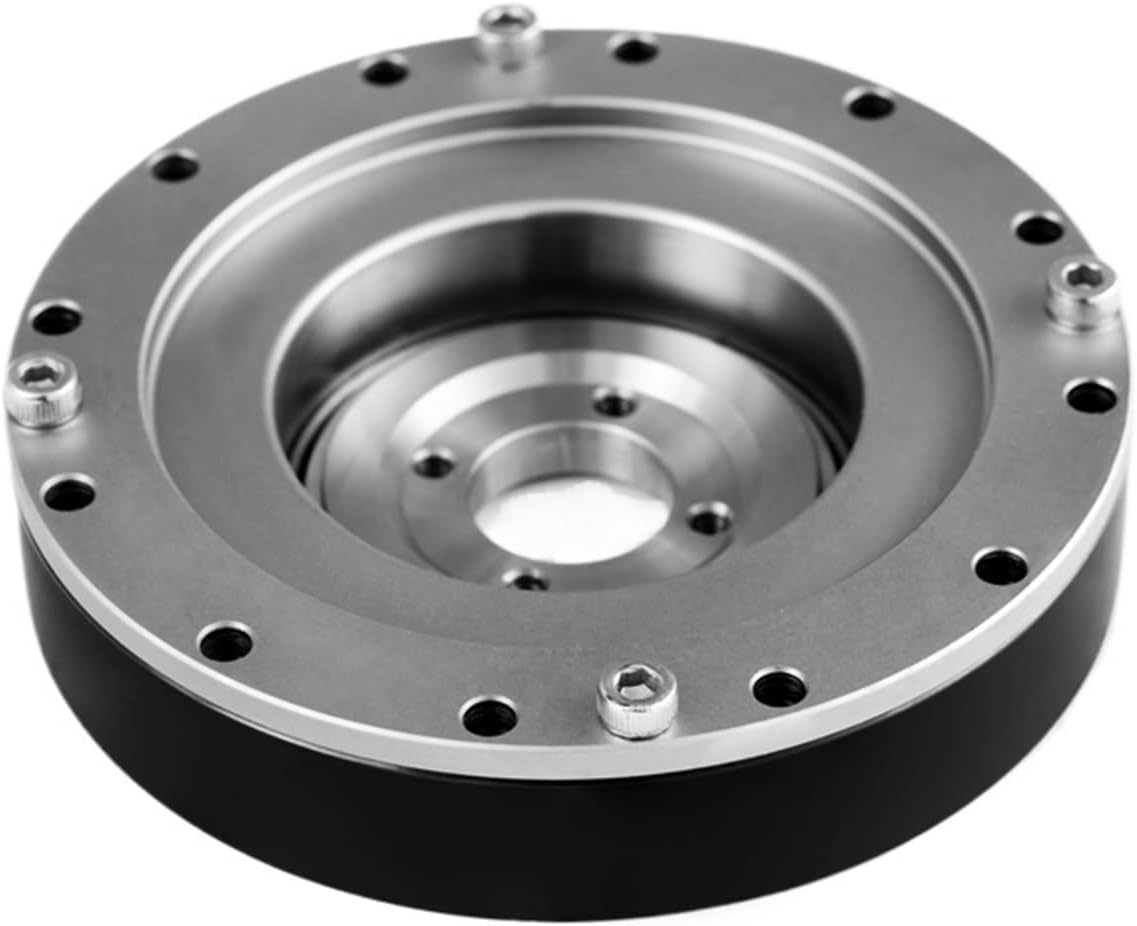

Figure 3.1: Bottom view of the SHD-20 Harmonic Reducer. This image highlights the base and the pattern of mounting holes, essential for secure horizontal installation.
4. Operation
Once installed, the harmonic reducer is ready for operation. Adhere to the following guidelines for safe and effective use:
- Initial Run: Perform a short, low-speed test run after installation to check for any unusual noises, vibrations, or misalignment.
- Load Management: Do not exceed the specified rated torque or allowable peak torque. Refer to the specifications section for detailed torque values.
- Speed Limits: Operate within the allowable input speed ranges to prevent premature wear or damage.
- Monitoring: Regularly monitor the reducer's temperature and sound during operation. Any significant changes may indicate an issue.
Figure 4.1: Cutaway view of the SHD-20 Harmonic Reducer. This image provides an internal perspective, showcasing the intricate gear mechanism and bearing system that enable its precision movement.
5. Maintenance
Regular maintenance ensures the longevity and consistent performance of your QXCIVR SHD-20 Series Harmonic Reducer.
- Inspection: Periodically inspect the reducer for any signs of wear, damage, or loose fasteners. Check for lubricant leaks.
- Cleaning: Keep the exterior of the reducer clean and free from dust, dirt, and corrosive substances.
- Lubrication: Harmonic reducers are typically pre-lubricated for life. Consult QXCIVR support if you suspect lubrication issues or require specific guidance.
- Environmental Conditions: Ensure the operating environment remains within specified temperature and humidity ranges.
6. Troubleshooting
If you encounter issues with your harmonic reducer, consider the following basic troubleshooting steps:
- Unusual Noise/Vibration: Check for loose mounting bolts, proper alignment, and ensure no foreign objects are interfering with the mechanism.
- Overheating: Verify that the reducer is not overloaded and that the ambient temperature is within limits. Ensure proper ventilation if applicable.
- Reduced Performance: Confirm that the input power and speed are consistent with requirements. Check for any mechanical obstructions.
For persistent issues or complex problems, please contact QXCIVR customer support for assistance.
7. Specifications
Detailed technical specifications for the QXCIVR SHD-20 Series Harmonic Reducer (Reduction Ratio 80):
| Parameter | Value |
|---|---|
| Model Number | SHD-20 |
| Gearing Arrangement | Harmonic |
| Diameter | 90mm |
| Thickness | 19mm |
| Weight | 0.515-0.512kg (approx. 3.53 ounces) |
| Reduction Ratio Options | 30, 50, 80, 100, 120 |
| Current Reduction Ratio | 80 |
| Rated Torque (2000r/min input) | 22.4 N.m (for Ratio 80) |
| Allowable Peak Torque (start/stop) | 45.6 N.m (for Ratio 80) |
| Allowable Max Average Load Torque | 27.2 N.m (for Ratio 80) |
| Instantaneous Max Allowable Torque | 76 N.m (for Ratio 80) |
| Allowable Maximum Input Speed | 7000 r/min |
| Allowable Average Input Speed | 3500 r/min |
| Backlash | 10 arcsec (for Ratio 80) |
| Moment of Inertia (1/4GD) | 0.09.2 (Jx10-5) kgcm² |
| Input Speed Range | 3500-8500 r/min |
| Package Dimensions | 0.39 x 0.39 x 0.39 inches |
| Assembly Required | No |
| Number of Pieces | 1 |

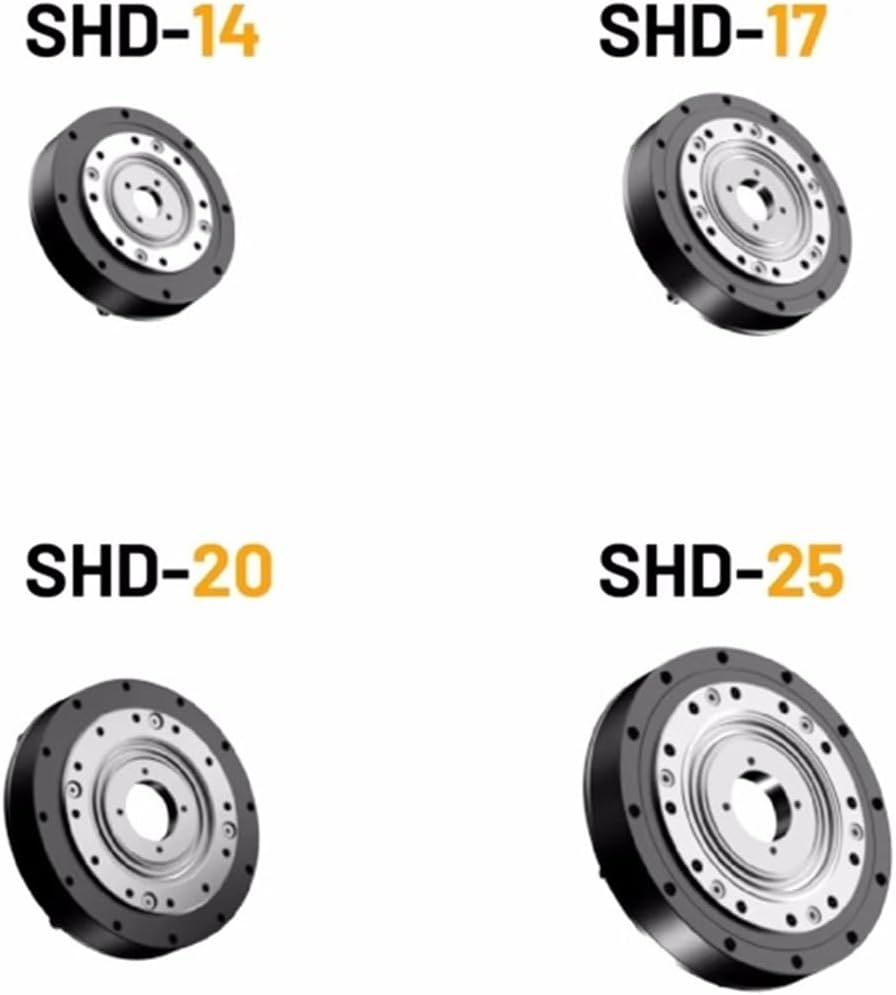

Figure 7.1: SHD Series Model Comparison. This image illustrates the relative sizes and designs of various SHD series harmonic reducers, including the SHD-20 model.
8. Safety Information
Always prioritize safety when working with industrial equipment. Failure to follow safety precautions can result in injury or damage to equipment.
- Personal Protective Equipment (PPE): Wear appropriate PPE, including safety glasses and gloves, when handling or working near the reducer.
- Power Disconnection: Ensure all power to the system is disconnected and locked out before performing any installation, maintenance, or inspection tasks.
- Moving Parts: Keep hands, clothing, and tools clear of moving parts during operation.
- Qualified Personnel: Installation and maintenance should only be performed by trained and qualified personnel.
- Environmental Hazards: Be aware of potential environmental hazards such as high temperatures, electrical components, and heavy machinery in the vicinity.
9. Warranty and Support
QXCIVR products are manufactured to high standards. For information regarding warranty coverage, technical support, or service, please refer to the documentation provided with your purchase or visit the official QXCIVR website. Our support team is available to assist with any questions or concerns you may have regarding your SHD-20 Series Harmonic Reducer.
