Introduction
Thank you for choosing the Benro VX Series Ball Head NBBH3. This professional low-profile aluminum ball head is designed for precise camera positioning and stability, supporting DSLR and mirrorless camera setups. This manual provides essential information for the proper setup, operation, and maintenance of your NBBH3 ball head.
Key Features:
- Professional Dual-Pan Design: Independent 360° panning at both the base and clamp for precise panoramic and multi-angle composition control.
- Massive Load Capacity: Supports up to 66 lbs (30 kg) while maintaining a low-profile, compact design.
- Arca-Swiss Compatibility: Equipped with an Arca-Swiss style quick release plate and safety stop screws for fast, secure camera mounting.
- Smooth Friction & Lock Control: Dual independent adjustment knobs provide precise tension control and solid locking strength.
- Premium Aluminum Construction: Machined from high-strength aluminum alloy with a corrosion-resistant finish for durability.
Product Components
The Benro VX Series Ball Head NBBH3 package includes the following components:
- Benro NBBH3 Ball Head
- Arca-Swiss Quick Release Plate
- Thread Brace
- Instruction Manual (this document)
- Allen Key and Screws for Quick Release Plate

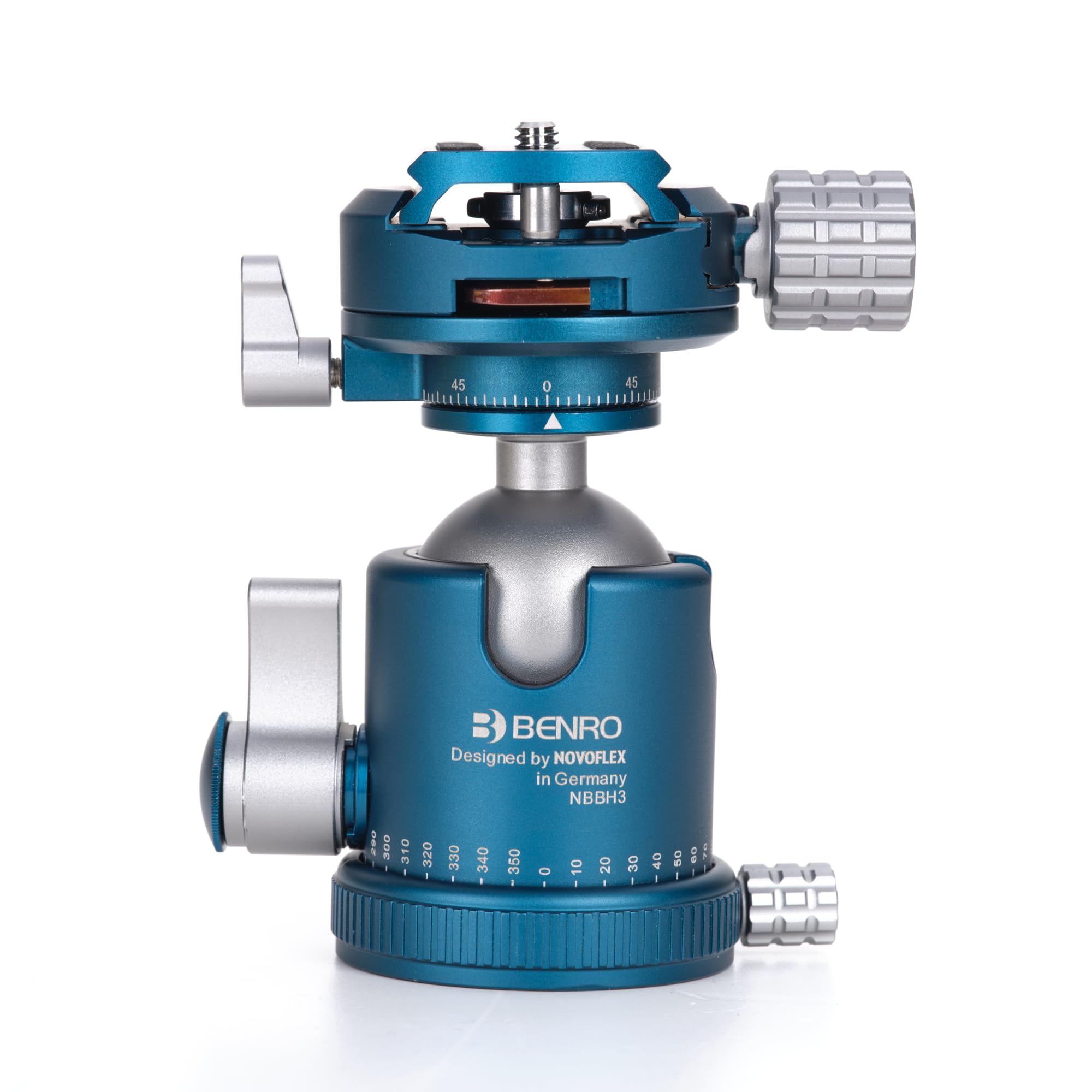

Image: Benro NBBH3 Ball Head and its included components.
Setup
1. Attaching the Ball Head to a Tripod
- Ensure your tripod has a standard 3/8"-16 mounting screw.
- Align the threaded hole at the base of the NBBH3 ball head with the tripod's mounting screw.
- Rotate the ball head clockwise until it is securely tightened onto the tripod. Do not overtighten.
Image: Base of the Benro NBBH3 Ball Head, ready for tripod attachment.
2. Attaching the Quick Release Plate to Your Camera
- Locate the 1/4"-20 mounting screw on the Arca-Swiss quick release plate.
- Align this screw with the tripod socket on the bottom of your camera.
- Use a coin or the provided Allen key to tighten the screw securely. Ensure the plate is flush against the camera body to prevent rotation.
- The quick release plate includes safety stop screws. These can be tightened with the Allen key to prevent the camera from accidentally sliding off the clamp.

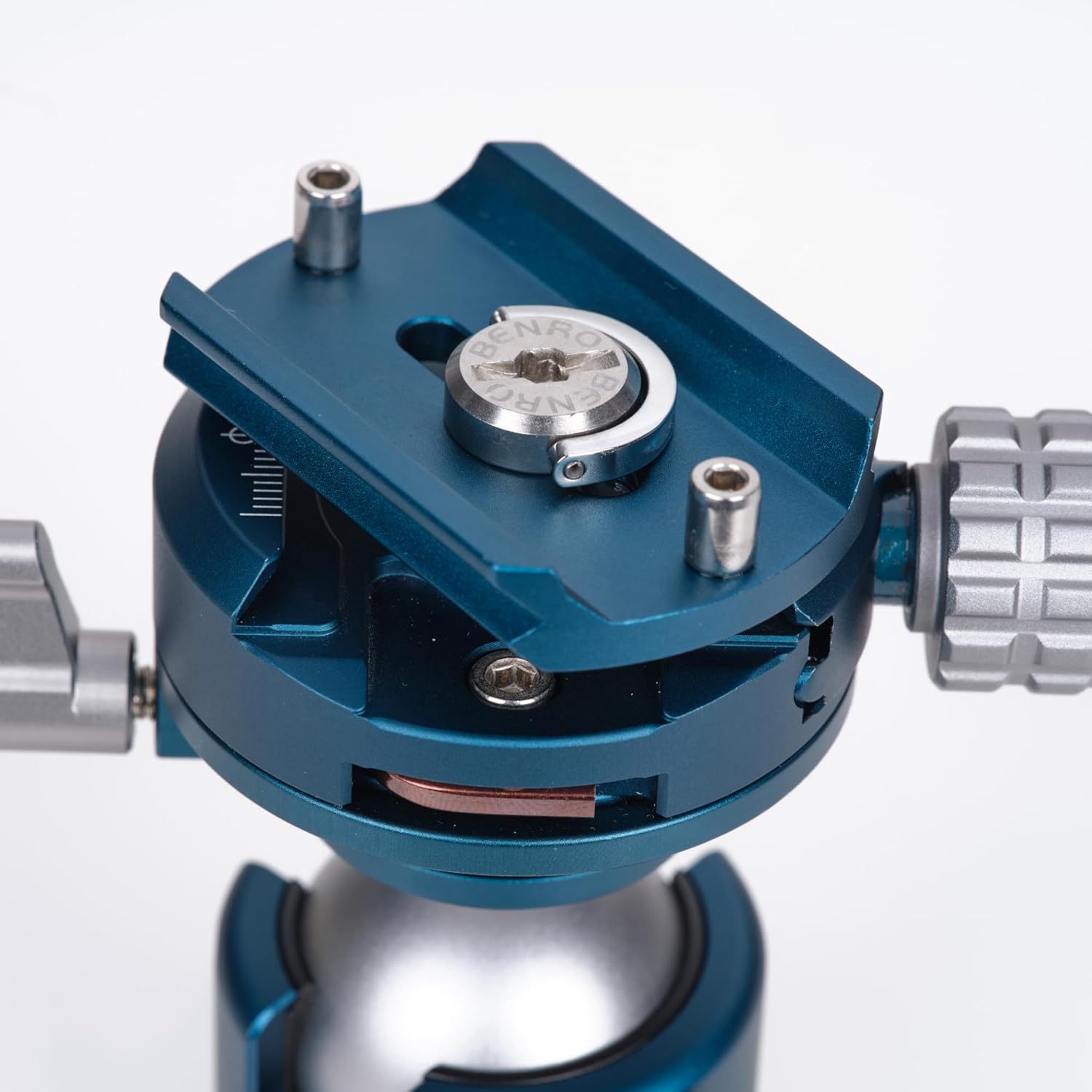

Image: Arca-Swiss quick release plate detail.
Image: Quick release plate with Allen key for tightening.
3. Mounting Your Camera onto the Ball Head
- Loosen the quick release clamp knob on the ball head by turning it counter-clockwise.
- Slide the camera with the attached quick release plate into the clamp.
- Ensure the plate is fully seated within the clamp.
- Tighten the quick release clamp knob by turning it clockwise until the camera is securely held. Verify that the camera cannot move or slide.
Image: Quick release plate mounted on the ball head clamp.
Image: Benro NBBH3 Ball Head with camera mounted on a tripod.
Operating the Ball Head
1. Ball Lock Knob
The large main knob controls the movement of the ball. Turn it counter-clockwise to loosen the ball for repositioning your camera. Turn it clockwise to lock the ball securely in place. Always ensure the ball is fully locked before leaving your camera unattended.
2. Friction Control Knob
The smaller knob adjacent to the main ball lock knob adjusts the friction of the ball movement. This allows you to set a desired tension, preventing your camera from flopping over when the main lock is loosened. Turn clockwise to increase friction, counter-clockwise to decrease it. Adjust this based on the weight of your camera setup.
3. Base Panning Lock Knob
Located at the very bottom of the ball head, this knob controls the 360° rotation of the entire ball head base. Loosen it to pan the camera horizontally for panoramic shots. Tighten it to lock the base in position.
4. Clamp Panning Lock Knob
The NBBH3 features an additional 360° panning mechanism directly under the quick release clamp. This allows for precise adjustments without disturbing the main ball head position. Loosen this knob to rotate the clamp independently, and tighten to lock it.

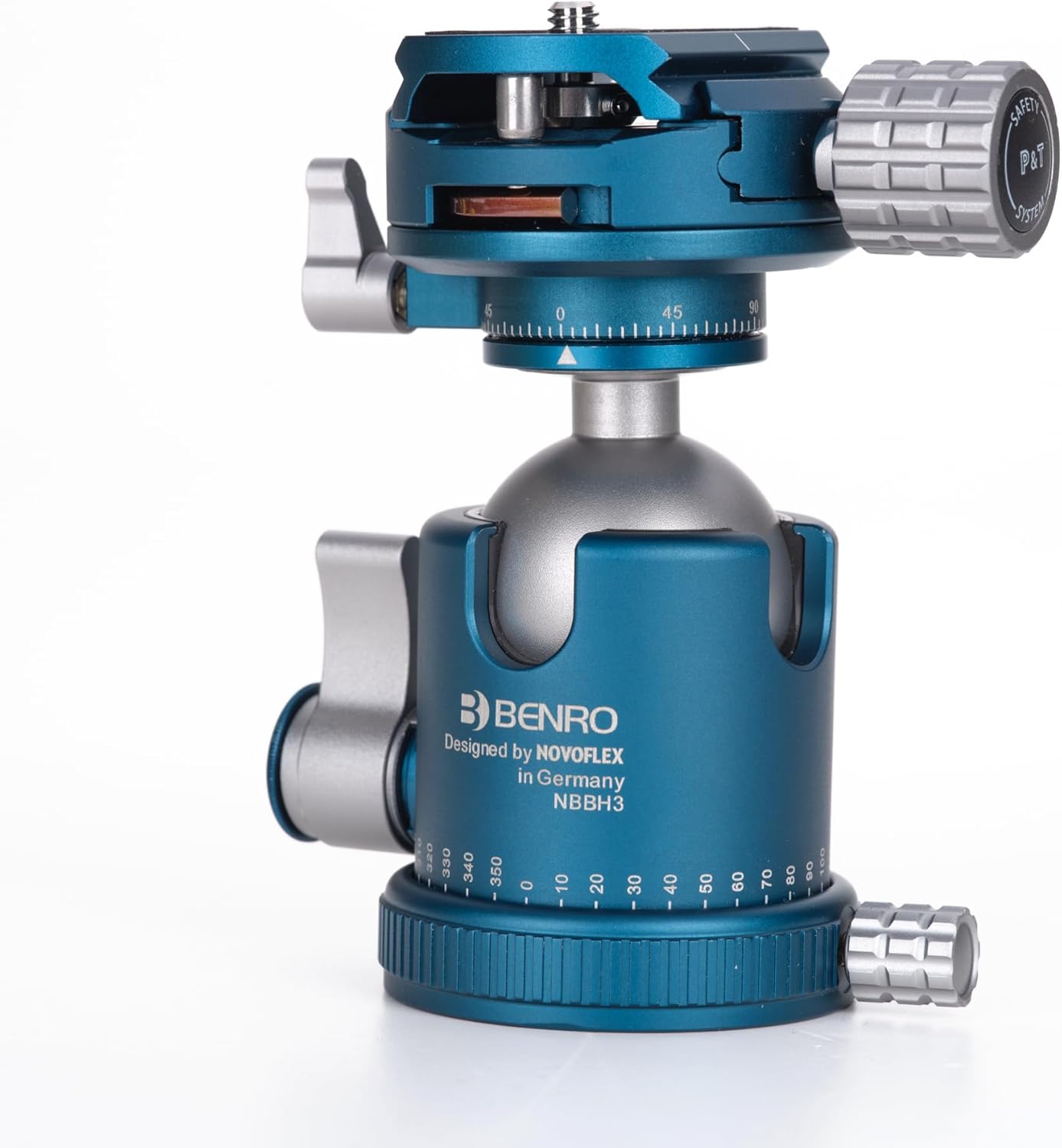

Image: Side view highlighting the control knobs of the NBBH3 Ball Head.
Image: Front view of the NBBH3 Ball Head with controls visible.
Maintenance
- Cleaning: Wipe the ball head with a soft, dry cloth after each use to remove dust and dirt. For stubborn grime, use a slightly damp cloth and then dry thoroughly. Avoid harsh chemicals or abrasive materials.
- Lubrication: The internal mechanisms are designed for long-term, maintenance-free operation. Do not attempt to lubricate the ball or other internal parts, as this can attract dust and degrade performance.
- Storage: Store the ball head in a clean, dry environment, away from extreme temperatures and humidity.
- Inspection: Periodically check all screws and knobs to ensure they are tight. Do not overtighten.
Troubleshooting
- Camera not secure on quick release plate: Ensure the 1/4"-20 screw is fully tightened into the camera's tripod socket. Check that the quick release plate is flush against the camera body.
- Quick release plate not secure in clamp: Make sure the quick release clamp knob is fully tightened. Verify that the plate is correctly seated within the clamp's grooves.
- Ball head movement is too loose or too stiff: Adjust the friction control knob to achieve the desired tension. If the ball head is completely locked, loosen the main ball lock knob.
- Panning is not smooth: Ensure the base panning lock knob or clamp panning lock knob (depending on which panning mechanism you are using) is sufficiently loosened. Clean any dust or debris from the panning mechanism if necessary.
- Unusual noises during operation: Stop use immediately and inspect the ball head for any loose parts or damage. Contact customer support if the issue persists.
Specifications
| Feature | Specification |
|---|---|
| Model Number | NBBH3 |
| Product Dimensions | 3.94 x 2.36 x 4.53 inches (10 x 6 x 11.5 cm) |
| Item Weight | 1.21 pounds (0.55 kg) |
| Load Capacity | 66 lbs (30 kg) |
| Panning | Dual 360° (Base and Clamp) |
| Quick Release Plate | Arca-Swiss Compatible |
| Material | High-strength Aluminum Alloy |
Warranty Information
The Benro NBBH3 Ball Head comes with a standard limited warranty of 3 years from the date of purchase for the original owner. If you register the product online, the warranty is extended by an additional 2 years, for a total of 5 years, in applicable regions.
For complete warranty terms, conditions, and registration details, please visit the official Benro website or contact Benro customer support.
Keep your proof of purchase for warranty claims.
Customer Support
If you encounter any issues not covered in this manual or require further assistance, please contact Benro customer support.
You can often find support resources, FAQs, and contact information on the official Benro website: www.benro.com
Please have your product model number (NBBH3) and purchase date available when contacting support.
