1. Product Overview
The Growatt NEXA 2000 battery expansion is designed to seamlessly extend the capacity of your existing NEXA 2000 balcony power plant. This unit provides an additional 2,048 Wh of storage, allowing for a total system capacity of up to 8 kWh when stacking up to three modules. It utilizes robust LiFePO4 technology, ensuring over 6,000 charging cycles and a long operational lifespan. With an IP66 certification and a wide operating temperature range of -20 °C to 55 °C, the NEXA 2000 Expansion Battery is built for reliable performance in diverse environmental conditions. Its plug-and-play design facilitates easy integration without the need for specialized tools or an electrician. Monitoring of energy consumption and storage performance is conveniently managed via the Growatt ShinePhone App.
Figure 1: Growatt NEXA 2000 Expansion Battery Unit.
2. Key Features
- Modular Expandability: Offers 2,048Wh storage capacity, expandable up to 8kWh by stacking up to three modules without additional accessories.
- Weather-Resistant and Robust Design: IP66 protection against dust, rain, and jet water. Operates reliably year-round in temperatures from -20°C to +55°C, suitable for outdoor use.
- Simple Plug-and-Play Installation: Designed for easy connection to the existing Growatt NEXA 2000 base unit, requiring no tools or electrician for setup.
- Intelligent System Monitoring via App: The Growatt ShinePhone App allows real-time monitoring of charge status, consumption history, and other system information.
- Long Lifespan: Utilizes LiFePO4 technology for over 6,000 full charge cycles, ensuring durability and reliability.

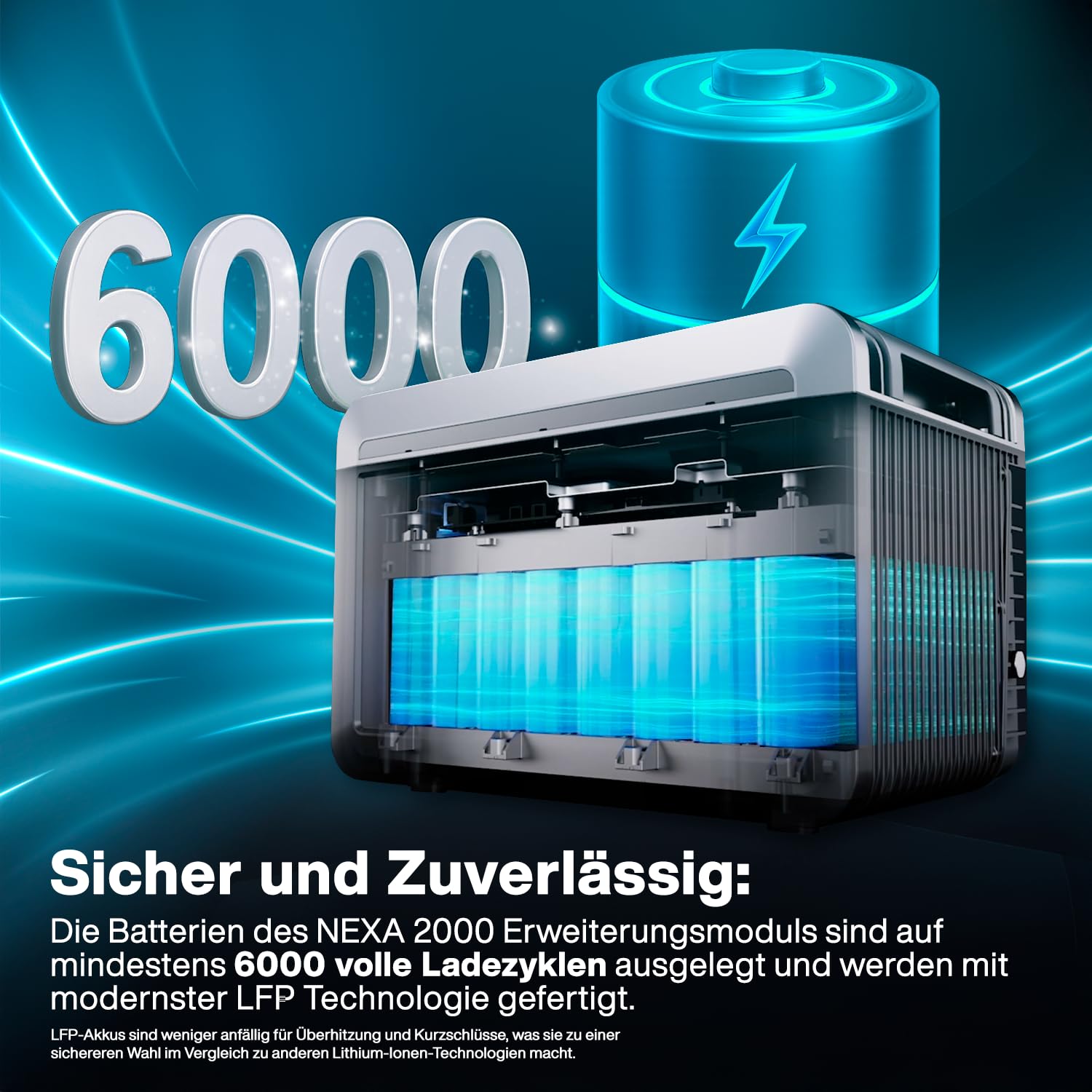

Figure 2: Illustration of the robust LiFePO4 battery technology, designed for over 6,000 cycles.
3. Setup and Installation
3.1 Unpacking
Carefully remove the Growatt NEXA 2000 Expansion Battery from its packaging. Inspect the unit for any signs of damage during transit. Ensure all included components, as listed in the "What's in the Box" section, are present.
3.2 Placement
Choose a stable, level surface for placement. The unit is IP66 rated for outdoor use, but placing it in a location that minimizes direct exposure to extreme weather conditions (e.g., prolonged direct sunlight, heavy snow accumulation) can further extend its lifespan. Ensure adequate ventilation around the unit.
3.3 Connection (Plug-and-Play)
The Growatt NEXA 2000 Expansion Battery is designed for simple plug-and-play integration with your existing Growatt NEXA 2000 base unit. No special tools or electrical expertise are required for this connection.
- Ensure your Growatt NEXA 2000 base unit is powered off before connecting the expansion battery.
- Align the expansion battery module with the base unit or another expansion module. The units are designed to stack securely.
- Connect the designated power and communication cables between the expansion battery and the base unit/previous module. These connections are typically clearly labeled and designed for easy, tool-free insertion.
- Once connected, you can power on your Growatt NEXA 2000 system. The new expansion battery should be automatically recognized.
Figure 3: Illustration of modular stacking for capacity expansion.
Figure 4: Example installation of a NEXA 2000 system with two expansion modules.
4. Operating Instructions
4.1 Initial Operation
After successful connection and powering on the system, the Growatt NEXA 2000 Expansion Battery will begin to integrate with your existing setup. The system will automatically manage charging and discharging based on your energy production and consumption.
4.2 Monitoring with ShinePhone App
To gain full control and insight into your energy system, download and install the Growatt ShinePhone App on your smartphone. The app allows you to:
- Monitor the current charge status of your battery system.
- View real-time energy consumption and production data.
- Access historical data and performance trends.
- Receive alerts and notifications regarding system status.
- Adjust certain system settings (if applicable, refer to the main NEXA 2000 manual for details).
Ensure your Growatt NEXA 2000 base unit is connected to the internet (Wi-Fi or Ethernet) for app functionality.
5. Maintenance
The Growatt NEXA 2000 Expansion Battery is designed for minimal maintenance. However, regular checks can ensure optimal performance and longevity.
- Cleaning: Periodically wipe the exterior of the unit with a soft, damp cloth to remove dust and dirt. Do not use abrasive cleaners or solvents.
- Connections: Occasionally inspect all cable connections to ensure they are secure and free from corrosion.
- Ventilation: Ensure that the ventilation openings are not blocked by debris, leaves, or snow, especially if installed outdoors.
- Environmental Conditions: While the unit is robust, avoid prolonged exposure to extreme conditions beyond its specified operating temperature range (-20°C to 55°C) if possible.
- Firmware Updates: Check the Growatt ShinePhone App or Growatt's official website for any available firmware updates for your system. Keeping the firmware updated can improve performance and add new features.
Do not attempt to open the battery unit. There are no user-serviceable parts inside. Refer all internal servicing to qualified personnel.
6. Troubleshooting
This section provides basic troubleshooting steps for common issues. For more complex problems, please contact Growatt customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Battery not charging/discharging | Loose cable connection; Base unit not powered; System error. | Check all cable connections. Ensure the Growatt NEXA 2000 base unit is powered on. Restart the entire system. Check the ShinePhone App for error codes. |
| App not connecting to system | No internet connection; App outdated; Incorrect login credentials. | Ensure the base unit has a stable internet connection. Update the ShinePhone App to the latest version. Verify your login details. |
| Reduced capacity | Extreme temperatures; Battery degradation over time. | Ensure the unit is operating within its specified temperature range. Battery capacity naturally degrades over many years of use (after 6000+ cycles). |
7. Specifications
| Feature | Description |
|---|---|
| Manufacturer | Growatt |
| Model Number | Growatt NEXA 2000 Extension |
| Part Number | 7892 |
| Item Weight | 20 Kilograms |
| Package Dimensions (L x W x H) | 40.6 x 29 x 25.5 cm |
| Battery Type | LiFePO4 |
| Battery Capacity | 2048Wh |
| Max. Expansion Capacity (with base unit) | Up to 8192Wh (8 kWh) |
| Max. Charging Power | 2000W max |
| Rated Voltage | 51.2V |
| Protection Level | IP66 |
| Operating Temperature Range | -20°C to 55°C |
| Cycle Life | >6000 cycles |
7.1 What's in the Box
- NEXA 2000 Battery Extension Unit
- (Connecting cables are typically included with the base unit or expansion unit, but not explicitly listed as separate items in the "whats_in_the_box" array.)
8. Warranty and Support
8.1 Warranty Information
The Growatt NEXA 2000 Expansion Battery comes with a 10-year warranty. This warranty covers defects in materials and workmanship under normal use and service conditions. Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, refer to the official Growatt warranty policy document or contact Growatt customer support.
8.2 Customer Support
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Growatt customer support. You can typically find contact information on the official Growatt website or through the Growatt ShinePhone App.
