KEINVE AN881 Instant Hot Water Dispenser User Manual

1. Introduction

Thank you for choosing the KEINVE AN881 Instant Hot Water Dispenser. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read this manual thoroughly before use and retain it for future reference.

2. Important Safety Instructions

To reduce the risk of fire, electric shock, or injury, always follow basic safety precautions when using electrical appliances.

• Read all instructions before using the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical hazards, do not immerse the cord, plugs, or the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to 'off', then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Exercise extreme caution when dispensing hot water.
• Ensure the child safety lock is engaged when the appliance is not in active use, especially in households with children.

3. Package Contents

Verify that all items are present in the package:

• KEINVE AN881 Instant Hot Water Dispenser
• Bottle Adapter
• Water Hose
• User Manual

Image: The KEINVE AN881 Instant Hot Water Dispenser shown with its accessories, including a bottle adapter for direct bottle connection and a water hose for external water sources.

4. Product Overview

The KEINVE AN881 is a compact and efficient instant hot water dispenser designed for quick access to water at various temperatures. It features a touch control panel, child safety lock, and compatibility with both bottled water and external water sources.

Image: The KEINVE AN881 Instant Hot Water Dispenser in operation, dispensing hot water into a glass cup, demonstrating its primary function.

Image: The KEINVE AN881 Instant Hot Water Dispenser on a kitchen counter, with steam visibly rising from the dispensed water, highlighting its instant heating capability.

5. Setup

5.1 Initial Placement

Place the dispenser on a stable, flat, and heat-resistant surface. Ensure there is adequate space around the unit for ventilation and easy access to the water source and power outlet. Keep it away from direct sunlight and heat sources.

5.2 Water Source Connection

The KEINVE AN881 offers two methods for water supply:

1. Using Bottled Water: Remove the cap from a standard bottled water container (e.g., 5-gallon jug or smaller bottle). Attach the provided bottle adapter securely to the dispenser's water inlet. Invert the water bottle and place it onto the adapter. Ensure a tight seal to prevent leaks.
2. Using External Water Source (Water Hose): Connect one end of the provided water hose to the dispenser's water inlet. Place the other end of the hose into a larger external water container. Ensure the hose is fully submerged and secured to prevent it from coming out.

5.3 Initial Cleaning and Flushing

Before first use, it is recommended to flush the system. Fill the dispenser with clean water (using either method above) and dispense water at the highest temperature setting (212°F) for at least two cycles. Discard this water. This helps to clean any manufacturing residues from the internal components.

6. Operating Instructions

The dispenser features a touch control panel for easy operation.

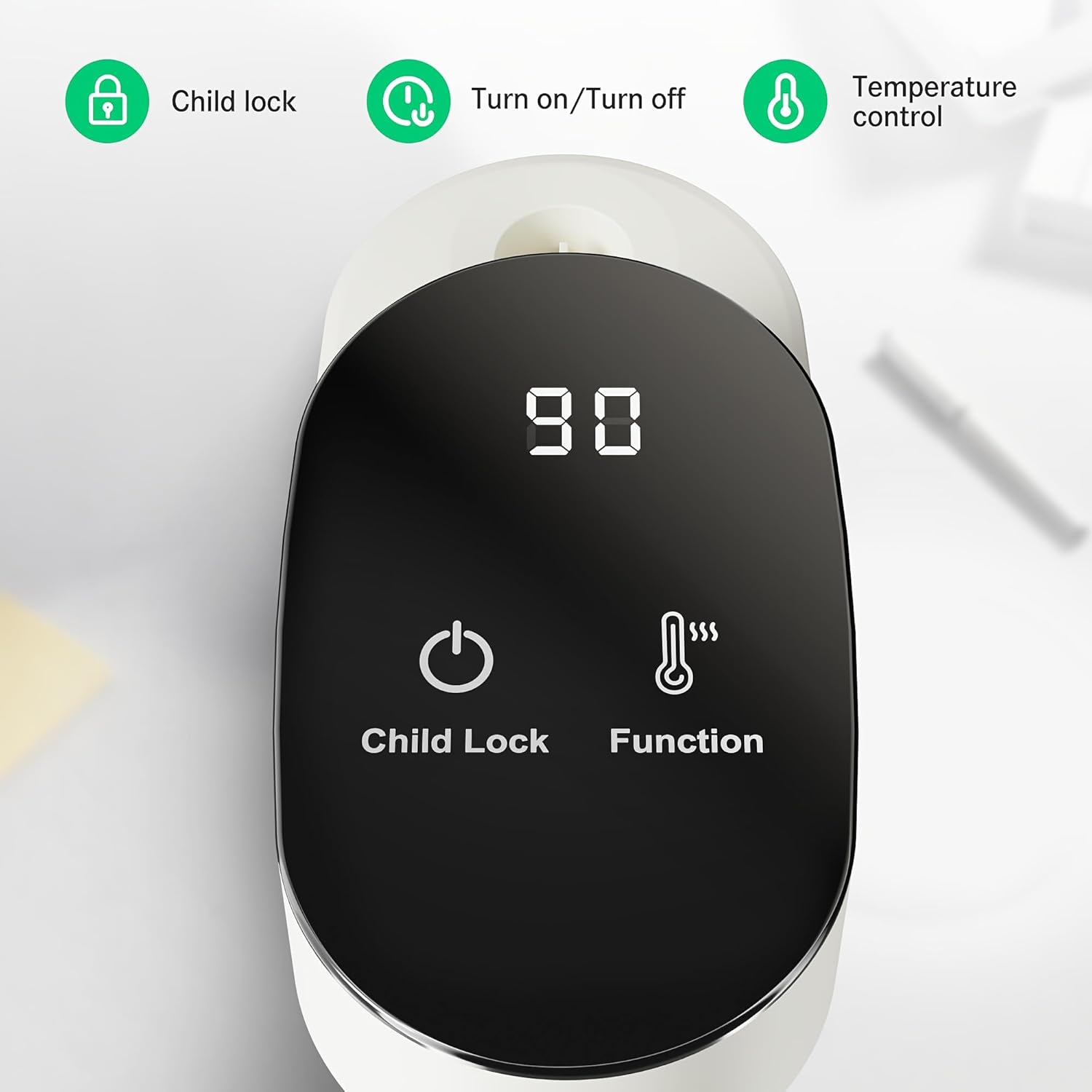

Image: A detailed view of the KEINVE AN881 control panel, displaying the digital temperature readout and touch-sensitive buttons for Child Lock, Power (on/off), and Function (temperature control).

6.1 Power On/Off

Plug the power cord into a grounded electrical outlet. The display will illuminate. To turn the unit on or off, press the Power button (usually indicated by a circle with a vertical line) on the control panel.

6.2 Temperature Selection

The KEINVE AN881 offers 5 precise temperature settings. Press the Function button (often indicated by a thermometer icon) repeatedly to cycle through the available temperatures:

• 110°F (43°C) - Ideal for baby formula or warm drinks.
• 140°F (60°C) - Suitable for green tea.
• 176°F (80°C) - Good for black coffee or instant noodles.
• 194°F (90°C) - For stronger teas.
• 212°F (100°C) - Boiling water for instant meals or sterilizing.

The selected temperature will be displayed on the screen.

6.3 Dispensing Water

Once the desired temperature is selected, ensure the child lock is disengaged (see 6.4). Place a cup or container under the dispenser nozzle. Press the Dispense button (often integrated with the Power button or a separate icon) to start dispensing water. Press again to stop. The dispenser will heat and dispense water in approximately 1 second.

6.4 Child Lock Function

The child safety lock prevents accidental dispensing of hot water. When activated, the dispenser will not dispense water. To engage or disengage the child lock, press and hold the Child Lock button (indicated by a lock icon) for approximately two seconds. An indicator on the display will show whether the lock is active or inactive.

7. Maintenance

7.1 Cleaning the Exterior

Unplug the dispenser before cleaning. Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or harsh chemicals. Ensure no water enters the control panel or electrical components.

7.2 Descaling

Over time, mineral deposits (limescale) can build up inside the dispenser, affecting performance. Descale the unit regularly, especially in areas with hard water.

1. Unplug the dispenser and ensure it is cool.
2. Prepare a descaling solution according to the manufacturer's instructions (e.g., a mixture of white vinegar and water, or a commercial descaling agent).
3. Pour the descaling solution into the water reservoir.
4. Plug in the dispenser and dispense the entire solution through the unit at the highest temperature setting.
5. Repeat the process with clean water at least two to three times to thoroughly rinse out any descaling solution.
6. Discard all dispensed water during the descaling and rinsing process.

7.3 Storage

If storing the dispenser for an extended period, ensure it is clean, dry, and empty of water. Store it in a cool, dry place, away from direct sunlight.

8. Troubleshooting

Refer to the following table for common issues and their solutions:

9. Specifications

• Model: AN881
• Brand: KEINVE
• Power: 1500W
• Voltage: 120V~60Hz (Standard US)
• Temperature Settings: 110°F, 140°F, 176°F, 194°F, 212°F (43°C, 60°C, 80°C, 90°C, 100°C)
• Material: Polypropylene (PP)
• Color: White
• Product Dimensions: 2.75"L x 2.75"W x 8.5"H
• Item Weight: 2 Pounds
• Special Feature: Boil Dry Protection, Child Lock

Image: A visual representation of the KEINVE AN881 Instant Hot Water Dispenser with its key dimensions labeled: 2.75 inches in width and 8.5 inches in height.

10. Warranty and Support

The KEINVE AN881 Instant Hot Water Dispenser comes with a standard manufacturer's warranty. Please refer to the warranty card included in your packaging for specific terms and conditions. For technical support, troubleshooting assistance, or warranty claims, please contact KEINVE customer service through the retailer where the product was purchased or visit the official KEINVE website.
