1. Introduction
This instruction manual provides comprehensive information regarding the use, setup, and maintenance of the Phueut WHL-603 Steam Cleaner Attachments. These accessories are designed to enhance the versatility and cleaning capabilities of your Phueut WHL-603 Steam Cleaner. Please read this manual thoroughly before using the attachments to ensure safe and effective operation.
2. Safety Information
Always observe the following safety precautions when using the steam cleaner attachments:
- Ensure the main steam cleaner unit is unplugged and cooled down before attaching or detaching any accessories.
- Do not direct steam at people, pets, or electrical appliances.
- Use only as directed in conjunction with the Phueut WHL-603 Steam Cleaner.
- Keep attachments out of reach of children.
- Inspect attachments for damage before each use. Do not use damaged accessories.
- Always wear appropriate protective gear, such as gloves, when handling hot attachments or cleaning agents.
3. Package Contents
Verify that all items listed below are included in your package:
- 1x Window Cleaning Tool
- 1x Bent Nozzle
- 1x Fabric Steamer Tool (also referred to as Upholstery Tool)
- 1x Towel Sleeve (for Fabric Steamer Tool)
- 1x Measuring Cup
- 1x Funnel
- 1x Cone-shaped Nozzle
4. Product Overview and Components
Figure 4.1: Complete set of Phueut WHL-603 Steam Cleaner Attachments. This image displays the measuring cup, funnel, window cleaning tool, bent nozzle, fabric steamer tool, and cone-shaped nozzle, providing a visual representation of all included components.

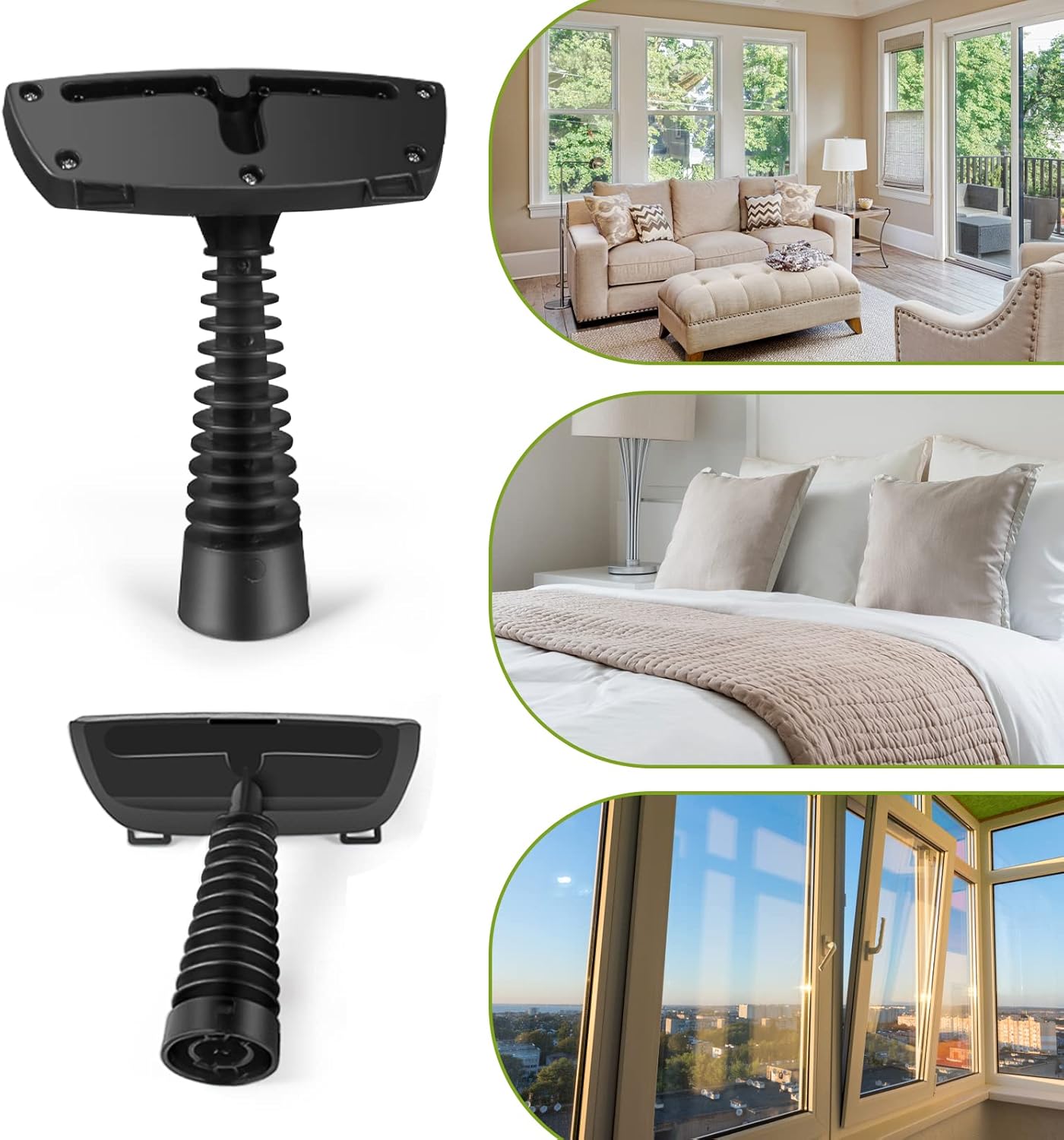

Figure 4.2: Fabric Steamer Tool. This image highlights the fabric steamer tool, also known as the upholstery tool, and illustrates its application for cleaning and refreshing fabric surfaces such as sofas, beds, and curtains.
Figure 4.3: Cone-shaped Nozzle. This image demonstrates the cone-shaped nozzle in action, effectively cleaning hard-to-reach areas like kitchen range hoods and intricate parts of a car wheel, showcasing its precision cleaning capabilities.
Figure 4.4: Window Cleaning Tool. This image illustrates the window cleaning tool being used to clean a window, demonstrating its effectiveness in removing dirt and streaks for clear, sparkling glass surfaces.
5. Setup and Attachment
The Phueut WHL-603 Steam Cleaner Attachments are designed for easy attachment and detachment to your main steam cleaner unit.
- Ensure your Phueut WHL-603 Steam Cleaner is turned off and unplugged from the power outlet. Allow the unit to cool down completely if it has been recently used.
- Select the desired attachment for your cleaning task.
- Align the attachment with the nozzle or connection point on your steam cleaner.
- Push the attachment firmly onto the connection point until it clicks securely into place. Some attachments may require a slight twist to lock.
- To detach, ensure the steam cleaner is off and cool. Press any release buttons or twist the attachment counter-clockwise (if applicable) and pull it off gently.
Note: The Measuring Cup and Funnel are used for filling the water tank of your main steam cleaner unit, not for direct attachment.
6. Operating Instructions
Once an attachment is securely connected to your Phueut WHL-603 Steam Cleaner, you can begin your cleaning task. Refer to your main steam cleaner's manual for general operating instructions, including filling the water tank and powering on the unit.
6.1. Window Cleaning Tool
Ideal for streak-free cleaning of windows, mirrors, and other smooth glass surfaces.
- Attach the window cleaning tool.
- Direct steam onto the glass surface, moving the tool in overlapping strokes from top to bottom.
- Use a clean, lint-free cloth to wipe away excess moisture and dirt for a polished finish.
6.2. Bent Nozzle
Designed for reaching awkward angles and tight spaces, such as faucets, toilet rims, and grout lines.
- Attach the bent nozzle.
- Direct the steam into crevices or corners. Use a brush (not included) if necessary to agitate stubborn dirt while steaming.
6.3. Fabric Steamer Tool / Upholstery Tool with Towel Sleeve
Perfect for refreshing and cleaning upholstery, curtains, clothing, and other fabric surfaces.
- Slide the Towel Sleeve over the Fabric Steamer Tool.
- Attach the assembled tool to the steam cleaner.
- Gently glide the tool over the fabric surface, allowing the steam to penetrate and loosen dirt. Test on an inconspicuous area first.
6.4. Cone-shaped Nozzle
Provides a concentrated jet of steam for targeted cleaning of stubborn dirt, grime, and grease in small areas, such as kitchen appliances, tile grout, and car interiors.
- Attach the cone-shaped nozzle.
- Direct the concentrated steam jet onto the soiled area. For best results, hold the nozzle close to the surface.
6.5. Measuring Cup and Funnel
These accessories are for safely and accurately filling the water tank of your Phueut WHL-603 Steam Cleaner.
- Use the Measuring Cup to measure the appropriate amount of distilled or demineralized water as specified in your main steam cleaner's manual.
- Place the Funnel into the water tank opening of your steam cleaner.
- Carefully pour the measured water through the Funnel into the tank to prevent spills.
7. Maintenance
Proper maintenance ensures the longevity and optimal performance of your steam cleaner attachments.
- Cleaning: After each use, allow attachments to cool completely. Wipe them clean with a damp cloth. For stubborn residue, a mild detergent can be used, followed by rinsing with clean water.
- Drying: Ensure all attachments are thoroughly dry before storing to prevent mold or mildew growth.
- Storage: Store attachments in a clean, dry place, away from direct sunlight and extreme temperatures.
- Towel Sleeve: The towel sleeve can be machine washed with similar colors and air-dried.
8. Troubleshooting
If you encounter issues while using the attachments, consider the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Attachment not securely fitting. | Incorrect alignment or debris in connection. | Ensure correct alignment and clear any debris from the connection point. Push firmly until it clicks. |
| No steam or weak steam from attachment. | Main steam cleaner issue, or attachment blockage. | Refer to your main Phueut WHL-603 Steam Cleaner manual for troubleshooting steam output. Check attachment for blockages and clean if necessary. |
| Attachments appear dirty after use. | Normal residue from cleaning. | Clean attachments as described in the Maintenance section (Section 7). |
If the problem persists, please contact Phueut customer support.
9. Specifications
| Feature | Detail |
|---|---|
| Brand | Phueut |
| Model Name | WHL-603 (for compatible steam cleaner) |
| Included Components | 1x Bent nozzle, 1x Window cleaning tool, 1x Fabric Steamer Tool, 1x Towel Sleeve, 1x Measuring Cup, 1x Funnel, 1x Cone-shaped Nozzle |
| Color | Black |
| Item Weight | 7.4 ounces |
| Package Dimensions | 8.86 x 7.6 x 1.65 inches |
| Surface Recommendation | Carpet (and other surfaces as per attachment use) |
10. Warranty and Support
For information regarding warranty coverage for your Phueut WHL-603 Steam Cleaner Attachments, please refer to the warranty documentation provided with your original Phueut WHL-603 Steam Cleaner unit or visit the official Phueut website.
If you require technical assistance, have questions about product usage, or need to report a defect, please contact Phueut customer support through their official channels. Contact information can typically be found on the product packaging or the brand's official website.
