Introduction
Thank you for choosing the SOLRIG Sliding Closet Door. This manual provides detailed instructions for the safe and proper installation, operation, and maintenance of your new sliding door system. Please read this manual thoroughly before beginning installation and retain it for future reference.
This sliding door set is designed for standard 96"x80" door openings and features full lite frosted glass panels, offering both privacy and a modern aesthetic.
Safety Information
- Always wear appropriate safety gear, including gloves and eye protection, during installation.
- Ensure the installation area is clear of obstructions and well-lit.
- Verify that the wall structure can support the weight of the door panels and hardware.
- Keep children and pets away from the installation area.
- Handle glass panels with extreme care to prevent breakage and injury.
- Do not attempt to install the door alone. Two or more people are recommended for safe handling and installation.
- If any parts are damaged or missing, do not proceed with installation. Contact customer support immediately.
Package Contents
The SOLRIG Sliding Closet Door package includes all necessary components for installation. Please verify that all items listed below are present and undamaged before proceeding.
- Four (4) Door Panels (each 25" width x 78.58" height)
- Two (2) Sliding Tracks
- Handles
- Pulleys (Rollers)
- Fascia
- Floor Guide
- Mounting Hardware (screws, anchors, etc.)
- Instruction Manual
Image: Overview of included components.
Specifications
| Feature | Detail |
|---|---|
| Product Dimensions | 0.82 x 96 x 80 inches (Overall) |
| Door Opening Size | 96" (Width) x 80" (Height) |
| Each Panel Width | 25 inches |
| Each Panel Height | 78.58 inches |
| Material | MDF with White PVC Surface, Frosted Glass |
| Color | Full Lite Frosted Glass |
| Manufacturer | SOLRIG |
Image: Detailed dimensions for various door sizes, highlighting the 96"x80" configuration.
Image: High-quality MDF material with white PVC surface.
Setup and Installation
This section outlines the steps for installing your SOLRIG Sliding Closet Door. Ensure you have all components and tools ready before starting.
Tools Required (Not Included):
- Measuring Tape
- Pencil
- Drill
- Screwdriver (Phillips head)
- Level
- Stud Finder
Installation Steps:
- Measure and Prepare Opening: Carefully measure your door opening to ensure it matches the specified dimensions (96" W x 80" H). Ensure the opening is plumb and level.
- Install Top Track: Locate wall studs above the door opening. Mark and drill pilot holes for the top track. Secure the top track firmly using the provided screws. Ensure it is perfectly level.
- Assemble Door Panels: The door panels come pre-drilled. Attach the pulleys (rollers) to the top edge of each door panel and the finger pulls to the designated areas.
- Hang Door Panels: Carefully lift and insert the top rollers of each door panel into the top track. Ensure the panels hang freely and can slide smoothly.
- Install Floor Guide: Position the floor guide on the floor directly below the top track, ensuring it aligns with the bottom edge of the door panels. Mark and drill pilot holes, then secure the floor guide. This prevents the doors from swinging out.
- Install Fascia: Attach the fascia to cover the top track and rollers for a finished appearance.
- Adjust and Test: Make any necessary adjustments to ensure smooth operation. Test each door panel by sliding it back and forth.
Image: Sliding Closet Door Roller Kit, illustrating concealed design and smooth operation.
Image: Sliding Closet Door Bottom Floor Guide, ensuring panel alignment.
Image: Sliding Closet Door Finger Pulls for easy opening and closing.
Operation
To operate your SOLRIG Sliding Closet Door, simply grasp the finger pull on the desired door panel and slide it horizontally along the track. The doors are designed for smooth and quiet operation.
- Avoid forcing the doors if they encounter resistance. Check for obstructions in the track.
- Ensure the floor guide keeps the bottom of the doors aligned during movement.

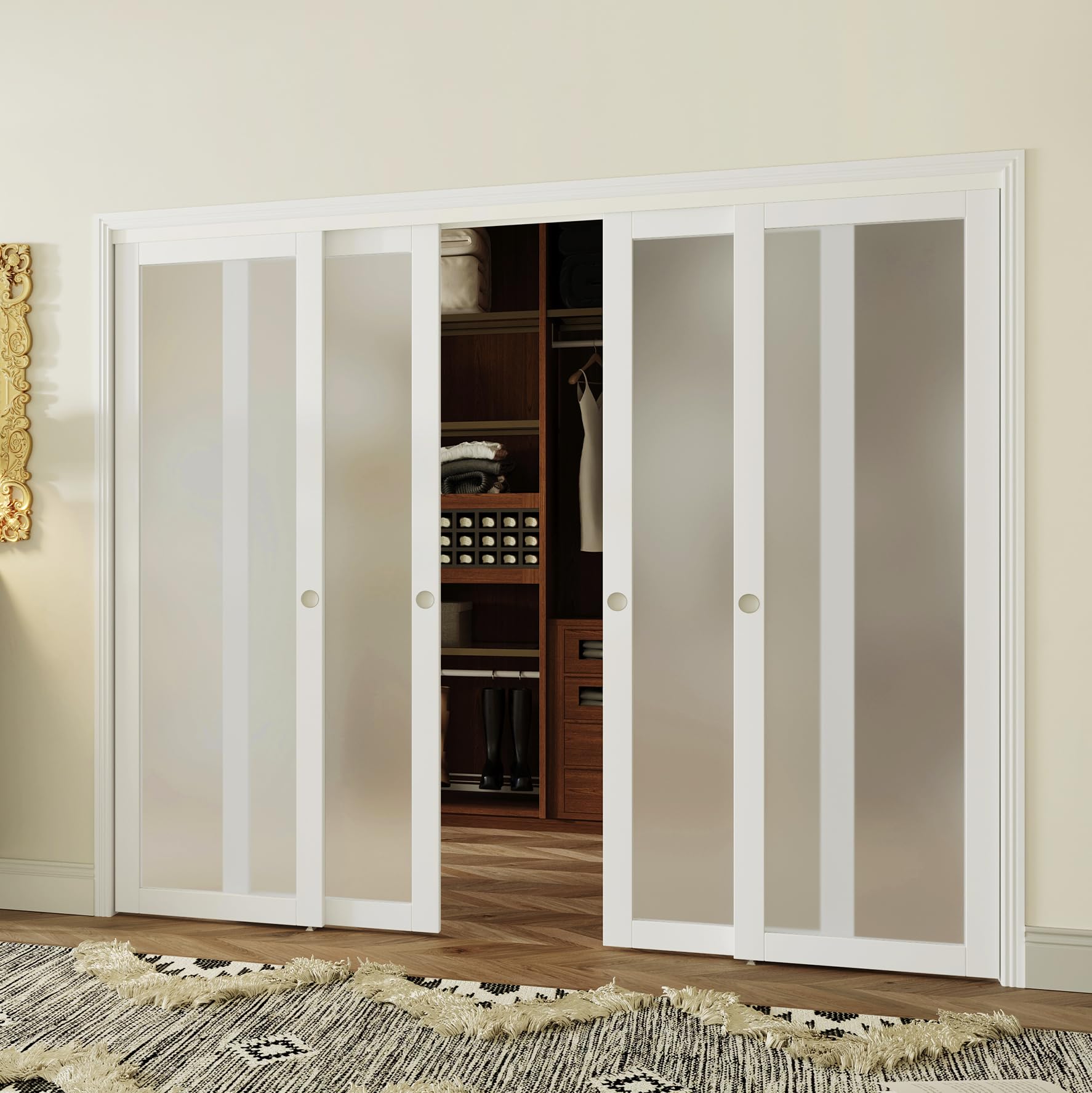

Image: Installed SOLRIG Sliding Closet Door.
Maintenance
Regular maintenance will ensure the longevity and smooth operation of your sliding closet door.
- Cleaning: The MDF panels with white PVC surface are easy to clean. Use a soft, damp cloth and mild soap to wipe down the door panels. Avoid abrasive cleaners or harsh chemicals that could damage the finish or glass. For frosted glass, use a glass cleaner as needed.
- Track Maintenance: Periodically inspect the top track and floor guide for any debris, dust, or obstructions. Clean the tracks with a vacuum cleaner or a damp cloth to ensure smooth roller movement.
- Roller Inspection: Check the rollers (pulleys) for wear or damage. If rollers become stiff or noisy, they may need cleaning or replacement.
- Hardware Check: Periodically check all screws and fasteners to ensure they are tight. Retighten if necessary.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Doors are difficult to slide or stick. | Debris in track, worn rollers, misaligned track. | Clean tracks. Inspect and replace rollers if worn. Check track alignment with a level and adjust if needed. |
| Doors wobble or come off track. | Loose floor guide, damaged rollers, improper installation. | Ensure floor guide is securely fastened and aligned. Inspect rollers for damage. Review installation steps to ensure correct setup. |
| Gap between door panels or wall. | Misaligned panels, uneven opening. | Adjust panel positions. Ensure the door opening is square and level. |
Warranty and Customer Support
SOLRIG is committed to your satisfaction. If you encounter any issues or have questions regarding your sliding closet door, please do not hesitate to contact our dedicated customer support team.
If the product arrives damaged or if any components are missing, please reach out to us immediately for a free replacement.
For support, please visit the SOLRIG store on Amazon or use the contact information provided with your purchase.
Image: SOLRIG Brand Logo.
Image: How to contact SOLRIG customer support.
