1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your SOLRIG Sliding Closet Door. Please read all instructions carefully before beginning installation to ensure proper function and safety. Keep this manual for future reference.
2. Safety Information
- Always wear appropriate safety gear, including gloves and eye protection, during installation.
- Ensure the installation area is clear of obstructions and well-lit.
- Handle glass panels with extreme care to prevent breakage and injury.
- Verify that the wall structure can support the weight of the door system.
- Keep children and pets away from the work area during installation.
- Do not attempt to modify the product in any way not described in this manual.
3. Package Contents
Verify that all components are present and undamaged before beginning installation. If any parts are missing or damaged, contact customer support.
- Sliding Door Panels (2x, Full Lite Mirror Glass)
- Sliding Track
- Handles (Finger Pulls)
- Pulleys/Rollers
- Fascia
- Floor Guide
- Mounting Hardware (screws, anchors, etc.)
- Instruction Manual (this document)
4. Specifications
| Feature | Detail |
|---|---|
| Brand | SOLRIG |
| Model | B0F65712DP |
| Door Type | Sliding Closet Door |
| Glass Type | Full Lite Mirror Glass |
| Material | MDF with White PVC Surface |
| Fit Opening Size | 60" (Width) x 80" (Height) |
| Each Panel Dimensions | 30.98" (Width) x 78.58" (Height) |
| Item Weight | 95 pounds |
| Style | Modern |
5. Setup and Installation
5.1 Pre-Installation Checks

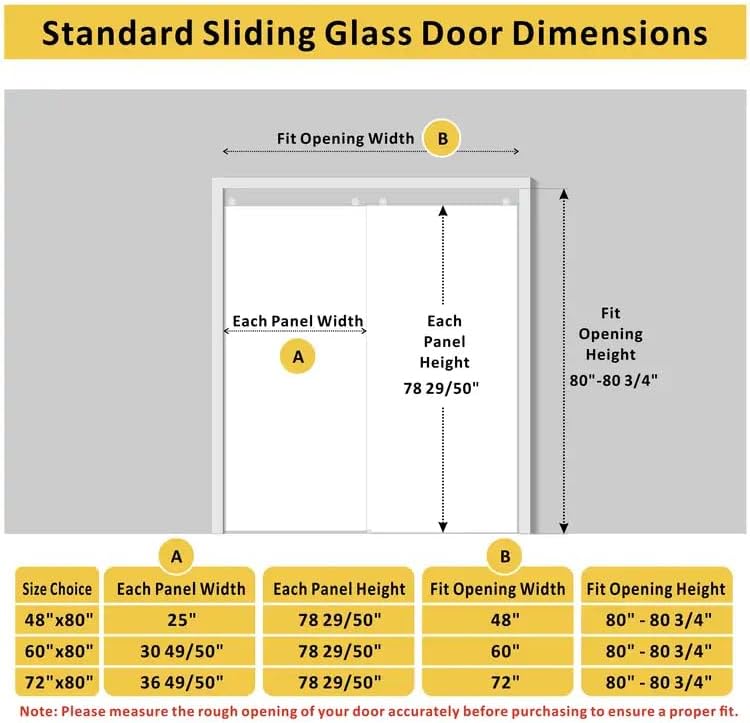

- Measure Your Opening: Accurately measure the width and height of your door opening. This door system is designed for standard 60"x80" openings. Refer to the dimension diagram below.
- Prepare the Area: Clear the installation area. Ensure the floor and ceiling are level and free from debris.
- Unpack Components: Carefully unpack all parts and lay them out on a clean, protected surface.
5.2 Installation Steps
- Install the Top Track: Securely mount the sliding track to the top of your door opening. Ensure it is level and properly aligned. Use appropriate fasteners for your wall material.
- Attach Rollers to Door Panels: The door panels come pre-drilled. Attach the roller mechanisms to the top edge of each door panel. Ensure they are securely fastened.
- Hang the Door Panels: Carefully lift each door panel and engage the rollers with the top track. Ensure the panels hang freely and can slide along the track.
- Install the Bottom Floor Guide: Position the floor guide on the floor directly below the door panels. This guide ensures the doors remain aligned and slide smoothly. Secure it to the floor using the provided hardware.
- Attach Handles (Finger Pulls): Install the finger pull handles onto the door panels. These provide a secure and comfortable grip for opening and closing.
- Install Fascia (Optional): If included, attach the fascia to cover the top track for a finished appearance.
- Test Operation: Gently slide both doors back and forth to ensure smooth and unobstructed movement. Adjust as necessary.
6. Operating Instructions
Your SOLRIG Sliding Closet Door is designed for simple and efficient operation.
- Opening and Closing: Use the integrated finger pull handles to gently slide the door panels along the track. The doors can be positioned to fully open the closet, partially open, or fully closed.
- Mirror Care: The full lite mirror glass provides both functionality and aesthetic appeal. Avoid harsh impacts to the mirror surface.
7. Maintenance
Regular maintenance will ensure the longevity and smooth operation of your sliding closet door.
- Cleaning Door Panels: The MDF panels with white PVC surface are easy to clean. Use a soft, damp cloth and mild soap to wipe down the surfaces. Avoid abrasive cleaners.
- Cleaning Mirror Glass: Use a standard glass cleaner and a lint-free cloth for the mirror surfaces. Spray cleaner onto the cloth, not directly onto the mirror, to prevent liquid from seeping into edges.
- Track Maintenance: Periodically inspect and clean the top track and bottom floor guide. Remove any dust, dirt, or debris that may accumulate and hinder smooth sliding. A vacuum cleaner with a brush attachment can be effective.
- Roller Inspection: Check the rollers for any signs of wear or damage. If the doors become difficult to slide, the rollers may need cleaning or adjustment.
- Hardware Check: Periodically check all screws and fasteners to ensure they are tight. Retighten if necessary.
8. Troubleshooting
Refer to the following table for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Doors do not slide smoothly | Debris in track, misaligned rollers, loose track. | Clean tracks, inspect and adjust rollers, tighten track fasteners. |
| Doors rub against each other or frame | Improperly adjusted rollers, uneven installation. | Adjust roller height, check track levelness and re-level if necessary. |
| Doors come off the track | Damaged rollers, incorrect installation of floor guide, severe impact. | Inspect rollers for damage and replace if needed. Ensure floor guide is correctly installed and secured. |
| Mirror appears cloudy or streaky | Improper cleaning agent or cloth. | Use a dedicated glass cleaner and a clean, lint-free microfiber cloth. |
9. Customer Support
For any questions, concerns, or assistance with your SOLRIG Sliding Closet Door, please contact our dedicated customer support team. We are committed to ensuring your satisfaction.
- Contact Method: Refer to your purchase documentation or the seller's platform for specific contact details.
- When contacting support, please provide:
- Your order number
- Product model (B0F65712DP)
- A clear description of the issue
