User Manual: Aluminium Alloy Thermostat Housing Coolant Pipe

1. Introduction

This manual provides essential information for the KMBZOCPER Aluminium Alloy Thermostat Housing Coolant Pipe, designed as a direct replacement for part number 06A121133D. This component is crucial for maintaining the optimal operating temperature of your vehicle's engine by regulating coolant flow within the cooling system.

Constructed from durable aluminum alloy, this coolant pipe is engineered for longevity and resistance to wear and tear, ensuring reliable performance in demanding automotive environments.

2. Product Features

• Premium Material: Manufactured from high-quality aluminum alloy for enhanced durability and resistance to wear and tear, ensuring long-lasting performance.
• Perfect Replacement: Designed for seamless integration, serving as a direct replacement for old or damaged engine coolant pipe hoses, restoring optimal function to your cooling system.
• Robust Construction: Strong and reliable build ensures efficient water cooling and prevents leaks, helping the engine operate at the correct temperature.
• Vehicle Compatibility: Specifically designed to fit certain vehicle models. Verification of vehicle compatibility is essential before purchase to ensure proper fit and function.

3. Specifications

4. Compatibility

This thermostat housing coolant pipe is compatible with specific vehicle models. It is designed to fit for:

• Golf 2.0 L4 models (1999-2006)
• Jetta 2.0 L4 models (1999-2006)

Important: Always verify the part number (06A121133D) and vehicle specifications against your car's requirements before purchase and installation to ensure correct fitment.

5. Installation Guidelines

Installation of automotive cooling system components requires mechanical knowledge and specialized tools. It is highly recommended that this part be installed by a qualified professional mechanic.

5.1. Pre-Installation Checks

1. Ensure the engine is cool before beginning any work on the cooling system.
2. Verify that the new part matches the old part in terms of dimensions and connection points.
3. Gather necessary tools, including wrenches, pliers, coolant drain pan, and new coolant.

5.2. Installation Steps (General)

1. Drain Coolant: Safely drain the existing engine coolant into a suitable container.
2. Remove Old Component: Carefully disconnect hoses and electrical connectors (if any) from the old thermostat housing. Remove mounting bolts and detach the old component.
3. Clean Mounting Surface: Thoroughly clean the engine block's mounting surface to ensure a proper seal with the new gasket.
4. Install New Gasket and Housing: Place the new gasket (included) onto the mounting surface. Position the new thermostat housing coolant pipe and secure it with the mounting bolts. Tighten bolts to manufacturer specifications.
5. Reconnect Hoses: Reconnect all coolant hoses and secure them with clamps. Ensure all connections are tight to prevent leaks.
6. Refill Coolant: Refill the cooling system with the appropriate type and amount of coolant as specified by your vehicle's manufacturer.
7. Bleed Air: Start the engine and allow it to reach operating temperature. Monitor the coolant level and bleed any trapped air from the system as per your vehicle's service manual.
8. Check for Leaks: Visually inspect all connections for any signs of coolant leaks.

Note: This is a general guide. Always refer to your vehicle's specific service manual for detailed, model-specific installation instructions and torque specifications.

Figure 1: KMBZOCPER Aluminium Alloy Thermostat Housing Coolant Pipe with included gasket. This image shows the main component and the sealing gasket.

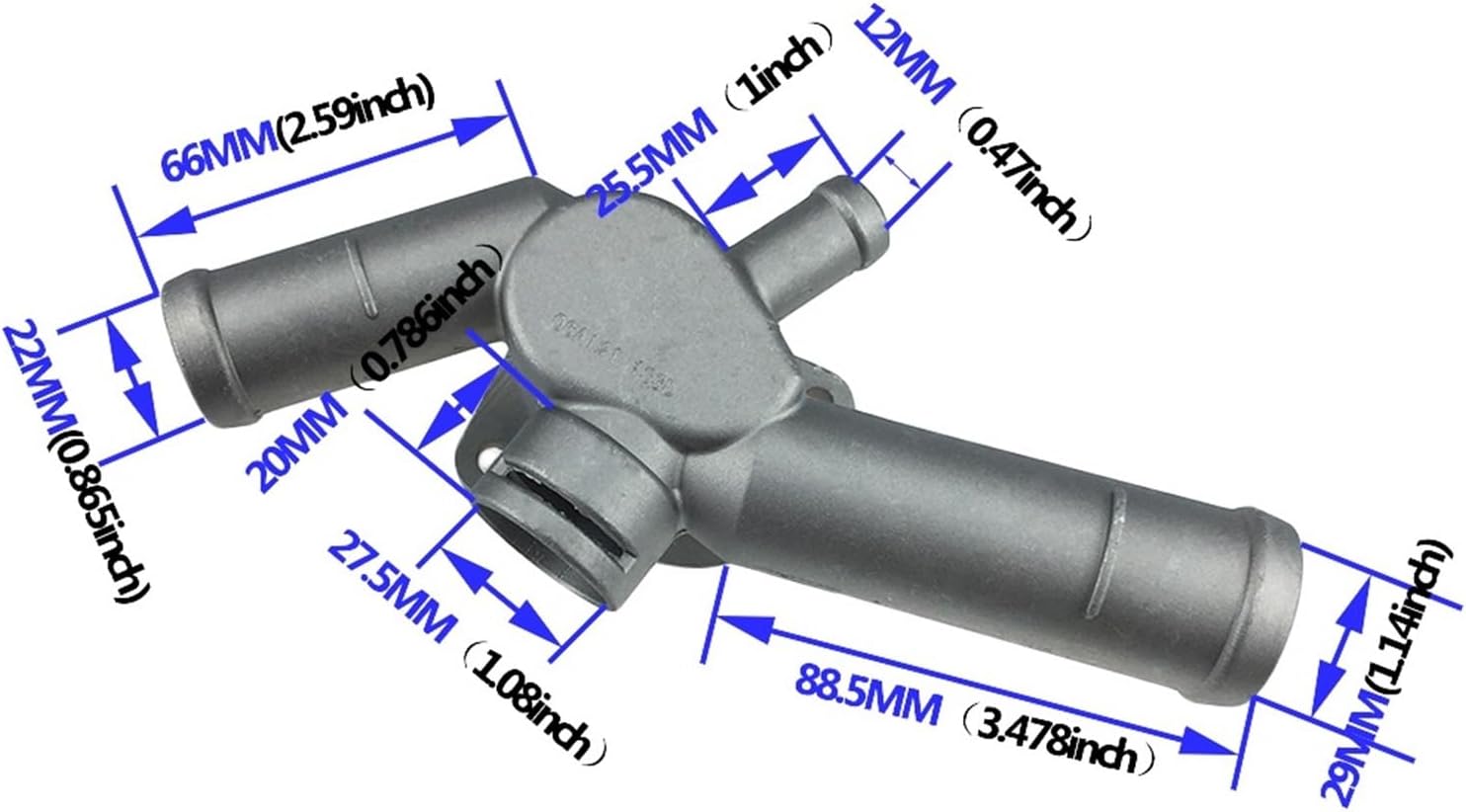

Figure 2: Detailed dimensions of the thermostat housing coolant pipe. This view provides measurements for various connection points and overall length, crucial for fitment verification.

Figure 3: Bottom view of the thermostat housing coolant pipe, highlighting the mounting flange and bolt holes. This perspective is important for understanding how the unit attaches to the engine block.

6. Maintenance

Proper maintenance of your vehicle's cooling system is vital for engine longevity. While the thermostat housing itself requires minimal maintenance, regular checks of the surrounding components are recommended:

• Coolant Level: Regularly check the coolant level in the reservoir and top up as needed with the correct type of coolant.
• Coolant Condition: Inspect the coolant for discoloration or debris. Flush and replace coolant according to your vehicle manufacturer's recommended intervals.
• Hose Inspection: Periodically inspect all coolant hoses connected to the housing for cracks, bulges, or signs of wear. Replace any damaged hoses promptly.
• Leak Detection: Look for any signs of coolant leaks around the thermostat housing, hose connections, or other cooling system components. Address leaks immediately.

7. Troubleshooting

If you experience issues with your vehicle's cooling system after installing or while using this component, consider the following common troubleshooting steps:

• Coolant Leaks:
  • Ensure all hose clamps are tight and hoses are properly seated.
  • Verify the gasket is correctly installed and the mounting bolts are torqued to specification.
  • Inspect the housing itself for any manufacturing defects or cracks (unlikely for a new part, but possible).
• Engine Overheating:
  • Check coolant level and ensure the system is properly bled of air.
  • Verify the thermostat (if separate from housing) is functioning correctly.
  • Inspect the radiator and cooling fan for proper operation.
• Engine Running Cold:
  • This is typically indicative of a stuck-open thermostat, not the housing itself.

If issues persist, consult a qualified mechanic. Do not continue to operate a vehicle with a malfunctioning cooling system.

8. Warranty and Support

For information regarding warranty coverage, returns, or technical support for your KMBZOCPER Aluminium Alloy Thermostat Housing Coolant Pipe, please contact the seller or manufacturer directly. Retain your proof of purchase for any warranty claims.

For general inquiries or assistance, you may refer to the contact information provided by your retailer or the KMBZOCPER official channels, if available.
