1. Introduction
Thank you for choosing the ONEYA BABY Toddler Bed Rail Guard. This manual provides essential information for the safe assembly, installation, operation, and maintenance of your bed rail. Please read these instructions carefully before use and retain them for future reference. This product is designed to provide a secure barrier for toddlers transitioning from a crib to a larger bed.
Image: The ONEYA BABY bed rail guard installed, providing a safe sleeping environment for a toddler.
2. Safety Information
- Screw Fix Required: This bed rail requires screw fixing for optimal stability and safety. Ensure all screws are securely fastened to the bed frame.
- Multiple Rails for Stability: For enhanced stability and comprehensive protection, it is recommended to purchase 2-4 bed rails, depending on your bed configuration and child's activity level.
- Dual Childproof Locks: The bed rail is equipped with a dual-lock mechanism to prevent accidental opening by children. Always ensure both locks are engaged when the rail is in the upright position.
- Seamless Fit: Ensure the bed rail fits seamlessly against the mattress, leaving no gaps where a child's limbs could become trapped.
- Non-Toxic Materials: The fabric used is non-toxic and child-safe.
- Regular Inspection: Periodically check all components for wear, damage, or loose connections. Discontinue use if any part is damaged.
Image: Illustration of the seamless safety design, highlighting zero gaps and anti-pinch features for child protection.
3. Package Contents
Please verify that all components are present before beginning assembly:
- 3x Upper tube (with anti-collision cotton)
- 3x Lower tube (no anti-collision cotton)
- 1x Angle Connector (per order)
- 2x L-shaped support base
- 1x Cloth cover
- 2x Riser
- 1x Screwdriver
- 11x Screws
- 1x Instruction Manual

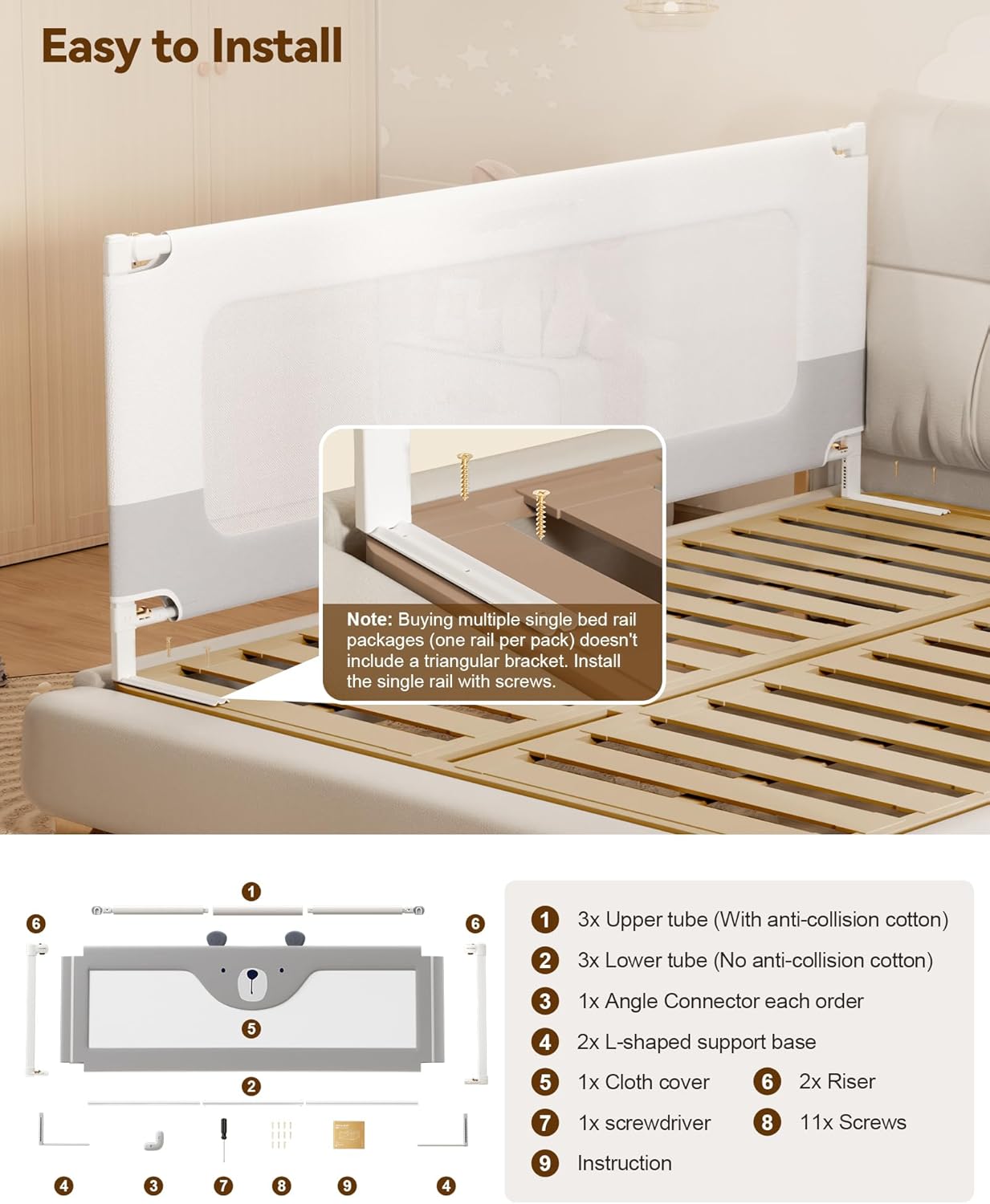

Image: Detailed diagram illustrating all components included in the bed rail package, along with their respective quantities.
4. Features
- Upgraded Material Construction: Constructed with thickened and hardened carbon steel tubes, offering superior sturdiness and bend resistance compared to standard iron tubes.
- Dual Childproof Locks: Features a secure dual-lock mechanism to prevent accidental lowering by children, ensuring continuous safety.
- 24-Level Height Adjustment: The bed rail offers 24 adjustable height levels, accommodating mattresses with a thickness range of 2 to 14 inches.
- Single-Side Lifting Functionality: Designed for convenience, the rail can be lifted from a single side, allowing easy access to the bed for handling children or changing sheets without full disassembly.
- Elastic Mesh Fabric: The bed rail features tear-resistant, high-standard baby-safe fabric with a breathable mesh design.
- Reinforced Aluminum Alloy Posts: Provides enhanced stability and a seamless design, preventing gaps and potential finger traps.
Image: Visual comparison highlighting the use of thickened and reinforced carbon steel and ultra-wide alloy posts for enhanced durability and safety.
5. Compatibility and Size Guide
This bed rail is compatible with various bed types and mattress thicknesses. Please measure your bed frame and mattress before ordering to ensure a proper fit.
Mattress Thickness:
The 24-level height adjustment accommodates mattresses ranging from 2 inches to 14 inches in thickness.
Bed Type and Purchase Suggestions:
| Bed Type | Purchase Suggestion |
|---|---|
| Twin Size Bed | 1-2 sides 74.8" + 1-2 side 39" |
| Full Size Bed | 1-2 sides 74.8" + 1-2 side 54" |
| Queen Size Bed | 1-2 sides 78.7" + 1-2 side 60" |
| King Size Bed | 1-2 sides 78.7" + 1-2 side 74.8" |
Recommended Configurations by Age:
- I-Shaped (0-3 months): Newborn sleep (1 piece)
- L-Shaped (3-6 months): Rolling over (2 pieces)
- U-Shaped (9-36 months): Climbing and playtime (3 pieces)
- II-Shaped (3 years+): Sleep independently (2 pieces)
Image: Comprehensive size chart and configuration guide, detailing recommended bed rail setups for various bed sizes and child developmental stages.
6. Setup and Installation
Follow these steps for quick and straightforward installation. Remember, screw fixing is required for secure attachment.
- Put Together: Position the upper and lower tubes correctly.
- Wear: Connect the upper and lower pipes accurately. Insert the assembled rails into the mesh panel.
- Insert: Attach the fixed frame to the bed rails.
- Pull: Fasten the zipper and connect the L-shaped support base to both sides.
- Install: Tuck the rails under the mattress without gaps and tighten the screws into the bed frame.
Note: When buying multiple single bed rail packages, a triangular bracket is not included. Install each single rail with screws.
Image: Visual step-by-step guide for assembling and installing the bed rail, including the screw-fix method for stability.
7. Operating Instructions
Single-Side Lifting Functionality:
The bed rail features a vertical lifting design system, allowing you to lower one side independently for easy access. This is particularly useful for attending to your child or changing bed sheets without removing the entire rail.
- To lower the rail: Simultaneously press both buttons on the quick-release mechanism located on the side of the rail and gently pull down.
- To raise the rail: Lift the rail upwards until it clicks securely into place, ensuring both dual childproof locks are engaged.
Height Adjustment:
The bed rail's height can be adjusted to match your mattress thickness (2-14 inches). To adjust, locate the height adjustment mechanism on the support posts, press the release button, and slide the rail to the desired height. Ensure it is securely locked at the chosen level.
Image: A mother demonstrating the quick-release mechanism, showing how to lower the bed rail with one hand for easy access while holding a baby.
8. Maintenance
To keep your ONEYA BABY Bed Rail Guard clean and hygienic:
- Fabric Cover: The bed rail features a detachable, machine-washable cover. Remove the cover from the frame and wash according to the care label instructions (typically cold water, gentle cycle). Air dry or tumble dry on low.
- Frame Cleaning: Wipe the metal and plastic components of the frame with a damp cloth and mild soap. Rinse thoroughly and dry completely before reattaching the fabric cover.
- Avoid Harsh Chemicals: Do not use abrasive cleaners, bleach, or strong detergents, as these can damage the materials.
9. Troubleshooting
Here are answers to some common questions:
- Q: Does this bed rail need screws to be installed?
A: Yes, screws are required for extra stability and secure installation. - Q: How many bed rails come in one order?
A: Each order includes one bed rail. We suggest purchasing 2-3 rails based on your specific needs for better stability and coverage. - Q: Can this bed rail fit an iron bed frame?
A: It is primarily designed for wooden bed frames where screws can be directly fixed. For iron frames, a wooden plank or adapter may be needed to facilitate secure screw fixing. - Q: Is the bed rail cover machine-washable?
A: Yes, the cover is removable and machine-washable for easy cleaning.
10. Specifications
| Specification | Detail |
|---|---|
| Brand | ONEYA BABY |
| Model (ASIN) | B0F6348VGG |
| Size | 1 Side 54"L x 28"H |
| Material | Carbon Steel |
| Color | Grey/White |
| Style | Modern |
| Product Dimensions | 54"W x 28"H |
| Product Care Instructions | Machine Washable |
| Adjustable Length | Yes |
| Item Weight | 9.23 pounds |
| Date First Available | July 6, 2025 |
11. Warranty and Support
Specific warranty information is not provided in the product details. For warranty claims, technical support, or further assistance, please contact ONEYA BABY customer service through the retailer where the product was purchased.
