FCGBZHRL 0003323 Hydraulic Pump Harness Cable User Manual

1. Introduction

This manual provides essential instructions for the proper installation, maintenance, and troubleshooting of the FCGBZHRL 0003323 Hydraulic Pump Harness Cable. This harness is specifically designed for use with Hitachi ZAXIS ZX120-1, ZX110-1, ZX130-1, and ZX180-1 series excavators. Adhering to these guidelines will ensure optimal performance and longevity of the component.

2. Product Overview

The 0003323 Hydraulic Pump Harness Cable is a critical electrical component responsible for transmitting signals and power to the hydraulic pump system in compatible Hitachi ZAXIS excavators. It ensures reliable communication between the excavator's control unit and the hydraulic pump, which is vital for the machine's operational efficiency.

• Part Number: 0003323
• Item Type: Cables, Adapters & Sockets
• Compatibility: Hitachi ZAXIS ZX120-1, ZX110-1, ZX130-1, ZX180-1 Excavators

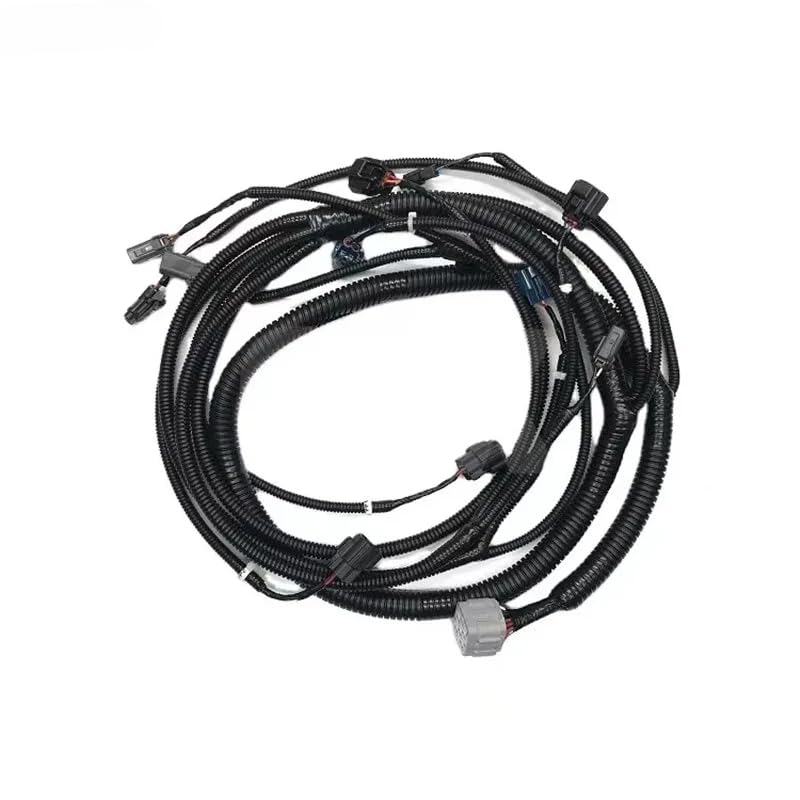

Figure 1: The FCGBZHRL 0003323 Hydraulic Pump Harness Cable. This image displays the coiled electrical harness with multiple connectors and protective sheathing, ready for installation in an excavator's hydraulic pump system.

3. Safety Information

Always observe the following safety precautions when handling or installing electrical components:

• Ensure the excavator's power is completely disconnected and locked out before beginning any installation or maintenance work.
• Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
• Consult the excavator's official service manual for specific wiring diagrams and safety procedures.
• Do not attempt to modify the harness cable. Use only genuine or approved replacement parts.
• If you are unsure about any step, seek assistance from a qualified technician.

4. Installation Instructions

Follow these steps for the correct installation of the hydraulic pump harness cable:

1. Preparation: Park the excavator on level ground, lower all attachments, shut off the engine, and disconnect the battery to prevent accidental startup or electrical shock.
2. Access: Locate the hydraulic pump compartment and the existing harness connection points. This may require removing protective covers or panels. Refer to your excavator's service manual for exact locations.
3. Removal of Old Harness (if applicable): Carefully disconnect all connectors of the old harness from the hydraulic pump and control unit. Note the routing of the old harness to aid in installing the new one.
4. Inspection: Before installing the new 0003323 harness, inspect it for any signs of damage, such as frayed wires, bent pins, or cracked insulation.
5. Installation of New Harness: Connect the new harness to the corresponding ports on the hydraulic pump and the excavator's control system. Ensure each connector clicks securely into place.
6. Routing: Route the new harness cable along the same path as the original, securing it with cable ties or clips as necessary to prevent chafing, pinching, or interference with moving parts.
7. Reconnection: Once the harness is fully installed and secured, reconnect the excavator's battery.
8. Testing: Start the excavator and perform a functional test of the hydraulic system to ensure all functions operate correctly and there are no error codes.

Note: Improper installation can lead to system malfunctions or damage. Always ensure connections are clean and secure.

5. Post-Installation System Check

After installation, it is crucial to perform a thorough system check to confirm proper functionality:

• Visual Inspection: Verify all harness connections are tight and secure. Ensure the harness is not pinched or rubbing against any sharp edges or hot components.
• Engine Start-up: Start the excavator engine and observe the dashboard for any warning lights or error messages related to the hydraulic system.
• Hydraulic Function Test: Operate various hydraulic functions (e.g., boom, arm, bucket, swing) at low and then normal speeds. Listen for unusual noises and observe for smooth, responsive operation.
• Diagnostic Scan: If available, connect a diagnostic tool to the excavator's diagnostic port to check for any stored or active fault codes related to the hydraulic pump or its control system.

If any issues are detected, refer to the Troubleshooting section or consult a qualified service technician.

6. Maintenance

Regular inspection and proper care will extend the life of your hydraulic pump harness cable:

• Periodic Visual Inspection: Routinely check the harness for signs of wear, abrasion, cuts, or heat damage. Pay close attention to areas where the harness bends or passes through tight spaces.
• Connector Integrity: Ensure all connectors remain clean and free of dirt, moisture, or corrosion. Periodically check that they are securely seated.
• Cable Routing: Verify that the harness remains properly routed and secured, preventing it from coming into contact with moving parts or high-temperature components.
• Cleaning: If necessary, gently clean the harness and connectors with a soft, dry cloth. Avoid using harsh chemicals or solvents that could damage the insulation.
• Environmental Protection: Protect the harness from extreme environmental conditions where possible, such as prolonged exposure to direct sunlight, excessive moisture, or corrosive substances.

7. Troubleshooting

This section provides guidance for common issues related to the hydraulic pump harness cable. Always ensure safety precautions are followed before attempting any troubleshooting.

If the problem persists after attempting these solutions, contact a certified service technician.

8. Specifications

9. Support and Warranty

For technical assistance, installation queries, or warranty information, please contact your supplier or the manufacturer, FCGBZHRL. Refer to your purchase documentation for specific return and warranty policies. Generally, products are subject to a 30-day return policy from the date of purchase.
