HrUkZN Impeller Water Pump Instruction Manual

1. Product Overview

The HrUkZN Impeller Water Pump (Model 0800-0800A0) is a critical component designed for the cooling system of various CFMoto ATV, UTV, and SSV models. Its primary function is to circulate coolant through the engine and radiator, which is essential for maintaining optimal operating temperatures and preventing engine overheating. This component is engineered for reliable performance in demanding off-road environments.

Image: The HrUkZN Impeller Water Pump, showing its overall design and the central shaft connection.

2. Compatibility

This impeller water pump is specifically designed to fit various CFMoto models. Please verify your vehicle's part number against the listed compatibility to ensure proper fitment. Compatible models include, but are not limited to:

• ATV CF800-2 X8 2V91W(X8)
• ATV CF800ATR CForce 800 2V91W(X8)
• ATV CF800ATR-2 CForce 800 2V91W FOR CF800ATR-2
• ATV CF800AU-2B CForce 800 2V91W-S
• SSV CF800 ZForce 800EX 2V91W(Z8)
• SSV CF800(Z8) ZForce 800EX 2V91W(Z8)
• SSV CF800(CA) ZForce 800EX 2V91W(Z8-US)
• SSV CF800(US) ZForce 800EX 2V91W(Z8-US)
• SSV CF800US-A ZForce 800 Trail 2V91W(Z8)
• SSV CF800US-A(CA) ZForce 800 Trail 2V91W(Z8-US)
• SSV CF800US-A(US) ZForce 800 Trail 2V91W(Z8-US)
• SSV CF800UTR ZForce Z8-EX 2V91W FOR CF800UTR
• SSV CF800SU-2 ZForce 800 Trail 2V91W-B
• SSV CF800SZ-2 ZForce 800 Trail 2V91W(Z8)
• UTV CF800-3 UForce 800 2V91W(U8)
• UTV CF800-3(CA) UForce 800 2V91W(U8-CA)
• UTV CF800-3(US) UForce 800 2V91W(U8-US)
• UTV CF800UTR-2 UForce 800 2V91W FOR CF800UTR-2
• UTV CF800UTR-2(GD) UForce 800 2V91W FOR CF800UTR-2
• UTV CF800UTR-2(KSR) UForce 800 2V91W FOR CF800UTR-2
• UTV CF800UTR-2(SS) UForce 800 2V91W FOR CF800UTR-2
• UTV CF800UU-A UForce 800 2V91W(U8)
• UTV CF800UU-A(AU) UForce 800 2V91W(U8)
• UTV CF800UU-A(KSR) UForce 800 2V91W(U8)

The CFMoto listed part number for the impeller is 0800-081000, and the new code is 0800-0800A0.

3. Features

• Function: The impeller is responsible for circulating coolant through the engine and radiator, helping to maintain optimal operating temperatures and prevent overheating.
• Design: Designed with a specific blade shape and size to create efficient water flow, ensuring effective cooling performance.
• Material: Constructed from durable materials such as aluminum or high-strength plastic, capable of withstanding harsh off-road conditions and resisting corrosion.
• Performance: Engineered to provide reliable and efficient cooling, which is crucial for maintaining engine performance during demanding conditions.

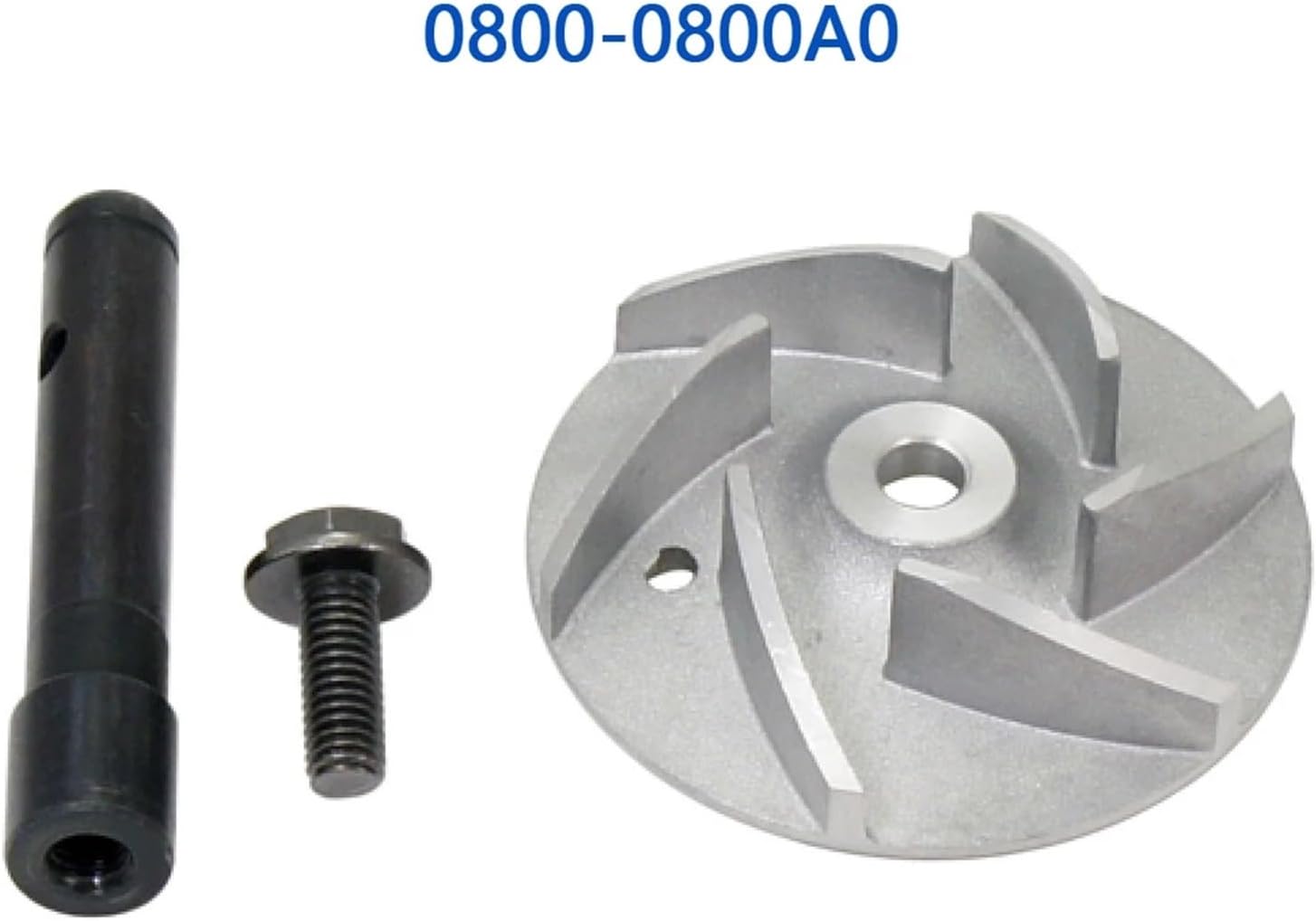

Image: Components of the water pump assembly, including the impeller, shaft, and securing bolt, laid out separately.

4. Installation (Setup)

Installation of a water pump impeller requires mechanical knowledge and specialized tools. It is strongly recommended that installation be performed by a qualified technician. Incorrect installation can lead to cooling system failure or severe engine damage.

General Installation Steps (Consult your vehicle's service manual for specific instructions):

1. Ensure the engine is cool and disconnect the battery.
2. Drain the engine coolant into a suitable container.
3. Remove any components obstructing access to the water pump.
4. Carefully remove the old water pump or impeller assembly.
5. Clean all mating surfaces thoroughly, removing any old gasket material.
6. Install the new HrUkZN impeller and associated components (shaft, bolt) according to the vehicle manufacturer's specifications. Ensure all seals and gaskets are correctly seated.
7. Reinstall all removed components.
8. Refill the cooling system with the appropriate coolant type and bleed any air from the system as per your vehicle's service manual.
9. Start the engine and check for leaks and proper operating temperature.

Image: The impeller with the water pump shaft partially inserted, illustrating the assembly process.

5. Operation

Once correctly installed, the impeller operates continuously with the engine. As the engine runs, the impeller rotates, drawing coolant from the radiator and circulating it through the engine block's cooling passages. This process facilitates heat transfer from the engine to the coolant, which then returns to the radiator to dissipate the heat into the ambient air. This continuous circulation is vital for maintaining the engine within its optimal operating temperature range, preventing both overheating and undercooling.

6. Maintenance

Proper maintenance of your vehicle's cooling system is crucial for the longevity and performance of the impeller water pump. Regular checks can help prevent issues:

• Coolant Level: Regularly check the coolant level in the reservoir and radiator. Top up with the recommended coolant type if necessary.
• Coolant Condition: Inspect the coolant for discoloration or debris. Flush and replace coolant according to your vehicle manufacturer's recommended service intervals.
• Hose Inspection: Check all cooling system hoses for cracks, leaks, or signs of swelling. Replace damaged hoses promptly.
• Leak Detection: Periodically inspect the water pump area for any signs of coolant leaks.
• Belt Tension: Ensure the drive belt for the water pump (if applicable) is at the correct tension and free from wear.

7. Troubleshooting

If you experience issues with your vehicle's cooling system, consider the following common troubleshooting points related to the water pump and impeller:

• Engine Overheating: This is a primary symptom of a failing water pump or impeller. Check for coolant leaks, low coolant levels, or a non-functioning water pump.
• Coolant Leaks: Leaks around the water pump housing or weep hole indicate a seal failure, often requiring water pump replacement.
• Unusual Noises: Grinding, squealing, or whining noises from the front of the engine may indicate worn bearings within the water pump.
• Steam from Engine: Excessive steam or smoke from the engine compartment is a clear sign of severe overheating, which could be due to a complete water pump failure.

If any of these symptoms occur, it is advisable to have the cooling system and water pump inspected by a qualified mechanic to prevent further engine damage.

8. Specifications

9. Warranty and Support

Specific warranty terms and conditions for this product are not provided within this manual. For detailed warranty information, technical support, or assistance with product-related inquiries, please contact the seller or the manufacturer directly. It is recommended to retain your proof of purchase for any warranty claims.
