UDPATIO 5-Piece Patio Furniture Set with Fire Pit Table User Manual

1. Introduction

Thank you for choosing the UDPATIO 5-Piece Patio Furniture Set with Fire Pit Table. This set is designed to enhance your outdoor living space with comfort and functionality. It includes a loveseat, two rocking swivel chairs, and a central fire pit table, complete with cushions and individual waterproof covers. The fire pit table is CSA certified for safety and features a 50,000 BTU output, while the furniture boasts durable, FSC-certified wood frames and all-weather wicker.

An overview of the complete 5-piece patio furniture set, including a loveseat, two swivel chairs, and a fire pit table, arranged in an outdoor environment.

2. Safety Information

Always assemble according to the provided instructions. Keep the fire pit table away from flammable materials and never leave it unattended while in use. Be cautious when moving the furniture to avoid tip-over risks, especially in the presence of children and pets. Always supervise children when they are near the product.

3. Package Contents

Your UDPATIO 5-Piece Patio Furniture Set is shipped in multiple boxes. Please verify all components are present before beginning assembly.

• 1 x Loveseat Sofa
• 2 x Swivel Rocker Chairs
• 1 x Fire Pit Table
• Cushions for all seating (back and seat)
• Individual Waterproof Covers (for each furniture piece except the fire pit table)
• Assembly Hardware and Tools (e.g., Allen wrench)
• Fire Pit Accessories (Removable Lid, Blue Fire Glass, Safety Glass Shield)

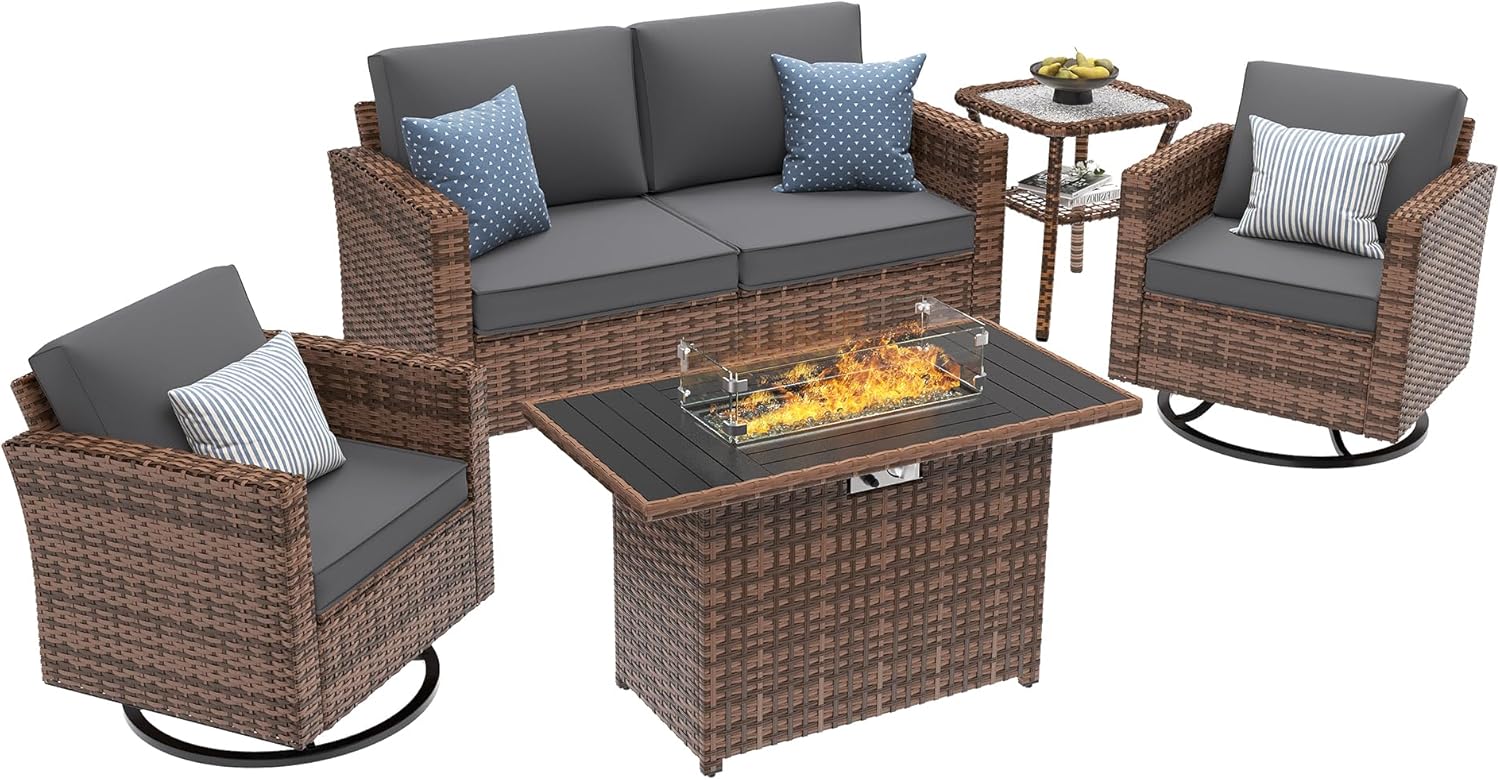

A clear view of the 5-piece patio furniture set, showcasing the loveseat, two swivel chairs, and the fire pit table, ready for assembly or placement.

4. Setup and Assembly

Assembly is required for this furniture set. It is recommended to have two people for assembly to ensure ease and safety. Please refer to the detailed assembly instructions included in your package for step-by-step guidance.

General Assembly Steps:

1. Unpack All Components: Carefully remove all parts from the packaging. Lay them out and identify each piece against the parts list in your instruction manual.
2. Assemble Furniture Frames: Begin by assembling the frames of the loveseat and swivel chairs. Ensure all bolts are securely tightened, but do not overtighten until all pieces are aligned.
3. Assemble Fire Pit Table: Follow the specific instructions for the fire pit table, ensuring all gas connections are properly secured.
4. Attach Cushions: Once frames are assembled, place the seat and back cushions. Allow vacuum-sealed cushions a day or two to fully expand.
5. Final Tightening: Once all components are assembled and aligned, fully tighten all bolts.

Detailed diagram illustrating the dimensions (length, width, height) of each component: the loveseat sofa, fire pit table, and swivel rocker chairs, crucial for planning your space.

Visual representation of the swivel rocker chair's functionality, highlighting its ability to rotate 360 degrees and rock gently, providing versatile seating comfort.

5. Operating Instructions (Fire Pit Table)

The fire pit table is designed for safe and efficient outdoor heating. Always ensure proper ventilation and follow all safety guidelines.

Ignition Procedure:

1. Connect Propane Tank: Ensure your propane tank is securely connected to the fire pit table's gas line.
2. Open Gas Valve: Slowly open the gas valve on the propane tank.
3. Ignite: Press and hold the auto-ignition button while turning the control knob to the 'ON' position. Hold for approximately 30 seconds to allow gas to flow and ignite.
4. Adjust Flame: Once ignited, release the ignition button and adjust the flame height using the control knob.

Safety During Operation:

• Never leave the fire pit unattended while in use.
• Keep children and pets at a safe distance.
• Do not place flammable materials near the fire pit.
• Allow the fire pit to cool completely before covering or moving.

The metal tabletop allows the fire pit table to also function as an outdoor dining or coffee table when the fire pit is not in use and covered with its removable lid.

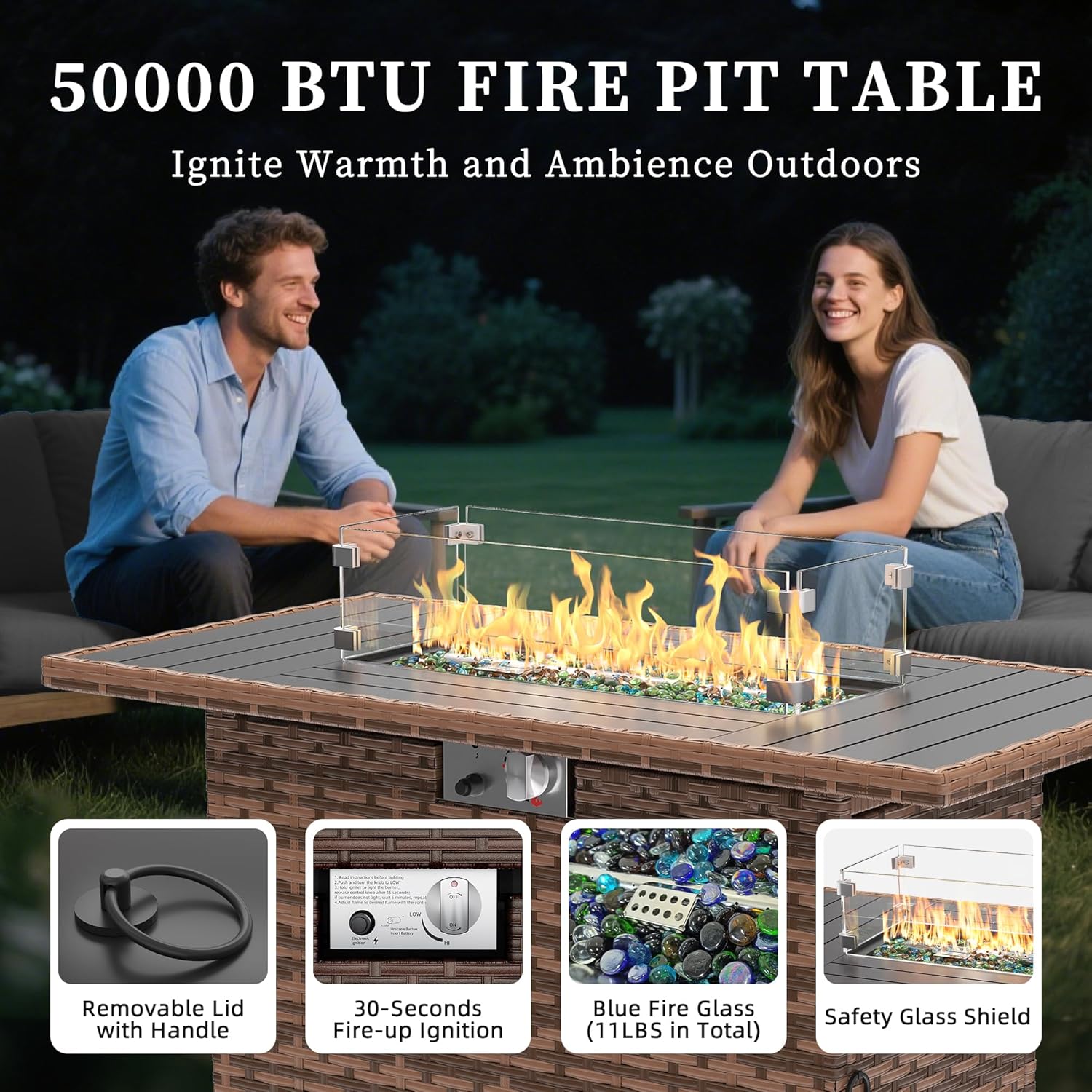

Detailed view of the fire pit table's key features: a removable lid with handle, a 30-second fire-up ignition system, decorative blue fire glass, and a protective safety glass shield.

6. Maintenance

Regular maintenance will prolong the life and appearance of your patio furniture set.

Cushions:

• The cushion covers are detachable and washable. Follow care instructions on the label for cleaning.
• Store cushions indoors during prolonged periods of non-use or inclement weather to prevent mildew and fading.

Wicker and Frame:

• Clean the wicker and frame with a mild soap and water solution. Rinse thoroughly and allow to air dry.
• Avoid harsh chemicals or abrasive cleaners that could damage the material.

Fire Pit Table:

• Regularly inspect gas lines and connections for any signs of wear or leaks.
• Clean the burner area as needed to remove debris.
• Always use the provided waterproof cover when the fire pit is not in use to protect it from the elements.

A detailed view of the hand-woven PE wicker, emphasizing its durability and resistance to outdoor elements like water, UV rays, and wear, ensuring longevity.

An illustration of the cushion's construction, showing its removable and washable cover, high-resilience sponge filling for comfort, and an anti-slip design to keep it in place.

Depiction of the ergonomic backrest, designed to follow the natural curve of the back, featuring an elevated cushion for enhanced lumbar support and overall comfort.

An image demonstrating the waterproof cover in use, illustrating its protective capabilities against various weather conditions such as UV radiation, rain, snow, and dust.

7. Troubleshooting

If you encounter issues with your patio furniture set, refer to these common solutions:

• Fire Pit Not Igniting: Check that the propane tank is full and its valve is fully open. Ensure the gas line is securely connected and not kinked. Verify the igniter is sparking.
• Unstable Furniture: Ensure all assembly bolts are fully tightened. Check that the furniture is placed on a level surface.
• Cushions Not Fully Expanded: Allow up to 48 hours for vacuum-sealed cushions to fully regain their shape after unpacking. Gentle fluffing can assist.

8. Specifications

9. Warranty and Support

For any questions, concerns, or warranty claims regarding your UDPATIO patio furniture set, please contact UDPATIO customer service. Refer to your purchase documentation for specific warranty terms and contact information.
