vynsnp Replacement Variable Speed Pulley Instruction Manual

1. Introduction

This instruction manual provides essential information for the proper installation, function, maintenance, and troubleshooting of your vynsnp Replacement Variable Speed Pulley. This component is designed to be compatible with various MTD lawn mower models, including 13A226Jd000, 13Ac762F000, 13Bc26Jd058, 13Cc26Jd058, and Brit1c17078. Please read this manual thoroughly before attempting any installation or maintenance to ensure safe and effective use.

2. Safety Information

Always prioritize safety when working with machinery. Failure to follow these safety guidelines may result in personal injury or damage to equipment.

• Disconnect Power: Before beginning any work, ensure the lawn mower's engine is off, the spark plug wire is disconnected, and the battery (if applicable) is disconnected to prevent accidental starting.
• Wear Protective Gear: Always wear appropriate personal protective equipment, including safety glasses, gloves, and sturdy footwear.
• Read Mower Manual: Refer to your specific lawn mower's owner's manual for detailed safety instructions and component removal procedures.
• Secure Equipment: Ensure the lawn mower is stable and properly supported before working underneath it.
• Use Correct Tools: Use only the appropriate tools for the task to avoid damage to components or injury.

3. Product Overview

The vynsnp Replacement Variable Speed Pulley is a critical component in the drive system of compatible MTD lawn mowers. It is engineered for precision fit and optimal performance, contributing to the efficient operation of your equipment's variable speed transmission. The pulley features a rust-resistant coating to enhance durability and extend its lifespan, offering a reliable alternative to original equipment manufacturer (OEM) parts.

Compatible MTD Models: 13A226Jd000, 13Ac762F000, 13Bc26Jd058, 13Cc26Jd058, Brit1c17078.

4. Installation

Installation of the variable speed pulley requires mechanical aptitude. If you are unsure about any step, it is recommended to consult a qualified service technician or refer to your lawn mower's specific service manual.

1. Preparation: Ensure the lawn mower is on a flat, stable surface. Disconnect the spark plug wire and battery.
2. Access the Drive System: Depending on your mower model, you may need to remove deck covers, belts, or other components to gain access to the variable speed pulley.
3. Remove Old Pulley: Carefully note the orientation and connections of the existing pulley and belts. Use appropriate tools to loosen and remove any retaining bolts or clips securing the old pulley.
4. Install New Pulley: Position the vynsnp replacement pulley in the correct orientation. Secure it with the original retaining hardware, ensuring all bolts are tightened to the manufacturer's specifications (refer to your mower's manual for torque values).
5. Reinstall Belts and Components: Reattach all belts, ensuring they are properly seated in the pulley grooves. Reinstall any covers or components that were removed.
6. Final Check: Before reconnecting power, manually rotate the pulley and check for any obstructions or misalignment. Ensure all connections are secure.

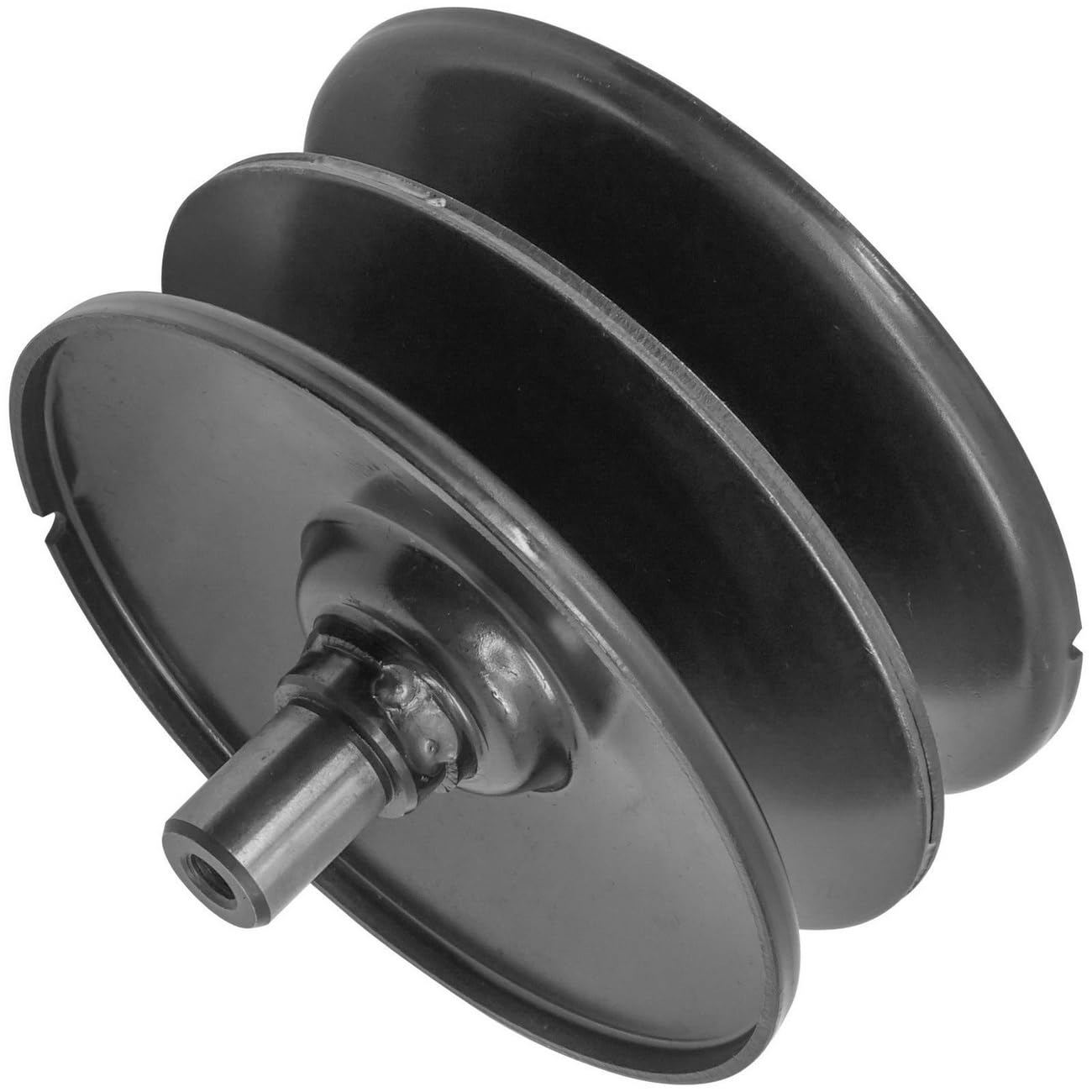

Figure 1: The vynsnp Replacement Variable Speed Pulley. This image illustrates the design and construction of the pulley, which is crucial for the variable speed drive system in compatible MTD lawn mowers.

5. Function and Inspection

The variable speed pulley works in conjunction with the drive belt system to allow for changes in ground speed on your lawn mower. Regular inspection ensures optimal performance and prevents unexpected breakdowns.

• Function Check: After installation, operate the mower at various speed settings to confirm smooth and responsive speed changes. Listen for unusual noises.
• Visual Inspection: Periodically inspect the pulley for signs of wear, cracks, or damage. Check the belt grooves for debris or excessive wear that could affect belt grip.
• Belt Condition: Ensure the drive belts are in good condition, properly tensioned, and free from fraying or glazing. A worn belt can mimic pulley issues.
• Bearing Check: Gently try to move the pulley by hand (with power disconnected). Excessive play or grinding sounds may indicate worn bearings.

6. Maintenance

Proper maintenance extends the life of your variable speed pulley and ensures consistent performance.

• Cleaning: Keep the pulley and surrounding area free from grass clippings, dirt, and debris. A build-up can interfere with proper operation and cause premature wear.
• Lubrication: Refer to your lawn mower's service manual for specific lubrication requirements for the variable speed mechanism. Some pulleys may have grease fittings, while others are sealed.
• Belt Replacement: Replace drive belts as recommended by your mower's manufacturer or when signs of wear become apparent. Worn belts can put undue stress on the pulley.
• Seasonal Inspection: Perform a thorough inspection of the pulley and drive system at the beginning of each mowing season.

7. Troubleshooting

If you experience issues with your lawn mower's drive system, consider the following common troubleshooting steps related to the variable speed pulley:

• Mower Not Moving or Moving Slowly:
  • Check drive belts for looseness, wear, or breakage.
  • Inspect the variable speed pulley for proper engagement and movement.
  • Ensure the speed control lever is functioning correctly and connected to the pulley mechanism.
• Unusual Noises from Drive System:
  • Inspect the pulley for damage or debris.
  • Check pulley bearings for wear (grinding or squealing sounds).
  • Ensure belts are not rubbing against other components.
• Difficulty Changing Speeds:
  • Check for obstructions preventing the pulley from shifting.
  • Inspect the speed control linkage for binding or damage.

If troubleshooting does not resolve the issue, contact customer support or a qualified service technician.

8. Specifications

9. Warranty Information

Specific warranty terms for the vynsnp Replacement Variable Speed Pulley are typically provided by the seller or manufacturer at the time of purchase. Please retain your proof of purchase, such as a receipt or order confirmation, as it may be required for any warranty claims. For detailed warranty information, refer to the documentation included with your purchase or contact the seller directly.

10. Customer Support

If you have any questions regarding the installation, operation, or maintenance of your vynsnp Replacement Variable Speed Pulley, or if you encounter any issues not covered in this manual, please contact the seller or manufacturer for assistance. Provide your product model number (762306488752) and a detailed description of your inquiry to facilitate support.
