Generic 7.5Qt Multifunction Air Fryer Oven Model 1175 User Manual

1. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons. Read all instructions carefully before operating this appliance.

• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Ensure the appliance is placed on a stable, heat-resistant surface, away from walls and other appliances to allow adequate air circulation.

2. Product Overview

2.1 Components

The Generic 7.5Qt Multifunction Air Fryer Oven consists of the main unit, a removable fry basket, and a crisper plate.

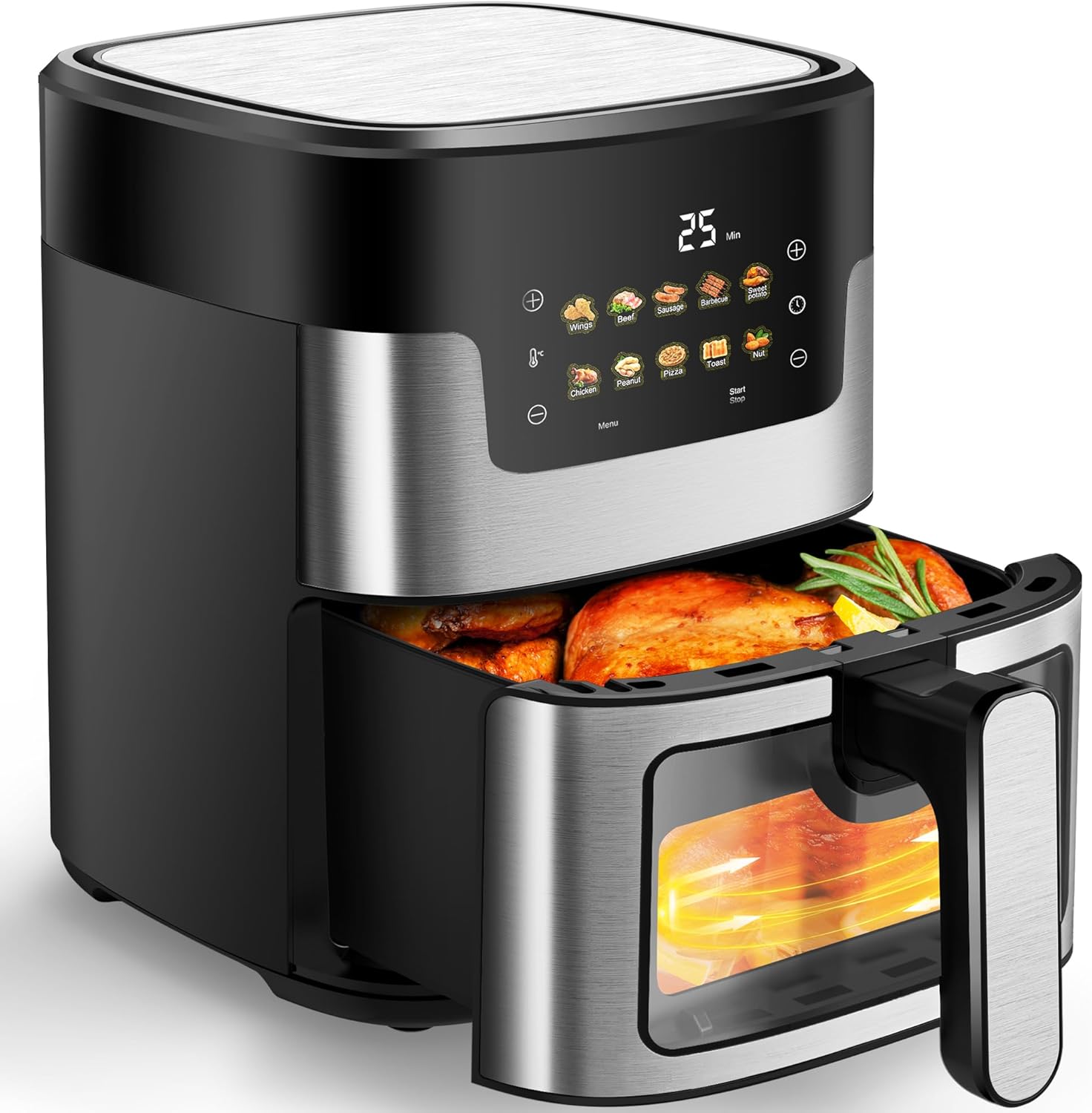

Figure 1: The Generic 7.5Qt Multifunction Air Fryer Oven. This image displays the complete air fryer unit with its digital LED touch screen and the pull-out basket containing cooked food, illustrating its primary function and design.

2.2 Key Features

• 7.5-Quart Capacity: Spacious design suitable for preparing meals for 2-7 people.
• 10 Preset Cooking Options: Simplifies cooking with one-touch selections for various dishes.
• Digital LED Touch Screen: Intuitive interface for easy operation and precise control.
• 360-Degree Hot Air Circulation: Advanced technology for faster, more even cooking and up to 95% less oil.
• Integrated Viewing Window: Allows real-time monitoring of food without opening the basket.
• Easy Maintenance: Nonstick basket and crisper plate are dishwasher-safe for convenient cleaning.

Figure 2: Customizable Cooking Modes. This image highlights the air fryer's digital control panel, showing various preset icons and a hand selecting one. Examples of cooked sandwiches and chicken wings are displayed, demonstrating the versatility of the cooking modes.

Figure 3: Viewing Window Feature. The air fryer is shown on a kitchen counter with a whole roasted chicken and fries, emphasizing the transparent viewing window that allows users to monitor the cooking process without opening the basket.

3. Setup

1. Unpack: Carefully remove all packaging materials, stickers, and labels from the appliance.
2. Clean Components: Wash the fry basket and crisper plate with hot water, dish soap, and a non-abrasive sponge. Rinse thoroughly and dry completely. Wipe the inside and outside of the appliance with a damp cloth.
3. Placement: Place the air fryer on a stable, level, and heat-resistant surface. Ensure there is at least 6 inches (15 cm) of clear space around the back and sides of the appliance to allow for proper air circulation. Do not place it directly against a wall or under cabinets.
4. Power Connection: Plug the power cord into a grounded wall outlet. The appliance is now ready for use.

4. Operating Instructions

4.1 Before First Use

It is recommended to run the air fryer empty for about 10-15 minutes at 350°F (175°C) before first use to eliminate any manufacturing odors. A slight odor may be present during this initial use; this is normal.

4.2 Basic Operation

1. Prepare Food: Place your ingredients into the fry basket, ensuring not to overfill. For best results, food should be in a single layer or shaken periodically.
2. Insert Basket: Slide the fry basket back into the air fryer until it clicks securely into place.
3. Power On: Press the Power button on the digital touch screen to turn on the appliance.
4. Set Temperature and Time: Use the temperature and time adjustment buttons (usually '+' and '-' icons) to set your desired cooking temperature (range typically 175°F-400°F) and cooking time (typically 1-60 minutes).
5. Start Cooking: Press the Start/Pause button to begin the cooking cycle.
6. Monitor and Shake (Optional): Use the viewing window to check on your food. For even cooking, especially with smaller items, pull out the basket halfway through the cooking time, shake the contents, and then reinsert the basket to resume cooking.
7. Completion: The air fryer will beep when the cooking time is complete. Carefully pull out the basket and transfer the cooked food to a serving plate.

4.3 Using Preset Programs

The air fryer features 10 preset cooking options for common dishes. These programs automatically set optimal temperature and time for specific foods.

1. Power On: Press the Power button.
2. Select Preset: Browse through the preset icons on the digital touch screen (e.g., Fries, Chicken, Fish, Steak, Shrimp, Cake, Vegetables, etc.). Tap the icon corresponding to your desired food.
3. Adjust (Optional): The preset will display a default time and temperature. You can adjust these settings manually using the '+' and '-' buttons if needed.
4. Start Cooking: Press the Start/Pause button to begin the preset cooking cycle.

5. Cleaning and Maintenance

Regular cleaning ensures optimal performance and extends the lifespan of your air fryer.

1. Unplug and Cool: Always unplug the air fryer from the power outlet and allow it to cool completely before cleaning.
2. Clean Fry Basket and Crisper Plate: The nonstick fry basket and crisper plate are dishwasher-safe. Alternatively, wash them with hot water, dish soap, and a non-abrasive sponge. For stubborn food residue, soak the basket in warm, soapy water for about 10 minutes before cleaning.
3. Clean Interior: Wipe the interior of the appliance with a damp cloth or non-abrasive sponge. Ensure no water enters the heating element area.
4. Clean Exterior: Wipe the exterior of the air fryer with a damp cloth. Do not use harsh abrasive cleaners or scouring pads, as they may damage the finish.
5. Storage: Ensure all parts are clean and dry before storing the appliance. Store it in a cool, dry place.

Figure 4: Easy Maintenance and Cleaning. This image demonstrates the cleaning process for the air fryer basket, showing it being hand-washed under a faucet and also placed in a dishwasher, highlighting its nonstick and dishwasher-safe properties.

6. Troubleshooting

7. Specifications

8. Warranty and Support

For warranty information or technical support, please refer to the documentation provided with your purchase or contact the retailer where the product was acquired. Keep your proof of purchase for any warranty claims.
