1. Introduction
This manual provides essential information for the installation, operation, and maintenance of your GSPUSA WP3954563 CKD954563X Washer Timer. This component is a non-OEM replacement part designed to fit various Roper, Whirlpool, and Crosley washing machine models. The new part number CKD954563X updates and replaces the old part number WP3954563. Please read these instructions carefully before proceeding with installation or use to ensure proper function and safety.
2. Important Safety Information
- Disconnect Power: Always disconnect the washing machine from its power source before attempting any installation, repair, or maintenance. Failure to do so can result in electric shock or serious injury.
- Professional Installation Recommended: Appliance repair can be complex. If you are not comfortable with electrical work or appliance disassembly, it is recommended to seek assistance from a qualified technician.
- Wear Protective Gear: Use appropriate personal protective equipment, such as gloves and eye protection, during installation.
- Handle with Care: The timer contains delicate components. Handle the part carefully to avoid damage.
3. Product Overview
The GSPUSA WP3954563 CKD954563X Washer Timer is a critical component that controls the various cycles of your washing machine, including wash, rinse, and spin. This replacement part is manufactured to meet OEM specifications as a generic replacement, ensuring compatibility with a wide range of models from top brands like Roper, Whirlpool, and Crosley. It is designed to fit both old and new serials, operating effectively with both 50 and 60 hertz systems.
4. Compatibility and Identification
It is crucial to verify the compatibility of this timer with your specific washing machine model. While this part is designed to replace WP3954563, appliance parts can often look similar externally but differ significantly in internal components, connectors, or voltage requirements. Always compare your old part number and physical appearance carefully before ordering.

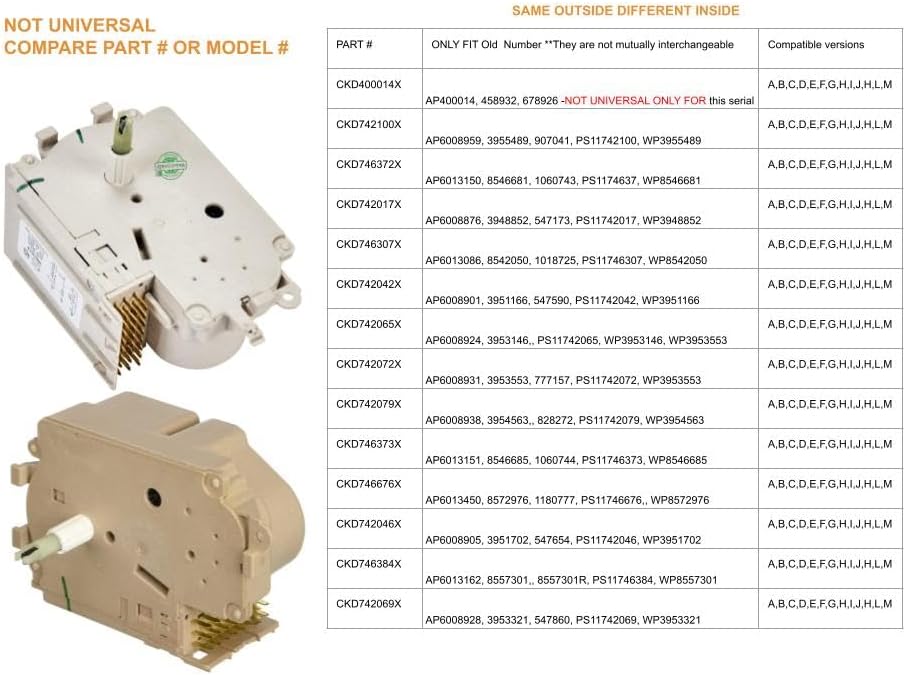

Figure 1: Comparison of washer timers. Parts can look similar externally but have different internal components and compatibility. A table lists various part numbers and their compatible versions, emphasizing that they are not universally interchangeable.
As shown in Figure 1, different part numbers may appear identical from the outside but have distinct internal configurations. Refer to the table provided in the image to cross-reference part numbers and compatible versions. If your old part number is no longer available, the CKD954563X is designed as a suitable replacement for the WP3954563.
Figure 2: Correct vs. Incorrect Timer Comparison. This image highlights the importance of comparing physical features such as support, terminals, and voltage, as even minor differences can lead to incompatibility.
Figure 2 illustrates the critical differences between a correct and incorrect part, even if they share a similar form factor. Pay close attention to the support structure, terminal types, and voltage specifications. Incorrect parts can lead to malfunction or damage to your appliance.
Figure 3: Same Outside, Different Inside. This image shows two electronic control boards that look identical externally but have different internal sizes, connectors, and voltage requirements, emphasizing that external appearance is not sufficient for compatibility verification.
As depicted in Figure 3, even complex electronic components can have identical external casings but vastly different internal designs. To avoid returns and ensure proper fit, if you are uncertain about compatibility, it is recommended to send a picture of your old part or the appliance's model number to the supplier for verification.
5. Installation Instructions (Setup)
The following are general steps for replacing a washer timer. Always consult your specific washing machine's service manual for detailed, model-specific instructions.
- Disconnect Power: Unplug the washing machine from the electrical outlet. Turn off the circuit breaker for the laundry area.
- Access the Timer: Depending on your washer model, you may need to remove the control panel, top cover, or front panel to access the timer. This usually involves unscrewing fasteners and carefully prying panels.
- Document Wiring: Before disconnecting any wires, take clear photos or draw a diagram of the existing wiring connections to the old timer. This will be crucial for correct reassembly.
- Disconnect Wires: Carefully disconnect all wires from the old timer. Note the position of each wire.
- Remove Old Timer: Unscrew or unclip the old timer from its mounting bracket.
- Install New Timer: Position the new GSPUSA timer in the mounting bracket and secure it with screws or clips.
- Reconnect Wiring: Using your photos or diagram, carefully reconnect all wires to the new timer. Ensure all connections are secure and correctly placed.
- Reassemble Washer: Reattach any panels or covers that were removed. Ensure all fasteners are tightened.
- Restore Power and Test: Plug the washing machine back into the electrical outlet and restore power at the circuit breaker. Run a test cycle to ensure the timer functions correctly through all phases.
6. Operating Instructions
The washer timer functions as the central control for your washing machine's operational cycles. Once installed, its operation is integrated with the washer's control panel. Users typically interact with the timer indirectly by selecting wash cycles and settings via the washer's main control knob or buttons. The timer then precisely manages the duration of each phase, such as filling, washing, rinsing, and spinning, according to the selected program. This GSPUSA timer is compatible with both 50 and 60 hertz electrical systems, ensuring proper function in various regions.
7. Maintenance
To ensure the longevity and reliable performance of your washer timer and washing machine:
- Keep Control Panel Clean: Regularly wipe down the washer's control panel with a soft, damp cloth to prevent dirt and grime buildup around the timer knob or buttons.
- Avoid Spills: Prevent liquids from spilling onto the control panel or into the timer's housing, as moisture can damage internal components.
- Professional Inspection: If you notice any unusual behavior from your washer's cycles, such as stopping prematurely or not advancing, consider having a qualified technician inspect the timer and its connections.
8. Troubleshooting
If your washing machine exhibits problems after timer installation, consider the following troubleshooting steps:
- Washer Not Starting: Ensure the washer is properly plugged in and the circuit breaker is on. Check if the lid switch is functioning correctly.
- Cycles Not Advancing: If the washer gets stuck in a particular cycle (e.g., wash, rinse), or doesn't advance to the next, this could indicate a timer issue.
- Washer Stops Mid-Cycle: Similar to cycles not advancing, an unexpected stop could point to a timer malfunction.
- No Agitation or Spin: While other components can cause these issues, a faulty timer might also be a factor if it's not sending the correct signals.
If these issues persist after verifying power and basic connections, it is advisable to consult a professional appliance technician for diagnosis and repair.
9. Specifications
- Brand: GSPUSA
- Model Number: WP3954563-JF
- Material: Plastic
- Product Dimensions: 6"D x 4"W x 4"H
- Item Weight: 1 Pound
- Color: Multicolor (typically beige/brown for the functional part)
- Compatibility: Replaces WP3954563, compatible with Roper, Whirlpool, Crosley washing machines.
10. Warranty and Support
This GSPUSA replacement part is tested before shipment to ensure quality and functionality. Each item includes a warranty seal and a unique serial number for authenticity and tracking.
Figure 4: Quality Assurance and Warranty Seal. This image illustrates the rigorous testing process, the presence of a holographic warranty seal, and certified weighing to prevent fraudulent returns.
Figure 5: Sample Unique Serial Tag. A close-up of the golden holographic sticker with 'ORIGINAL AUTHENTIC GENUINE' text and a serial number, showing the 'VOID' pattern that appears upon tampering.
The warranty seal (Figures 4 and 5) is applied after factory testing. Do not remove this seal from the item. For any support inquiries or to verify authenticity, please refer to the official GSPUSA store or contact customer service through the retailer where the product was purchased. Visit the GSPUSA Store for more information.
