BANGTE Air Filter Set Instruction Manual

1. Introduction

This manual provides essential instructions for the installation, maintenance, and general information regarding the BANGTE Air Filter Set. This product is manufactured to OEM standards and rigorously tested to ensure optimal performance and compatibility with specified vehicle models. Please read this manual thoroughly before installation and use.

2. Product Overview

The BANGTE Air Filter Set is designed to replace original equipment filters in compatible vehicles, ensuring clean air intake for engine efficiency and longevity. This set includes both an inner and an outer filter element.

• Included Components: 1 x Inner Filter, 1 x Outer Filter
• Compatibility: Specifically designed for Scania 6 Truck models.
• Cross-referenced OEM Part Numbers: 2355128, 2355129, 2355127, P959370, P959371

Figure 2.1: The complete BANGTE Air Filter Set, including both the outer (blue) and inner (beige) filter elements.

Figure 2.2: The outer air filter element, labeled with part number 2355128.

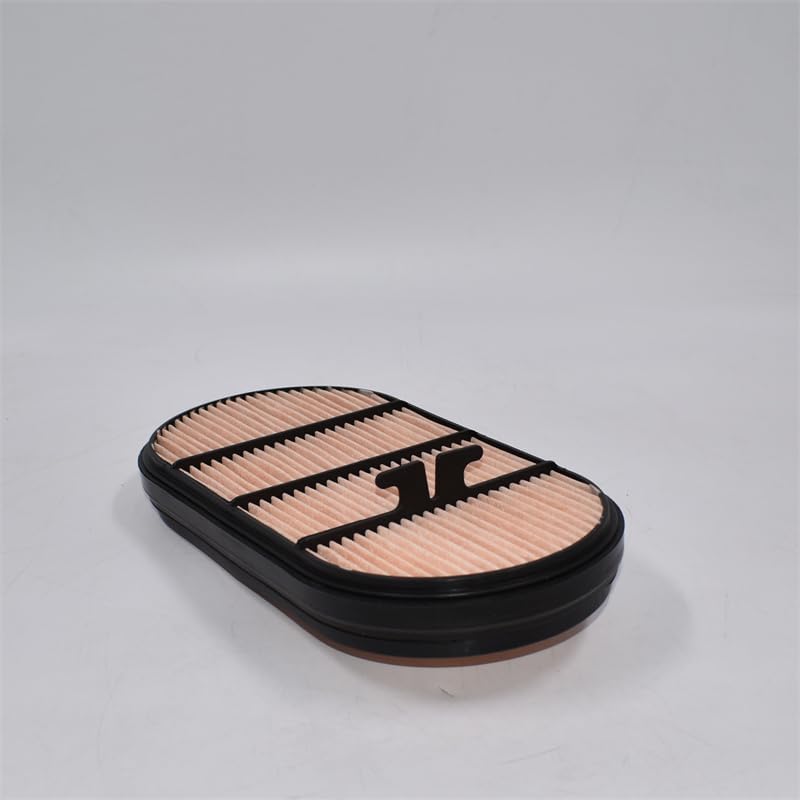

Figure 2.3: The inner air filter element, designed to fit within the outer filter.

3. Installation (Setup)

Proper installation of the air filter set is crucial for engine performance and protection. It is recommended that this procedure be performed by a qualified technician. Always refer to your vehicle's specific service manual for detailed instructions.

1. Safety First: Ensure the vehicle's engine is turned off and cooled down. Disconnect the battery's negative terminal to prevent accidental starting or electrical issues.
2. Locate Air Filter Housing: Identify the air filter housing, typically located under the hood near the engine.
3. Open Housing: Unlatch or unscrew the clips/bolts securing the air filter housing cover. Carefully remove the cover.
4. Remove Old Filters: Extract the old inner and outer air filter elements. Note their orientation for correct installation of the new filters. Dispose of old filters responsibly.
5. Clean Housing: Inspect the air filter housing for any debris, dust, or foreign objects. Clean the interior of the housing thoroughly before installing new filters.
6. Install New Filters: Insert the new BANGTE inner filter first, ensuring it seats correctly. Then, install the new BANGTE outer filter, matching the orientation of the original filter. Ensure a snug fit to prevent air bypass.
7. Secure Housing: Replace the air filter housing cover and secure all clips or bolts. Ensure the housing is sealed properly.
8. Reconnect Battery: Reconnect the negative battery terminal.
9. Test: Start the engine and check for any unusual noises or warning lights.

4. Maintenance

Regular inspection and timely replacement of air filters are essential for maintaining engine health and fuel efficiency.

• Inspection: Periodically inspect the air filter elements for dirt, debris, or damage. The frequency of inspection depends on driving conditions and environment (e.g., dusty roads require more frequent checks).
• Replacement Interval: Follow the vehicle manufacturer's recommended service schedule for air filter replacement. If operating in severe conditions, replacement may be required more frequently than specified.
• Signs of a Clogged Filter: Reduced engine power, decreased fuel economy, black smoke from the exhaust, or unusual engine noises can indicate a clogged air filter.

5. Troubleshooting

If you experience issues after air filter replacement, consider the following:

• Engine Performance Issues: Ensure the air filter housing is properly sealed. An improperly sealed housing can allow unfiltered air into the engine, leading to performance issues.
• Check Engine Light: If the check engine light illuminates, verify that all connections to the air intake system (e.g., mass airflow sensor) are securely reconnected.
• Incorrect Filter Installation: Double-check that both the inner and outer filters are installed in the correct orientation and are fully seated within the housing.

If problems persist, consult a professional mechanic or contact BANGTE customer support.

6. Specifications

7. Warranty and Support

For warranty information and customer support, please refer to the documentation provided at the point of purchase or contact your seller directly. Keep your purchase receipt as proof of purchase.
