1. Introduction

This manual provides essential information for the safe and efficient operation, setup, and maintenance of your Generic M18 FUEL Power Head with QUIK-LOK. This power head is designed for landscape maintenance professionals, offering performance comparable to 31cc gas competitors. It is an integral part of the M18 FUEL QUIK-LOK Attachment System, providing versatility for various demanding applications.

2. Important Safety Instructions

To ensure safe operation and prevent injury, always adhere to the following safety guidelines:

• Always wear appropriate safety gear, including eye protection and sturdy shoes.
• Be aware of potential flying debris and keep bystanders at a safe distance from the operating area.
• Do not operate the tool in hazardous conditions, such as wet environments, or on uneven surfaces where stability may be compromised.
• Always follow the manufacturer's instructions for safe operation and maintenance.

3. Product Features

The Generic M18 FUEL Power Head with QUIK-LOK incorporates several features designed for professional use:

• POWERSTATE Brushless Motor: Engineered to deliver power output exceeding that of 31cc gas powerheads.
• QUIK-LOK Attachment System: Provides compatibility with all 13 M18 FUEL QUIK-LOK attachments, enhancing versatility.
• Rapid Acceleration: Reaches full throttle in under 1 second, offering quick responsiveness for demanding tasks.
• Advanced Air Cooling System: Designed to maintain optimal motor temperature during prolonged and intensive applications.
• Robust Construction: Built to withstand the rigors of daily professional landscaping use.
• Ergonomic Design: Features an adjustable bail handle for optimized balance and user comfort across various heights and applications.
• Variable Speed Control: Includes 3-speed settings and a variable speed trigger for precise control over attachment speed.

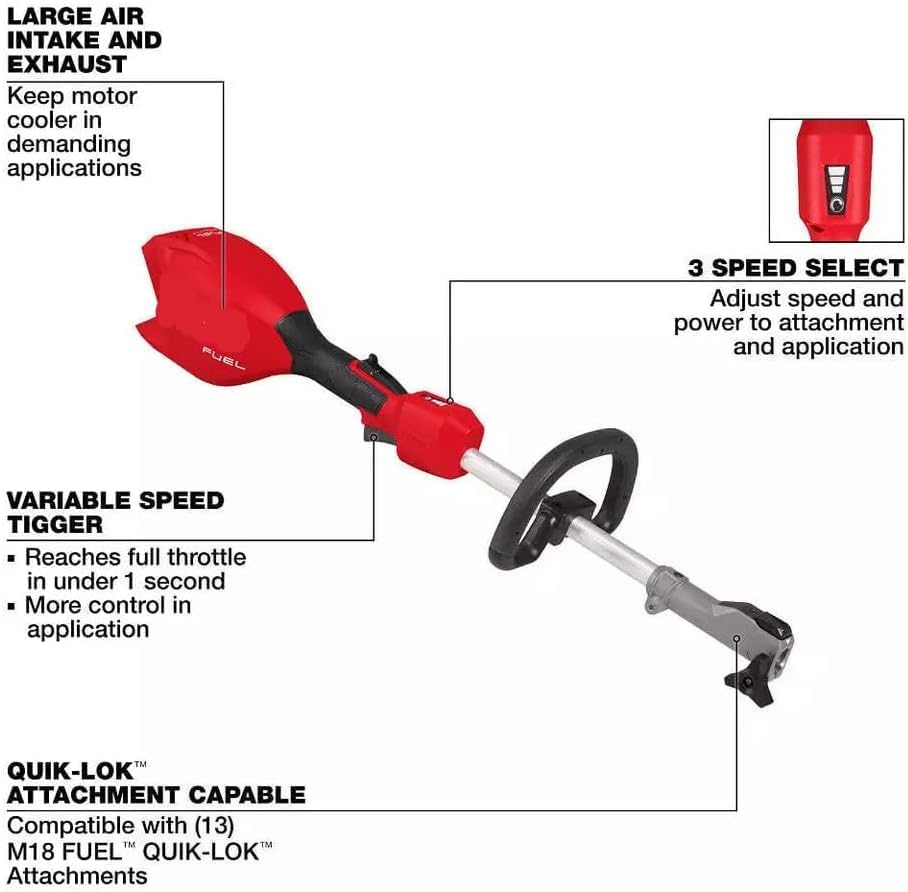

Image showing the M18 FUEL Power Head with callouts for its key features: large air intake and exhaust for cooling, 3-speed select for adjusting power, variable speed trigger for precise control, and QUIK-LOK attachment capability.

4. Setup

4.1 Unpacking

Carefully remove the power head and any included accessories from the packaging. Inspect all components for any signs of damage. If damage is found, do not proceed with assembly or operation and contact customer support.

4.2 Attaching QUIK-LOK Attachments

The M18 FUEL Power Head is designed for use with compatible QUIK-LOK attachments (sold separately). Follow these steps to attach an accessory:

1. Align the attachment shaft with the power head receiver.
2. Push the attachment firmly into the receiver until it clicks securely into place.
3. Ensure the attachment is firmly seated by gently pulling on it. It should not come loose.
4. To remove an attachment, press the release button located on the power head and pull the attachment out.

4.3 Battery Installation (Bare Tool)

This product is a bare tool and does not include a battery or charger. To operate, insert a fully charged M18 battery (sold separately) into the battery port on the power head. Push the battery in until it clicks into place.

To remove the battery, press the release tab on the battery and pull it out of the power head.

5. Operating Instructions

5.1 Starting the Power Head

• Ensure a fully charged M18 battery is installed and an attachment is securely connected.
• Select the desired speed setting (1, 2, or 3) using the 3-speed selector switch located on the handle.
• Press the trigger to start the power head. The variable speed trigger allows for precise control of the attachment speed based on pressure applied.

5.2 Using the Adjustable Bail Handle

The bail handle can be adjusted to optimize balance and control. Loosen the knob on the handle, slide the handle to your preferred position, and then securely tighten the knob. This adjustment helps in reducing fatigue during extended use.

5.3 General Operation Tips

• Always maintain a firm grip on the power head with both hands during operation.
• Keep the work area clear of bystanders, pets, and obstacles to prevent accidents.
• Avoid operating the tool in wet conditions or near electrical hazards.

Image of a person operating the M18 FUEL Power Head with a string trimmer attachment, demonstrating its use in a landscaping application and highlighting its power.

6. Maintenance

6.1 Cleaning

• After each use, disconnect the battery from the power head.
• Use a soft brush or cloth to remove debris, grass, and dirt from the air intake, exhaust vents, and the attachment.
• Do not use water or cleaning solutions directly on electrical components to avoid damage.

6.2 Storage

• Store the power head in a dry, secure location, out of reach of children and unauthorized users.
• Remove the battery before storing the tool for extended periods.

6.3 Inspection

• Regularly inspect the power head and any attached accessories for signs of wear, damage, or loose components.
• If any damage is found, do not operate the tool. Contact customer support for repair or replacement.

7. Troubleshooting Guide

8. Product Specifications

• Model Number: 3016-20
• Brand: Generic
• Item Weight: 6.4 pounds
• Assembly Required: No (for the power head itself; attachments require separate assembly)
• Manufacturer: 113016-2011
• ASIN: B0F5HBNGQW

9. Warranty Information and Customer Support

For detailed warranty information, please refer to the specific documentation included with your purchase. Warranty terms and conditions may vary.

For technical assistance, replacement parts, or any other product-related inquiries, please contact Generic customer support through the retailer or manufacturer's official channels.
