CAFELFFE MK-603 Mini Multi Pod Coffee Maker Instruction Manual

1. Setup and First Use

1.1 Unpacking and Components

Carefully remove all components from the packaging. Ensure all parts listed below are present:

• CAFELFFE MK-603 Coffee Maker (1 unit)
• Capsule Adapters (4 units: Nes Original, DG, K-Cup, Ground Coffee)
• Cleaning Pin (1 unit)
• Pump Pipe (1 unit)
• Dual-Purpose Coffee Powder Scoop (1 unit)
• User Manual (1 unit)

Image: A visual representation of all items included in the CAFELFFE MK-603 package, including the main unit, four different capsule adapters, a cleaning pin, a pump pipe, and a dual-purpose coffee powder scoop.

1.2 Water Tank Installation and Filling

The water tank is detachable for easy filling and cleaning. It has a 20 oz (600ml) capacity.

1. Remove the water tank from the back of the machine.
2. Fill the tank with clean, purified water up to the "MAX" line.
3. Slowly slide the water tank over the base of the machine. Ensure the water tank outlet is inserted into the inlet base and push down firmly to lock it in place. Incorrect installation may cause water leakage.

Video: This segment demonstrates the proper method for removing, filling, and securely attaching the water tank to the CAFELFFE MK-603 coffee maker, highlighting the 'MAX' fill line and the locking mechanism.

1.3 Power On and Preheating

Plug the machine into a 110-120V, 50-60Hz power outlet. Press the ON/OFF button. The indicator light will turn red, indicating the machine is preheating. Preheating takes approximately 35 seconds. The light will turn solid when ready.

2. Operating Instructions

2.1 Adapter Introduction and Usage

The CAFELFFE MK-603 is compatible with four different coffee formats using dedicated adapters:

• Nes Original Capsule Adapter: For Nespresso Original Line capsules.
• DG Capsule Adapter: For Dolce Gusto capsules.
• K-Cup Pod Adapter: For K-Cup pods.
• Ground Coffee Adapter: For your preferred ground coffee.

Image: Displays the four distinct adapters for Nespresso Original, Dolce Gusto, K-Cup, and ground coffee, highlighting the machine's versatility.

Image: A detailed chart illustrating which capsule types are compatible (Nespresso, Dolce Gusto, K-Cup, Ground Coffee) and which are not (Nespresso Vertuo, Lavazza Blue, Senseo Coffee Pods).

To use an adapter:

1. Open the machine's handle.
2. Insert the desired capsule or ground coffee into the corresponding adapter. For ground coffee, use the provided scoop and tamper to ensure proper compaction.
3. Place the filled adapter into the machine's brewing chamber. Ensure it fits securely.
4. Close the handle firmly until it clicks into place.

2.2 Hot Brew Mode

For hot coffee or espresso:

1. Ensure the machine is preheated (red indicator light is solid).
2. Place your cup under the dispenser.
3. Press the small cup button for a single shot (approx. 2.4oz/70ml) or the large cup button for a double shot (approx. 3.7oz/110ml).
4. The machine will begin brewing. Brewing time is approximately 45 seconds.

2.3 Cold Brew Mode

For refreshing iced coffee:

1. Add ice cubes to your cup before brewing.
2. Press and hold the ON/OFF button for approximately 2 seconds until the indicator light turns blue.
3. Select your desired cup size (small or large button).
4. The machine will brew cold coffee.

Image: Illustrates the Hot Brew Mode (red indicator, 35s preheat) and Cold Brew Mode (blue indicator, add ice) with corresponding button presses.

2.4 Customizing Cup Volume

The machine features a memory function for customized cup volumes:

1. Start brewing by pressing either the small or large cup button.
2. Press and hold the same button again until you achieve your desired coffee volume.
3. Release the button. The machine will record this new volume for future brews with that specific button.

Image: Shows the machine's ability to brew 2.4oz (70ml) single shots and 3.7oz (110ml) double shots, with a note on customizing water volume using the memory function.

2.5 Pre-Infusion Technology

The CAFELFFE MK-603 utilizes advanced pre-infusion technology. This gently wets the coffee grounds before full extraction, reducing channeling and ensuring a more balanced and flavorful brew. This is particularly beneficial for extracting nuanced notes from both capsules and ground coffee.

Image: A cutaway diagram of the coffee maker highlighting the pre-infusion process, showing how water saturates the coffee grounds before high-pressure extraction for optimal flavor.

Video: A comprehensive guide demonstrating the step-by-step process of using the CAFELFFE MK-603 coffee machine, including water tank setup, adapter insertion for various coffee types (Nespresso, Dolce Gusto, K-Cup, ground coffee), hot and cold brewing, and volume customization.

3. Maintenance

3.1 Automatic Cleaning System

The machine features an automatic self-cleaning function for the internal water pipes. To activate:

1. Ensure the water tank is filled.
2. Place an empty cup under the dispenser.
3. Press and hold both the small cup and large cup buttons simultaneously for a few seconds. The machine will run a 120-second cleaning cycle.

3.2 Cleaning Adapters and Drip Tray

For optimal performance and hygiene, clean the adapters and drip tray after each use:

• Adapters: Remove the used adapter, discard the capsule/grounds, and rinse thoroughly under running water. Dry completely before storing.
• Drip Tray: The drip tray is removable. Empty any collected liquid and wash with warm, soapy water. Rinse and dry thoroughly.
• Piercing Pin: Use the provided piercing pin to clean the pouring nozzle of the DG adapter to prevent clogging.

3.3 Descaling

Regular descaling is essential to remove mineral buildup and maintain machine performance. Use a citric acid-based descaling solution according to the descaling product's instructions. Follow the machine's self-cleaning process with the descaling solution.

Important Notes:

• Never immerse the machine or any part of it in water.
• Do not clean the parts in a dishwasher.

4. Troubleshooting

4.1 Water Not Flowing Out

If water is not flowing from the machine:

• Deformed Capsule: A deformed capsule can cause pressure buildup, preventing water flow. Turn off and unplug the machine. Wait for it to cool, then open the lever and carefully remove the capsule.
• Air in Pipe: Air may be trapped in the pipe if the machine pumps empty. Use the provided pump pipe: insert it into the water entrance, fill with water, and inject the water into the machine to fill the internal circuit.

Video: This segment provides solutions for common issues such as water not flowing due to deformed capsules or air in the pipes, demonstrating the use of the pump pipe for manual pressure operation.

4.2 Standby Setting

To activate or deactivate standby mode:

1. Press and hold both the large cup button and small cup button simultaneously.
2. While holding, turn on the machine.
3. The ON/OFF button will flash red twice and blue twice, indicating the setting has been toggled.

The coffee machine will automatically shut down if not used for 15 minutes.

4.3 Restore Factory Settings

To reset the machine to its default factory settings:

1. Press and hold the large cup button.
2. While holding, connect the machine to the power outlet.
3. The LED on the button will turn on and flash twice, indicating that the machine has returned to the factory default setting.

5. Specifications

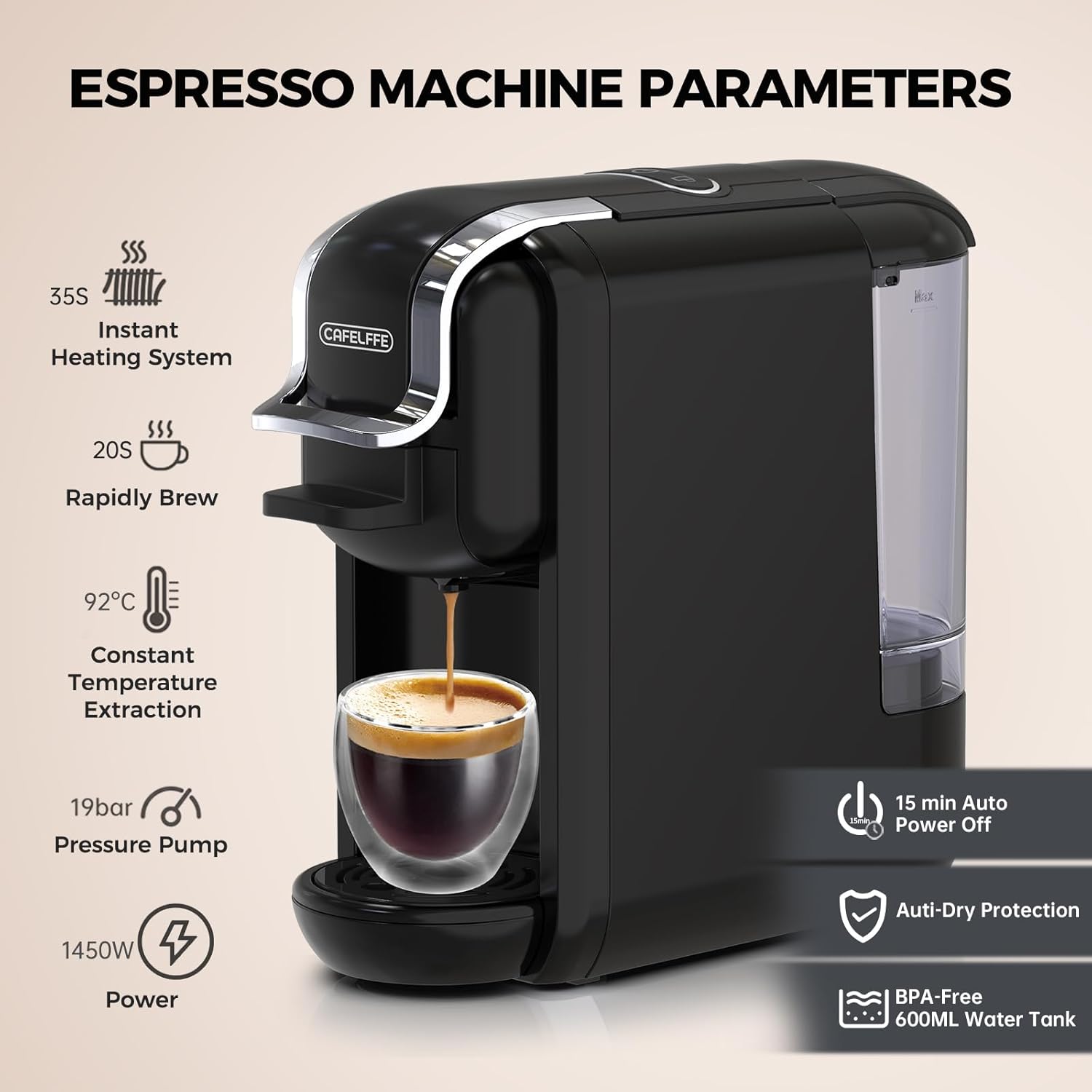

Image: Visual summary of key specifications including 35s instant heating, 20s rapid brew, 92°C constant temperature, 19 bar pressure pump, 1450W power, 15 min auto power off, anti-dry protection, and BPA-free 600ml water tank.

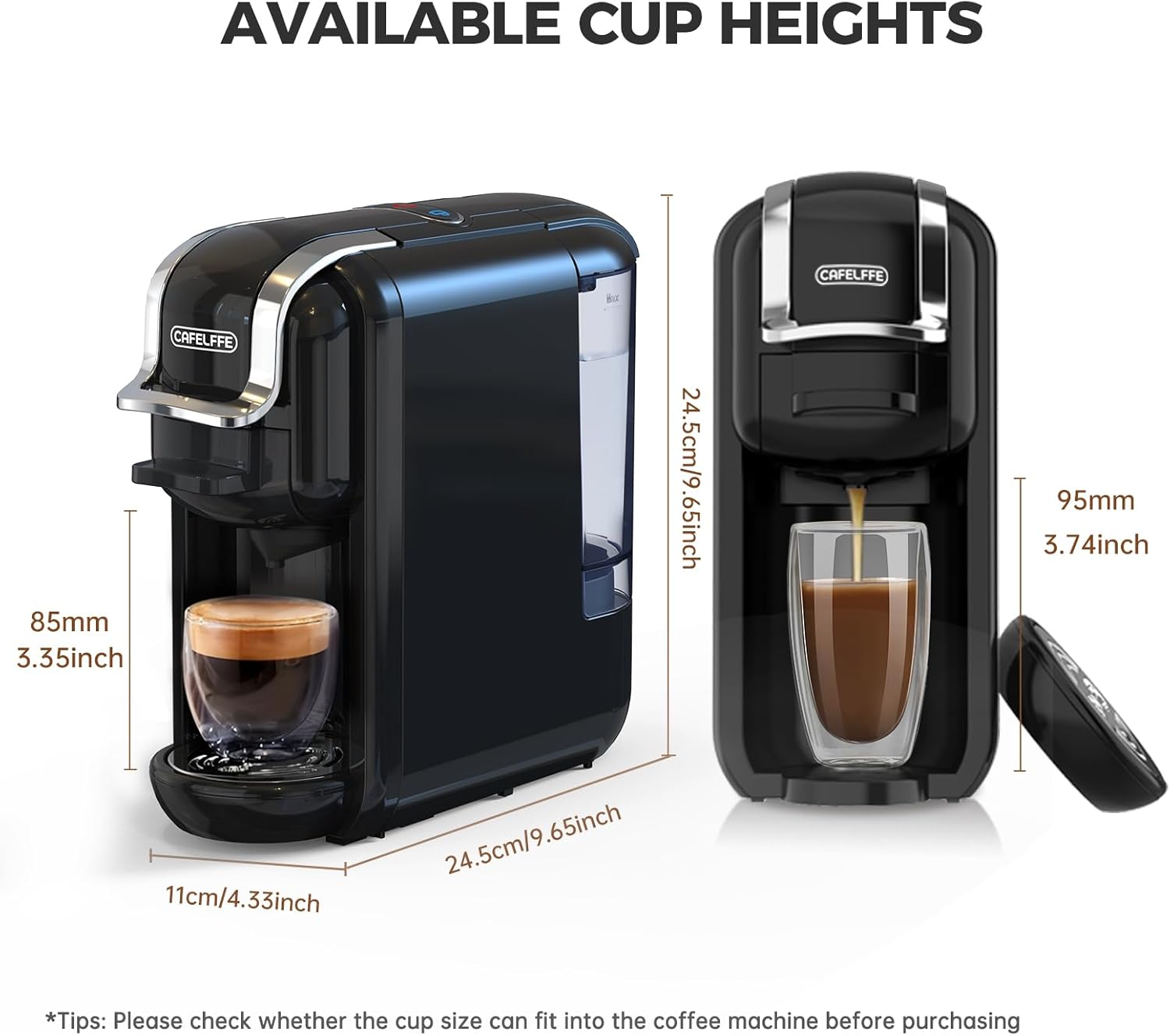

Image: Dimensions of the coffee maker and maximum cup heights it can accommodate (3.35 inches with drip tray, 3.74 inches without drip tray).

6. Warranty and Support

For warranty information, technical support, or service inquiries, please refer to the contact details provided on the product packaging or visit the official CAFELFFE website.
