PawHut Outdoor Dog Kennel User Manual
Model: D02-240V02SR
Introduction
Thank you for choosing the PawHut Outdoor Dog Kennel. This heavy-duty, galvanized chain link pet enclosure is designed to provide a secure and spacious outdoor living area for your large breed dog, chickens, ducks, or other suitable animals. Featuring a waterproof roof, an adjustable bowl rack, and a secure locking mechanism, this kennel offers comfort and safety in various weather conditions. Please read this manual thoroughly before assembly and use to ensure proper setup and long-term enjoyment of your product.
Safety Information
- Always ensure the kennel is assembled on a flat, stable surface to prevent tipping.
- Regularly inspect all connections and components for wear, damage, or loosening. Tighten or replace as necessary.
- Do not allow children to play unsupervised near or inside the kennel.
- Ensure the secure latch is always engaged when an animal is inside the kennel.
- This product is intended for outdoor use only.
- Ensure the kennel size is appropriate for your pet's breed and weight. This kennel is suitable for large dogs with a shoulder height greater than 9.8 inches (25 cm) and weighing no more than 66 lbs (30 kg).
- Keep assembly tools and small parts out of reach of children and pets during assembly.
Package Contents
Before beginning assembly, please verify that all parts listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.
- Galvanized Steel Frame Components
- Chain Link Mesh Panels
- 420D Oxford Fabric Roof Cover
- Door Assembly with Secure Latch
- Adjustable Bowl Rack
- Two Feeding Bowls
- All necessary hardware (bolts, nuts, clips, etc.)
- Assembly Instructions
Image: The complete PawHut Outdoor Dog Kennel, showing the galvanized chain link structure and the white waterproof roof.
Setup and Assembly
Assembly of the PawHut Outdoor Dog Kennel is designed to be straightforward, typically requiring two people and approximately 3.5 hours for completion. Follow these steps carefully.
Step 1: Frame Assembly
Begin by assembling the main frame using the upgraded tube frame components. These components feature a snap-together design for quick and secure connections. Ensure each section clicks firmly into place.

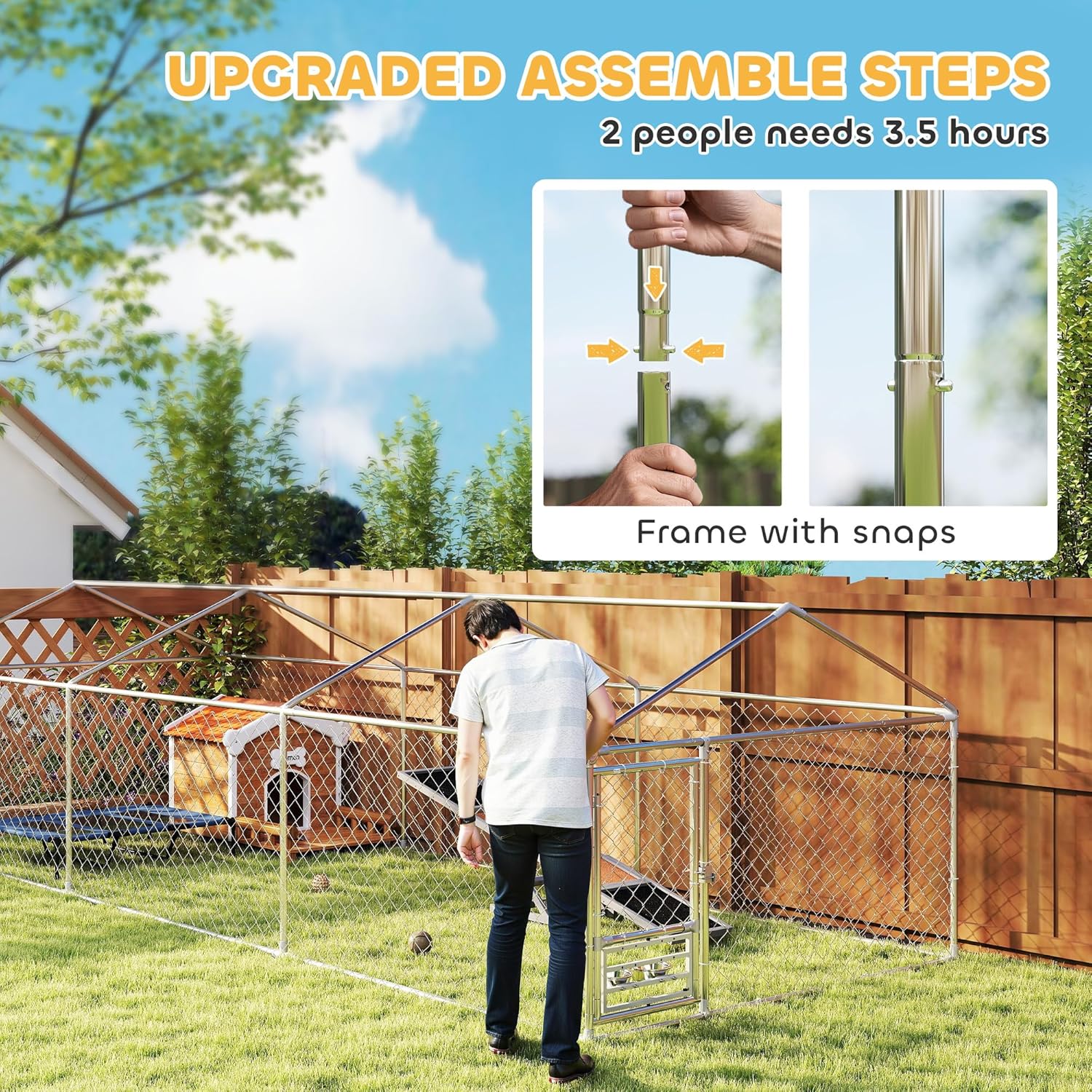

Image: A person assembling the kennel frame, highlighting the snap-together mechanism of the tubes for easy setup.
Step 2: Attaching Chain Link Panels
Once the frame is complete, attach the galvanized chain link mesh panels to the frame. Use the provided clips or fasteners to secure the mesh tightly to all frame sections. Ensure there are no gaps that an animal could exploit.
Step 3: Installing the Door and Latch
Install the door assembly into the designated opening in the frame. Secure it using the provided hinges and hardware. Attach the escape-proof secure latch to the door and frame, ensuring it operates smoothly and provides a firm lock when closed.
Image: A detailed view of the kennel's gate, showing the galvanized steel construction and the robust escape-proof lock mechanism.
Step 4: Attaching the Roof Cover
Drape the 420D Oxford fabric roof cover over the top of the assembled frame. Secure the cover to the frame using the integrated ties or bungee cords. Ensure the cover is taut to allow for proper water runoff and to prevent pooling.
Image: A split image demonstrating the waterproof and UV-resistant qualities of the 420D Oxford cloth roof cover, protecting the kennel's interior from elements.
Step 5: Installing the Bowl Rack
Mount the rotatable bowl rack to the kennel frame at a convenient height for your pet. The rack is 3-level adjustable. Insert the two included feeding bowls into the rack. This feature allows for easy feeding without needing to enter the kennel.

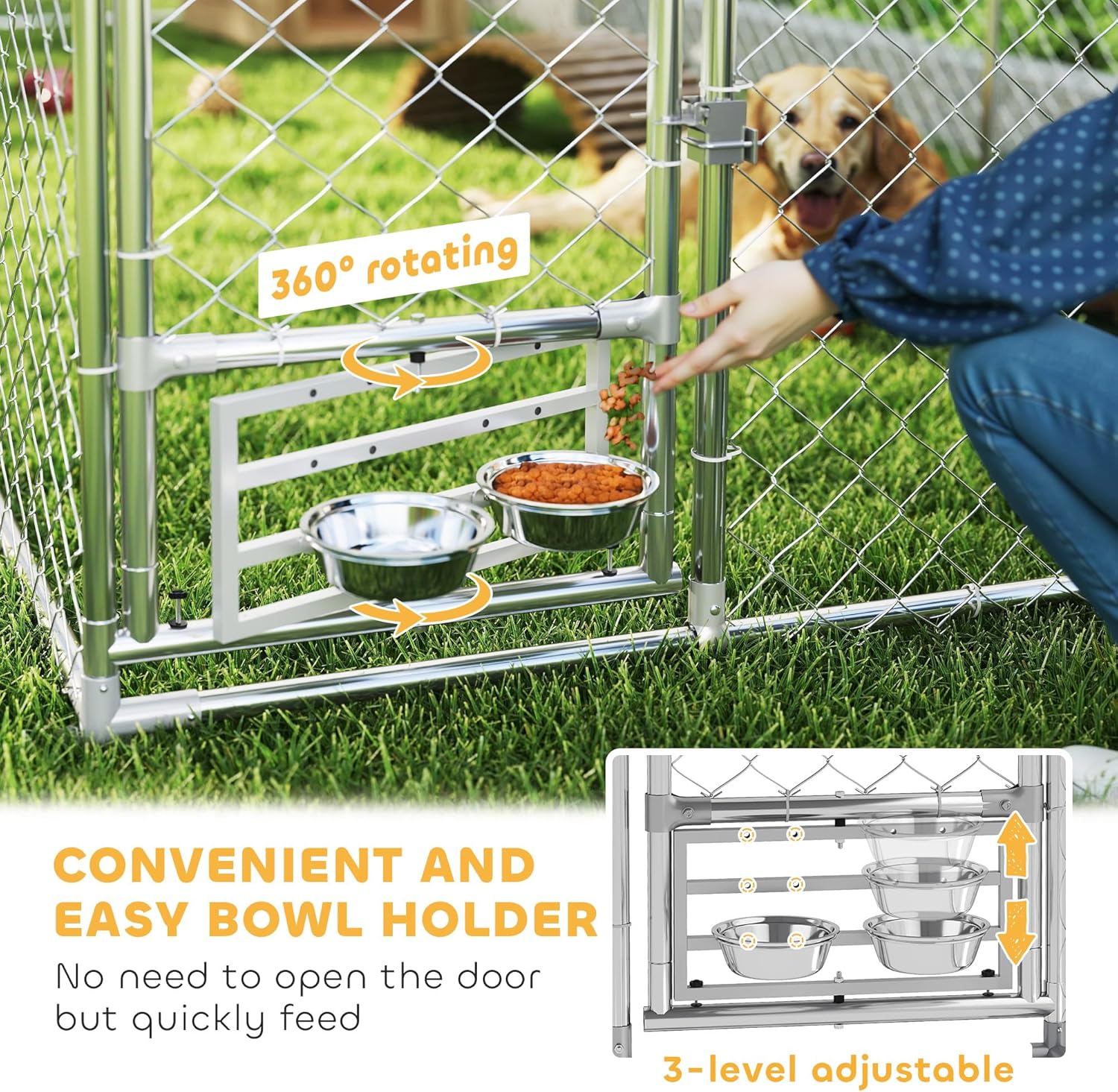

Image: A close-up of the kennel's feeding station, illustrating the 360-degree rotatable and 3-level adjustable bowl holder for convenient feeding.
Operating Instructions
The PawHut Outdoor Dog Kennel is designed for straightforward use once assembled.
- Accessing the Kennel: Use the secure latch on the door to open and close the kennel. Always ensure the latch is fully engaged when your pet is inside.
- Feeding: Utilize the rotatable bowl rack for easy feeding. Simply rotate the rack outwards, place food and water in the bowls, and rotate it back into the kennel. Adjust the height of the bowls as needed for your pet's comfort.
- Providing Shelter: The waterproof and UV-resistant roof provides protection from sun and rain. Ensure the roof cover is properly secured to maximize its protective capabilities.
- Space Utilization: The spacious interior of 149 sq. ft. (13.8 m²) allows for ample room for your pet to move, play, and rest. Consider adding a dog house or bedding for additional comfort and shelter within the enclosure.
Image: An aerial view of the PawHut Outdoor Dog Kennel, highlighting its spacious interior of 149 square feet (13.8 m²) for ample pet movement.
Maintenance
- Regular Cleaning: Clean the kennel regularly to maintain hygiene. The galvanized steel frame and chain link can be wiped down with a damp cloth and mild detergent. Rinse thoroughly.
- Roof Cover Care: The Oxford fabric roof cover can be cleaned with water and a soft brush. Allow it to air dry completely before re-attaching or storing.
- Inspection: Periodically check all bolts, nuts, and connections to ensure they remain tight. Re-tighten any loose fasteners to maintain structural integrity.
- Rust Prevention: While the frame is galvanized, inspect for any signs of rust, especially in areas where the coating might be scratched. Address any rust spots promptly to prevent further corrosion.
- Bowl Cleaning: The stainless steel bowls should be removed and cleaned daily to prevent bacterial growth.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Kennel feels unstable or wobbly. | Loose connections or uneven ground. | Ensure all frame connections are securely snapped and all bolts are tightened. Relocate the kennel to a flat, level surface. |
| Door latch is difficult to operate or does not secure properly. | Misalignment or obstruction. | Check for any debris obstructing the latch mechanism. Ensure the door is properly aligned within its frame. Lubricate moving parts if necessary. |
| Water pooling on the roof cover. | Roof cover not taut or improperly installed. | Re-adjust and re-secure the roof cover, ensuring it is pulled taut and slopes correctly for water runoff. |
| Pet attempting to escape. | Insecure latch or gaps in the mesh. | Verify the secure latch is fully engaged. Inspect the entire chain link mesh for any damaged sections or gaps and repair them immediately. Ensure the kennel is appropriately sized for your pet. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | D02-240V02SR |
| Overall Dimensions (L x W x H) | 20' x 7.5' x 5.2' (236.2" x 90.6" x 62.2" / 600 cm x 230 cm x 158 cm) |
| Internal Area | Approx. 149 sq. ft. (13.8 m²) |
| Material | Galvanized Alloy Steel Frame, Polyester (420D Oxford Fabric) Roof Cover |
| Color | Silver Frame, White Roof Cover |
| Net Weight | 148 lbs (67.1 kg) |
| Suitable For | Large dogs (shoulder height > 9.8" / 25 cm, weight < 66 lbs / 30 kg), chickens, ducks. |
| Special Features | Waterproof & UV-resistant roof, 3-level adjustable & rotatable bowl rack, escape-proof secure lock, easy assembly with snap-together frame. |
Image: A diagram illustrating the various dimensions of the kennel, including height, width, and length, along with mesh size and bowl dimensions.
Image: A visual guide showing various dog breeds and indicating the recommended shoulder height (greater than 9.8 inches) and weight (less than 66 lbs) for suitable use with this kennel.
Warranty and Support
This PawHut Outdoor Dog Kennel comes with a 1 Year Warranty Against Manufacturer Defects. Please retain your proof of purchase for warranty claims.
For technical assistance, missing parts, or warranty inquiries, please contact PawHut customer support. Contact information can typically be found on the product packaging or the official PawHut website.
