Product Overview
The PRX-3 is a robust, high-performance medium-range proximity reader designed for reliable access control in security systems. It offers a 16-inch read range, ensuring fast and consistent detection. Its durable construction and efficient functionality make it suitable for environments requiring effective and dependable access control solutions.

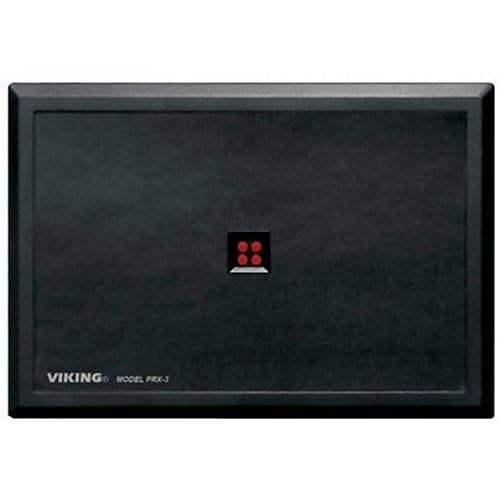

This image displays the PRX-3 Proximity Reader, a rectangular black unit designed for access control. It features a sleek, durable casing with a small, square array of four red indicator lights centrally located on its front surface. The 'VIKING® MODEL PRX-3' branding is visible in the bottom left corner, indicating its manufacturer and model.
Key Features
- Effective and dependable access control with robust construction.
- Seamless integration with versatile compatibility.
- Fast detection and durable design for consistent reliability.
- Reliable proximity access for security systems.
Setup and Installation
The PRX-3 reader is designed for straightforward integration into existing or new security systems. It is recommended that installation be performed by a qualified technician to ensure proper functionality and adherence to local electrical and safety codes.
Included Components: The package includes the PRX-3 unit and necessary installation tools to facilitate mounting and wiring.
Mounting: Securely mount the reader in the desired location, ensuring it is within the optimal read range of access credentials. Refer to the detailed wiring diagram provided with the product for connection to your access control panel.
Wiring: Connect the reader to the access control system using appropriate wiring. Verify all connections are secure and correctly terminated before applying power.
Operation
The PRX-3 Proximity Reader operates by detecting compatible access credentials (e.g., RFID cards or key fobs) within its 16-inch read range. When a valid credential is presented, the reader transmits the credential data to the connected access control panel.
Upon successful authentication by the access control panel, the system will grant access, typically by unlocking a door or gate. The red indicator lights on the reader may provide visual feedback, such as indicating power, read status, or access granted/denied, depending on the system configuration.
Ensure that credentials are presented clearly within the reader's effective range for optimal performance.
Maintenance
The PRX-3 reader is designed for minimal maintenance due to its robust construction. However, periodic checks can help ensure continued optimal performance:
- Cleaning: Gently wipe the reader's surface with a soft, damp cloth to remove dust or dirt. Avoid using abrasive cleaners or solvents, which could damage the casing.
- Inspection: Periodically inspect the reader and its wiring for any signs of physical damage, loose connections, or environmental wear.
- Environmental Considerations: Ensure the reader is not exposed to extreme temperatures or excessive moisture beyond its operational specifications.
Troubleshooting
If you encounter issues with your PRX-3 Proximity Reader, consider the following common troubleshooting steps:
- No Read:
- Ensure the access credential is valid and compatible with the PRX-3 reader.
- Verify the credential is presented within the 16-inch read range.
- Check for any obstructions between the credential and the reader.
- No Power/Indicator Lights Off:
- Confirm that the reader is receiving power from the access control panel. Check power supply connections.
- Inspect wiring for any disconnections or damage.
- Intermittent Operation:
- Check for potential sources of electromagnetic interference near the reader.
- Ensure stable power supply to the reader and access control panel.
For persistent issues, consult the detailed installation manual or contact technical support.
Specifications
| Attribute | Detail |
|---|---|
| Manufacturer | Viking Electronics |
| Model | PRX-3 |
| ASIN | B0F5CXDDYR |
| Included Components | Installation Tools |
| Read Range | 16 inches (approx. 40 cm) |
| Product Type | Proximity Reader |
Warranty and Support
This PRX-3 Proximity Reader is manufactured by Viking Electronics. For specific warranty information, including terms and conditions, please refer to the documentation provided with your product or visit the official Viking Electronics website.
For technical support, troubleshooting assistance beyond this manual, or inquiries regarding repairs, please contact Viking Electronics customer service directly. Keep your product model number (PRX-3) and ASIN (B0F5CXDDYR) readily available when seeking support.
