Tcwhniev Solar Bird Bath Fountain Pump Model A01 User Manual

Introduction

Thank you for choosing the Tcwhniev Solar Bird Bath Fountain Pump Model A01. This solar-powered fountain pump is designed to enhance your outdoor spaces such as bird baths, fish tanks, ponds, and gardens with a dynamic water effect and colorful LED lights. This manual provides essential information for the correct installation, operation, and maintenance of your fountain pump to ensure optimal performance and longevity.

Parts List

Before beginning installation, please verify that all components listed below are present in your package:

• 1 x Solar Water Pump
• 1 x Water Pump Adapter
• 1 x Water Pump Connecting Pipe
• 3 x Brackets
• 1 x Rotating Nozzle
• 1 x Flower Shaped Nozzle
• 6 x Nozzle Accessories (various spray patterns)
• 1 x Instruction Manual (this document)

Figure 1: Overview of the Solar Bird Bath Fountain Pump and its components. This image displays the main solar panel unit, various nozzles, connecting pipes, and brackets.

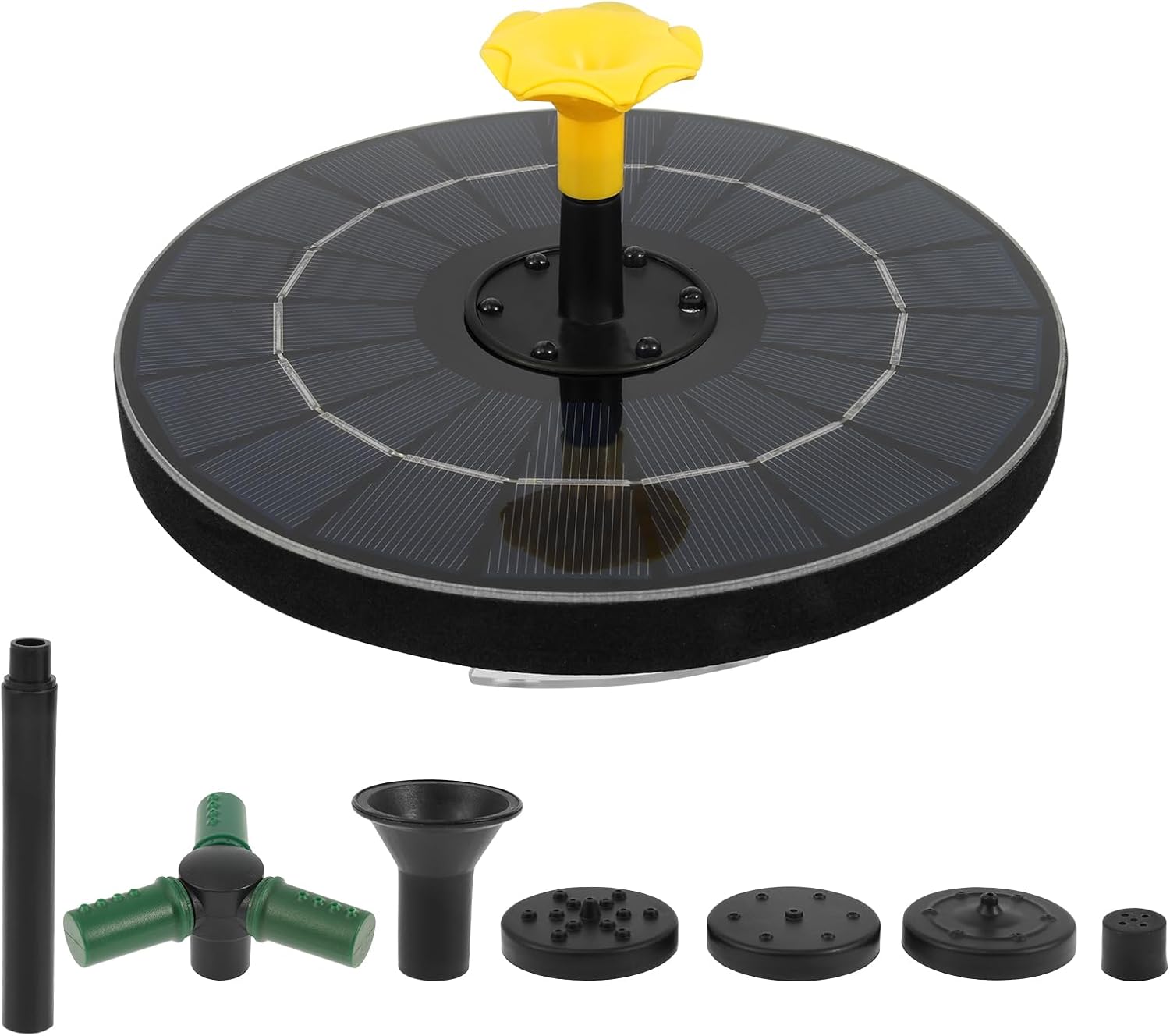

Figure 2: Detailed view of the solar fountain pump unit and all included accessories, including different nozzle types and connecting pieces.

Setup Instructions

Follow these steps to correctly set up your solar fountain pump:

1. Assemble the Nozzle: Choose your desired nozzle accessory and attach it to the water pump connecting pipe. Then, connect the pipe to the water pump adapter.
2. Attach to Pump: Securely attach the assembled nozzle and pipe unit to the center outlet of the solar water pump.
3. Placement: Place the assembled solar fountain pump into your bird bath, pond, or water feature. Ensure the pump is completely submerged in water to prevent dry burning and ensure proper operation. The solar panel should be facing upwards and exposed to direct sunlight.
4. Water Level: Maintain an adequate water level in your bird bath or pond. It is recommended to use a larger bird bath to minimize water splashing outside the container.

Figure 3: Step-by-step installation guide. This image illustrates how to connect the nozzle, adapter, and pipe to the main solar pump unit, and finally place it in water.

Operating Instructions

The Tcwhniev Solar Bird Bath Fountain Pump operates automatically once properly set up and exposed to sunlight.

• Solar Power: The fountain pump is powered by a 9V/4W high-efficiency solar panel. For optimal performance, ensure the solar panel receives direct sunlight. The pump may not function or will have reduced performance on cloudy days or in shaded areas.
• Battery Function: The built-in 1200mAh battery stores solar energy. This allows the fountain to continue operating for 3-5 hours during cloudy periods or at night, provided the battery has been sufficiently charged during the day.
• Water Spray: The pump delivers a maximum flow rate of 180L/h and can achieve a water spray height of 50-70cm (19.68-27.56 inches) under ideal sunny conditions.
• LED Lights: The fountain features 6 color LED lights that automatically illuminate at night, creating a visually appealing effect.

Figure 4: Illustration of spray height differences between sunny daytime operation (50-70cm) and night operation (15-25cm) using stored battery power.

Figure 5: Examples of the fountain pump creating dynamic water scenery with its 6 LED colored lights, enhancing the visual appeal at night.

Figure 6: Examples demonstrating the versatile application of the fountain pump in various outdoor scenes, including bird baths, ponds, and gardens.

Maintenance

Regular maintenance ensures the longevity and efficient operation of your fountain pump.

• Regular Cleaning: Regularly clean the pump body and filter to prevent blockage from debris such as dust, leaves, or algae. Blockages can reduce water flow and spray height.
• Water Level Monitoring: Always ensure the pump is fully submerged in water. Operating the pump without sufficient water can lead to dry burning damage.
• Solar Panel Cleaning: Keep the solar panel clean from dirt, dust, and obstructions to ensure maximum sunlight absorption and charging efficiency.
• Winter Storage: In freezing conditions, remove the fountain pump from the water and store it indoors to prevent damage from ice.

Figure 7: Visual representation of the intelligent protection features, including water shortage and blocking protection, and various nozzle options.

Troubleshooting

If your fountain pump is not operating as expected, refer to the following common issues and solutions:

Specifications
