Introduction
The Ubiquiti Enterprise Access Hub (EAH-8) is an advanced 8-door Power over Ethernet (PoE) access control panel designed for robust security systems. It seamlessly integrates with the UniFi ecosystem, providing centralized management for comprehensive access control solutions in enterprise environments. This manual provides essential information for the setup, operation, and maintenance of your EAH-8 device.

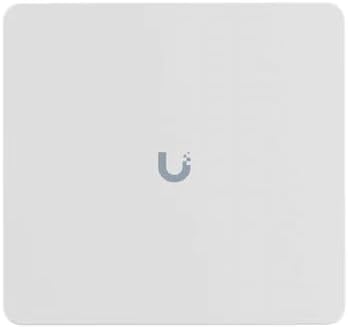

Figure 1: Top view of the EAH-8 Access Hub, showcasing its compact, square design.
Setup and Installation
Follow these steps to properly set up and install your EAH-8 Access Hub:
- Unpack the Device: Carefully remove the EAH-8 and all included components from the packaging. Verify that the Hardware Kit is present.
- Mounting: The EAH-8 is designed for rackmount installation. Securely mount the device in a standard server rack using the provided hardware. Ensure adequate ventilation around the unit.
Figure 2: EAH-8 mounted, illustrating its form factor for installation.
- Power Connection: Connect the EAH-8 to a suitable power source. The device operates on 32 Volts (DC).
- Network Connection: Connect the EAH-8 to your network using an Ethernet cable. This device supports PoE, allowing for power and data transmission over a single cable if your network infrastructure supports it.
- UniFi Integration: Once powered and connected to the network, the EAH-8 can be adopted and managed through your UniFi Controller. Refer to the UniFi documentation for detailed steps on device adoption and initial configuration.
Operating Instructions
The EAH-8 functions as a central control unit for up to 8 doors, managing access permissions and monitoring entry/exit points. Operation is primarily managed through the UniFi Access application within your UniFi Controller.
- Centralized Management: Use the UniFi Access interface to add users, assign access levels, configure door schedules, and monitor real-time access events.
- Door Connectivity: Connect compatible door readers, sensors, and locks to the EAH-8's designated ports. Each port provides PoE for connected devices.
- Event Logging: The system logs all access attempts, successful entries, and denied access events, providing a comprehensive audit trail.
- Remote Access: Manage your access control system remotely via the UniFi Cloud Key or UniFi OS Console, ensuring flexibility and control from anywhere.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your EAH-8 Access Hub:
- Firmware Updates: Regularly check for and apply firmware updates through your UniFi Controller. Updates often include performance improvements, bug fixes, and new features.
- Cleaning: Keep the device clean and free from dust. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or aerosols.
- Environmental Conditions: Ensure the EAH-8 operates within its specified environmental conditions (temperature, humidity) to prevent damage.
- Cable Management: Periodically inspect all connected cables for wear and tear. Ensure connections are secure.
Troubleshooting
If you encounter issues with your EAH-8, consider the following troubleshooting steps:
- Device Not Appearing in UniFi Controller:
- Verify network connectivity (Ethernet cable, network switch).
- Ensure the device is powered on.
- Check firewall settings on your UniFi Controller host.
- Try restarting the EAH-8 and the UniFi Controller.
- Door Not Responding:
- Check the physical connection between the EAH-8 and the door hardware (reader, lock).
- Verify power delivery to the door hardware if it's PoE.
- Confirm access policies and schedules in the UniFi Access application.
- LED Indicators: Refer to the EAH-8's LED status indicators for diagnostic information. Consult the official Ubiquiti documentation for specific LED patterns and their meanings.
Specifications
| Feature | Detail |
|---|---|
| Model Name | EAH-8 |
| Manufacturer | Ubiquiti Networks |
| Brand | Ubiquiti Networks |
| Connectivity Technology | Ethernet |
| Number of Ports | 8 |
| Voltage | 32 Volts (DC) |
| Special Feature | Access Point Mode |
| Included Components | Hardware Kit |
| Color | White |
| ASIN | B0F5BDGYDY |
| UPC | 724129222975 |
| Date First Available | April 17, 2025 |
Warranty and Support
This product is listed as "Renewed" and is offered by "Amazon Renewed". For specific warranty details and support related to renewed products, please refer to the Amazon Renewed program terms and conditions or contact Amazon Renewed customer service directly.
For technical support regarding the Ubiquiti UniFi system and EAH-8 functionality, please visit the official Ubiquiti support website or community forums. Ensure you have your product model and any relevant serial numbers ready when seeking assistance.
