LUTHXAY 52-Inch Floating Single Sink Bathroom Vanity Instruction Manual

1. Important Safety Information

Please observe the following safety precautions during installation and use of this product:

• Always disconnect power before performing any electrical work, such as connecting the LED mirror.
• Ensure all mounting hardware is securely fastened to a structurally sound wall. Consult a professional if unsure about wall integrity.
• Handle glass components, such as the mirror and cabinet doors, with care to prevent breakage and injury.
• Keep small parts and packaging materials away from children to prevent choking hazards.
• Do not overload drawers or cabinets, as this may compromise stability and function.

2. Package Contents

Your LUTHXAY bathroom vanity set is delivered in multiple packages to ensure safe transit. Please verify all components are present before beginning assembly.

• Sink Countertop
• LED Smart Defogging Mirror
• Vanity Cabinet (with drawers and glass striped doors)
• Faucet Fittings (faucet not included, fittings for installation)
• Hardware Components (screws, brackets, drawer slides, hinges)
• Installation Instructions (E-Instructions)

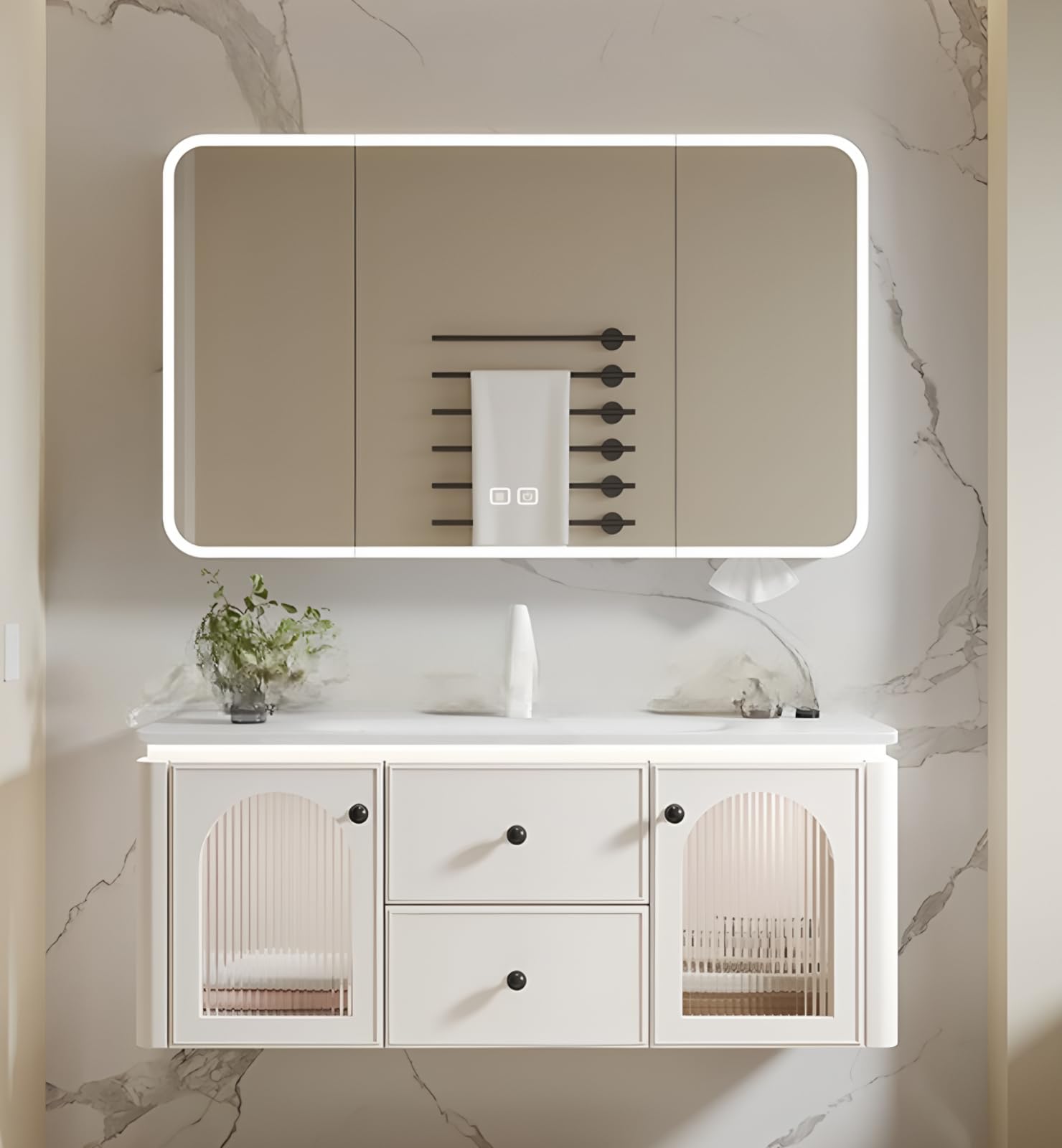

Overall view of the LUTHXAY 52-inch floating bathroom vanity with its integrated LED smart mirror.

3. Setup and Installation

3.1 Pre-Installation Checks

• Inspect all components for damage before assembly. Do not proceed with installation if any parts are damaged.
• Ensure your bathroom wall is suitable for wall-mounted installation and can support the weight of the vanity and its contents.
• For the LED mirror and cabinet lighting, a reserved power outlet is required. Ensure this is in place before installation.

3.2 Dimensions and Placement

The wall-mounted design allows for adjustable installation height. Consider the height of users and existing bathroom fixtures when determining placement.

This diagram illustrates the overall dimensions of the 52-inch floating bathroom vanity and its accompanying LED smart mirror. The vanity measures approximately 52 inches in width, 20 inches in depth, and 21 inches in height. The mirror measures approximately 51 inches in width and 28 inches in height. Note that mirror width can vary (47, 51, 55, 59 inches) and vanity width can vary (48, 52, 56, 60 inches) depending on the specific model.

3.3 Assembly Steps

1. Cabinet Assembly: Follow the provided E-Instructions for assembling the vanity cabinet structure. Ensure all hardware components, including drawer slides and hinges, are correctly installed.
2. Wall Mounting: Securely attach the vanity cabinet to the wall using appropriate mounting hardware. Verify it is level and stable.
3. Sink Countertop Installation: Place the integrated sink countertop onto the vanity cabinet. Ensure a proper seal to prevent water leakage.
4. Mirror Installation: Mount the LED smart mirror above the vanity. Connect the mirror's power supply to the reserved outlet.
5. Faucet Installation: Install your chosen faucet according to the manufacturer's instructions, using the provided faucet fittings.

3.4 Split Shipment Delivery Notice

Large items like this vanity are often delivered in separate packages. A small package containing installation accessories may arrive first. The main vanity components (large crate) will be delivered separately by a freight carrier who will contact you for delivery arrangements.

This diagram explains the split shipment delivery process: a small package with accessories arrives first, followed by the large crate containing the main vanity components, delivered by a freight carrier who will contact you.

4. Operating Instructions

4.1 LED Smart Defogging Mirror

The mirror is equipped with LED lighting and a defogging function for enhanced usability.

• LED Lighting: Touch the designated switch on the mirror surface to turn the LED lights on or off.
• Defogging Function: Activate the defogging function via the touch switch to ensure a clear reflection, especially after hot showers.

This diagram outlines the key features of the smart mirror, including an anti-fog function for clear reflections after showers, integrated LED lighting, and the requirement for a reserved power outlet for both mirror and cabinet lighting.

4.2 Storage Features

The vanity offers various storage options designed for convenience and organization.

This image displays the internal storage capabilities of the vanity, including the main mirror cabinet with multiple partitions for personal care products, soft-close cabinets, storage drawers, and an open shelf area. A tissue holder is also visible under the vanity top.

• Drawers: Utilize the smooth-sliding drawers for storing towels, cleaning supplies, and daily care items. The cushioning and silent function ensures quiet operation.
• Glass Striped Cabinet Doors: The unique glass doors provide semi-transparent storage for items you wish to keep organized yet subtly visible. These also feature soft-close hinges.
• Mirror Cabinet: The mirror cabinet includes multiple partitions for easy organization of frequently used personal care products.
• Integrated Tissue Box: A dedicated tissue box is designed for handy access to tissues.

This image highlights the convenient, integrated tissue box designed for easy access to tissues from beneath the vanity countertop.

A detailed view of the striped glass cabinet door, which offers a blend of light transmission and privacy, contributing to the vanity's elegant design.

5. Maintenance

5.1 Cleaning the Vanity and Sink

• The integrated sink and countertop feature a seamless connection, making them easy to clean and maintain. Wipe surfaces with a soft, damp cloth and mild soap.
• Avoid abrasive cleaners or harsh chemicals that could damage the finish or countertop material.
• The vanity's waterproof surface technology helps protect the wood. Wipe away any spills promptly to prevent water damage.

The image shows water splashing against the vanity, illustrating its waterproof surface technology. This feature helps protect the internal contents of the cabinet from moisture and ensures durability.

5.2 Mirror Care

• Clean the mirror surface with a glass cleaner and a soft, lint-free cloth.
• Do not spray cleaner directly onto the mirror; apply it to the cloth first to prevent liquid from seeping into electrical components.

5.3 Hardware Maintenance

The vanity features mute and smooth wear-resistant hardware accessories.

This image displays the high-quality hardware components: smooth sliding rails for drawers, ensuring durability and quiet operation, and cushioning hinges for cabinet doors, providing a soft-close function.

• Periodically check drawer slides and hinges for smooth operation. Lubricate if necessary with a silicone-based lubricant.
• Ensure all screws and fasteners remain tight. Tighten gently if any looseness is detected.

5.4 Rounded Edge Corners

The vanity is designed with rounded edge corners for safety and aesthetics. Avoid placing heavy or sharp objects on these edges.

A close-up of the vanity's rounded edge corners, designed for enhanced safety and a more elegant aesthetic, helping to prevent accidental bumps.

6. Troubleshooting

6.1 Mirror and Cabinet LED Lights Not Working

• Check Power Connection: Ensure the mirror and cabinet LED lights are properly connected to a functional power socket.
• Verify Outlet Functionality: Test the power outlet with another device to confirm it is supplying power.
• Check Touch Switch: Ensure the touch switch on the mirror is being pressed correctly.
• Reserved Power Outlet: Confirm that a power outlet was reserved and installed correctly during the initial setup for the smart lighting functions.

6.2 Drawers or Doors Not Closing Smoothly

• Check for Obstructions: Remove any items that might be blocking the drawer slides or door hinges.
• Inspect Hardware: Examine drawer slides and hinges for any damage or misalignment.
• Tighten Fasteners: Ensure all screws securing the slides and hinges are tight.
• Lubricate: Apply a small amount of silicone lubricant to the drawer slides and hinges if they are stiff.

7. Specifications

8. Warranty and Support

8.1 Warranty Information

Specific warranty details for your LUTHXAY bathroom vanity are typically provided with your purchase documentation. Please refer to these documents for information regarding coverage, duration, and terms.

8.2 Customer Support

For technical assistance, missing parts, or warranty claims, please contact the seller or LUTHXAY customer service through the platform where the product was purchased. Have your model number (QKC370/L0052SWH) and purchase date ready when contacting support.
