Introduction
Thank you for purchasing the Generic 37 Inch Rectangular Metal Outdoor Wood Burning Fireplace. This manual provides essential information for the safe assembly, operation, and maintenance of your new outdoor fireplace. Please read all instructions carefully before use and retain this manual for future reference.
Important Safety Information
Failure to follow these safety instructions could result in fire, serious injury, or property damage. Always exercise extreme caution when operating any wood-burning appliance.
- Outdoor Use Only: This fireplace is designed for outdoor use only. Do not use indoors or in enclosed spaces.
- Clearance: Maintain a minimum clearance of 10 feet (3 meters) from combustible materials such as buildings, trees, and dry vegetation.
- Stable Surface: Place the fireplace on a flat, level, non-combustible surface.
- Supervision: Never leave a burning fire unattended. Always have an adult supervise children and pets around the fireplace.
- Fuel: Use only seasoned natural wood. Do not use gasoline, kerosene, diesel fuel, lighter fluid, alcohol, or any other accelerants to start or rekindle a fire.
- Extinguishing: Always have a fire extinguisher, garden hose, or bucket of sand/water readily available. Ensure the fire is completely extinguished before leaving the area.
- Hot Surfaces: The fireplace surfaces will become extremely hot during use. Avoid direct contact. Use a poker or heat-resistant gloves to handle logs.
- Ash Disposal: Allow ashes to cool completely before disposing. Dispose of ashes in a metal container with a tight-fitting lid, away from combustible materials.
- Wind Conditions: Do not use in strong winds.
- Protective Cover: Use the provided protective cover only when the fireplace is completely cool.
Package Contents
Please check to ensure all components are present before assembly. If any parts are missing or damaged, contact customer support.
- Fireplace Base Unit (1)
- Firebox/Chimney Top Unit (1)
- Ash Pan (1)
- Fire Grate (1)
- Poker (1)
- Protective Cover (1)
- Assembly Hardware (Screws, Washers, Nuts)
Setup and Assembly
Assembly typically requires two adults. Ensure all parts are accounted for before beginning.
Step 1: Prepare the Base Unit
Place the Fireplace Base Unit on a flat, stable, non-combustible surface. This unit features the integrated log storage area and the slot for the ash pan.
Image: The rectangular base unit with openings for log storage and ash pan access.
Step 2: Install the Fire Grate
Place the Fire Grate inside the Firebox/Chimney Top Unit. Ensure it rests securely on the internal supports. This grate allows for proper airflow and supports the burning logs.
Image: A close-up of the metal fire grate, designed to hold logs above the ash pan.
Step 3: Insert the Ash Pan
Slide the Ash Pan into the designated slot in the Fireplace Base Unit. The ash pan collects embers and ash for easy disposal.

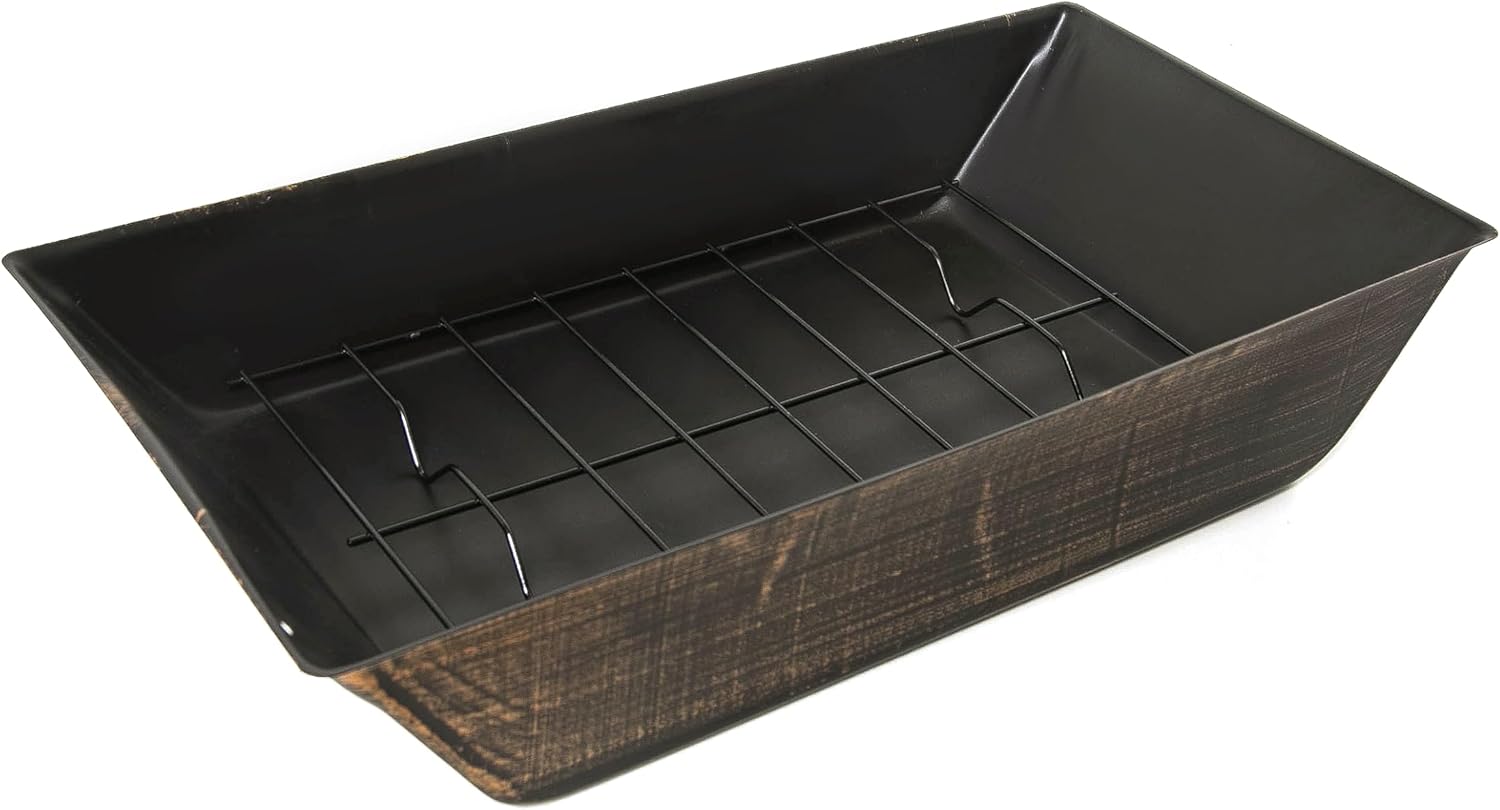

Image: The rectangular metal ash pan, designed to slide into the fireplace base.
Step 4: Attach the Firebox/Chimney Top Unit
Carefully lift the Firebox/Chimney Top Unit and align it with the top of the Fireplace Base Unit. Secure it using the provided assembly hardware (screws, washers, nuts). Ensure all connections are tight and stable.
Image: The upper firebox section with mesh screens, showing the ash pan and grate in place.
Step 5: Final Inspection
Once assembled, ensure the fireplace is stable and all components are securely fastened. The completed unit should resemble the image below.
Image: A full view of the assembled rectangular metal outdoor wood burning fireplace with log storage.
Operating Instructions
1. Preparing for a Fire
- Ensure the fireplace is on a stable, non-combustible surface, away from any flammable materials.
- Check that the ash pan is empty and properly seated.
- Gather seasoned firewood, kindling, and fire starters. Do not use accelerants.
2. Starting a Fire
- Place kindling (small dry wood, paper, or natural fire starters) on the fire grate.
- Arrange small pieces of seasoned firewood on top of the kindling in a pyramid or crisscross pattern.
- Light the kindling. Once the kindling is burning well, gradually add larger pieces of firewood.
- Use the included poker to adjust logs as needed, ensuring proper airflow for a consistent burn.
3. Maintaining the Fire
- Add firewood as needed to maintain the desired flame. Do not overfill the firebox.
- Always use the poker to move logs to avoid burns.
- The mesh screen helps contain sparks, but always remain vigilant.
4. Extinguishing the Fire
- Allow the fire to burn down naturally. Avoid adding new wood when you intend to extinguish the fire.
- Once only embers remain, spread them out to cool faster.
- Use water or sand to thoroughly douse the embers until no smoke or heat is detected.
- Never leave the fireplace unattended until the fire is completely extinguished and cool to the touch.
Maintenance
1. Ash Removal
- After each use, once the fireplace and ashes are completely cool (allow several hours), carefully slide out the ash pan.
- Dispose of ashes in a metal container with a tight-fitting lid, away from any combustible materials.
- Clean the ash pan with a stiff brush if necessary.
2. Cleaning
- Wipe down the exterior surfaces with a damp cloth. Avoid abrasive cleaners that could damage the finish.
- Periodically inspect the mesh screens for any damage or blockages.
3. Storage
- When not in use, especially during inclement weather or off-season, cover the fireplace with the provided protective cover.
- Store in a dry, sheltered location to prolong the life of the product.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Difficulty starting fire | Wet wood, insufficient kindling, poor airflow | Use dry, seasoned wood. Ensure adequate kindling. Arrange wood to allow airflow. |
| Excessive smoke | Wet wood, insufficient airflow, chimney blockage | Use dry wood. Adjust logs for better airflow. Check chimney for obstructions (when cool). |
| Sparks escaping | Very dry wood, strong winds, damaged mesh screen | Avoid using extremely dry or resinous wood. Do not use in strong winds. Inspect and repair/replace damaged mesh. |
| Fire goes out quickly | Insufficient fuel, poor airflow | Add more wood. Ensure logs are arranged to allow air circulation. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | B0F59X72NM |
| Material | Alloy Steel |
| Product Dimensions (D x W x H) | 32.28" x 17.72" x 37" |
| Item Weight | 31 Pounds |
| Color | Antique Brass |
| Fuel Type | Wood |
| Shape | Rectangular |
Warranty and Support
This product is manufactured by QiMaieeUSA. For warranty information or customer support, please refer to the retailer's return policy or contact the manufacturer directly.
Return Policy: This product typically has a 30-day return/replacement policy. Please check with your retailer for specific terms and conditions.
For further assistance, please visit the product page on Amazon or contact the seller "QiMaieeUSA" through the Amazon platform.
