EuropAce ECO7208DWH Air Cooler + Turbo Blower Instruction Manual

1. Important Safety Instructions

Please read all instructions carefully before using this appliance and retain for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Always ensure the appliance is placed on a stable, flat surface to prevent tipping.
• Do not immerse the appliance, cord, or plug in water or other liquids.
• Unplug the appliance from the power outlet when not in use, before filling or emptying the water tank, and before cleaning.
• Keep the appliance out of reach of children and pets.
• Do not operate the appliance with a damaged cord or plug, or if the appliance malfunctions or has been damaged in any manner.
• Do not block air inlets or outlets. Ensure adequate space around the unit for proper airflow.
• Use only clean water in the water tank. Do not add any chemicals or additives.
• This appliance is for indoor residential use only.

2. Product Overview

The EuropAce ECO7208DWH is a versatile 2-in-1 air cooler and turbo blower designed for efficient indoor cooling. It features a large 20-liter water tank for extended operation and comes with a remote control for convenient adjustments.

Key Features:

• 2-in-1 Air Cooler and Turbo Blower for fast cooling.
• Large 20-liter water tank for long-lasting, continuous cooling.
• Includes a remote control for easy operation.
• Compact design with strong airflow, suitable for bedrooms and living rooms.
• Built-in ionizer and humidifying function.
• LED control panel with 3 speeds, 3 modes, and a 24-hour timer.
• Low water alarm for user convenience.

Components:

• EuropAce ECO7208DWH Air Cooler Unit
• Remote Control
• Instruction Manual (this document)

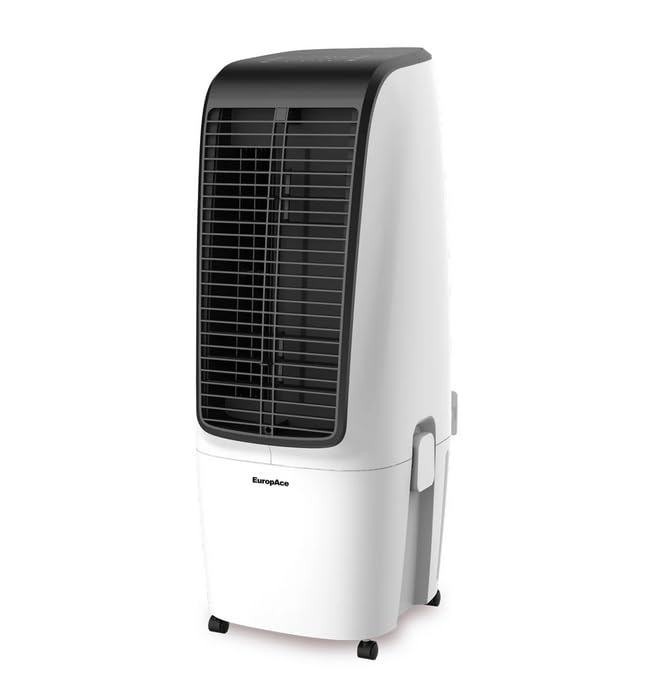

Figure 2.1: Front view of the EuropAce ECO7208DWH Air Cooler.

3. Setup

Follow these steps to set up your air cooler for the first time:

1. Unpacking: Carefully remove the air cooler and all accessories from the packaging. Retain the packaging for future storage or transport.
2. Placement: Place the air cooler on a firm, level surface. Ensure there is at least 20 cm of clear space around the unit for optimal air circulation. Do not place it near curtains or other objects that could obstruct airflow.
3. Fill Water Tank: Pull out the water tank from the bottom rear of the unit. Fill the tank with clean, cool water up to the 'MAX' level indicator. Do not overfill. Push the water tank back into place securely.
4. Connect Power: Plug the power cord into a standard 240V AC electrical outlet. Ensure the power outlet is easily accessible.

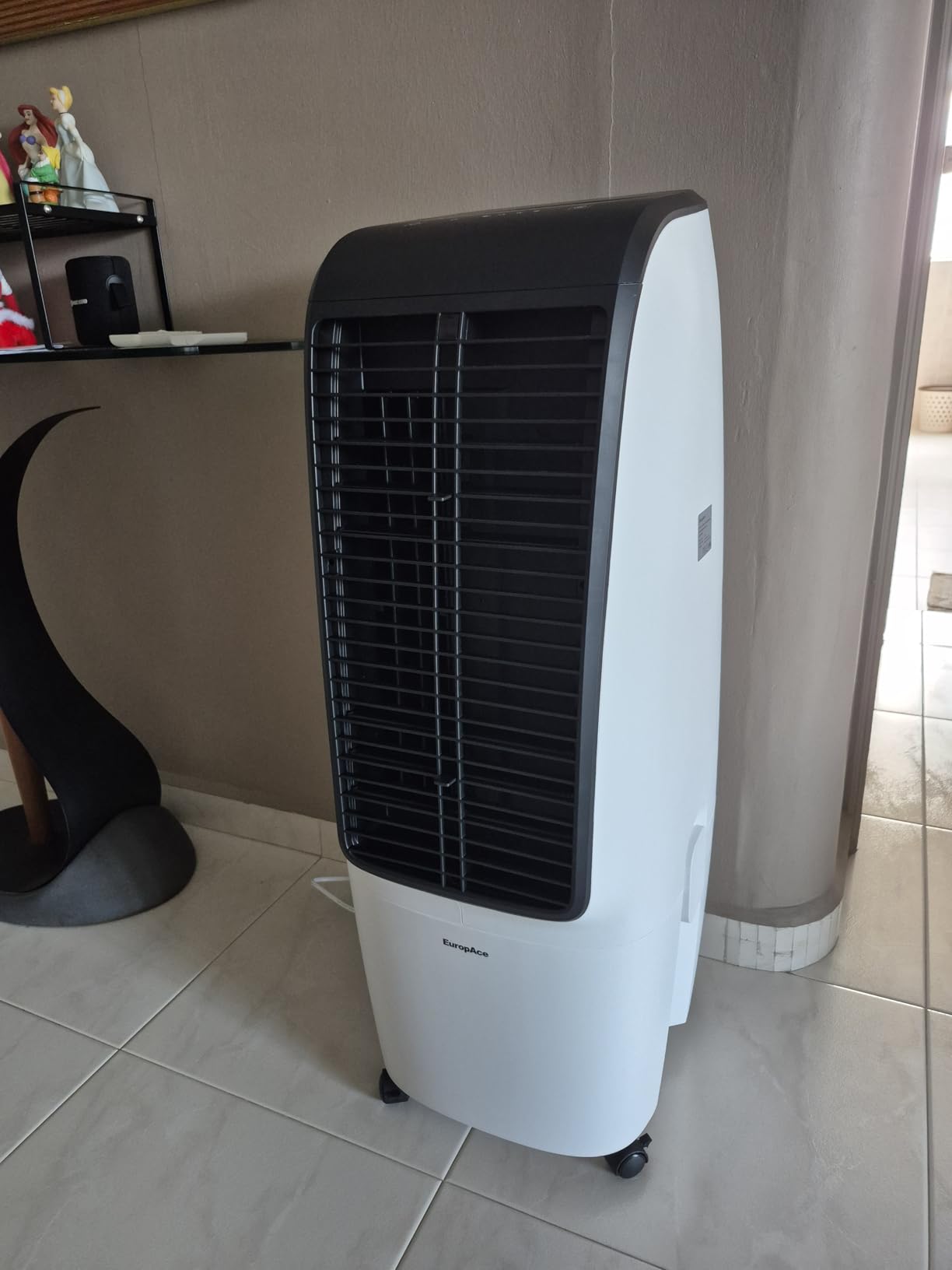

Figure 3.1: Example of proper placement for the air cooler in a room.

4. Operating Instructions

Your EuropAce ECO7208DWH Air Cooler can be operated using the control panel on the unit or the included remote control.

4.1 Control Panel and Remote Control Functions:

The LED control panel displays current settings. The remote control duplicates most functions for convenience.

• Power Button (ON/OFF): Press to turn the unit on or off.
• Speed Button: Cycles through 3 fan speeds: Low, Medium, High.
• Mode Button: Selects between 3 operating modes: Normal, Natural, Sleep.
• Cool Button: Activates or deactivates the cooling function (water pump).
• Swing Button (OSC): Activates or deactivates the oscillation function for wider air distribution.
• Timer Button: Sets the operating timer from 1 to 24 hours. The unit will automatically turn off after the set time.
• Ionizer Button: Activates or deactivates the built-in ionizer for air purification.

4.2 Low Water Alarm:

The unit is equipped with a low water alarm. When the water level in the tank is too low, an indicator will light up on the control panel, and an audible alert may sound. Refill the water tank promptly to continue the cooling function.

5. Maintenance and Cleaning

Regular maintenance ensures optimal performance and extends the lifespan of your air cooler.

5.1 General Cleaning:

• Before cleaning, always unplug the power cord from the outlet.
• Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Ensure no water enters the control panel or other electrical components.

5.2 Water Tank Cleaning:

• Empty the water tank regularly, especially if the unit will not be used for an extended period.
• Remove the water tank and clean it with a mild detergent and water. Rinse thoroughly to remove any residue.
• Allow the tank to air dry completely before reinserting it into the unit.

5.3 Filter Cleaning:

• The air cooler is equipped with a dust filter and cooling pads. These should be cleaned periodically, depending on usage and air quality.
• Refer to the diagrams in the full user manual for instructions on how to access and remove the filter and cooling pads.
• Wash the filter and cooling pads with clean water. For stubborn dirt, use a soft brush.
• Allow them to dry completely before reinstalling.

5.4 Storage:

When storing the air cooler for a long period, ensure the water tank is empty and clean, and all filters are dry. Store the unit in a cool, dry place, preferably in its original packaging.

6. Troubleshooting

If you encounter issues with your air cooler, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact customer support.

7. Specifications

Detailed technical specifications for the EuropAce ECO7208DWH Air Cooler:

8. Warranty and Support

8.1 Product Warranty:

This EuropAce ECO7208DWH Air Cooler comes with a 2-Year Full Warranty and an additional 3-Year Motor Warranty. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects under normal use conditions.

8.2 Customer Support:

For technical assistance, service requests, or any questions regarding your product, please contact EuropAce customer support:

• Website: www.europace.com.sg
• Email: support@europace.com.sg
• Phone: Please refer to the EuropAce website for local contact numbers.

When contacting support, please have your model number (ECO7208DWH) and purchase date ready.
