YedaHcy 25A Waterproof ESC Instruction Manual

1. Product Overview

This manual provides essential information for the proper installation, operation, and maintenance of your YedaHcy 25A Waterproof Electric Speed Controller (ESC). This ESC is designed for 1/16, 1/18, and 1/20 scale RC cars, offering reliable performance for brushless motor setups.

Key Features:

• Strong current resistance and excellent heat dissipation for stable performance.
• Integrated protection features: low-voltage cut-off, overheating protection, and motor stall protection.
• Wide compatibility with 1/16, 1/18, and 1/20 RC cars.
• Provides excellent starting, acceleration, and linear characteristics.
• Waterproof and dustproof design for extended durability in various environments.
• Easy programming and compatibility with pocket program cards.

Image 1.1: The YedaHcy 25A Waterproof ESC, showing its compact design and various connection wires.

2. Safety Precautions

Please read and understand all safety warnings before operating this product. Failure to do so may result in injury or damage to the product or other equipment.

• Always disconnect the battery from the ESC when not in use to prevent accidental operation.
• Ensure all connections are secure and correctly polarized before applying power. Incorrect connections can damage the ESC and other components.
• Keep the ESC away from heat sources and direct sunlight to prevent overheating.
• When operating in water, ensure the cooling fan (if present and removable) is detached. After use in water, immediately clean and dry the ESC to prevent connector corrosion.
• Do not attempt to modify or disassemble the ESC. This will void the warranty and may cause malfunction.
• This product is not a toy. Keep out of reach of small children. Recommended age for use is 4 years and up.

3. Package Contents

Verify that all items are present in the package:

• 1 x YedaHcy 25A Waterproof Electric Speed Controller
• 1 x Instruction Manual

4. Setup and Installation

Follow these steps to properly install the ESC in your RC vehicle:

1. Mounting the ESC: Securely mount the ESC in your RC car chassis using double-sided tape or other appropriate mounting hardware. Ensure it is in a location with good airflow if possible, though the ESC has excellent heat dissipation.
2. Motor Connection: Connect the three motor wires from the ESC to your brushless motor. The order of connection may affect motor rotation direction. If the motor spins in the wrong direction, swap any two of the three motor wires. This ESC is compatible with sensorless brushless motors.
3. Receiver Connection: Connect the small signal cable from the ESC to the throttle channel (usually channel 2) on your RC receiver. Ensure the polarity is correct (signal, positive, negative).
4. Battery Connection: Connect your battery pack to the battery input wires of the ESC. This ESC supports 2S Lipo or 4-6 Cell NiMH/NiCd batteries. Ensure the battery connector matches the ESC's connector (e.g., T-plug).

Image 4.1: Close-up view of the battery connector (red) and receiver signal cable (black, white, red wires) on the ESC.

Image 4.2: Side view of the ESC illustrating the various wire connections for motor, battery, and receiver.

5. Operating Instructions

Once the ESC is correctly installed and connected, follow these steps for operation:

1. Transmitter Setup: Ensure your RC transmitter is properly bound to the receiver and the throttle trim is set to neutral.
2. Power On: Turn on your RC transmitter first, then connect the battery to the ESC. The ESC will emit a series of beeps indicating successful initialization.
3. Throttle Calibration (if needed): If the ESC does not respond correctly to throttle input, you may need to calibrate the throttle range. Refer to your transmitter's manual for throttle calibration procedures.
4. Driving: You can now operate your RC vehicle. The ESC provides excellent starting, acceleration, and linear throttle characteristics.
5. Power Off: Always disconnect the battery from the ESC first, then turn off your RC transmitter.

Programming: This ESC is compatible with pocket program cards for easy adjustment of settings. Refer to the program card's manual for detailed programming instructions.

6. Maintenance

Proper maintenance will ensure the longevity and optimal performance of your ESC:

• Cleaning: Regularly clean the ESC to remove dirt, dust, and debris. Use a soft brush or compressed air.
• Water Exposure: While the ESC is waterproof, it is crucial to clean and dry it immediately after use in wet conditions to prevent corrosion of connectors and other exposed metal parts. If a cooling fan is used, remove it before water exposure and reattach only after the ESC is completely dry.
• Inspection: Periodically inspect all wires and connectors for signs of wear, damage, or loose connections.
• Storage: Store the ESC in a dry, cool place away from direct sunlight and extreme temperatures.

7. Troubleshooting

If you encounter issues with your ESC, refer to the following common problems and solutions:

8. Specifications

Detailed technical specifications for the YedaHcy 25A Waterproof ESC:

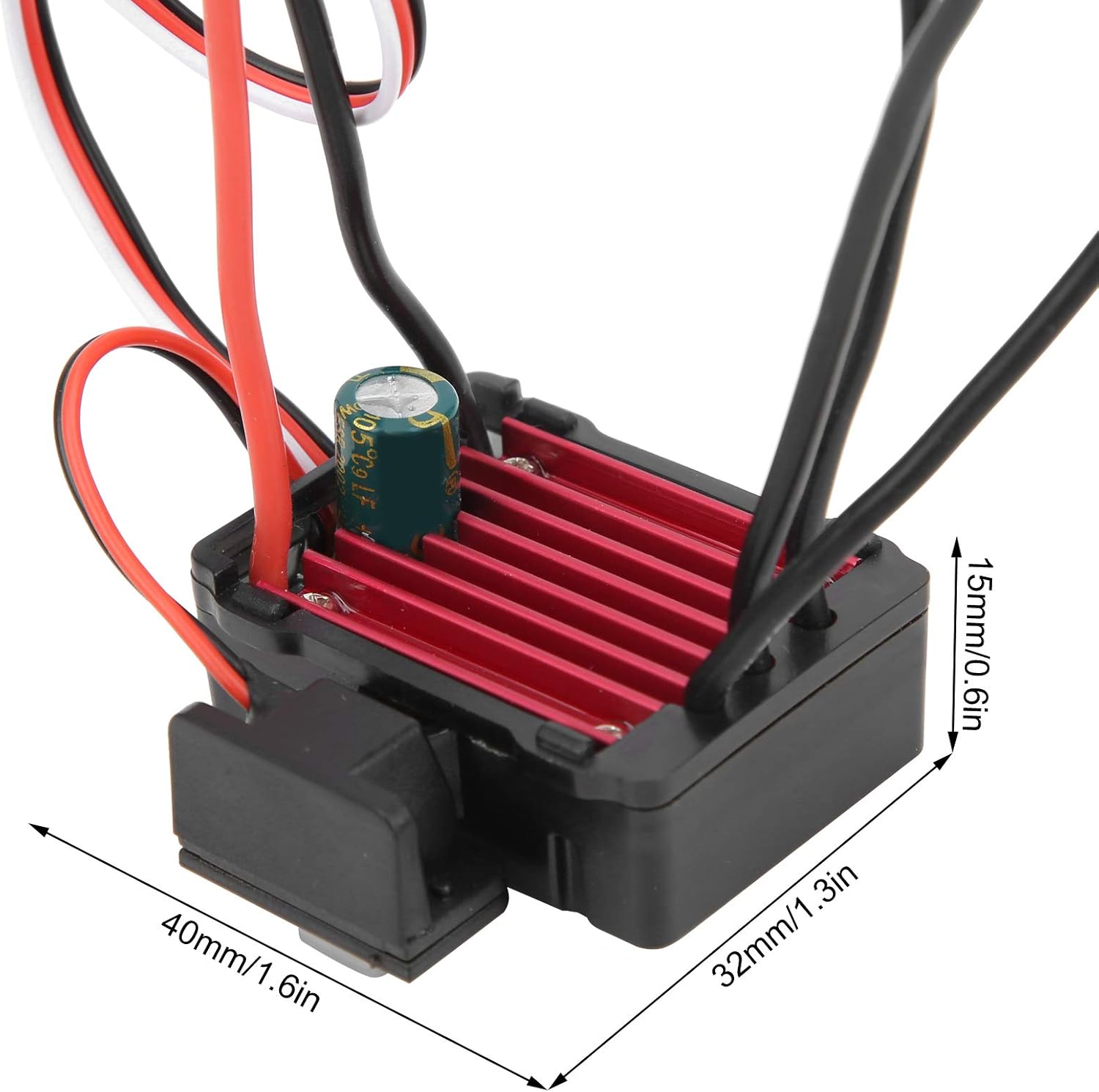

Image 8.1: Dimensions of the YedaHcy 25A Waterproof ESC.

9. Warranty and Support

For warranty information or technical support, please contact the manufacturer, YedaHcy, through your retailer or their official support channels. Keep your purchase receipt as proof of purchase.
