Doredo Vertical Charcoal Smoker 15.9 Inch Instruction Manual

Introduction

Thank you for choosing the Doredo Vertical Charcoal Smoker. This manual provides essential information for the safe assembly, operation, and maintenance of your new smoker. Please read all instructions carefully before use to ensure optimal performance and safety.

Image: The Doredo 15.9 Inch Vertical Charcoal Smoker, showcasing its compact design and black finish.

Safety Information

• Do not move the barbecue grill while it is being heated or in use. Always allow the smoker to cool completely before attempting to move it.
• This product is not intended for use by children alone. Adult supervision is required at all times when the smoker is in operation or accessible to children.
• Use the smoker outdoors only, in a well-ventilated area, away from combustible materials.
• Always use heat-resistant gloves when handling hot components.
• Ensure the smoker is placed on a stable, level, non-combustible surface.

Package Contents

The package includes the following components:

• 1 x Doredo Vertical Charcoal Smoker unit
• 2 x Detachable Grill Racks
• 1 x Charcoal Pan
• 1 x Water Pan
• Assembly hardware (screws, etc.)

Specifications

Setup and Assembly

The Doredo Vertical Charcoal Smoker is designed for easy assembly without the need for special tools. Simply hand-tighten the screws to secure the components.

1. Unpack all components and verify against the package contents list.
2. Attach the sturdy metal legs to the base of the smoker unit. Ensure they are securely fastened.
3. Insert the charcoal basin into the lower section of the smoker.
4. Place the water pan above the charcoal basin.
5. Position the two detachable grill racks in the upper cooking chamber as desired.
6. Ensure all doors close properly and handles are securely attached.

Image: An exploded view showing the dimensions and key assembly points, including hand-tightened screws and sturdy tray holders.

Operating Instructions

1. 2-in-1 Functionality

This smoker offers versatile cooking options:

• With the door open: Use as a traditional charcoal barbecue for grilling.
• With the door closed: Use as a vertical smoker for slow cooking and infusing smoky flavors.

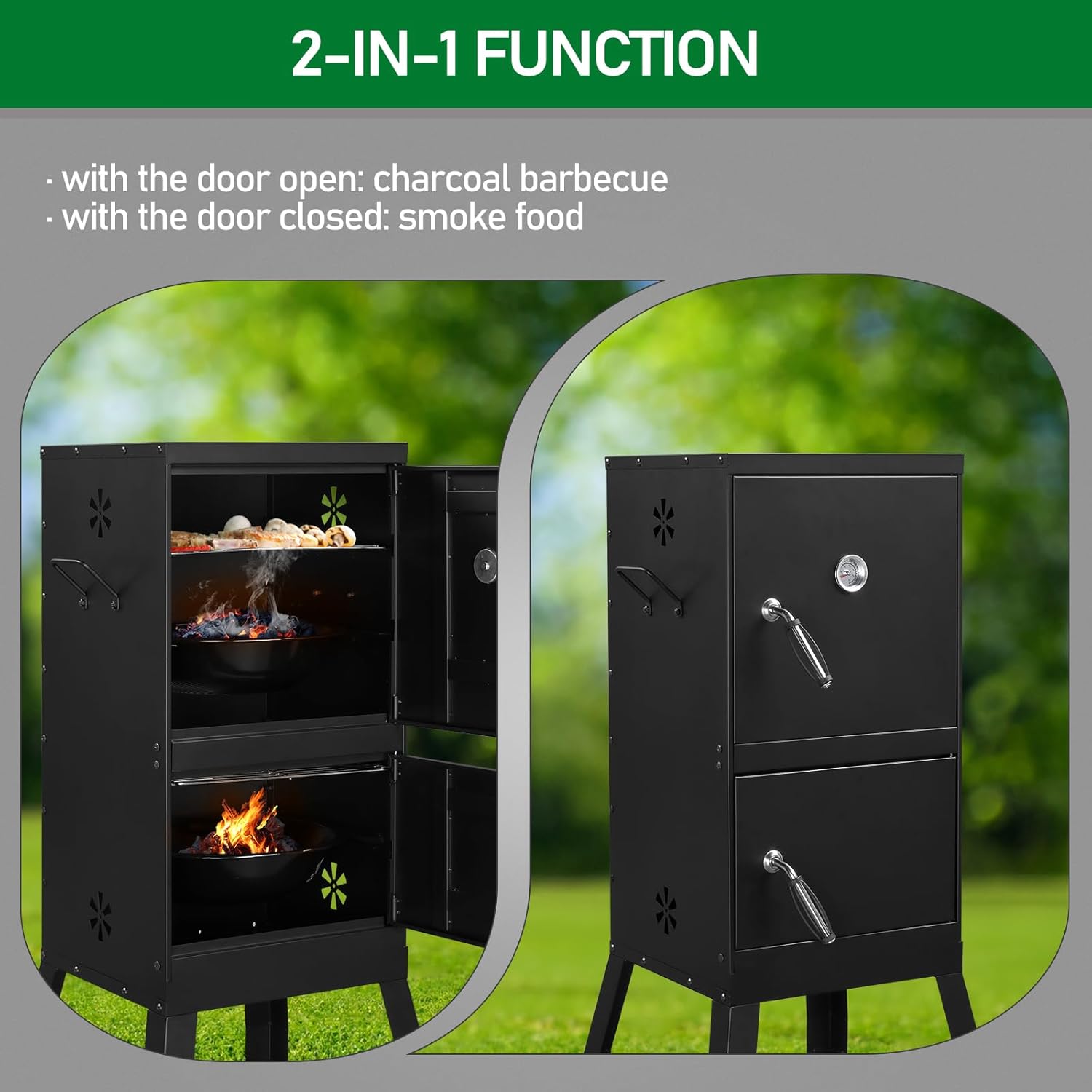

Image: The smoker demonstrating its dual functionality: open doors for direct grilling and closed doors for smoking.

2. Fueling and Ignition

Place charcoal in the charcoal pan. For smoking, you may add wood chips directly onto the charcoal. Ignite the charcoal using appropriate starter methods. Never use gasoline or kerosene to ignite charcoal.

3. Temperature Control

The smoker is equipped with a built-in thermometer and four adjustable air vents for precise temperature management.

• Thermometer: Monitor the internal temperature of the cooking chamber using the integrated thermometer on the door.
• Air Vents: Adjust the four air vents to control airflow. More open vents increase oxygen flow, leading to higher temperatures. Closing vents restricts airflow, lowering the temperature.

Image: Close-up of the intuitive thermometer and the four adjustable vents, crucial for temperature control.

4. Loading Food

Utilize the two detachable grill racks to arrange your food. The spacious design accommodates various items such as steaks, ribs, kebabs, whole chickens, and seafood.

Image: Examples of different foods like steaks, ribs, and chicken being prepared in the smoker, highlighting its versatility.

5. Adding Fuel During Operation

The dual-door design allows you to add charcoal or wood chips to the lower chamber without opening the main cooking chamber. This minimizes heat and smoke loss, maintaining a consistent cooking environment.

Maintenance

Regular cleaning and maintenance will extend the life of your smoker and ensure safe operation.

• Cleaning Grill Racks: The chromium-plated grill racks are machine washable. Allow them to cool, then remove and clean with warm soapy water or in a dishwasher.
• Ash Removal: After each use and once the smoker has completely cooled, remove the charcoal pan and dispose of ash safely.
• Exterior Cleaning: Wipe down the exterior with a damp cloth. Avoid abrasive cleaners that could damage the protective coating.
• Storage: Store the smoker in a dry, covered area when not in use to protect it from weather elements.

Troubleshooting

If you encounter issues with your Doredo Vertical Charcoal Smoker, consider the following:

• Difficulty Reaching Desired Temperature:
  • Ensure all four air vents are sufficiently open to allow adequate oxygen flow to the charcoal.
  • Check the amount and quality of charcoal. Add more charcoal if needed.
  • Verify that the doors are properly sealed to prevent heat loss.
  • Consider external factors like wind or ambient temperature, which can affect heat retention.
• Excessive Smoke:
  • Ensure proper airflow by adjusting the vents.
  • Use dry wood chips; wet chips can produce more smoke.
• Food Not Cooking Evenly:
  • Ensure consistent temperature throughout the cooking process.
  • Avoid overcrowding the grill racks.
  • Rotate food periodically for even exposure to heat and smoke.

Warranty and Support

Doredo stands behind the quality of its products. Your Vertical Charcoal Smoker comes with:

• 1-Year Warranty: Covers manufacturing defects from the date of purchase.
• 30-Day Return Policy: For returns or exchanges, please refer to your purchase platform's policy.
• Customer Service: For any concerns or assistance, please contact our professional customer service team. We are available 24/7 to address your inquiries promptly. Refer to your purchase documentation for contact details.
