HOMMOW 10x13 Gazebo with Adjustable Galvanized Steel Roofs

1. Introduction

This manual provides essential information for the safe assembly, operation, and maintenance of your HOMMOW 10x13 Gazebo. This outdoor shelter features adjustable galvanized steel roofs and a robust all-aluminum frame, designed to enhance your patio or outdoor living space. Its versatile design allows for customizable shade, airflow, and protection against various weather conditions.

Figure 1: HOMMOW 10x13 Gazebo in an outdoor setting.

2. Safety Information

Important Safety Guidelines:

• Assembly may require careful handling of parts.
• Ensure proper water drainage to prevent accidents or damage.
• Always follow manufacturer's instructions for safe use and maintenance.
• Verify all connections are secure after assembly and periodically thereafter.
• Do not climb on the gazebo structure.
• In extreme weather conditions (e.g., heavy snow, hurricanes), consider disassembling or taking additional precautions to secure the gazebo.

3. Package Contents

Your HOMMOW Gazebo ships in multiple boxes. Before beginning assembly, ensure all parts are present and undamaged by comparing them against the packing list provided in your product packaging. The main components include:

• Aluminum frame components (posts, beams, connectors)
• Galvanized steel roof panels
• Assembly hardware (screws, bolts, washers, tools)
• Instruction manual

4. Setup and Assembly

Assembly of the HOMMOW Gazebo typically requires two individuals. Follow the step-by-step instructions provided in your package. The process generally involves:

1. Unpacking and identifying all components.
2. Assembling the main aluminum frame structure.
3. Attaching the galvanized steel roof panels.
4. Securing the gazebo to a stable surface (e.g., concrete patio, wooden deck) using appropriate anchors.

Figure 2: Detail of the sturdy aluminum frame construction.

Assembly Videos

Refer to the following videos for visual guidance during assembly:

5. Operating Instructions

Adjustable Roof Panels

Your gazebo features two independently adjustable galvanized steel roof panels. These panels can be controlled manually to achieve your desired level of shade and airflow. You can:

• Open the roof: To enjoy the night sky or maximum sunlight.
• Partially adjust: For a balanced mix of shade and natural light.
• Fully close: For complete shade and protection from rain.

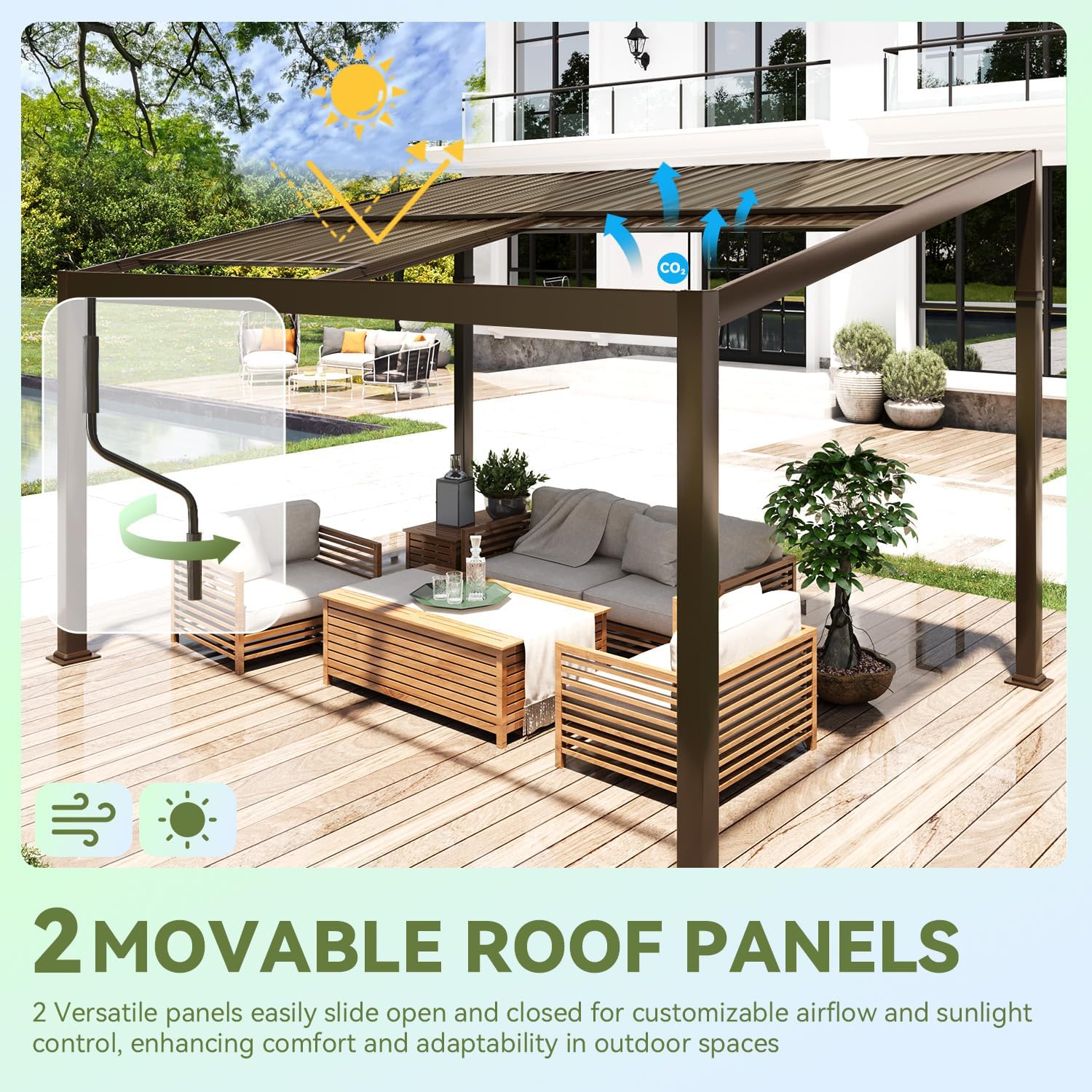

Figure 3: Gazebo illustrating the two independently adjustable roof panels.

Water Drainage System

The sloped roof design, combined with integrated gutters, efficiently channels rainwater away from the structure. This prevents water accumulation on the roof and keeps the area beneath the gazebo dry.

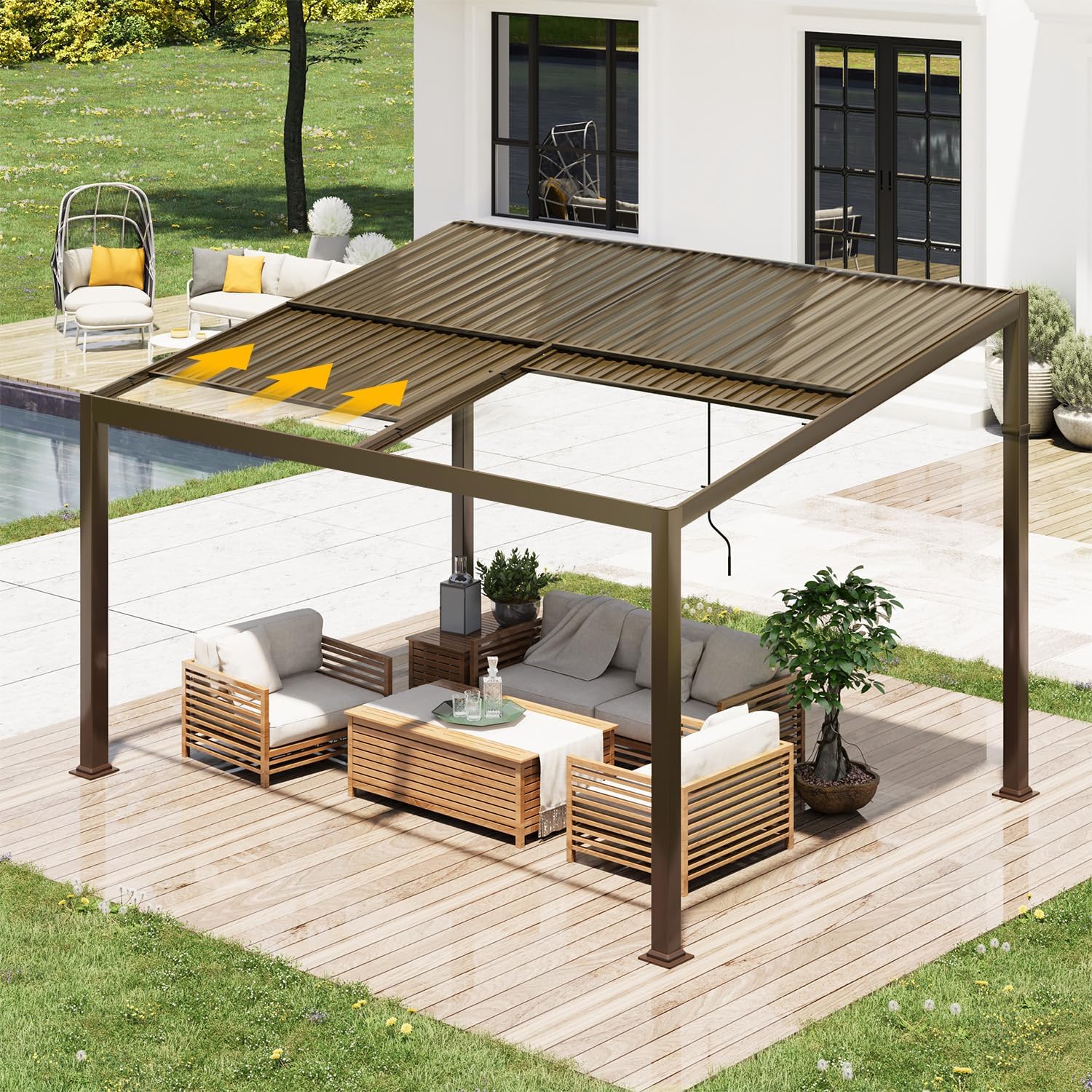

Figure 4: Sloped roof with integrated gutters for effective water management.

6. Maintenance

Regular maintenance will prolong the life and appearance of your gazebo.

• Cleaning: Clean the galvanized steel roof panels and aluminum frame periodically with mild soap and water. Avoid abrasive cleaners that could damage the finish.
• Fasteners: Periodically check all bolts and screws to ensure they remain tight and secure. Tighten any loose fasteners to maintain structural integrity.
• Drainage: Keep gutters clear of debris (leaves, twigs) to ensure proper water flow.
• Weather Protection: While designed to withstand winds up to 60 MPH, consider additional securing measures or temporary disassembly in anticipation of severe weather conditions.

Figure 5: Gazebo designed for all-weather use, from sunny days to snowy conditions.

7. Troubleshooting

If you encounter any issues with your gazebo, consider the following:

• Stability Issues: Ensure all frame connections are tight and the base is securely anchored to the ground or deck.
• Water Leakage: Check that roof panels are correctly installed and overlapping as per instructions, and that gutters are free of blockages.
• Difficulty Adjusting Roof: Inspect the manual crank mechanism for any obstructions or damage.

For persistent problems, refer to the contact information in the Warranty and Support section.

8. Specifications

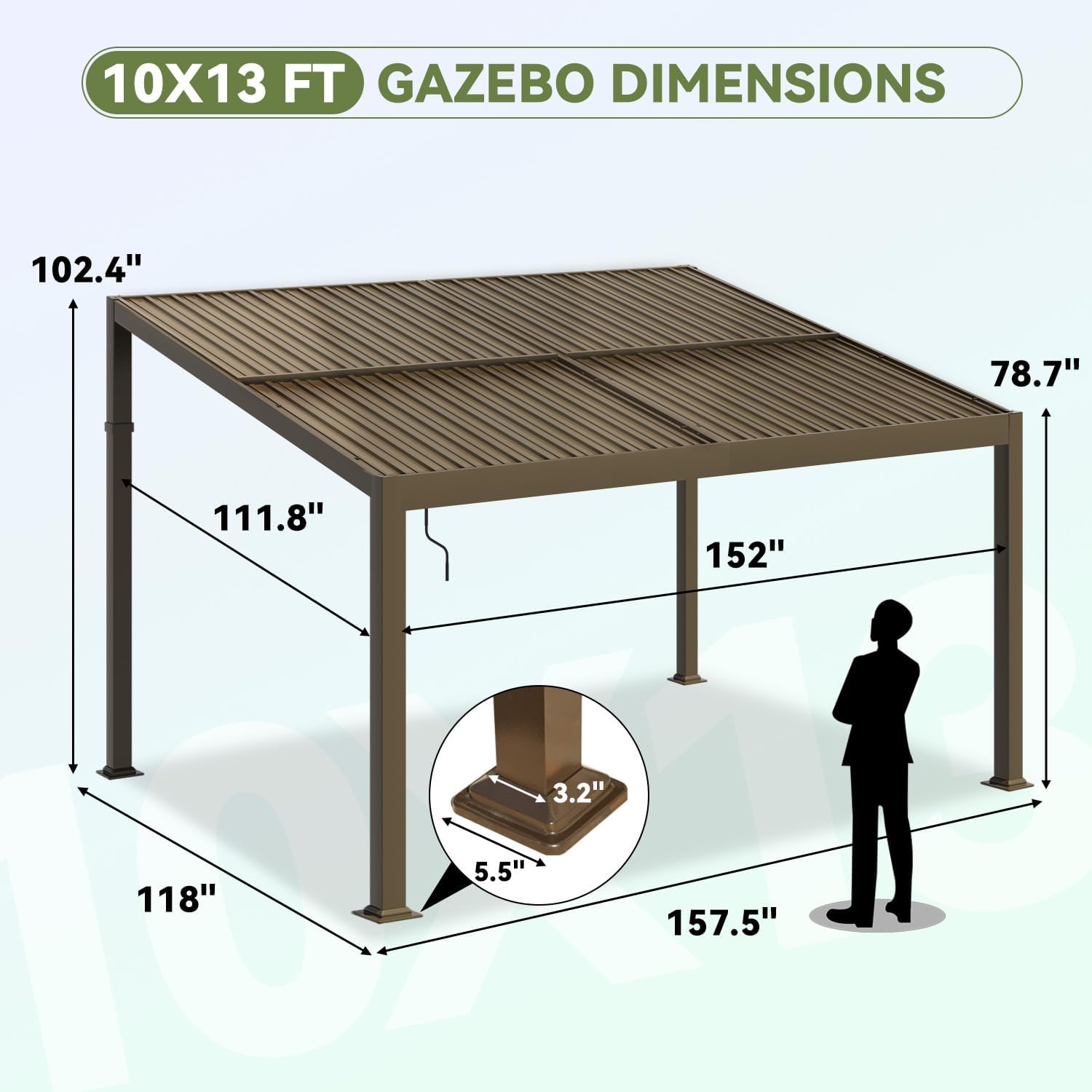

Figure 6: Gazebo dimensions.

9. Warranty and Support

For warranty information, technical support, or replacement parts, please refer to the contact details provided in your product packaging or visit the official HOMMOW website. Keep your purchase receipt as proof of purchase.
